52.0MHZCFPV-60B datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 52.0MHZCFPV-60B

52.0MHZCFPV-60B: DescriptionVCXO, CLOCK, 52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size466KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric Compare View All

52.0MHZCFPV-60B Overview

VCXO, CLOCK, 52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN

52.0MHZCFPV-60B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	100%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.2mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

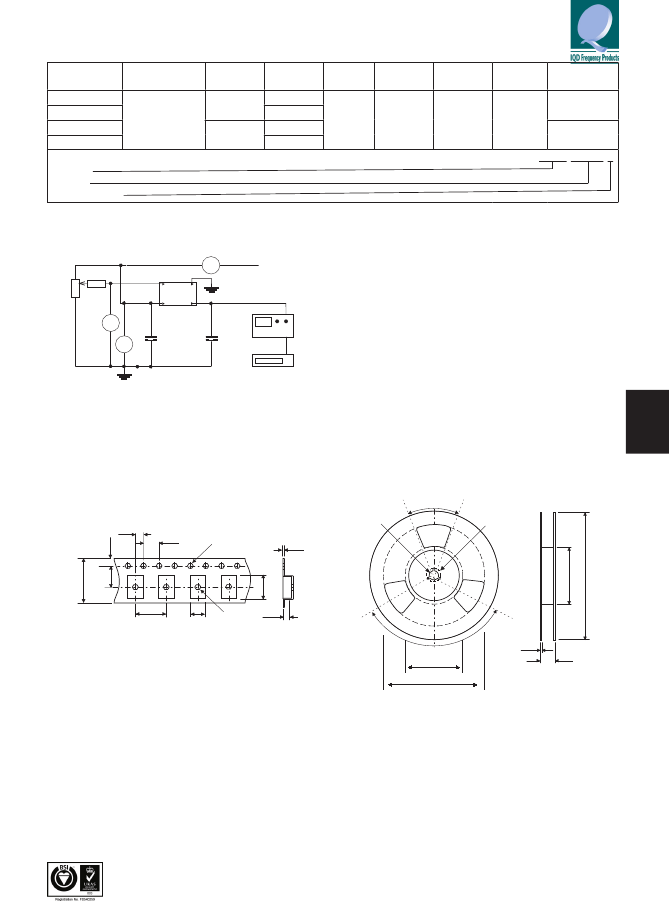

CFPV-59, -60 SMD VCXOs

ISSUE 3; 1 NOVEMBER 2008 - RoHS 2002/95/EC

Description

Outline (mm)

5.0±0.2

Pad Connections

1. Voltage Control

2. GND

3. GND or N/C

4. Output

5. +Vs

6. Enable/Disable

▪

3.2±0.2

A range of surface mount voltage controlled oscillators

(VCXOs) in a hermetically sealed ceramic package

5 x 3.2mm

2 to 52MHz

HCMOS

Drive Capability: 15pF max

Package Outline

Frequency Range

Output Compatibility & Load

1.2±0.1

Solder pad layout

0.8

1 2

5 4

2.54

3.5

0.15

0.8

1.0

Frequency Stabilities

±25ppm, ±50ppm, ±100ppm (inclusive of frequency

tolerance, stability over temperature range, ±5% load

variation and ±5% supply voltage variation)

–10 to 70°C

–40 to 85°C

Logic ‘1’ (>70%Vs) to pad 6 enables oscillator output

Logic ‘0’ (<30%Vs) to pad 6 disables oscillator output; when

disabled the oscillator ouput goes to the high impedance

state.

No connection to pad 6 enables oscillator output

3.3V CFPV-59

5.0V CFPV-60

1.65V±1.5V (CFPV-59)

2.5V ±2.0V (CFPV-60)

±100ppm min

Positive < ±10%

100k

typ.

>20kHz

–65dBc/Hz @ 10Hz

–98dBc/Hz @ 100Hz

–125dBc/Hz @ 1kHz

–135dBc/Hz @ 10kHz

–145dBc/Hz @ 100kHz

1.5

Operating Temperature Range

Storage Temperature Range

VCXOs

Output Waveform

+Vs

80%Vs

50%Vs

Tri-state operation

▪

20%Vs

Supply Voltage

Duty cycle = t x 100(%)

Voltage Control (pad 1)

Marking Includes

Pullability

Linearity

Input Impedance Voltage Control (pad 1)

Modulation Bandwidth

▪

Model Number + Frequency

Bulk or Tape & Reel

Frequency + Operating Temperature Code (if applicable) +

Model Number + Frequency Stability

Packaging

Minimum Order Information Required

Phase Noise (max)

IQD Frequency Products Ltd, Station Road, Crewkerne, Somerset TA18 8AR, United Kingdom

Tel: +44 (1460) 270200; Fax: +44 (1460) 72578;

Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com

1.1 1.5 1.1

1.7

1.0

52.0MHZCFPV-60B Related Products

	52.0MHZCFPV-60B	52.0MHZCFPV-59B	2.0MHZCFPV-59B	2.0MHZCFPV-60B	3.0MHZCFPV-60B	FREQCFPV-60B	FREQCFPV-59B
Description	VCXO, CLOCK, 52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN	VCXO, CLOCK, 52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN	VCXO, CLOCK, 2 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN	VCXO, CLOCK, 2 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN	VCXO, CLOCK, 3 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN	VCXO, CLOCK, 2 MHz - 52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN	VCXO, CLOCK, 2 MHz - 52 MHz, HCMOS OUTPUT, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC, SMD, 6 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL; BULK
Maximum control voltage	4.5 V	3.15 V	3.15 V	4.5 V	4.5 V	4.5 V	3.15 V
Minimum control voltage	0.5 V	0.15 V	0.15 V	0.5 V	0.5 V	0.5 V	0.15 V
maximum descent time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO
Frequency offset/pull rate	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm	100 ppm
frequency stability	100%	100%	100%	100%	100%	100%	100%
linearity	10%	10%	10%	10%	10%	10%	10%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF	15 pF
physical size	5.0mm x 3.2mm x 1.2mm	5.0mm x 3.2mm x 1.2mm	5.0mm x 3.2mm x 1.2mm	5.0mm x 3.2mm x 1.2mm	5.0mm x 3.2mm x 1.2mm	5.0mm x 3.2mm x 1.2mm	5.0mm x 3.2mm x 1.2mm
longest rise time	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns	5 ns
Maximum supply voltage	5.25 V	3.465 V	3.465 V	5.25 V	5.25 V	5.25 V	3.465 V
Minimum supply voltage	4.75 V	3.135 V	3.135 V	4.75 V	4.75 V	4.75 V	3.135 V
Nominal supply voltage	5 V	3.3 V	3.3 V	5 V	5 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %	40/60 %
Nominal operating frequency	52 MHz	52 MHz	2 MHz	2 MHz	3 MHz	-	-
Base Number Matches	1	1	1	1	1	1	-
