BLSMD10-06-860-U

Description
Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector
File Size155KB,1 Pages
ManufacturerMPE-Garry GmbH
Environmental Compliance
Download Datasheet Parametric View All

BLSMD10-06-860-U Overview

Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

BLSMD10-06-860-U Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMPE-Garry GmbH
Reach Compliance Codecompliant
Is SamacsysN
Other featuresROHS COMPLIANT
body width0.1 inch
subject depth0.339 inch
body length0.6 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleRND PIN-SKT
Dielectric withstand voltage1400VAC V
insulator materialTHERMOPLASTIC
JESD-609 codee3
Manufacturer's serial number431
Plug contact pitch0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing2.1082 mm
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts6
Base Number Matches1

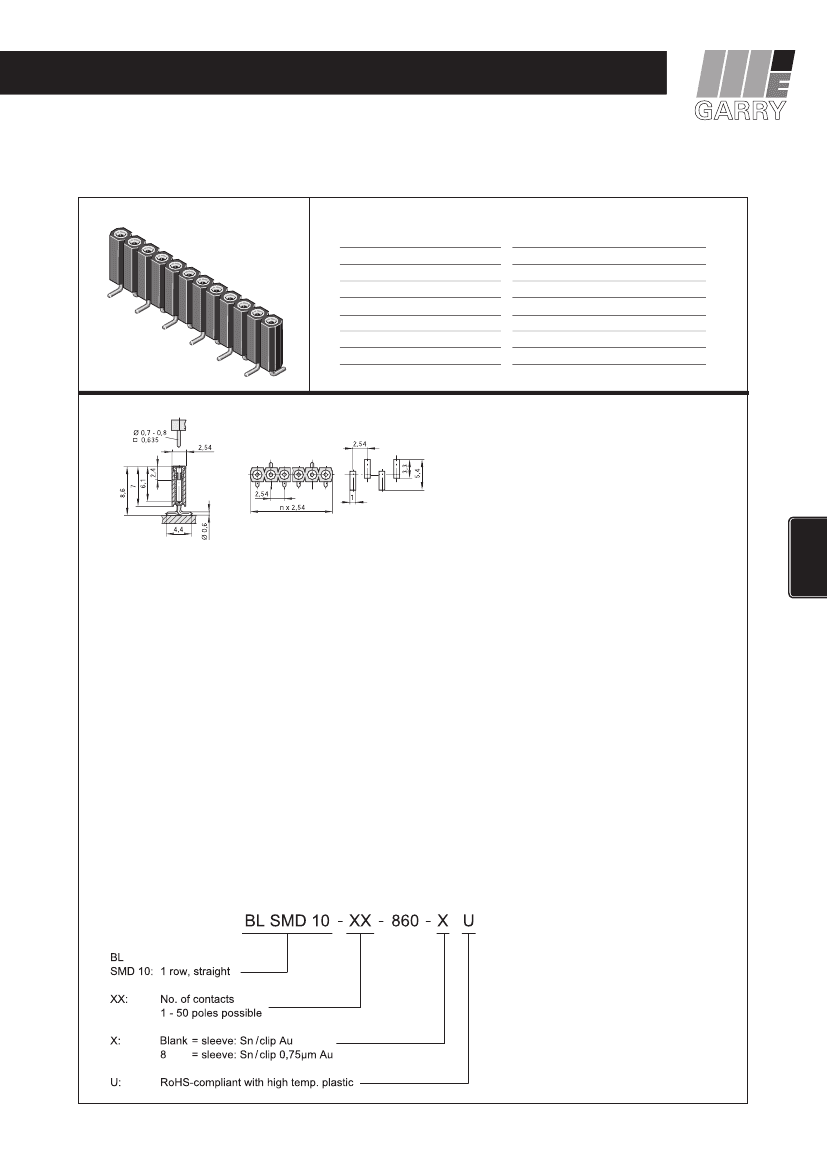

PRODUCT GROUP 7 -
MALE AND FEMALE HEADER 2,54/2,50/2,39 mm
FEMALE HEADER „SMD“
ID: 122
BL SMD 10-XX-860
Series 431
TECHNICAL DATA
Pitch
Insulating Material
Contact Material
Rated Current
Rated Voltage
Withstanding Voltage
Operating Temperature
Maximum Soldering Temperature
2,54 mm
high temp. thermoplast UL94V-0
Brass/BeCu
3 Amp.
100 V
RMS
/150 V
DC
min. 1000 V
RMS
-55°C to +125°C
260°C for 10 seconds
All dimensions in mm.
Other dimensions upon request.
MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520
e-mail: vk@mpe-connector.de · www.mpe-connector.de
157
7
| 2,54 mm
