L
0.25m Max
0.25m Max
Label 1
Label 2
# "
!
©
Connector(s): LC-Duplex Secure
Mode: MM
Housing Color: Red
Geom. Spec: N/A
Notes:
1 IL tested at 1300nm.
2 Product and Processing must meet requirements of Tyco Electronics
Standard 230-702
3 Label 2 will not be present on any cable assembly less than 5 meters long.
4 Includes dust caps (not shown on print).
A
B
-
-
-
-
B
A
Connector(s): SC-Duplex
Mode: MM
Housing Color: Beige
Geom. Spec: N/A
Cable Assy Configurator
meters
!
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Jeremy Duncan
-
-
-
-
-
Jeremy Duncan
CE
B
Rev Per EC#
ECR-07-007111
3/27/2007
-
JD

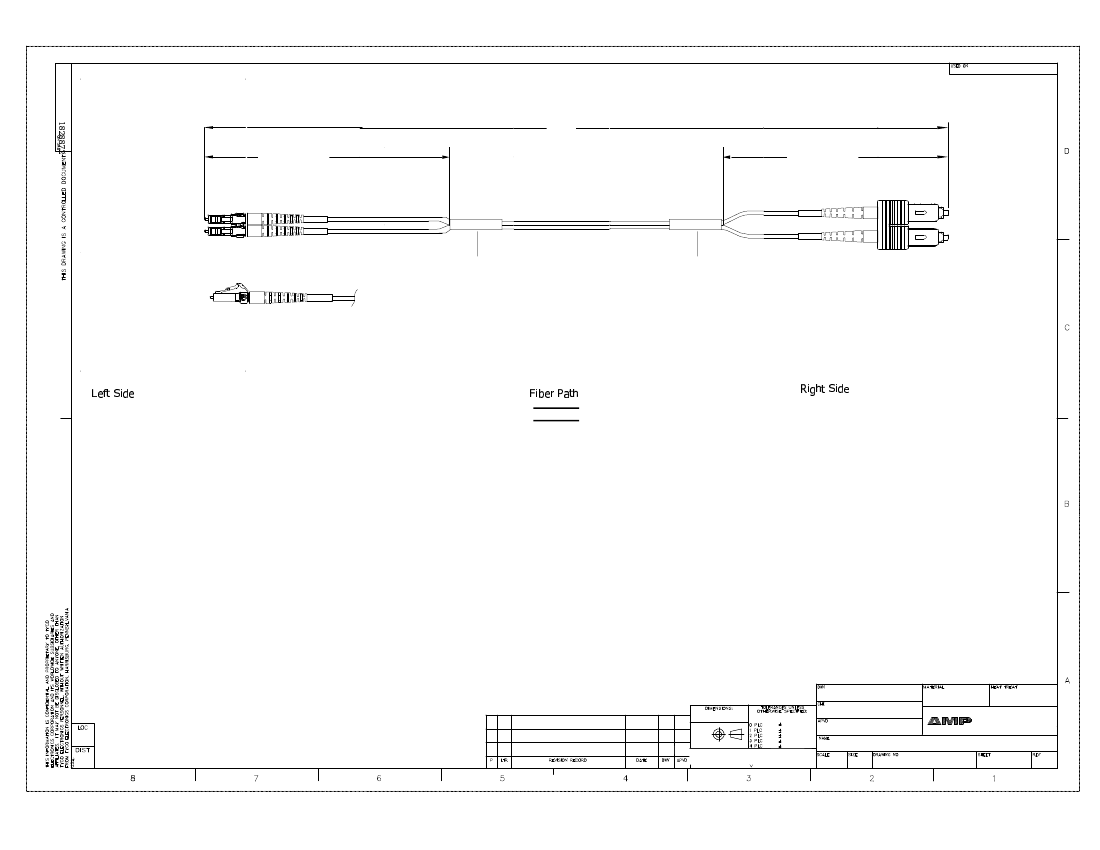

FO C/A - 2 fiber, 62.5/125, OFNP (Plenum) jacket, LC-Duplex
Secure to SC-Duplex
16
CAC Customer Layout Rev: D
Restricted To:
NTS
A2
C- 1828872
1 of 3
B
LC-Duplex Secure, Red
Part #
0-1828872-1
0-1828872-2
0-1828872-3
0-1828872-4
0-1828872-5
0-1828872-6
0-1828872-7
0-1828872-8
0-1828872-9
1-1828872-0
1-1828872-1
1-1828872-2
1-1828872-3
1-1828872-4
1-1828872-5
1-1828872-6
1-1828872-7
1-1828872-8
1-1828872-9
2-1828872-0
2-1828872-1
2-1828872-2
2-1828872-3
2-1828872-4
2-1828872-5
2-1828872-6
2-1828872-7
2-1828872-8
2-1828872-9
3-1828872-0
3-1828872-1
3-1828872-2
3-1828872-3
3-1828872-4
3-1828872-5
3-1828872-6
3-1828872-7
3-1828872-8
3-1828872-9
4-1828872-0
5-1828872-0
L (meters)
0.950 - 1.050
1.950 - 2.050
2.950 - 3.050
3.920 - 4.080
4.920 - 5.080
5.920 - 6.080
6.920 - 7.080
7.920 - 8.080
8.850 - 9.150
9.850 - 10.150
10.850 - 11.150
11.850 - 12.150
12.850 - 13.150
13.850 - 14.150
14.850 - 15.150
15.840 - 16.160
16.830 - 17.170
17.820 - 18.180
18.810 - 19.190
19.800 - 20.200
20.790 - 21.210
21.780 - 22.220
22.770 - 23.230
23.760 - 24.240
24.750 - 25.250
25.740 - 26.260
26.730 - 27.270
27.720 - 28.280
28.710 - 29.290
29.700 - 30.300
30.690 - 31.310
31.680 - 32.320
32.670 - 33.330
33.660 - 34.340
34.650 - 35.350
35.640 - 36.360
36.630 - 37.370
37.620 - 38.380
38.610 - 39.390
39.600 - 40.400
49.500 - 50.500
L (feet)
3.11 - 3.44
6.39 - 6.72
9.67 - 10.00
12.86 - 13.38
16.14 - 16.66
19.42 - 19.94
22.70 - 23.22
25.98 - 26.50
29.03 - 30.01
32.31 - 33.30
35.59 - 36.58
38.87 - 39.86
42.15 - 43.14
45.43 - 46.42
48.72 - 49.70
51.96 - 53.01
55.21 - 56.33
58.46 - 59.64
61.71 - 62.95
64.96 - 66.27
68.20 - 69.58
71.45 - 72.90
74.70 - 76.21
77.95 - 79.52
81.20 - 82.84
84.44 - 86.15
87.69 - 89.46
90.94 - 92.78
94.19 - 96.09
97.44 - 99.40
100.68 - 102.72
103.93 - 106.03
107.18 - 109.35
110.43 - 112.66
113.68 - 115.97
116.92 - 119.29
120.17 - 122.60
123.42 - 125.91
126.67 - 129.23
129.92 - 132.54
162.40 - 165.68
IL
(dB)
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.56
0.56
0.56
0.58
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(dB)
IL
SC-Duplex, Beige
Qty
(dB)
0.5
0.5
0.5
0.51
0.51
0.51
0.51
0.51
0.51
0.52
0.52
0.52
0.52
0.52
0.52
0.52
0.53
0.53
0.53
0.53
0.53
0.53
0.53
0.54
0.54
0.54
0.54
0.54
0.54
0.55
0.55
0.55
0.55
0.55
0.55
0.55
0.56
0.56
0.56
0.56
0.58
RL
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
(dB)
2
2
4
2
2
2
AR
2
1
4
piece
piece
piece
piece
piece
piece
meter
piece
piece
piece
Trace Label
CONN SUBASSY, MM, SC 1.6MM
Eyelet/Shrink tube assembly - White
SC Duplex Clip
2.5mm ferrule cover
SC Simplex Housing, Beige
2 fiber, 62.5/125, 1.8 mm, Twinzip, Orange, OFNP (Plenum)
LC Connector Assy, 1.6mm-2.0mm, MM
LC Duplex clip, black
LC, SC, FC Straight Boot, Beige
U of M
Description
Item
No.
10
9
8
7
6
5
4
3
2
1
Cable Assy Configurator
meters
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Jeremy Duncan
-
-
-
-
-
Jeremy Duncan
CE
B
Rev Per EC#
ECR-07-007111
3/27/2007
-
JD
FO C/A - 2 fiber, 62.5/125, OFNP (Plenum) jacket, LC-Duplex
Secure to SC-Duplex
16
CAC Customer Layout Rev: D
Restricted To:
NTS
A2
C- 1828872
2 of 3
B

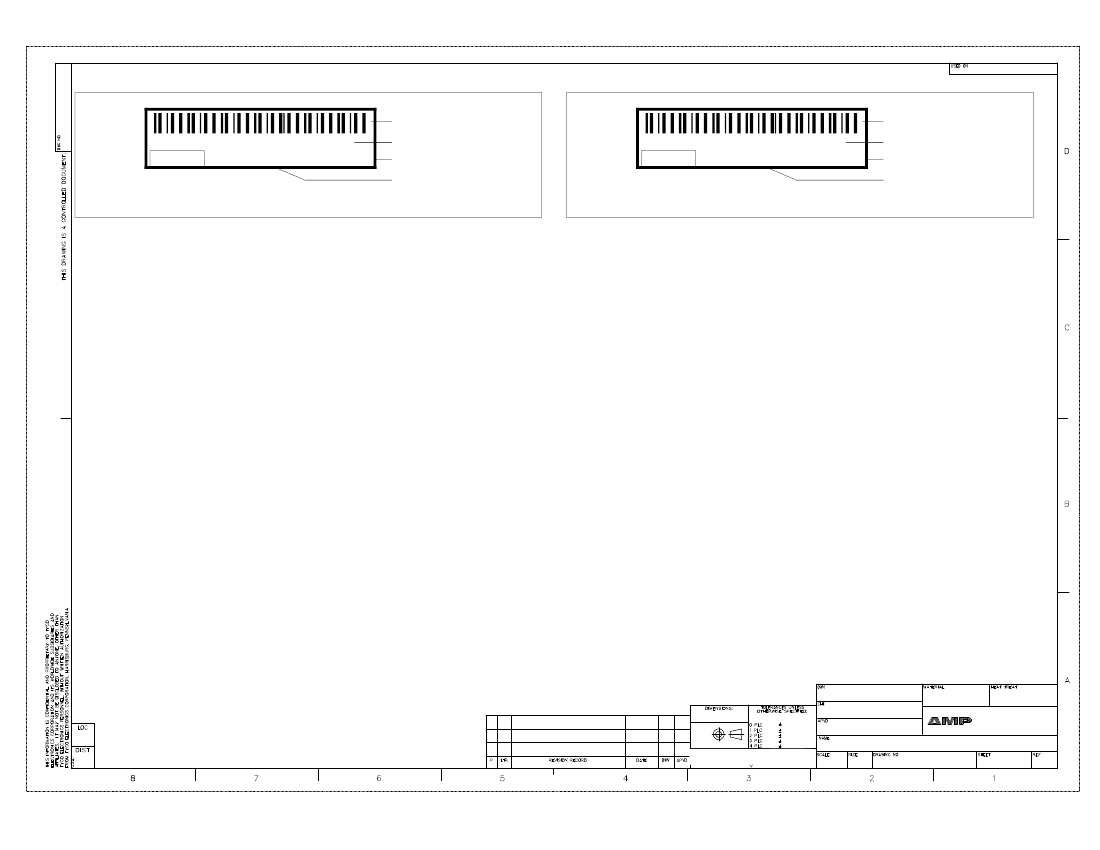

Label 1
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Tyco logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Label 2
Per specification 107-1645-1
Trace # - Bar Code
XXXXXXXXXXXXXXX
Tyco logo
Made in XXXX
X-XXXXXXX-X
Trace # - Human Readable
Part Number
Country of Origin
This label is used on all lengths on this drawing.
Cable Assy Configurator
meters
-
-
Tyco Electronics, Inc.
Harrisburg, PA 17105-3608
Jeremy Duncan
-
-
-
-
-
Jeremy Duncan
CE
B
Rev Per EC#
ECR-07-007111
3/27/2007
-
JD
FO C/A - 2 fiber, 62.5/125, OFNP (Plenum) jacket, LC-Duplex
Secure to SC-Duplex
16
CAC Customer Layout Rev: D
Restricted To:
NTS
A2
C- 1828872
3 of 3
B
