Z84C1110FEC datasheet, PDF - EEWORLD Datasheet

Z84C1110FEC: DescriptionMicrocontroller, 8-Bit, 10MHz, CMOS, PQFP100, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，61 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric View All

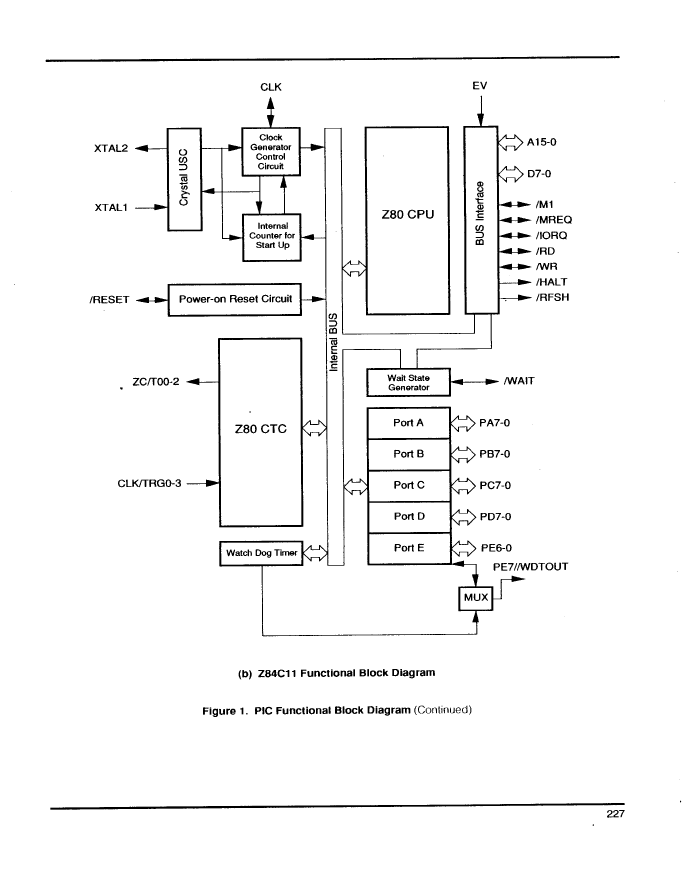

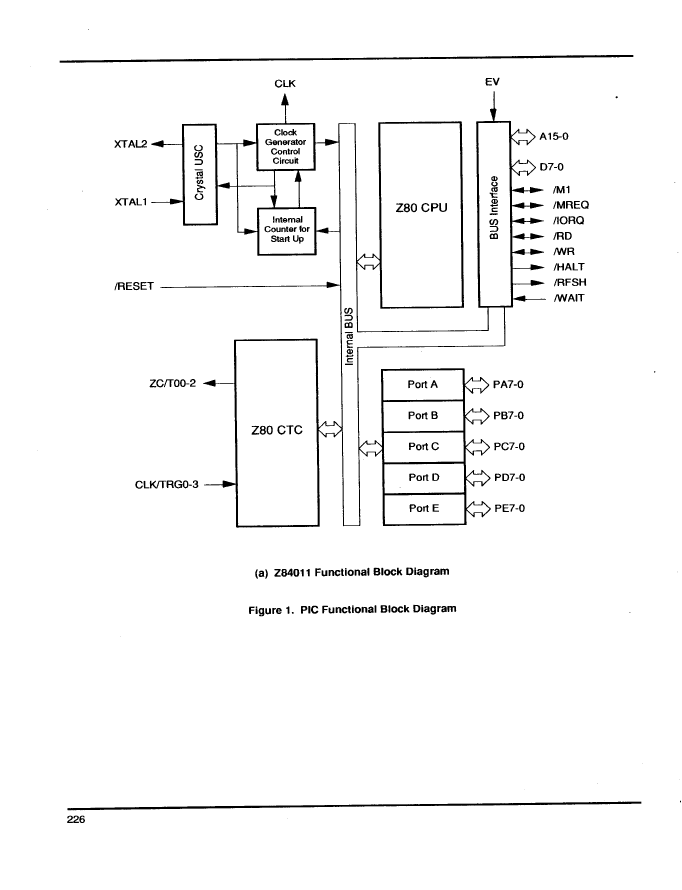

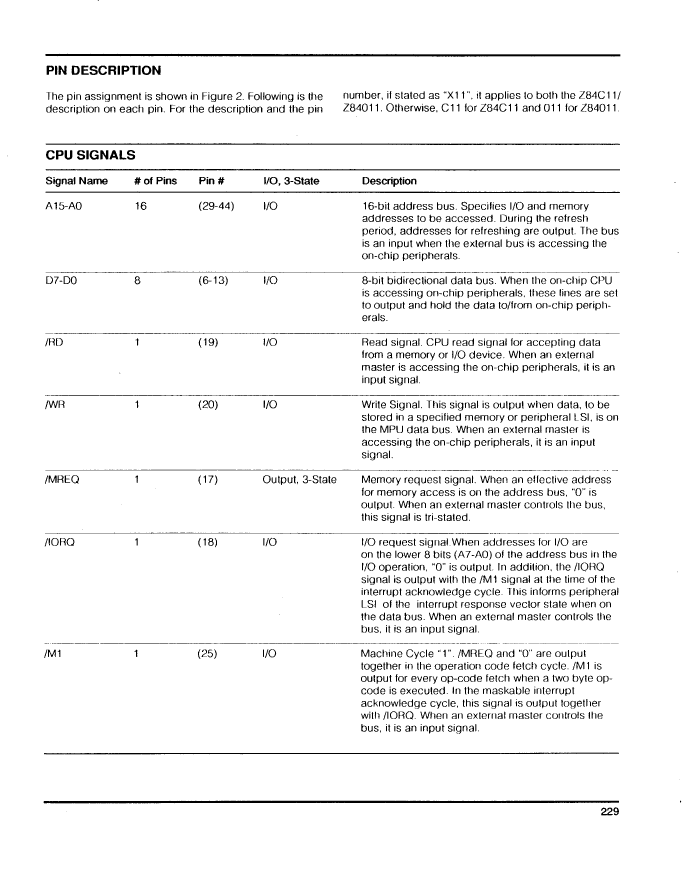

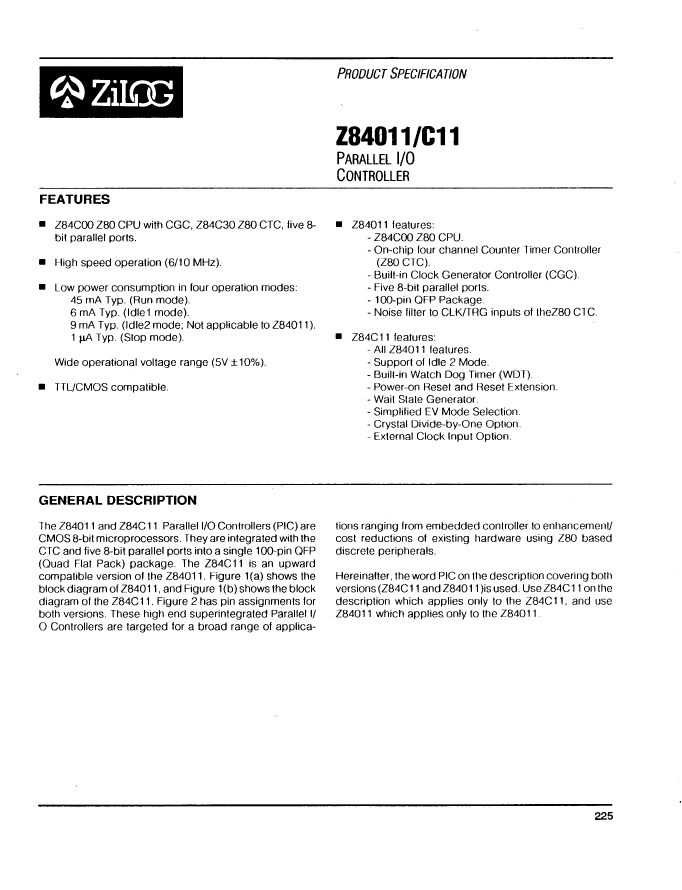

Z84C1110FEC Overview

Microcontroller, 8-Bit, 10MHz, CMOS, PQFP100, PLASTIC, QFP-100

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	QFP
package instruction	PLASTIC, QFP-100

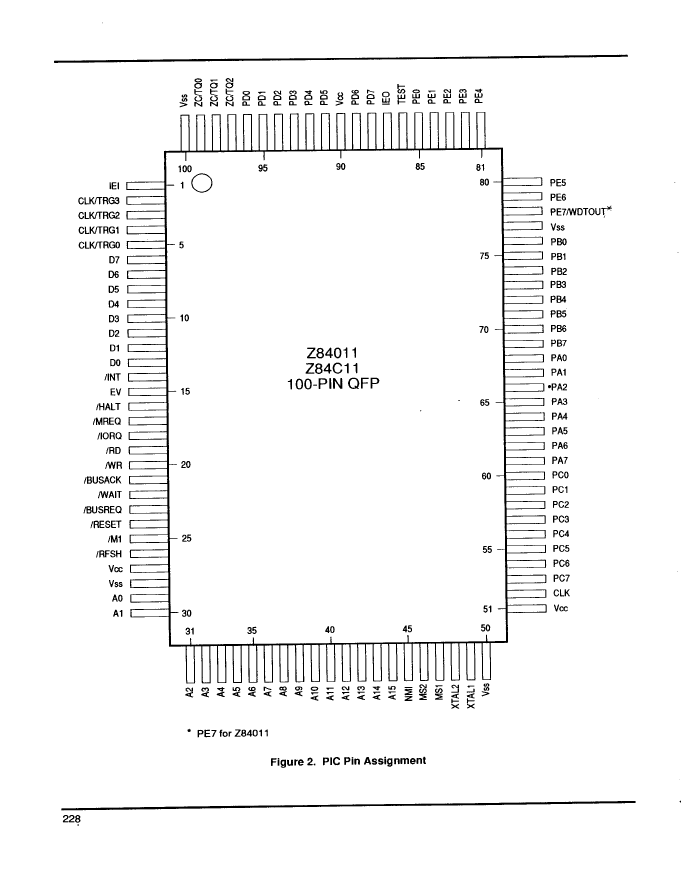

Contacts	100
Reach Compliance Code	unknown
Is Samacsys	N
Has ADC	NO
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	10 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PQFP-G100
JESD-609 code	e0
length	20 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	40
Number of serial I/Os
Number of terminals	100
Number of timers	1
On-chip data RAM width
On-chip program ROM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP100,1.1SQ
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
rom(word)	0
Maximum seat height	3.1 mm
speed	10 MHz
Maximum slew rate	60 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer
