0.5mm Pitch SMT Board to Board Connector
DF12 Series
Correspond to automatic mounting
The vacuum pick-up area secures the automatic mounting
machine for pick and place.
sFeatures

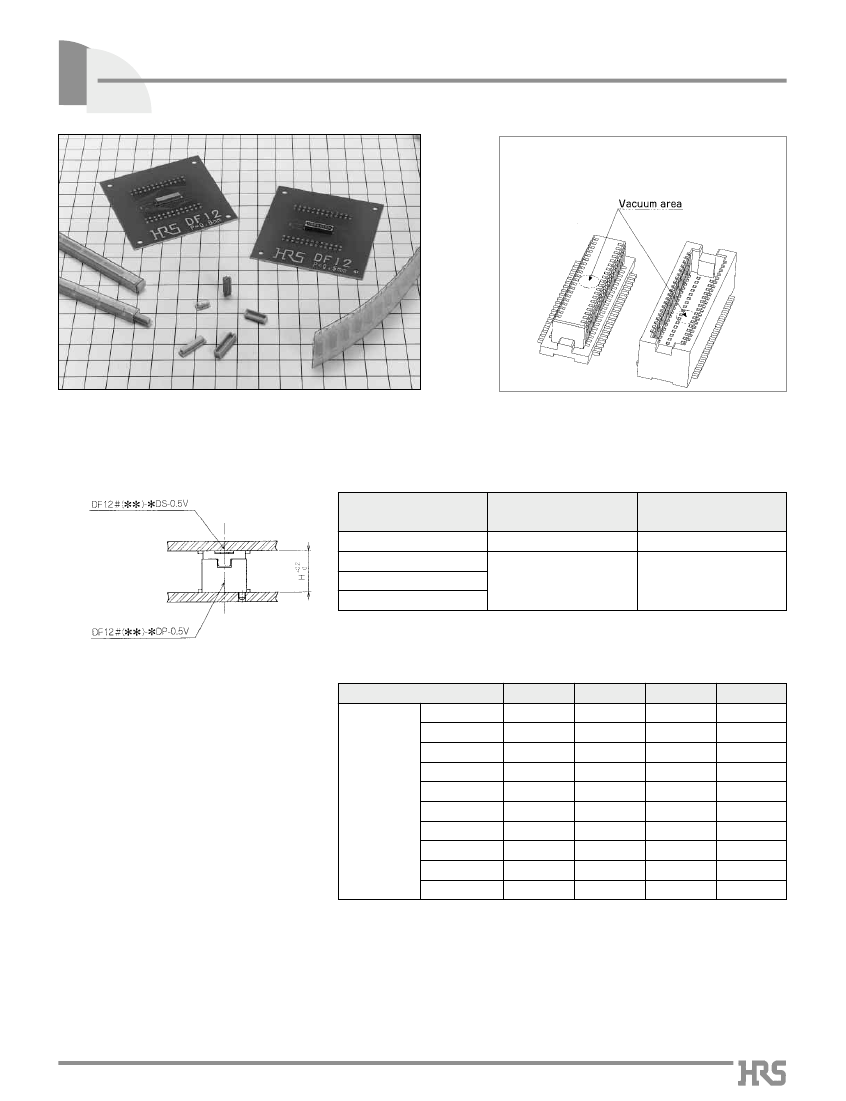

1. Broad Variations of Stacking Height
In addition to 0.5mm pitch ultra-miniature size connector, the stacking height of 3mm, 3.5mm, 4mm, and 5mm are provided.
Header/Receptacle
DF12#(3.0)-*DP-0.5V
DF12#(3.5)-*DP-0.5V
DF12#(4.0)-*DP-0.5V
DF12#(5.0)-*DP-0.5V
DF12#(3.0)-*DS-0.5V
3.0
–––––––
–––––––
–––––––
DF12#-*DS-0.5V
–––––––
3.5
4.0
5.0
Combination
stacking height
Combination
stacking height
Note 1 : (
**
) of the product name DF12# (
**
) indicates the stacking height.
Note 2 : The stacking height doesn't include the soldering paste thickness.
[Stacking Height Variation]
Stacking Height
10 contacts
14 contacts
20 contacts
30 contacts
32 contacts
Number of Contacts
36 contacts
40 contacts
50 contacts
60 contacts
80 contacts
3.0mm
K
K
K
K
K
K
K
K
K
K
3.5mm
–––––––
–––––––
K
K
–––––––
K
K
K
K
–––––––
4.0mm
–––––––
–––––––
K
K
K
K
K
K
K
–––––––
5.0mm
–––––––
–––––––
K
K
–––––––
K
K
K
K
–––––––
2. Corresponding to Automatic Mounting
The connector has the vacuum pick-up area to enable automatic mounting with the embossed tape packaging.
3. Metal Fitting Available
The product including the metal fitting to prevent solder peeling is provided, considering the mounting on FPC.
sApplications
Mobile phone, LCD(Liquid Crystal Display), Note PC
A193
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Connector
DF12 Seriesq0.5mm Pitch SMT Board to Board
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Rating
Current rating 0.3A
Operating Temperature Range
-45 to +125ç
(Note 1) Storage Temperature Range
-40
to
80%
Storage Humidity Range
-10 to +60ç
(Note 2)
-40
to
70%
Voltage rating 50V AC Operating Humidity Range
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
6. Temperature Cycle
500M
ohms
min.
Specification
100V DC
150V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50m
ohms
max.
No electrical discontinuity of 1µs or more
Contact resistance: 50m
ohms
max. Insulation resistance:500M
ohms
min
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40±2ç and humidity of 90% to 95%
(-65ç: 30 minutes 5 to 35ç: 10 minutes 125ç: 30 minutes 5 to 35ç: 10 minutes) 5 cycles
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sMaterial
Product
Receptacle/Header
Part
Insulator
Contact
Fitting
Material
Polyamide
Phosphor copper
Brass
Finish
Beige
Gold plated
Tin plated
Remarks
UL94-V0
–––––––
–––––––
sOrdering
Information
qReceptacle
DF12
q
: DF12
Fitting
Blank
A
B
C
K
∞
K
∞
Boss
K
K
∞
∞
#
(**)
-
*
DS - 0.5 V
(**)
w
e
r
t
y
u
i
e
Stacking height
3.0
Blank
: 3.0mm
: 3.5
to
5.0mm
y
Contact Pitch : 0.5mm
u
Contact Style
V: Straight SMT
i
Packaging Type
(81) : Embossed tape packaging (A, C type)
(86) : Embossed tape packaging (Blank, B type)
q
Series Name
w
Type
r
Number of Contacts : 10, 14, 20, 30, 32, 36, 40, 50, 60 ,80
(The 32 contacts connector includes the
stacking height 3mm only.)
t
Connector Type
DS : Double-row receptacle
qHeader
DF12
q
Fitting
Blank
B
D
E
K
K
∞
∞
Boss
K
∞
K
∞
#
(**)
-
*
DP - 0.5 V (
**
)
w
e
r
t
y
u
i
e
Stacking height
Indication Stacking Height
3.0
3.5
4.0
5.0
3.0mm
3.5mm
4.0mm
5.0mm
w
Type
t
Connector Type
DP: Double-row pin header
(81) : Embossed tape packaging
(D,E type)
(86) : Embossed tape packaging
(Blank, B type)
A194
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Board to Board Connector
DF12 Seriesq0.5mm Pitch SMT
or contact your Hirose sales representative.

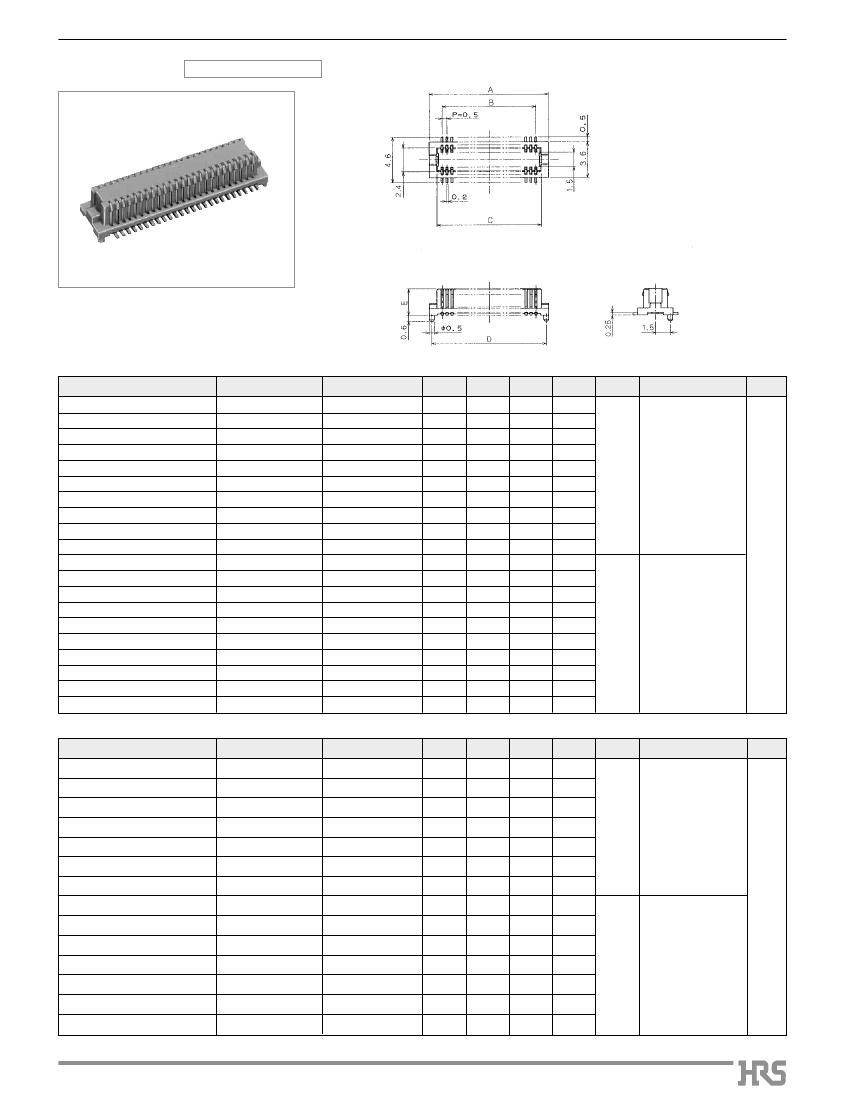

sReceptacle
Without metal fitting
qProduct
Height: 3mm Product
Part Number
DF12A (3.0)-10DS-0.5V (81)
DF12A (3.0)-14DS-0.5V (81)
DF12A (3.0)-20DS-0.5V (81)
DF12A (3.0)-30DS-0.5V (81)
DF12A (3.0)-32DS-0.5V (81)
DF12A (3.0)-36DS-0.5V (81)
DF12A (3.0)-40DS-0.5V (81)
DF12A (3.0)-50DS-0.5V (81)
DF12A (3.0)-60DS-0.5V (81)
DF12A (3.0)-80DS-0.5V (81)
DF12C (3.0)-10DS-0.5V (81)
DF12C (3.0)-14DS-0.5V (81)
DF12C (3.0)-20DS-0.5V (81)
DF12C (3.0)-30DS-0.5V (81)
DF12C (3.0)-32DS-0.5V (81)
DF12C (3.0)-36DS-0.5V (81)
DF12C (3.0)-40DS-0.5V (81)
DF12C (3.0)-50DS-0.5V (81)
DF12C (3.0)-60DS-0.5V (81)
DF12C (3.0)-80DS-0.5V (81)
CL No.
537-0626-9-81
537-0915-6-81
537-0628-4-81
537-0630-6-81
537-0637-5-81
537-0631-9-81
537-0632-1-81
537-0634-7-81
537-0636-2-81
537-0638-8-81
537-0686-0-81
537-0917-1-81
537-0688-6-81
537-0690-8-81
537-0697-7-81
537-0691-0-81
537-0692-3-81
537-0694-9-81
537-0696-4-81
537-0212-6-81
Number of Contacts
10
14
20
30
32
36
40
50
60
80
10
14
20
30
32
36
40
50
60
80
A
04.6
05.6
07.1
09.6
10.1
11.1
12.1
14.6
17.1
22.1
04.6
05.6
07.1
09.6
10.1
11.1
12.1
14.6
17.1
22.1
B
02.0
03.0
04.5
07.0
07.5
08.5
09.5
12.0
14.5
19.5
02.0
03.0
04.5
07.0
07.5
08.5
09.5
12.0
14.5
19.5
C
03.1
04.1
05.6
08.1
08.6
09.6
10.6
13.1
15.6
20.6
03.1
04.1
05.6
08.1
08.6
09.6
10.6
13.1
15.6
20.6
D
04.1
05.1
06.6
09.1
09.6
10.6
11.6
14.1
16.6
21.6
––––
––––
––––
––––
––––
––––
––––
––––
––––
––––
E
Remarks
Unit: mm
RoHS
2.2
Without metal fitting
With boss
YES
2.2
Without metal fitting
Without boss
qProduct
Height: 3.5 to 5mm Product
Part Number
DF12A-20DS-0.5V (81)
DF12A-30DS-0.5V (81)
DF12A-32DS-0.5V (81)
DF12A-36DS-0.5V (81)
DF12A-40DS-0.5V (81)
DF12A-50DS-0.5V (81)
DF12A-60DS-0.5V (81)
DF12C-20DS-0.5V (81)
DF12C-30DS-0.5V (81)
DF12C-32DS-0.5V (81)
DF12C-36DS-0.5V (81)
DF12C-40DS-0.5V (81)
DF12C-50DS-0.5V (81)
DF12C-60DS-0.5V (81)
CL No.
537-0078-5-81
537-0080-7-81
537-0087-6-81
537-0081-0-81
537-0082-2-81
537-0084-8-81
537-0086-3-81
537-0203-5-81
537-0205-0-81
537-0212-6-81
537-0206-3-81
537-0207-6-81
537-0209-1-81
537-0211-3-81
Number of Contacts
20
30
32
36
40
50
60
20
30
32
36
40
50
60
A
07.1
09.6
10.1
11.1
12.1
14.6
17.1
07.1
09.6
10.1
11.1
12.1
14.6
17.1
B
04.5
07.0
07.5
08.5
09.5
12.0
14.5
04.5
07.0
07.5
08.5
09.5
12.0
14.5
C
05.6
08.1
08.6
09.6
10.6
13.1
15.6
05.6
08.1
08.6
09.6
10.6
13.1
15.6
D
06.6
09.1
09.6
10.6
11.6
14.1
16.6
––––
––––
––––
––––
––––
––––
––––
2.7
Without metal fitting
Without boss
2.7
Without metal fitting
With boss
E
Remarks
Unit: mm
RoHS
YES
Note 1: Please order the embossed tape packaging product per reel. (1000 pcs./reel)
A195
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please
Connector
DF12 Seriesq0.5mm Pitch SMT Board to Board
check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

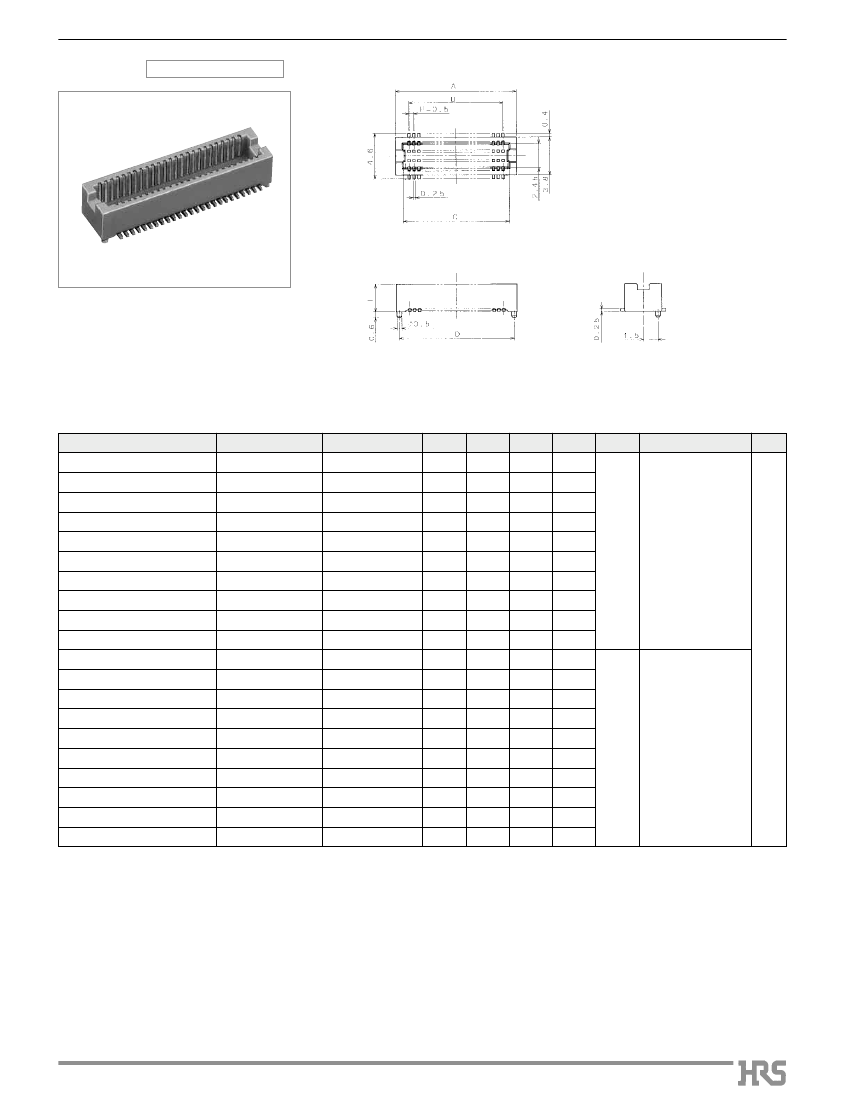

s

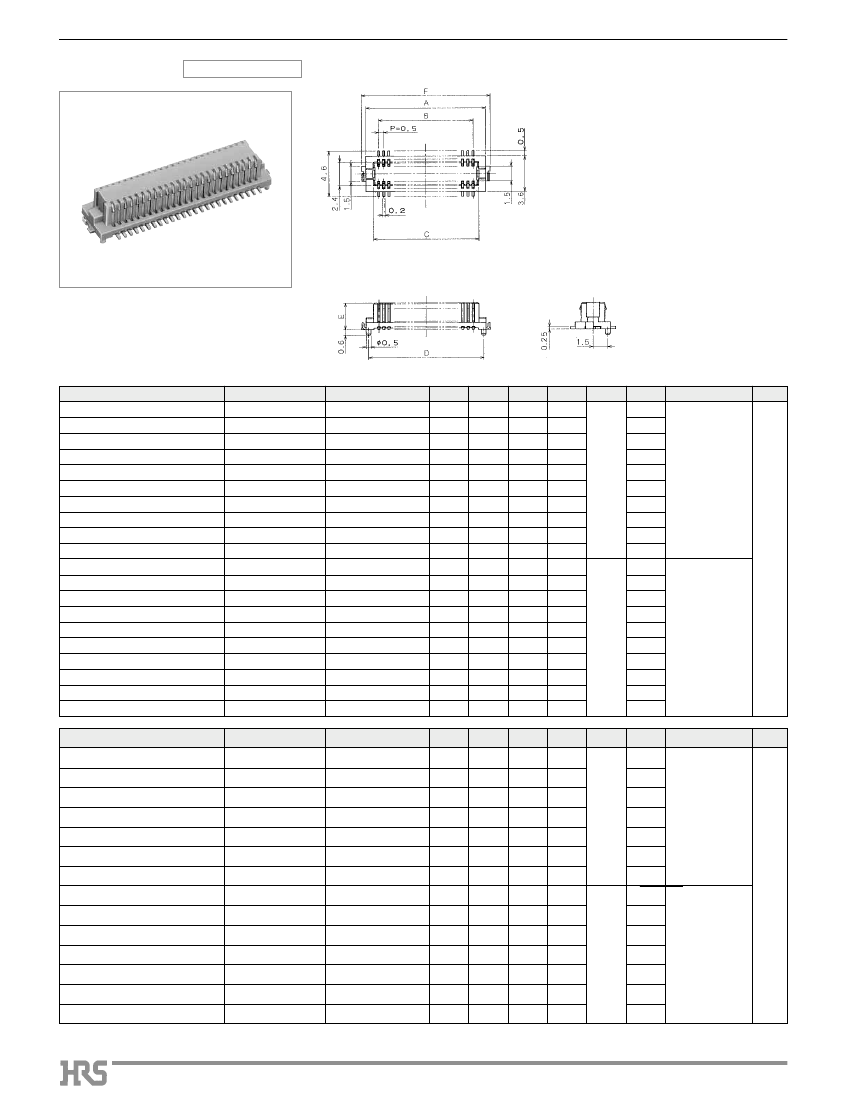

Receptacle
