E-Series Surface Mount Mixer
10 - 2000 MHz
Features
q
q
q
ESMD-C15
V3.00
SM-2
LO Power: +10 dBm
Up to +5 dBm RF
Surface Mount
Specifications
@ 25°C
Frequency Range
RF
LO
IF
Conversion Loss (dB)
20 - 1000 MHz
10 - 2000 MHz
Isolation (dB)
LO to RF
10 - 2000 MHz
LO to IF
10 - 2000 MHz
Typical
6.5
6.5
Typical
35
30
10 - 2000 MHz
10 - 2000 MHz
10 - 800 MHz
Maximum
8.0
8.5
Minimum
25
20

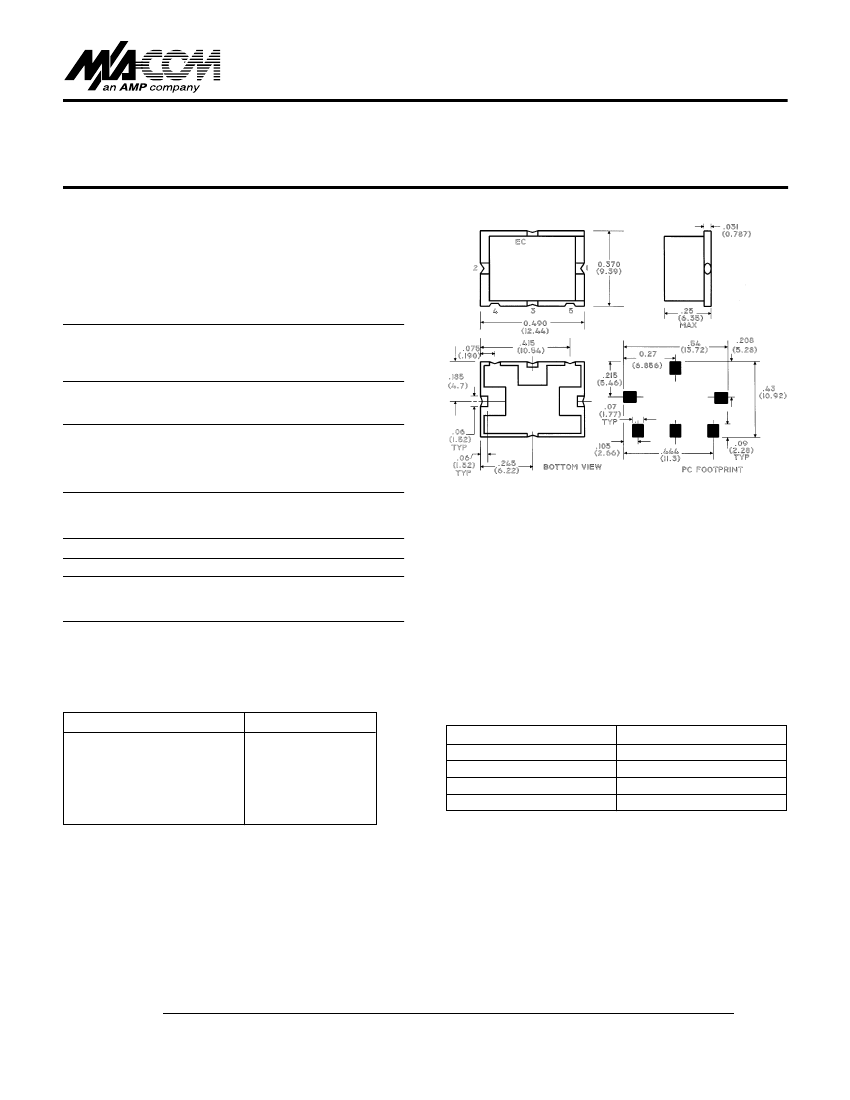

Dimensions in ( ) are in mm.
Unless Otherwise Noted: .x = ±0.04 (1.00)
.xx = ±0.02 (0.50)
.xxx = ±0.010 (0.250)
Operating Characteristics
Impedance
RF input for 1dB Compression
50 Ohms Nominal
+ 5 dBm
Ordering Information
Part No.
ESMD-C15
ESMD-C15TR
Packaging
Tube
Forward Tape & Reel
Absolute Maximum Ratings
Parameter
RF Power
Peak IF Current
Storage Temperature
Operating Temperature
Pin Temperature (10 Seconds)
Absolute Maximum
50 mW
40 mA
-55°C to 100°C
-55°C to 100°C
260°C
Pin Configuration
Function
LO
RF
IF
Ground
Pin No.
2
1
3
4,5
S 0146 C
Specifications Subject to Change Without Notice.
M/A-COM, Inc.
North America:
Tel. (800) 366-2266
Fax (800) 618-8883
s
1
Asia/Pacific: Tel. +81 (03) 3226-1671
Fax +81 (03) 3226-1451
s
Europe: Tel. +44 (1344) 869 595
Fax +44 (1344) 300 020
