Data Sheet
4.0
FMS2014-001
High Power GaAs SPDT Switch
Features:
♦
♦
♦
♦
♦
♦
3x3x0.9mm Packaged pHEMT Switch
Excellent low control voltage performance
Excellent harmonic performance under
GSM/DCS/PCS/EDGE power levels
Very high Tx-Rx isolation: >28dB typ. at
1.8GHz
Very low Insertion loss: 0.5dB at 1.8GHz
Very low control current
Functional Schematic
ANT
V1
V2
RF1
RF2
Description and Applications:
The FMS2014-001 is a low loss, high power and linear single pole double throw Gallium Arsenide
antenna switch designed for use in mobile handset applications. The die is fabricated using the
Filtronic FL05 0.5µm switch process technology, which offers excellent performance optimised for
switch applications. The FMS2014-001 is designed for use in dual/tri and quad band GSM handset
antenna switch modules and RF front-end modules. It can also find use in other applications where
high power and linear RF switching is necessary.
Electrical Specifications:
Parameter
Insertion Loss
(T
AMBIENT
= 25°C,V
ctrl
= 0V/2.5V, Z
IN
= Z
OUT
= 50Ω)
Test Conditions
0.5 – 1.0 GHz
1.0 – 2.0 GHz
Min
Typ
0.45
0.5
Max
0.5
0.6
Units
dB
dB
dB
dB
dB
dBc
dBc
dBc
dBc
µs
Return Loss
Isolation
0.5 – 2.5 GHz
0.5 – 1.0 GHz
1.0 – 2.0 GHz
16
-30
-26
-65
-65
-65
-65
20
-32
-30
-75
-75
-75
-75
<0.3
1.0
<10
15
2nd Harmonic Level
1 GHz, Pin = +35 dBm, 100% Duty Cycle
2 GHz, Pin = +35 dBm, 100% Duty Cycle
3rd Harmonic Level
1 GHz, Pin = +35 dBm, 100% Duty Cycle
2 GHz, Pin = +35 dBm, 100% Duty Cycle
Switching speed : Trise, Tfall
Ton, Toff
Control Current
10% to 90% RF and 90% to 10% RF
50% control to 90% RF and 50% control to 10% RF
+35dBm RF input @1GHz
µs
µA
Note:
External DC blocking capacitors are required on all RF ports (typ: 100pF)
1
Preliminary specifications subject to change without notice
Filtronic Compound Semiconductors Ltd
Contact Details (UK): Tel: +44 (0) 1325 301111 Fax: +44 (0) 1325 306177 Email: sales@filcs.com
Contact Details (USA): Tel: +1 (408) 850 5790
Fax: +1 (408) 850 5766
Email:
sales@filcsi.com
Website: www.filtronic.com
Data Sheet
4.0
FMS2014-001
Absolute Maximum Ratings:
Parameter
Max Input Power
Control Voltage
Operating Temp
Storage Temp
Symbol
Pin
V ctrl
T oper
T stor
Absolute Maximum
+38dBm
+5V
-40°C to +100°C
-55°C to +150°C
Note:
Exceeding any one of these absolute maximum ratings may cause permanent damage to the
device.
Truth Table:
Switch
State
(A)
(B)
VC1
HIGH
LOW
VC2
LOW
HIGH
ANT– RF1
Insertion Loss
Isolation
ANT– RF2
Isolation
Insertion Loss
General Test Conditions:
Bias Voltages
Port Impedances
Off arm termination
LOW = 0V to 0.2V
HIGH +2.5V to +5V
50Ω
50Ω
2
Preliminary specifications subject to change without notice
Filtronic Compound Semiconductors Ltd
Contact Details (UK): Tel: +44 (0) 1325 301111 Fax: +44 (0) 1325 306177 Email: sales@filcs.com
Contact Details (USA): Tel: +1 (408) 850 5790
Fax: +1 (408) 850 5766
Email:
sales@filcsi.com
Website: www.filtronic.com
Data Sheet
4.0
FMS2014-001

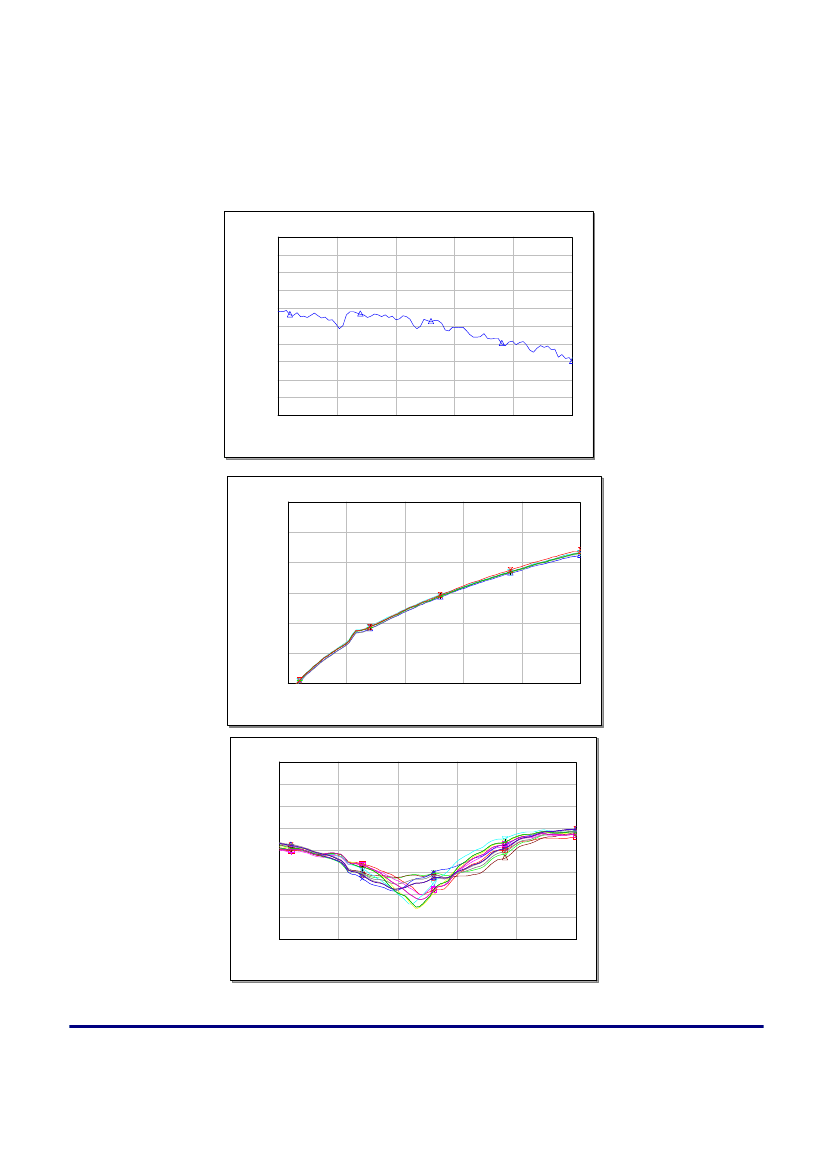

Typical Measured Performance on Evaluation Board (De-Embedded):
(Measurement Conditions V
CTRL
= 2.5V (high) & 0V (low), T
AMBIENT
= 25°C unless otherwise stated)
FMS2014QFN INSERTION LOSS
0
-0.1
-0.2
-0.3
-0.4
dB
-0.5
-0.6
-0.7
-0.8
-0.9
-1
0.5
1
1.5
2
Frequency (GHz)
2.5
3
-20
-22.5
-25
dB
-27.5
-30
-32.5
-35
0.5
1
FMS 2014QFN ISOLATION
1.5
2
Frequency (GHz)
2.5
3
0
-5
-10
-15
dB
-20
-25
-30
-35
-40
0.5
1
FMS2014QFN RETURN LOSS
1.5
2
Frequency (GHz)
2.5
3
3
Preliminary specifications subject to change without notice
Filtronic Compound Semiconductors Ltd
Contact Details (UK): Tel: +44 (0) 1325 301111 Fax: +44 (0) 1325 306177 Email: sales@filcs.com
Contact Details (USA): Tel: +1 (408) 850 5790
Fax: +1 (408) 850 5766
Email:
sales@filcsi.com
Website: www.filtronic.com
Data Sheet
4.0
FMS2014-001
Pad Layout:
V1
ANT
V2
Pin Number
1
Description
N/C
N/C
RF1
N/C
N/C
N/C
RF2
N/C
N/C
V2
ANT RF
V1
Pin 1
12
11
10
9
2
3
4
2
RF1
3
4
5
6
8
7
RF2
5
6
7
8
9
10
11
*View from the top of the package
12
QFN 12 Lead 3*3 Package Outline:
4
Preliminary specifications subject to change without notice
Filtronic Compound Semiconductors Ltd
Contact Details (UK): Tel: +44 (0) 1325 301111 Fax: +44 (0) 1325 306177 Email: sales@filcs.com
Contact Details (USA): Tel: +1 (408) 850 5790
Fax: +1 (408) 850 5766
Email:
sales@filcsi.com
Website: www.filtronic.com
Preliminary Data Sheet
3.0
FMS2014QFN
Evaluation Board:
BOM
C7
C5
C1
C6
C2
C1,C2,C7
C5,C6
Capacitor, 100pF, 0402
Capacitor, 47pF, 0402
Label
C3,C4
Component
Capacitor, 470pF, 0603
C3
C4
Preferred evaluation board material is 0.25 mm thick
BOARD
ROGERS RT4350. All RF tracks should be 50 ohm
characteristic impedance.

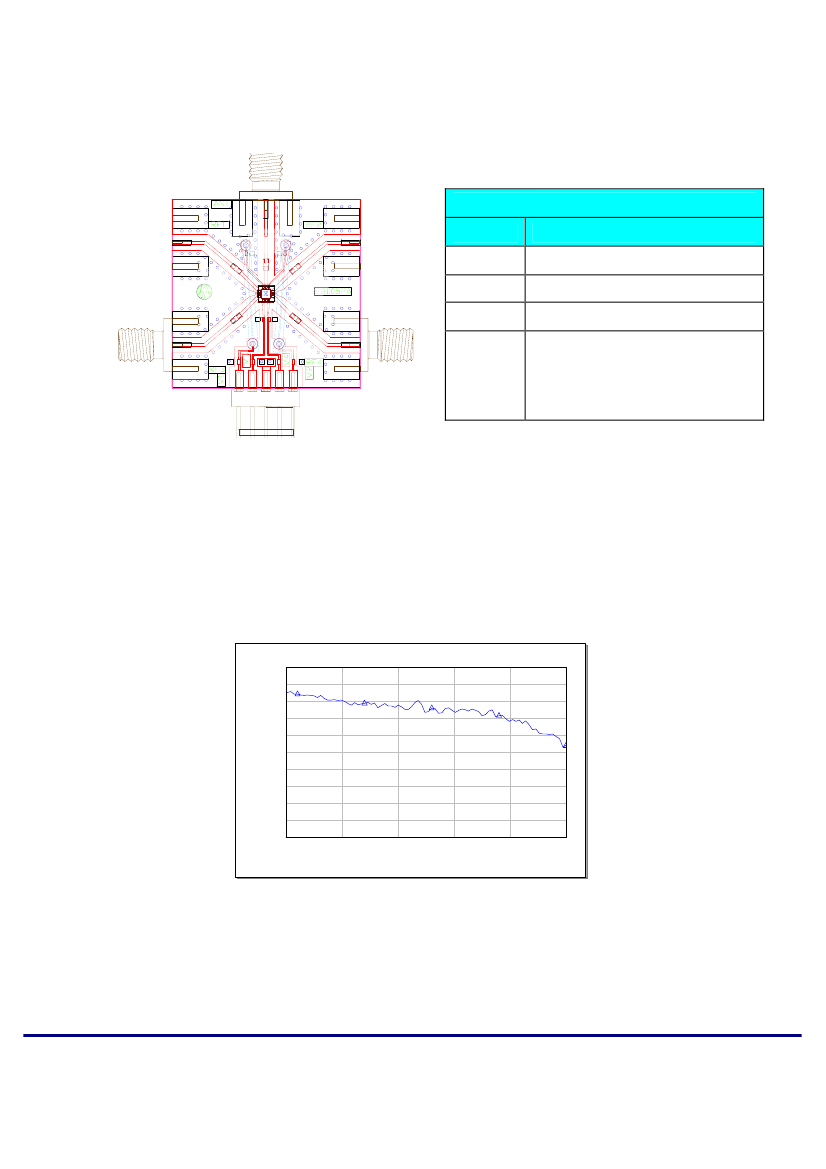

Evaluation Board De-Embedding Data (Measured):
0
-0.1
-0.2
-0.3
-0.4
dB
-0.5
-0.6
-0.7
-0.8
-0.9
-1
0.5
FMS2014QFN CAL BOARD INSERTION LOSS
1
1.5
2
Frequency (GHz)
2.5
3
5
Preliminary specifications subject to change without notice
Filtronic Compound Semiconductors Ltd
Contact Details (UK): Tel: +44 (0) 1325 301111 Fax: +44 (0) 1325 306177 Email: sales@filcs.com
Contact Details (USA): Tel: +1 (408) 850 5790
Fax: +1 (408) 850 5766
Email:
sales@filcsi.com
Website: www.filtronic.com
