FPDM12P3401/S35A datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The sensor> Sensor/transducer> FPDM12P3401/S35A

Preview

FPDM12P3401/S35A: DescriptionRetroreflective Photoelectric Sensor, 5.2mm Min, 5.2mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR; CategoryThe sensor Sensor/transducer; File Size74KB，1 Pages; ManufacturerBaumer Electric Ag

Download Datasheet Parametric View All

FPDM12P3401/S35A Overview

Retroreflective Photoelectric Sensor, 5.2mm Min, 5.2mm Max, 100mA, Rectangular, Board Mount, THROUGH BEAM SENSOR

FPDM12P3401/S35A Parametric

Parameter Name	Attribute value
Maker	Baumer Electric Ag
Reach Compliance Code	unknown
Other features	IP 67, REVERSE POLARITY PROTECTION, SHORT CIRCUIT PROTECTION
body width	12.4 mm
body height	35 mm
Body length or diameter	35 mm
shell	DIE-CAST ZINC
Maximum measuring range (mm)	5.2 mm
Minimum measuring range (mm)	5.2 mm
Installation features	BOARD MOUNT
Maximum working current	35 mA
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
Output interface type	4-WIRE INTERFACE
Output range	100mA
Output type	ANALOG CURRENT
Package Shape/Form	RECTANGULAR
Response time	1000 µs
Sensor/Transducer Type	LINEAR POSITION SENSOR,PHOTOELECTRIC,RETROREFLECTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR

FPDM12P3401/S35A Preview

Photoelectric sensors

Retro-reflective sensors

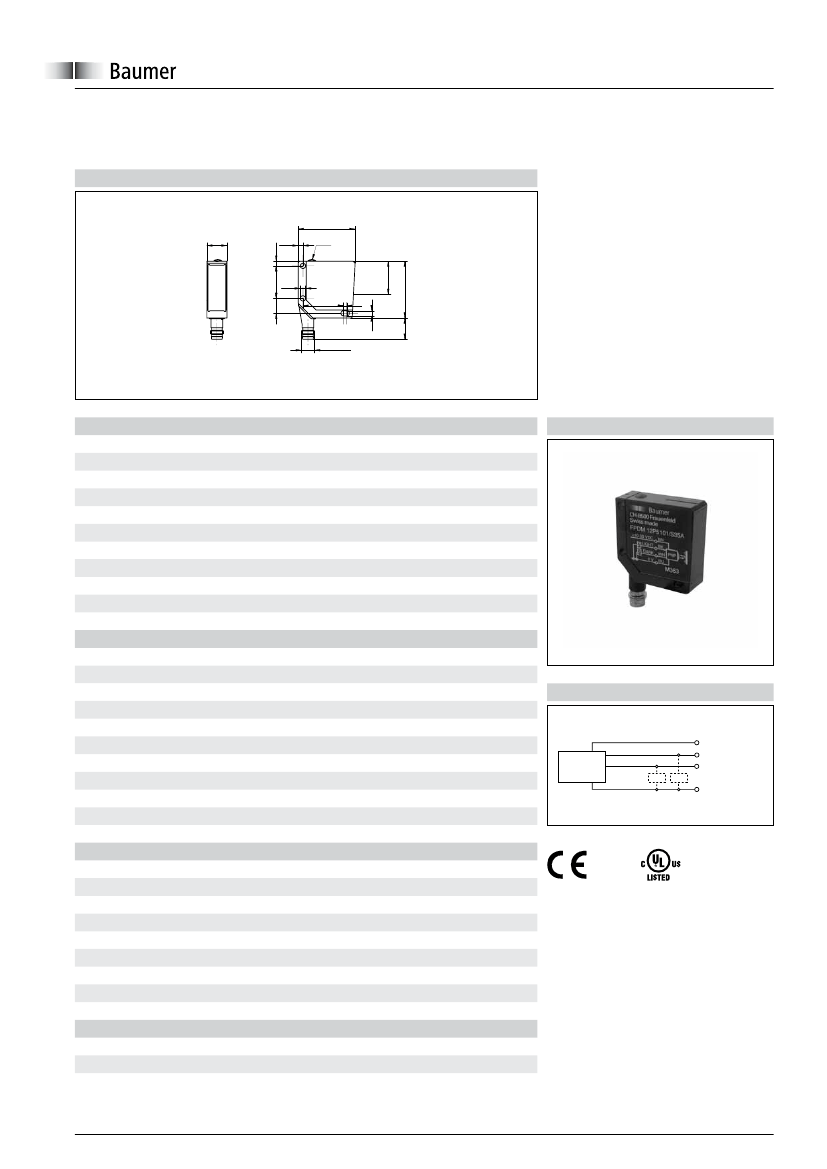

dimension drawing

FPDM 12P3401/S35A

35

2,9

12,4

2,9

LED

9,2

25

2

3,2

13

M8 x 1

* emitter axis

general data

type

light source

actual range Sb

nominal range Sn

polarization filter

alignment / soiled lens indicator

light indicator

sensitivity adjustment

wave length

suppression of reciprocal influence

electrical data

response time / release time

voltage supply range +Vs

current consumption max. (no load)

current consumption typ.

voltage drop Vd

output function

output circuit

output current

short circuit protection

reverse polarity protection

mechanical data

width / diameter

height / length

depth

type

housing material

front (optics)

connection types

12,4 mm

35 mm

rectangular

die-cast zinc

PMMA

connector M8 4 pin

< 1 ms

10 ... 30 VDC

35 mA

25 mA

< 1,8 VDC

alarm output dark

PNP

< 100 mA

yes

retro-reflective sensor

pulsed red LED

5m

5,2 m

yes

flashing light indicator

LED yellow

no

660 nm

yes

35

3,2

* 20,5

20


connection diagram

PNP

BN (1)

WH (2)

BK (4)

BU (3)

Z

+V

S

dark operate

alarm

0V

output state: Version with alarm output

must be ordered either dark operate or

light operate.

ambient conditions

operating temperature

protection class

-25 ... +65 °C

IP 67

www.baumer.com

4/10/2013

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
