0.5mm Pitch Board to Board Connector
DF17 Series
Solution of Connector Damage
Caused when Mobile
Phone is Dropped
sFeatures
1.
DF17 series are the connector which has
been developed mainly for the mobile
phone.
Connector Problems Involving in Mobile phone
Example:
The following problems can be solved;
"Connector Damage Caused when Mobile
phone is Dropped"
"Electrical Discontinuity in Printed Circuit
Board is Fixed (Fastened by screws)"
Especially, in regard to the resistance to the
drop shock, Hirose has developed a new
connector structure utilizing its unique
technology, and greatly enhanced the
resistance to the drop shock.
In broad variation development, the connector
can be utilized in wide fields of LCD equipment,
miniature information terminal equipment and
so on, in addition to mobile phones.
A184
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS
DF17
at www.hirose-connectors.com,
Board to Board Connector
search
Seriesq0.5mm Pitch
or contact your Hirose sales representative.
2. Performance Enhancement
The receptacle is designed in a BOX structure and has also
enhanced shock-proof, pinch-proof and scoop-proof performance.
In addition, the receptacle contact has employed the high scoop-proof
bellows type.
3. With Metal Fitting available
In order to grade up the strength against the mechanical stress,
the metal fitting specification is also available.
4. Broad Variations in Contact Number
The connectors are lined up per 10 contacts between 20 and 80
contacts to take countermeasures for multi-signalization.

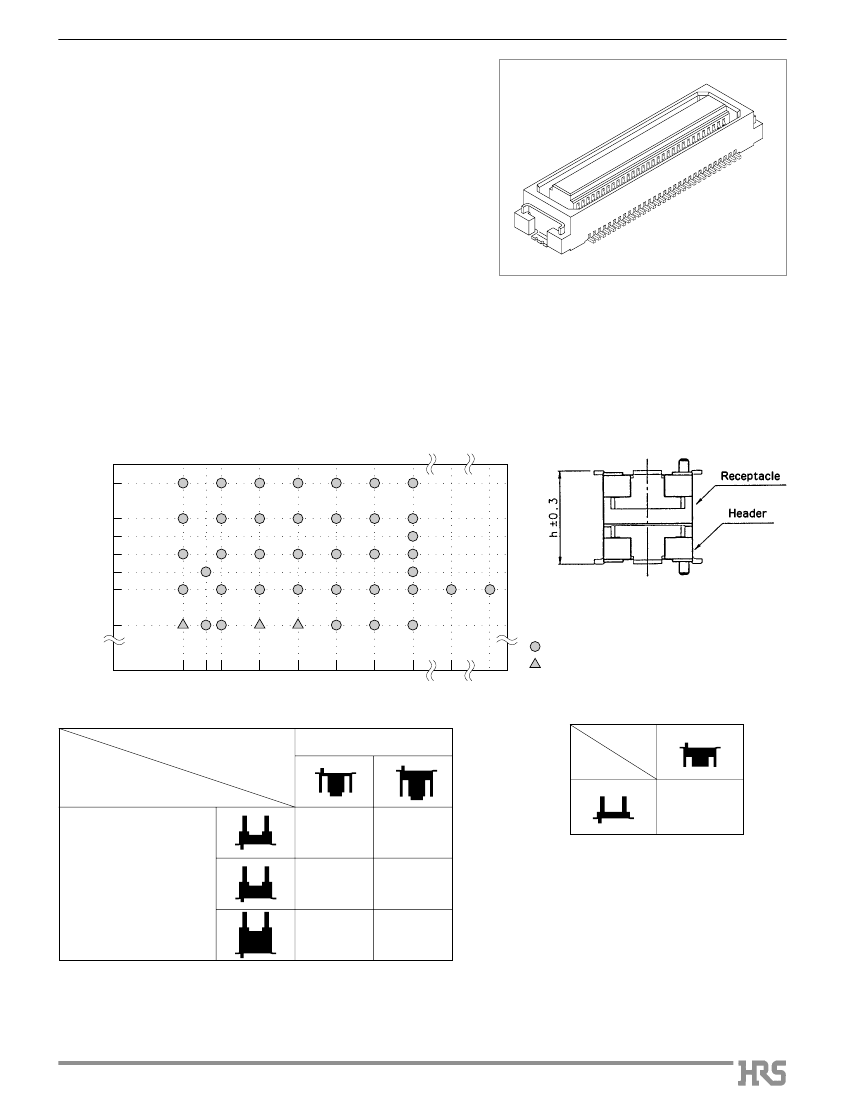

5. Stacking Height 4 to 8mm
The stacking height can be selected (per milimeter) between 4mm and
8mm in combination of the receptacle with the header.
8
7
6.5
Stacking
(mm)
6
5.5
5
4
: Available
: Under plan
20
26 30
40
50
60
70
80
100
120 (Contacts)
DF17#(M)-*DS-0.5V
Receptacle
Header
3.0
4.0
Receptacle DF17(3.0H)-*DS-0.5V
Header
DF17(1.0H)-*DP-0.5V
2.0
5mm
2.5
DF17#(M)-*DP-0.5V
4.0
7mm
8mm
5.5mm
6.5mm
6mm
4mm
Note : The stacking height doesn't
include the solder paste thickness.
s
Applications
Mobile phones, LCD, miniature equipment and so on
A185
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF17 Seriesq0.5mm Pitch Board to Board Connector
sProduct
Specifications
Rating
Current rating
Voltage rating
0.3A
50V AC
Operating Temperature Range -35 to 85ç (Note 1)
Operating Humidity Range
40 to 80%
Specification
500M
ohms
min.
No flashover or insulation breakdown.
60m ohms max.
No electrical discontinuity of 1µs or more
Contact resistance: 60m ohms max. Insulation resistance: 250M ohms min.
Contact resistance: 60m ohms max. Insulation resistance: 500M ohms min.
Contact resistance: 60m ohms
No deformation of components affecting performance.
Storage Temperature Range
Storage Humidity Range
-10 to 60ç(Note 2)
40 to 70%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
5.
Humidity (Steady state)
6. Temperature Cycle
7. Durability (Mating/un-mating)
8. Resistance to
Soldering heat
Condition
100V DC
150V AC/1 minute
100mA
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(-55ç: 30 minutes 5 to 35ç: 10 minutes 85ç: 30 minutes 5 to 35ç: 10 minutes) 5 cycles
50 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
The stacking height can be determined by adding the
figures in parentheses to receptacle and header.
8
Packaging Type (57):Gold plated,embossed
tape packaging
A186
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS
DF17
at www.hirose-connectors.com,
Board to Board Connector
search
Seriesq0.5mm Pitch
or contact your Hirose sales representative.

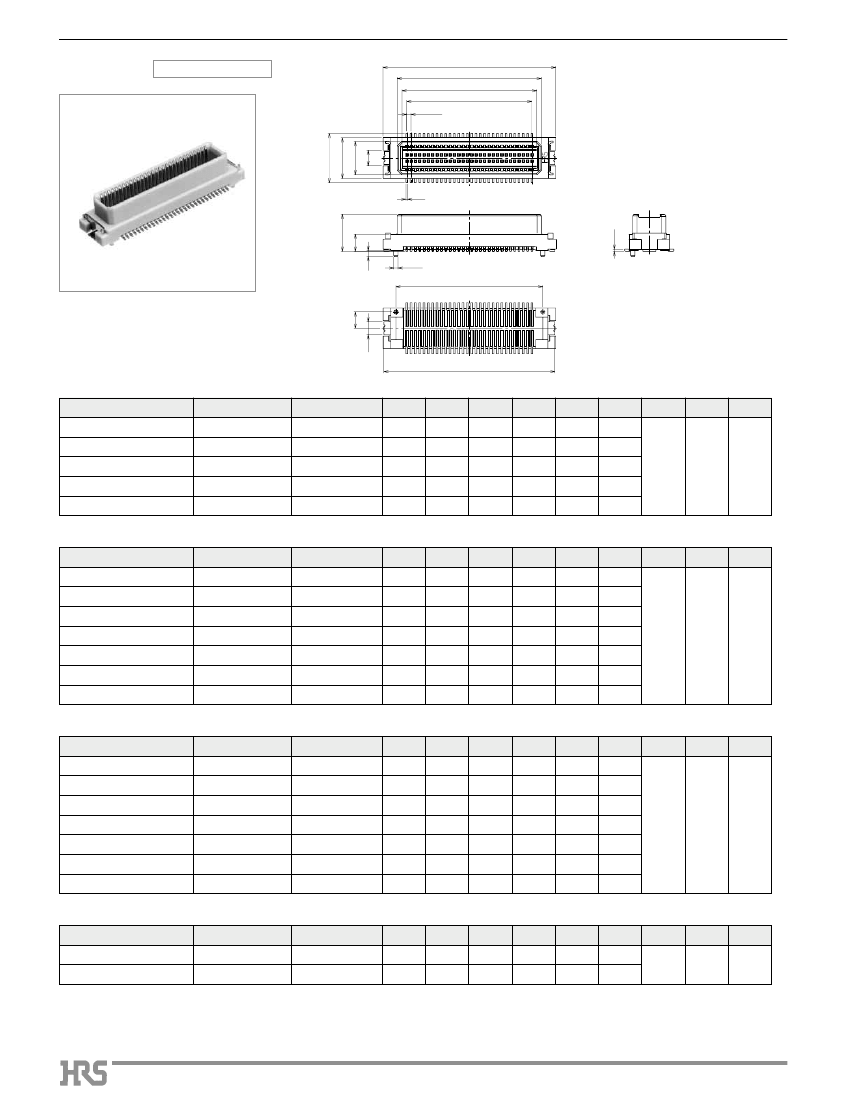

sReceptacle
With metal fitting
A
B
C
D
P
=
0.5
A
5.7
4.7
3.9
1.8
0.2
G
0.7
Ø
0.5
E
1.9
q
Stacking Height: 4mm
Part Number
DF17(3.0H)-26DS-0.5V(57)
DF17(3.0H)-30DS-0.5V(57)
DF17(3.0H)-60DS-0.5V(57)
DF17(3.0H)-70DS-0.5V(57)
DF17(3.0H)-80DS-0.5V(57)
CL No.
683-0253-2-57
683-0268-0-57
683-0361-5-57
683-0393-1-57
683-0369-7-57
Number of Contacts
26
30
60
70
80
A
11.5
12.5
20.0
22.5
25.0
B
08.3
09.3
16.8
19.3
21.8
1.5
F
C
07.0
08.0
15.5
18.0
20.5
D
06.0
07.0
14.5
17.0
19.5
E
08.5
09.5
17.0
19.5
22.0
F
11.3
12.3
19.8
22.3
24.8
0.2
H
G
H
RoHS
3.0
3.0
YES
q
Stacking Height: 5mm, 7mm
Part Number
DF17(3.0)-020DS-0.5V(57)
DF17(3.0)-026DS-0.5V(57)
DF17(3.0)-030DS-0.5V(57)
DF17(3.0)-040DS-0.5V(57)
DF17(3.0)-050DS-0.5V(57)
DF17(3.0)-060DS-0.5V(57)
DF17(3.0)-070DS-0.5V(57)
DF17(3.0)-080DS-0.5V(57)
CL No.
683-0002-2-57
683-0241-3-57
683-0003-5-57
683-0004-8-57
683-0005-0-57
683-0006-3-57
683-0007-6-57
683-0008-9-57
Number of Contacts
020
026
030
040
050
060
070
080
A
B
C
D
E
F
G
H
RoHS
10.0
11.5
12.5
15.0
17.5
20.0
22.5
25.0
06.8
08.3
09.3
11.8
14.3
16.8
19.3
21.8
05.5
07.0
08.0
10.5
13.0
15.5
18.0
20.5
04.5
06.0
07.0
09.5
12.0
14.5
17.0
19.5
07.0
08.5
09.5
12.0
14.5
17.0
19.5
22.0
09.8
11.3
12.3
14.8
17.3
19.8
22.3
24.8
3.5
3.0
YES
q
Stacking Height: 6mm, 8mm
Part Number
DF17(4.0)-20DS-0.5V(57)
DF17(4.0)-30DS-0.5V(57)
DF17(4.0)-40DS-0.5V(57)
DF17(4.0)-50DS-0.5V(57)
DF17(4.0)-60DS-0.5V(57)
DF17(4.0)-70DS-0.5V(57)
DF17(4.0)-80DS-0.5V(57)
CL No.
683-0042-7-57
683-0043-0-57
683-0044-2-57
683-0045-5-57
683-0046-8-57
683-0047-0-57
683-0048-3-57
Number of Contacts
20
30
40
50
60
70
80
A
10.0
12.5
15.0
17.5
20.0
22.5
25.0
B
06.8
09.3
11.8
14.3
16.8
19.3
21.8
C
05.5
08.0
10.5
13.0
15.5
18.0
20.5
D
04.5
07.0
09.5
12.0
14.5
17.0
19.5
E
07.0
09.5
12.0
14.5
17.0
19.5
22.0
F
09.8
12.3
14.8
17.3
19.8
22.3
24.8
4.5
4.0
G
H
RoHS
YES
Note 1. In regard to this product, the embossed tape packaging is the standard packaging. (1000 pcs./ reel.)
Note 2. If the without boss specification is required, please contact HRS sales department.
A187
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF17 Seriesq0.5mm Pitch Board to Board Connector
s

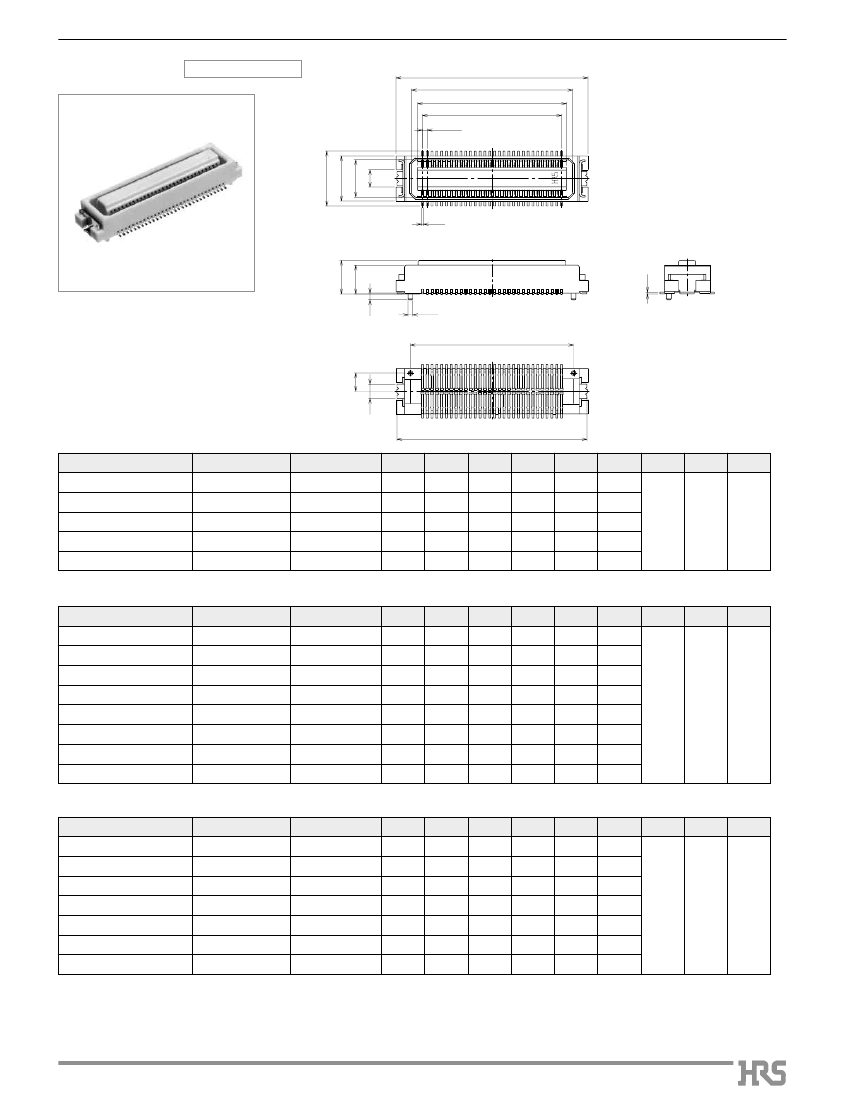

Header
With metal fitting
P
=
0.5
A
B
C
D
5.7
4.7
3.8
1.8
A
0.2
G
H
0.7
Ø
0.5
E
1.9
1.5
F
q
Stacking Height: 4mm
Part Number
DF17(1.0H)-26DP-0.5V(57)
DF17(1.0H)-30DP-0.5V(57)
DF17(1.0H)-60DP-0.5V(57)
DF17(1.0H)-70DP-0.5V(57)
DF17(1.0H)-80DP-0.5V(57)
CL No.
683-0257-3-57
683-0272-7-57
683-0365-6-57
683-0397-2-57
683-0373-4-57
Number of Contacts
26
30
60
70
80
A
11.5
12.5
20.0
22.5
25.0
B
08.2
09.2
16.7
19.2
21.7
C
07.1
08.1
15.6
18.1
20.6
D
06.0
07.0
14.5
17.0
19.5
E
08.5
09.5
17.0
19.5
22.0
F
11.3
12.3
19.8
22.3
24.8
3.3
1.0
YES
G
H
RoHS
q
Stacking Height: 5mm, 6mm
Part Number
DF17(2.0)-020DP-0.5V(57)
DF17(2.0)-030DP-0.5V(57)
DF17(2.0)-040DP-0.5V(57)
DF17(2.0)-050DP-0.5V(57)
DF17(2.0)-060DP-0.5V(57)
DF17(2.0)-070DP-0.5V(57)
DF17(2.0)-080DP-0.5V(57)
CL No.
683-0082-1-57
683-0083-4-57
683-0084-7-57
683-0085-0-57
683-0086-2-57
683-0087-5-57
683-0088-8-57
Number of Contacts
020
030
040
050
060
070
080
A
10.0
12.5
15.0
17.5
20.0
22.5
25.0
B
06.7
09.2
11.7
14.2
16.7
19.2
21.7
C
05.6
08.1
10.6
13.1
15.6
18.1
20.6
D
04.5
07.0
09.5
12.0
14.5
17.0
19.5
E
07.0
09.5
12.0
14.5
17.0
19.5
22.0
F
09.8
12.3
14.8
17.3
19.8
22.3
24.8
4.3
2.0
YES
G
H
RoHS
q
Stacking Height: 7mm, 8mm
Part Number
DF17(4.0)-20DP-0.5V(57)
DF17(4.0)-30DP-0.5V(57)
DF17(4.0)-40DP-0.5V(57)
DF17(4.0)-50DP-0.5V(57)
DF17(4.0)-60DP-0.5V(57)
DF17(4.0)-70DP-0.5V(57)
DF17(4.0)-80DP-0.5V(57)
CL No.
683-0122-4-57
683-0123-7-57
683-0124-0-57
683-0125-2-57
683-0126-5-57
683-0127-8-57
683-0128-0-57
Number of Contacts
20
30
40
50
60
70
80
A
10.0
12.5
15.0
17.5
20.0
22.5
25.0
B
06.7
09.2
11.7
14.2
16.7
19.2
21.7
C
05.6
08.1
10.6
13.1
15.6
18.1
20.6
D
04.5
07.0
09.5
12.0
14.5
17.0
19.5
E
07.0
09.5
12.0
14.5
17.0
19.5
22.0
F
09.8
12.3
14.8
17.3
19.8
22.3
24.8
6.3
4.0
YES
G
H
RoHS
q
Stacking Height: 5.5mm,6.5mm
Part Number
DF17(2.5)-26DP-0.5V(57)
CL No.
683-0245-4-57
Number of Contacts
26
A
11.5
B
08.2
C
07.1
D
06.0
E
08.5
F
11.3
G
4.8
H
2.5
RoHS
YES
683-0168-5-57
DF17(2.5)-80DP-0.5V(57)
80
25.0
21.7
20.6
19.5
22.0
24.8
Note 1. In regard to this product, the embossed tape packaging is the standard packaging. (1000 pcs./reel.)
Note 2. If the without boss specification is required, please contact HRS sales department.
