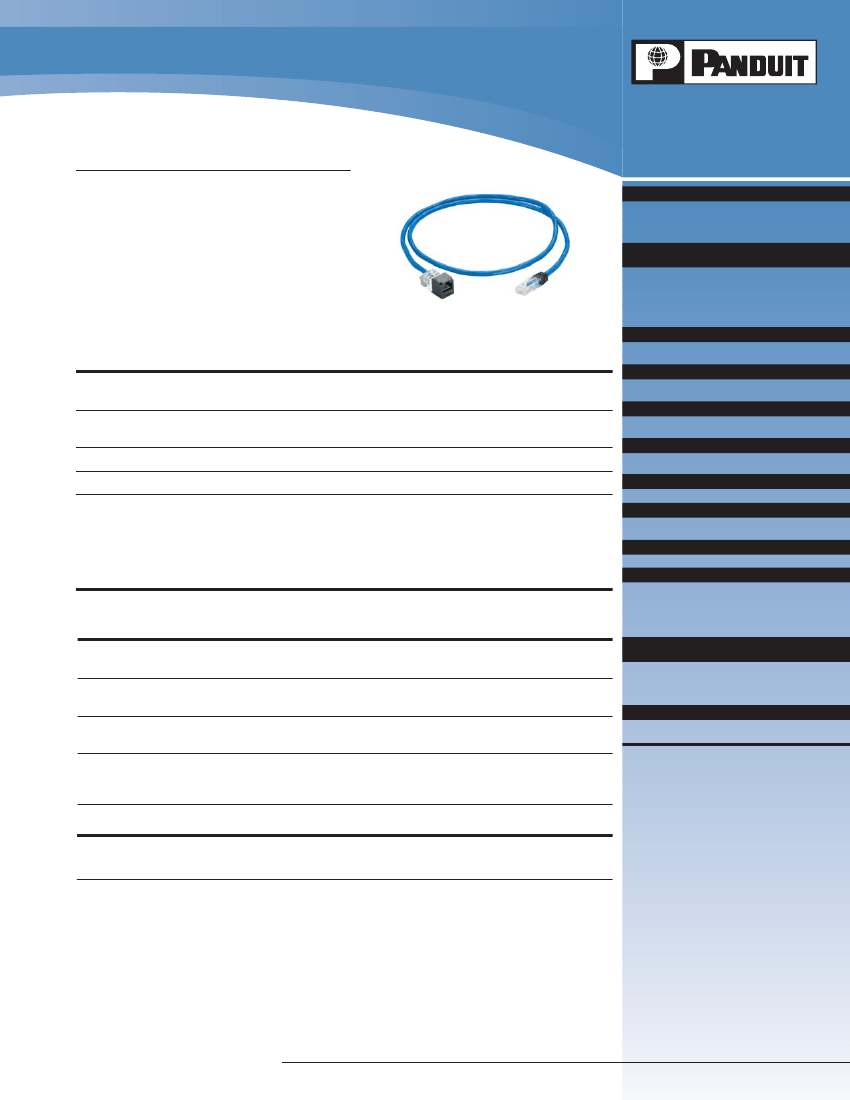

Category 6 Cable Assemblies
SPECIFICATION SHEET
specifications
Cable assemblies shall be constructed of
Category 6, 23/26 AWG, solid twisted pair cable
and available in plug-to-plug or jack-to-plug
configurations. UTP and FTP cable assemblies shall
be available in plenum, riser, or Low Smoke Zero
Halogen (LSZH) flame ratings and shall be wired
according to T568B guidelines. Cable assemblies
shall be used in outlets and patch panels found in
work areas, cabling boxes, consolidation points and
enclosures of zone cabling applications.
P
AN
Z
ONE
®

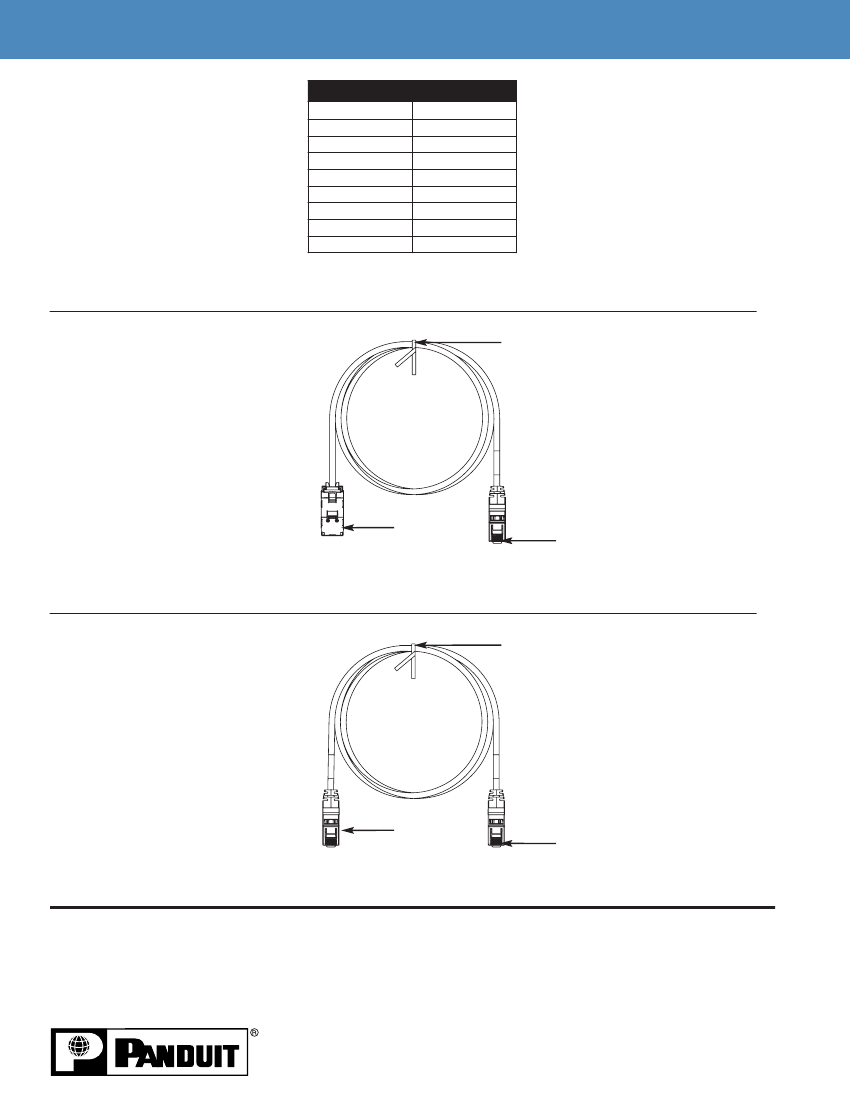

Plug to Plug Cable Assemblies
UTP Category 6
Plenum:
Riser:
LSZH:
UPPBU25Y*
UPBU25Y*
UPLBU10MY**
P
AN
Z
ONE
®
Plug to Jack Module
Cable Assemblies
UTP Category 6
Plenum:
Riser:
LSZH:
Shielded Category 6
LSZH/CM dual rated:
Plenum:
Riser:
UTP:
Shielded:
Foot lengths:
Meter lengths:
Foot lengths:
Meter lengths:
Color band:
UJPBU25BLY*
UJBU25BLY*
UJLBU10MBLY**
F6JBP5ZIB10MBLY**
PUP6004BU-UY
PUR6004BU-UY
CJ688TGIG
CJS688TG
UTPSP***Y
UTPSP^^^Y
STP6X•Y
STP6X••Y
PCBAND^-Q
PZICEA
PZICE
PZAEWM3
PZC12S
PZC12P
PZC12W
PZCHSM2
TX6000
™
UTP Copper Cable
‡
technical information
Electrical
performance:
FCC compliance:
IEC compliance:
UL rated:
Cable diameter:
Exceeds all Category 6/Class E component and channel
standard requirements
Meets ANSI/TIA-968-A; contacts plated with 50
microinches of gold for superior performance
Meets IEC 60603-7
UL No. 1863
UTP
Plenum/Riser 0.250 in. (6.4mm) nominal
LSZH
0.330 in. (8.4mm) nominal
Shielded
Plenum/Riser 0.244 in. (6.2mm) norminal
LSZH/CM dual rated
M
INI
-C
OM
®
TX6
™
PLUS Jack Modules
‡
TX6
™
PLUS UTP Patch Cords
‡
TX6
™
10G
IG
™
Shielded Patch Cords
‡
Patch Cord Color Bands
P
AN
Z
ONE
In-Ceiling Enclosures
®
Active enclosure:
Passive enclosure:
Enclosure:
Solid door:
Perforated door:
Window door:
Horizontal cable
manager:
P
AN
Z
ONE
®
Active Wall Mount Enclosure
P
AN
Z
ONE
®
Wall Mount Cabinets
key features and benefits
100% performance tested
Variety of lengths
Identification
Patented tangle free latch
on modular plugs
Color bands (optional)
Confidence that each cable assembly delivers
specified performance
Meets individual length requirements for greater
system flexibility
Provides identification of performance level, length,
and quality control number for future traceability
Prevents snags and provides easy release, saving time
and providing reliability during frequent moves, adds,
and changes
Snap onto cable, allowing additional color-coding options
P
AN
Z
ONE
®
Raised Floor Enclosures
and Cover
4 RU:
8 RU:
12 RU:
Lockable cover:
24-port underfloor:
48-port underfloor:
PZRFE4
PZRFE8
PZRFE12
PZRFC
CUFMB24BL
CUFB48BL
P
AN
Z
ONE
®
Consolidation Point Boxes
applications
Zone cabling products are designed to provide
an efficient and cost effective way to design
and deploy cabling systems in open office
architecture environments. Each zone cabling
product serves as a main distribution point for
a particular zone increasing network flexibility,
manageability, accessibility and efficiency.
Utilizing a distributed network and a zone
cabling topology for physical infrastructure
can reduce telecommunication congestion.
Zone cabling products accommodate
multimedia solutions and can be used in floor,
ceiling, and wall mount applications which
provide a complete end-to-end network
solution. Zone cabling topology provides a
scalable physical network infrastructure that
meets the needs of today as well as the
flexibility to deploy the technology of tomorrow.
w w w. p a n d u i t . c o m
*For lengths 10 to 100 feet (five foot increments)
and 110, 120, 130, 140, or 150 feet, change the
length designation in the part number to the desired length. For exam-
ple, the part number for a 100-foot,
plug to plug, Category 6, UTP, plenum cable assembly
is UPPBU100Y.
**For lengths 3, 5, 7, 10, 15 and 20 meters, change
the length designation in the part number to the desired length. For
example, the part number for a 20-meter,
plug to plug, Category 6, LSZH cable assembly is UPLBU20MY.
‡For additional colors and/or lengths, reference
PANDUIT
®
P
AN
-N
ET
®
Network Solutions Catalog,
SA-NCCB46.
^To designate color, add suffix WH (White),
EL (Electric Ivory), IG (Int'l Gray), BL (Black),
BU (Blue), RD (Red), YL (Yellow), GR (Green),
OR (Orange) or VL (Violet) before -Q in part number
***For lengths 1 to 20 feet (increments of one foot)
and 25, 30, 35, 40 feet, change the length designation in the part
number to the desired length. For standard cable colors other than Off
White, add suffix BL (Black), BU (Blue), GR (Green), RD (Red), YL
(Yellow), OR (Orange) or VL (Violet). For example, the part number for
a blue 15-foot patch cord is UTPSP15BUY.
^^^For lengths 1 to 10 meter (increments of one meter)
and 0.5, 1.5, 2.5, 15, 20, 25, 30, 40 meters, change the length
designation in the part number to the desired length. For standard
cable colors other than Off White, add suffix BL (Black), Bu (Blue),
RD (Red), GR (Green), YL (Yellow), OR (Orange) or VL (Violet) after
the M in the part number, For example, the part number for a
15-meter blue patch cord is UTPSP15MBUY.
•For lengths 2 to 20 feet (increments of one foot)
and 25, 30, 35, 40 feet change the length designation in the part
number to the desired length. To designate cable color other than IG
(International Gray), BL (Black), BU (Blue), BR (Green), RD (Red), YL
(Yellow), OR (Orange) or VL (Violet) to the end of the part number.
For example, the part number for a 15 foot blue patch cord is
STP6X15BU.
••For lengths 2 to 10 meters (increments of one meter) and 2.5, 15,
20, 25, 30, 35, 40 meters, change the length designation in the part
number to the desired length. To designate cable color add IG
(International Gray), BL (Black), BU (Blue), GR (Green), RD (Red), YL
(Yellow), OR (Orange) or VL (Violet) to the end of the part number.
For example, the part number for a 15-meter patch cord is
STP6X15MBU.
