Cord Sets
www.schurter.com/pg07_2

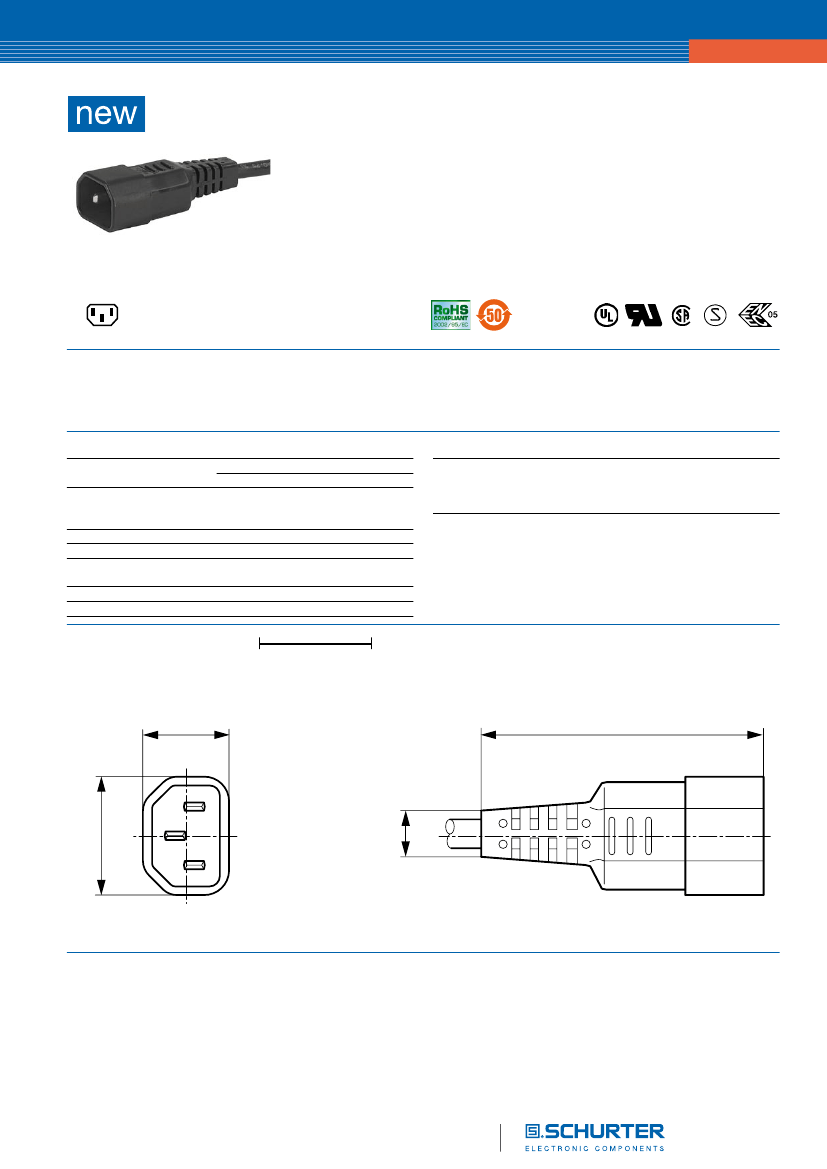

Power Cord with IEC Appliance Plug E, straight, 70°C
0609
E
70° C
Description
Approvals
Interconnection Cord, Protection class I, Pin temperature 70 °C, Cable
- UL License Number: E45116
- CSA License Number: 32338
Weblinks
Approvals, RoHS, CHINA-RoHS, e-Store, SCHURTER-Stock-Check,
Distributor-Stock-Check, Product Configurator
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
10 A / 250 VAC; 60 Hz
> 4 kVDC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
moulded
black or grey
Length
28.3 mm
Appliance-Inlet/-Outlet
E acc. to IEC/EN 60320-2-2
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C, 10 A,
Protection class I
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
20.6
67.5
Appliance Inlet
ø 11
28.3
0609
www.schurter.com/pg07_2

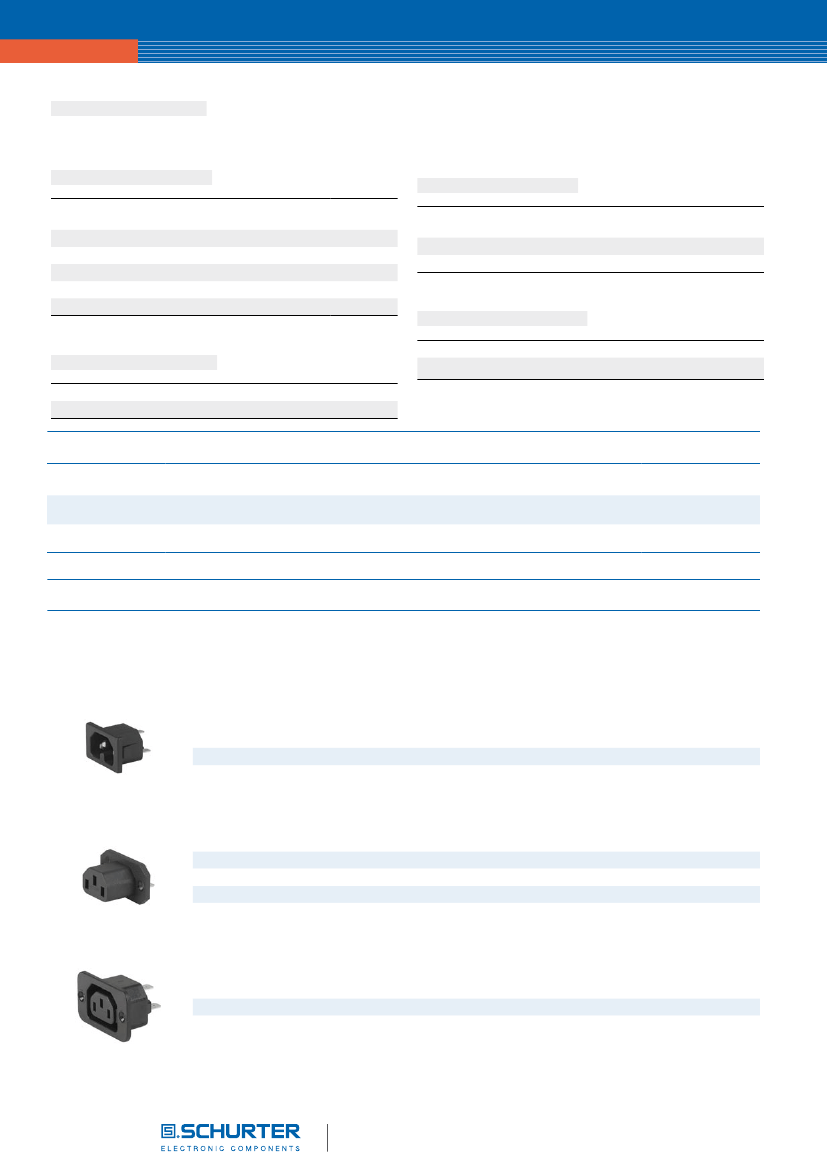

Order Code
0609
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
The characters are placeholders for the correspondingly kees of selections from the key tables.
Typ steht für die Dose bzw. 2. Seite, Länge ist die Leitungslänge in mm.
Cord Sets
Product Configurator
0609
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= corde type
corde type
H03VV-F 3G0,75mm2
H05VV-F 3G0,75mm2
H05VV-F 3G1,0mm2
SVT 3x18AWG
SJT 3x18AWG
General Product Information see page XXX
Configuration
key
C
G
I
N
P
0609
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Color
Color
jet black; RAL9005
silver grey; RAL7001
Standard color: black
Configuration
key
A
B
0609
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= Leitungslänge
Leitungslänge
zzzz, 000500, 001000, 001500, 002000, 002500, 003000, 005000
cord length in mm
0609
|
-
|
R
|
-
|
Type
|
-
|
D
|
-
|
Length
|
= cord end 2
cord end 2
zzzz, 2512, 2530, 3011, 3012, 3013, 302U, 3020, 3027, 3030, 311L, 312L
Variants
Order Code
0609-I-zzzz-A-002000
0609-I-3020-A-002000
Description
Distributor-Stock-Check
|
SCHURTER-Stock-Check
|
e-Store
Order Number
0609, IEC Interconnection Cord E, 70°C, version: Protection class I, cord type: H05VV-F 3G1,0mm2, cord end: zzzz, color: jet black; 6051.0088
RAL9005, cord lenght in mm: 002000
0609, IEC Interconnection Cord E, 70°C, version: Protection class I, cord type: H05VV-F 3G1,0mm2, cord end: 3020, color: jet
black; RAL9005, cord lenght in mm: 002000
6051.0102
The listet variants should be available from stock Other versions on request
www.schurter.com/contact
Packaging unit
100 Pcs
Mating Outlets/Connectors
Category / Description
Appliance Inlet
IEC appliance inlet C16
0169
Appliance Outlet
IEC appliance outlet F, screw-on mounting, front side, solder /quick connect terminal
IEC appliance outlet F, screw-on mounting, front side, solder /quick connect terminal
IEC appliance outlet F, screw-on mounting, front side, solder/quick connect terminal
IEC appliance outlet F, snap-in mounting, front side, solder/quick connect terminal
4787
4788
6600-3
6600-4
Appliance Outlet shuttered
IEC appliance outlet F shuttered, screw-on mounting, front side, solder/quick connect terminal
IEC appliance outlet F shuttered, snap-in mounting, front side, solder/quick connect terminal
4721
4723
2
Appliance Inlet
Cord Sets
www.schurter.com/pg07_2
0609

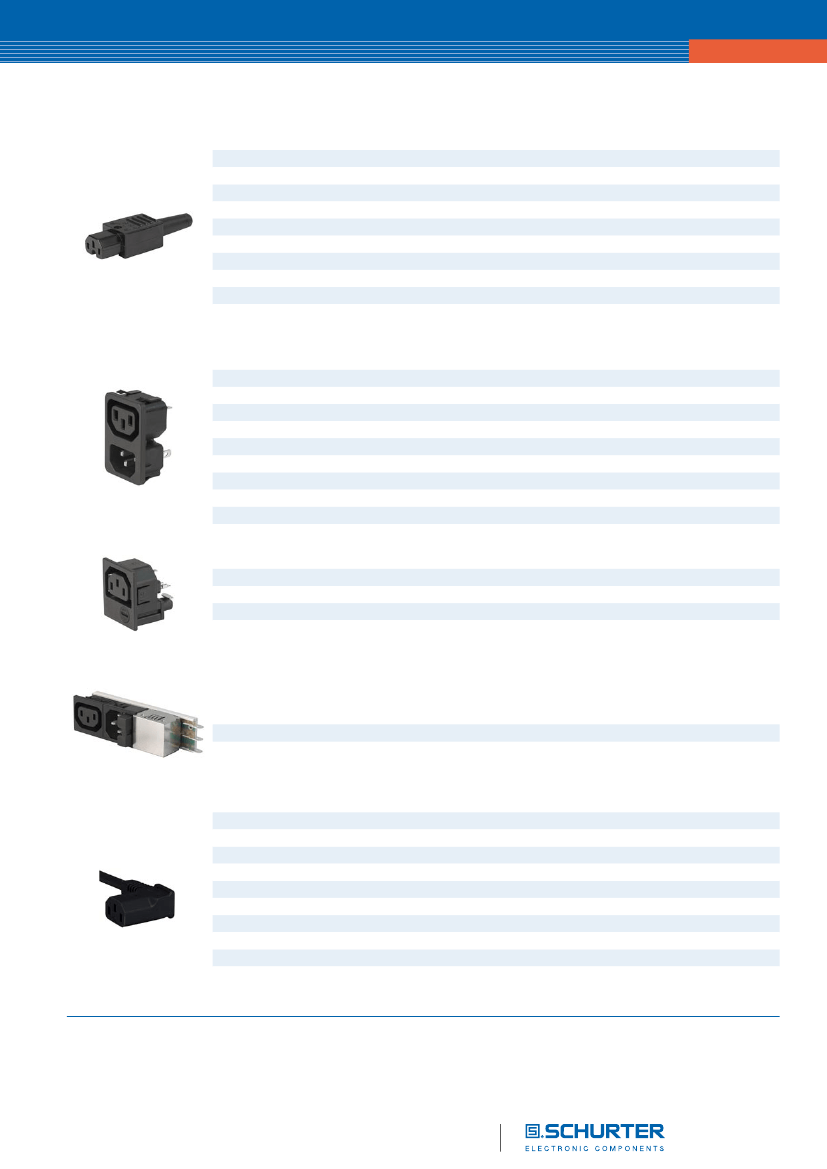

Category / Description
Connector
IEC cord connector C15, rewirable, straight
IEC cord connector C15A, rewirable, straight
IEC cord connector C15A, rewirable, straight
IEC cord connector C15A, rewirable, angled
IEC cord connector C13, rewirable, angled
IEC cord connector C13, rewirable, angled
IEC cord connector C13, rewirable, straight
IEC cord connector C13, rewirable, straight
IEC cord connector C13, rewirable, straight
IEC cord connector C13, rewirable, angled
0101
0102
0102-G
0112
4012
4013
4020
4021
4022
4300-06
...
Distribution Unit
Distribution Unit for Snap Mounting with 1 IEC Appliance Connector C14 and 1 Plug F
Stripp Block for Snap Mounting with up to 7 IEC Appliance Outlets C14
Distribution Unit with 1 IEC Appliance Connector C14 or Power Cord and 4 IEC Appliance Plugs F
Distribution Unit with 1 IEC Appliance Connector C14 and 2 Plugs F, shuttered
Distribution Unit with 1 IEC Appliance Connector C14 and 4 Plugs F
Distribution Unit with Power Cord and 4 IEC Appliance Plugs F
Stripp Block for Snap Mounting with 4 IEC Appliance Outlets C14
Stripp Block for Snap Mounting with 4 IEC Appliance Outlets C14 and space for extra component
Stripp Block for Snap Mounting with 4 IEC Appliance Outlets C14 and space for 2 extra components
0712
0909
4740
4741
4747
4748
4752
4754
4758
Power Entry Module
IEC Appliance Plug F with Fuseholder 1-pole
IEC Appliance Connector C14 with modular extended Components
IEC Appliance Connector C14 with Appliance Plug F
IEC Appliance Connector C14 with Appliance Plug F, Line Switch 2-pole and Voltage Selector
4719
Felcom 64
KP (Outlet)
PMM
Power Entry Module with line filter
Inlet filter, modular assembling
Felcom 54
Power Supply or Interconnection Cord
Power Cord with IEC Appliance Connector C13, angled, 70°C
Power Cord with IEC Appliance Connector C13, angled, 70°C
Power Cord with IEC Appliance Connector C13, angled, 70°C
Power Cord with IEC Appliance Connector C13, angled, 70°C
Power Cord with IEC Appliance Connector C13, 70°C
Power Cord with IEC Appliance Connector C13, straight, 70°C
Power Cord with IEC Appliance Connector C13, straight, 70°C
Power Cord with IEC Appliance Connector C13, angled, 70°C
Power Cord with IEC Appliance Connector C13, angled, 70°C
Power Cord with IEC Appliance Connector C15, straight, 120°C
0311
3011
3012
3013
3020
3027
302U
311L
312L
3366
...
The specifications, descriptions and illustrations indicated in this document are based on
Appliance Inlet
current information. All content is subject to modifications and amendments.
