3-1532022-6

Description
095-0610-2036=MCDR3-B-25S5L4-
CategoryThe connector    The connector
File Size138KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

3-1532022-6 Online Shopping

Suppliers Part Number Price MOQ In stock
3-1532022-6 - - View Buy Now

3-1532022-6 Overview

095-0610-2036=MCDR3-B-25S5L4-

3-1532022-6 Parametric

Parameter NameAttribute value
Brand NameMicrodot
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Is SamacsysN
Connector typeD MICROMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Manufacturer's serial number1532022
Base Number Matches1
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Pin & Socket Connectors > Product Feature Selector > Product Details

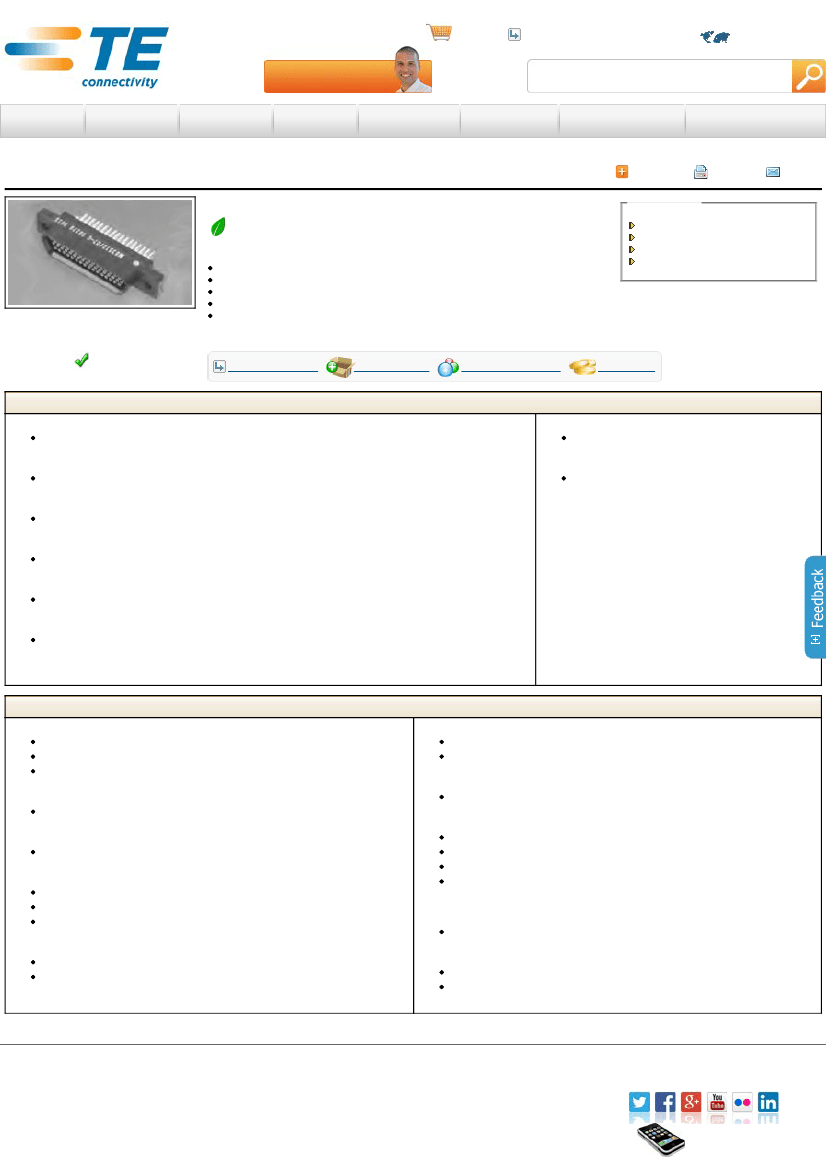

M83513/09­D06 Product Details
Microminiature D Connectors

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Connector
Connector Design = Cable Connector
Connector Style = Receptacle
Contact Type = Socket
Product Series = MCD (All Plastic)
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
M83513/09­D06
(3­1532022­6)
TE Internal Number: 3­1532022­6
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
MCD PER MIL­PRF­83513 (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Design = Cable Connector
Product Series = MCD (All Plastic)
Mechanical Attachment:
Mounting Hardware = None
Dimensions:
Lead Length (mm [in]) = 25.40 [1.000]
Body Features:
Wire Size (AWG/CM) = 25 AWG
Wire Type = Solid Copper ­ Gold Plated
Mount Type = Screw
Contact Features:
Contact Type = Socket
Contact Style = Wire Termination
Housing Features:
Connector Style = Receptacle
Housing Material = Polyphenylene Sulfide (PPS)
Configuration Features:
Number of Positions = 25
Industry Standards:
Government/Industry Qualification = Yes
Government/Industry Part Number = M83513/09­D06
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Wave solder capable to 240°C, Wave
solder capable to 260°C, Wave solder capable to 265°C, Reflow
solder capable to 245°C, Reflow solder capable to 260°C, Pin­in­
Paste capable to 245°C, Pin­in­Paste capable to 260°C
RoHS/ELV Compliance History = Always was RoHS compliant
Other:
Brand = Microdot
Comment = Also available in commercial grade.
