AK60A-024L-120F06 datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> AK60A-024L-120F06

AK60A-024L-120F06: Description1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE; CategoryPower/power management The power supply circuit; File Size109KB，2 Pages; ManufacturerEmerson Embedded Power

Download Datasheet Parametric Compare View All

AK60A-024L-120F06 Overview

1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE

AK60A-024L-120F06 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA; VDE; CE
Efficiency (main output)	84%
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XUFM-P16
JESD-609 code	e0
Maximum load regulation	0.3%
Number of functions	1
Output times	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Maximum output voltage	13.2 V
Minimum output voltage	10.8 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Protect	THERMAL; CURRENT; OUTPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	75 W
Fine-tuning/adjustable output	YES
Base Number Matches	1

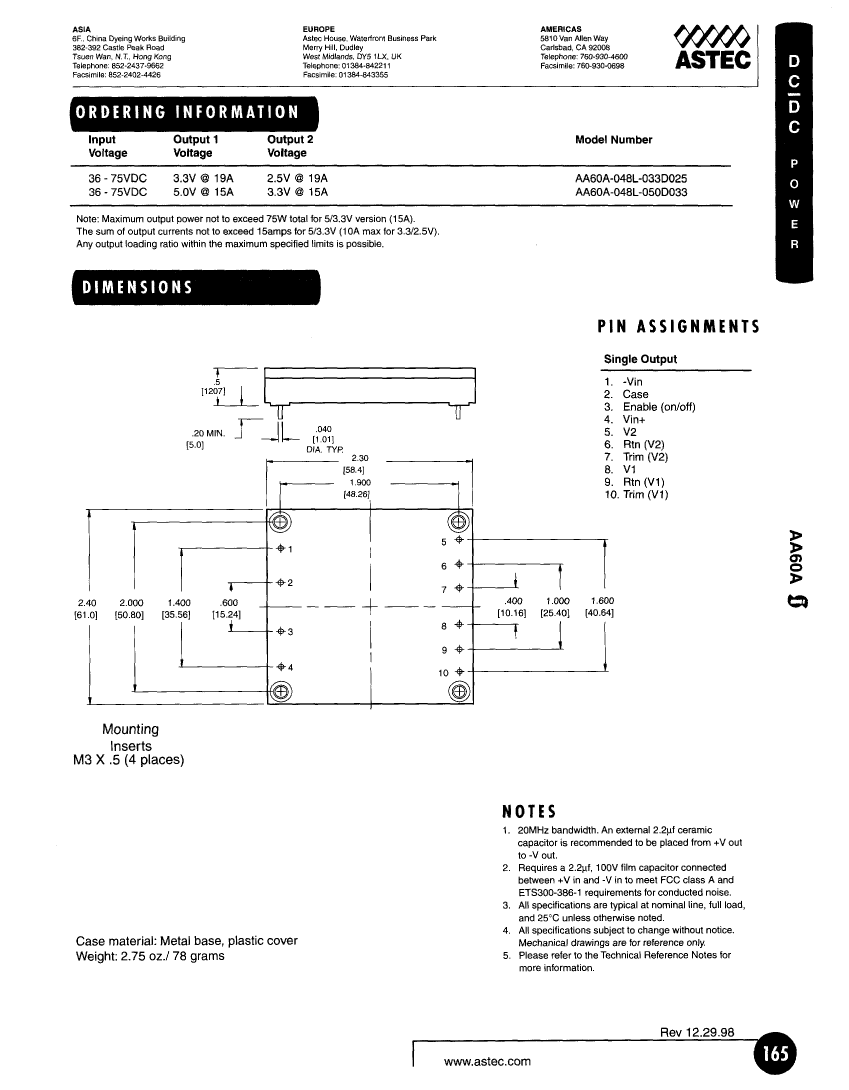

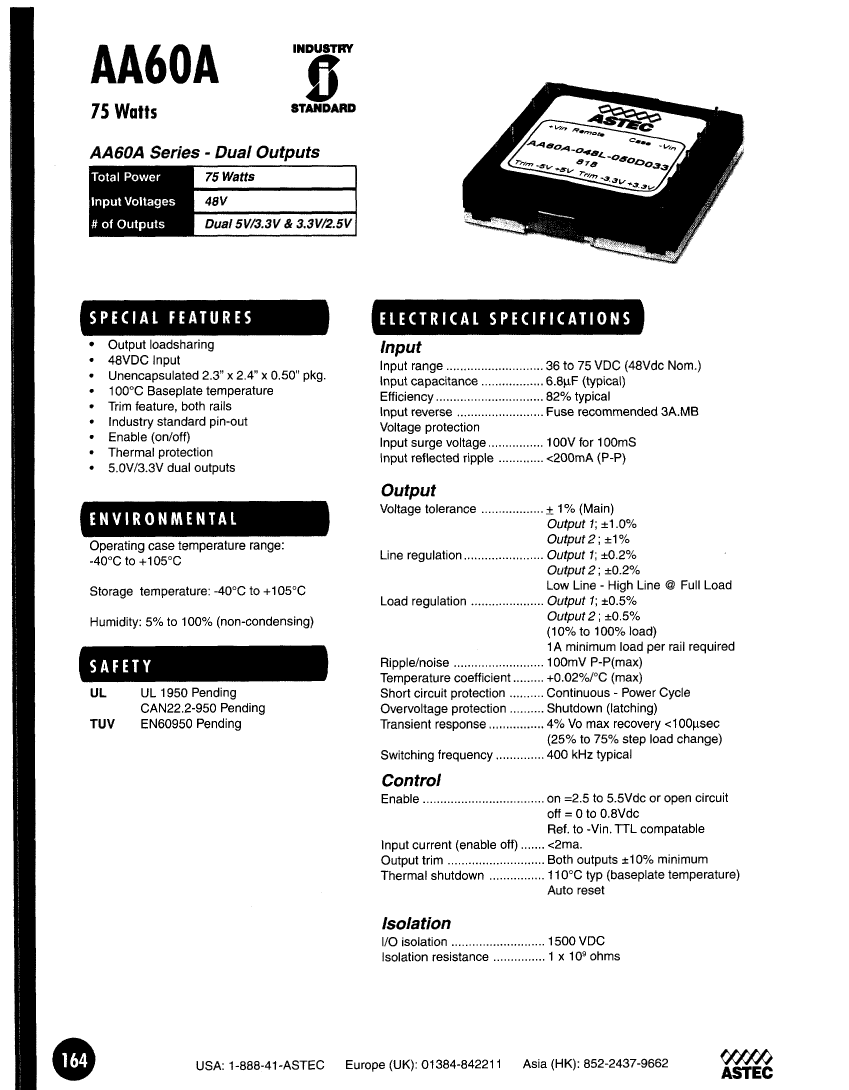

Preview

Download Datasheet

View All

AK60A-024L-120F06 Related Products

	AK60A-024L-120F06	AK60A-024L-050F15	AK60A-024L-120F06L	AK60A-024L-240F03	AK60A-024L-150F05	AK60A-024L-150F05L	AK60A-024L-050F15L	AK60A-024L-240F03L
Description	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE	1-OUTPUT 75W DC-DC REG PWR SUPPLY MODULE
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible	conform to	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V	36 V	36 V	36 V	36 V	36 V	36 V	36 V
Minimum input voltage	18 V	18 V	18 V	18 V	18 V	18 V	18 V	18 V
Nominal input voltage	24 V	24 V	24 V	24 V	24 V	24 V	24 V	24 V
JESD-30 code	R-XUFM-P16	R-XUFM-P16	R-XUFM-P16	R-XUFM-P16	R-XUFM-P16	R-XUFM-P16	R-XUFM-P16	R-XUFM-P16
Maximum load regulation	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output voltage	13.2 V	5.5 V	13.2 V	26.4 V	16.5 V	16.5 V	5.5 V	26.4 V
Minimum output voltage	10.8 V	4.5 V	10.8 V	21.6 V	13.5 V	13.5 V	4.5 V	21.6 V
Nominal output voltage	12 V	5 V	12 V	24 V	15 V	15 V	5 V	24 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	75 W	75 W	75 W	75 W	75 W	75 W	75 W	75 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES
Base Number Matches	1	1	1	1	1	1	1	1
Certification	UL; CSA; VDE; CE	UL; CSA; VDE; CE	UL; CSA; VDE; CE	-	UL; CSA; VDE; CE	UL; CSA; VDE; CE	UL; CSA; VDE; CE	-
Protect	THERMAL; CURRENT; OUTPUT OVER VOLTAGE	THERMAL; CURRENT; OUTPUT OVER VOLTAGE	THERMAL; CURRENT; OUTPUT OVER VOLTAGE	-	THERMAL; CURRENT; OUTPUT OVER VOLTAGE	THERMAL; CURRENT; OUTPUT OVER VOLTAGE	THERMAL; CURRENT; OUTPUT OVER VOLTAGE	-
