1393642-8 datasheet, PDF - EEWORLD Datasheet

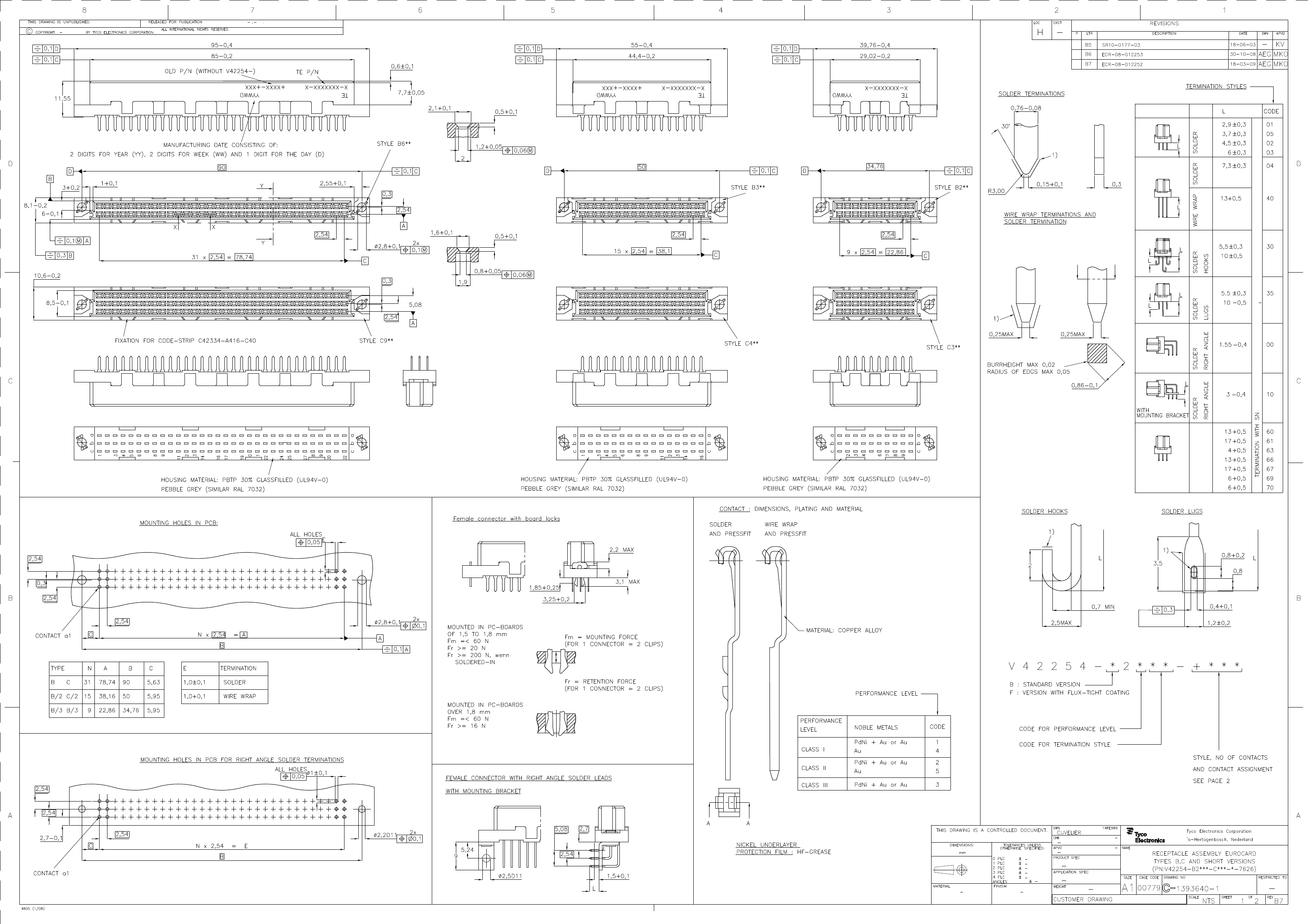

1393642-8: DescriptionCONNECTOR,DIN-41612,PCB MNT,RECEPT,20 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL,LOCKING; CategoryThe connector The connector; File Size759KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

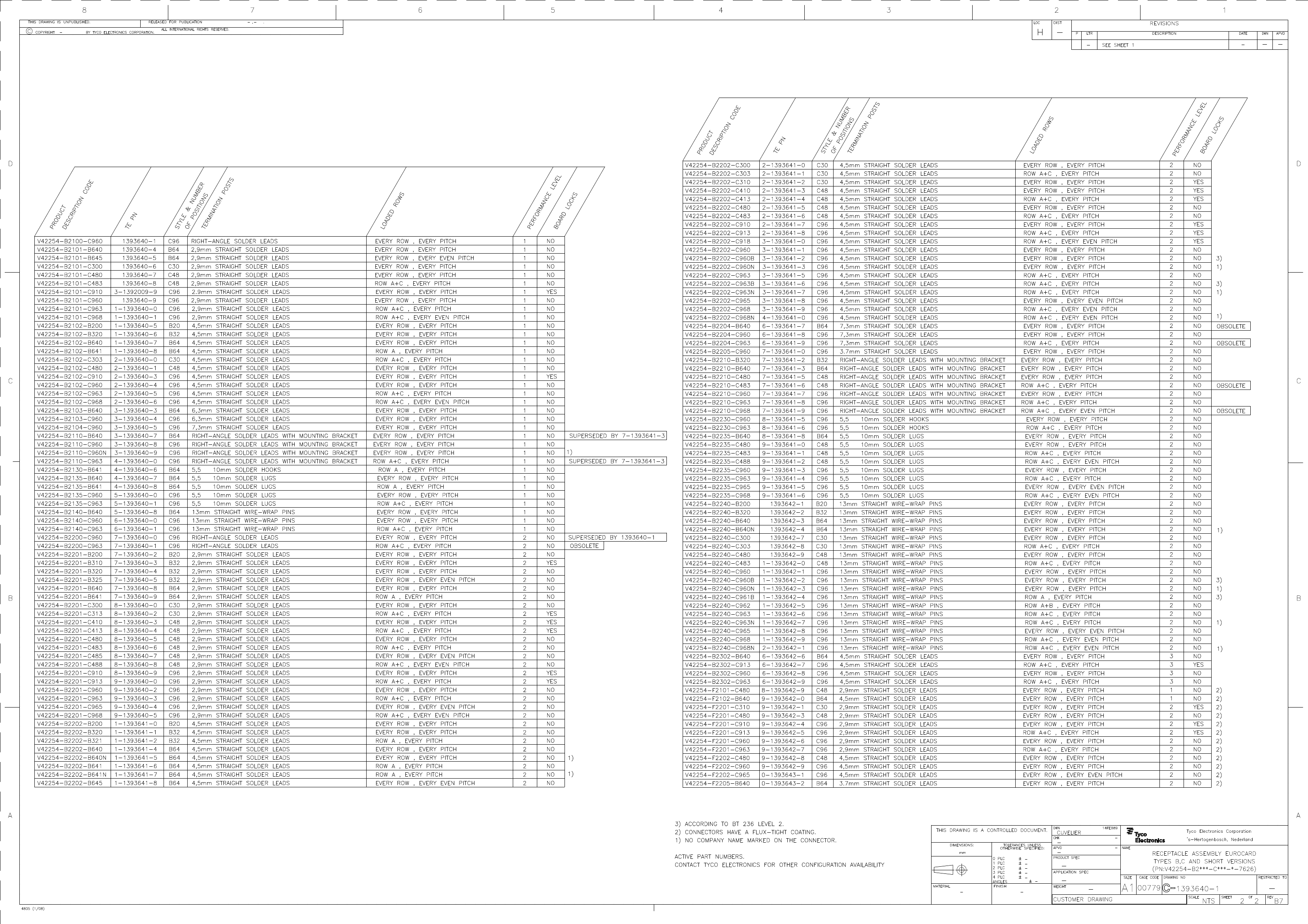

1393642-8 Overview

CONNECTOR,DIN-41612,PCB MNT,RECEPT,20 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL,LOCKING

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304016819
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ELV & ROHS COMPLIANT
body width	0.417 inch
subject depth	0.455 inch
body length	1.565 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	200 Cycles
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.512 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	20
Evacuation force-minimum value	.139 N
