803-43-019-10-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-43-019-10-001000

803-43-019-10-001000: DescriptionBoard Connector, 19 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size300KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-43-019-10-001000 Overview

Board Connector, 19 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

803-43-019-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	TIN (200)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	19
Base Number Matches	1

Preview

Download Datasheet

View All

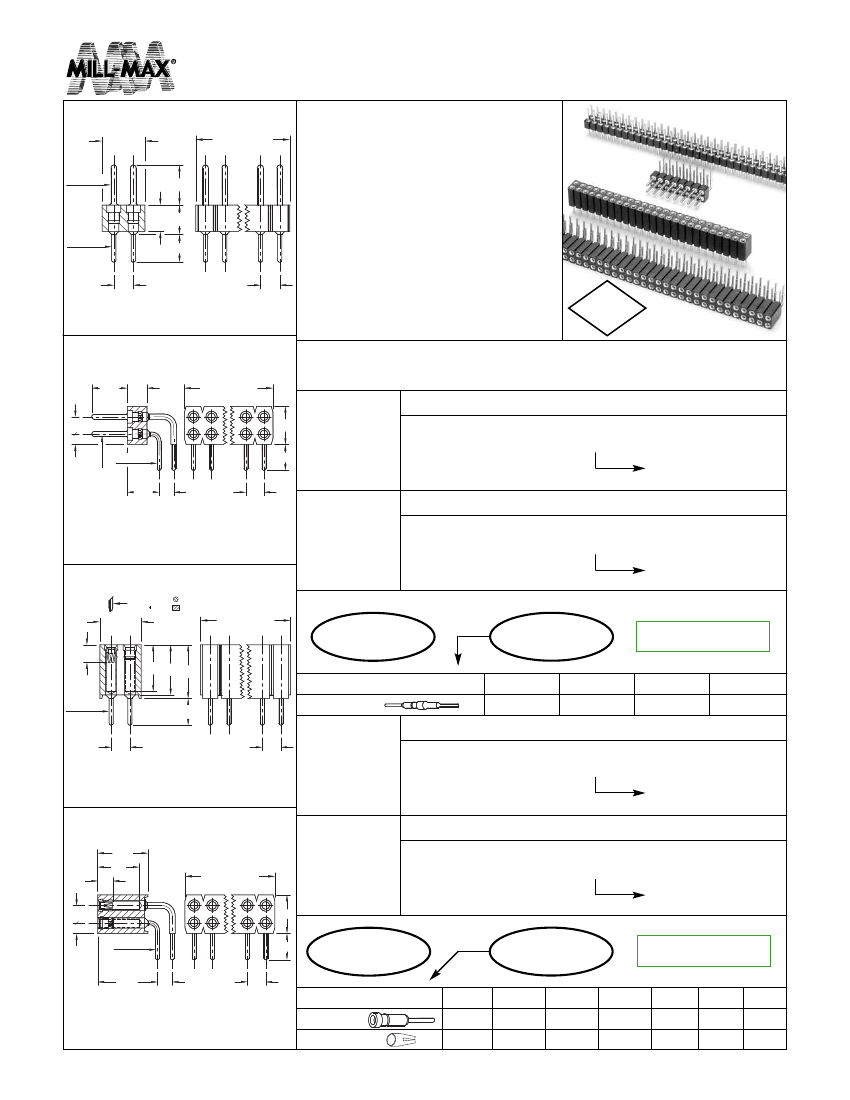

INTERCONNECTS

2,54 Grid (0,76 dia.) Pins, Straight and Right Angle

Double Row

Number

of Pins

2,54 / 2

Series 802, 803

5,08

•

Pin interconnects available with straight

MM #7007 or right angle MM #5005/5107

solder tails. See page 182 for details.

•

Sockets are available with straight MM

#1304 or right angle MM #1305/1306 solder

tails. See pages 148 & 149 for details.

•

MM #1304, #1305 & #1306 receptacles use

use Hi-Rel, 6-finger BeCu #47 contacts

rated at 4.5 amps. Receptacles accept 0,76

diameter and 0,64 square pins. See page

221 for details.

•

Insulators are high temp. thermoplastic.

0,76 DIA.

4,95

2,79 3,18

0,61 DIA.

3,0

2,54

Fig. 1

2002/95/EC

RoHS

Ordering Information

4,95

2,79

Number

of Pins

X 2,54 / 2

Series 802...10-001

2,54

1,27

0,61 DIA.

0,76 DIA.

4,5

2,54

3,2

5,08

Straight Pin Header

Fig. 1

802-XX-0_ _-10-001000

Specify # of pins

Series 802...20-001

02-64

Right Angle Pin Header

Fig. 2

802-XX-0 _ _-20-001000

Specify # of pins

02-64

0,64-0,94

0,64 0,64

5,08

Number of

Pins

2,54

2,24

6,1 6,55

7,01

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

SPECIFY PLATING CODE XX=

0,61 DIA.

3,0



5,08μm Sn

Pin Plating

0,25μm Au 5,08μm Sn/Pb

Series 803...10-001

2,54

Straight Socket

Fig. 3

803-XX-_ _ _-10-001000

Specify # of pins

Series 803...20-001

002-100

Right Angle Socket

7,01

6,1

2,24

Number

of Pins

X 2,54 / 2

Fig. 4

5,08

803-XX-_ _ _-20-001000

Specify # of pins

002-100

For RoHS compliance

select



plating code.

2,54

1,27

0,61 DIA.

3,2

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

8,31

2,54

SPECIFY PLATING CODE XX=



0,76µm Au

5,08µm Sn/Pb



5,08µm Sn

0,76µm Au



Fig. 4

Sleeve (Pin)

Contact (Clip)

5,08µm Sn/Pb 5,08µm Sn/Pb

w w w. m i l l - m a x . c o m



516-922-6000
