1.00mm HORIZONTAL ZIF CONNECTOR
1761 SERIES.
1.00mm(0.039”). For PCB Solder
Features
Available in 4 through 32 circuits
Insulator Material: Nylon 6T UL 94V-0
Contact Material: Phosphor Bronze
Zero insertion force and high contact pressure
Applicable FPC and FFC: Thickness 0.30mm(.012”)

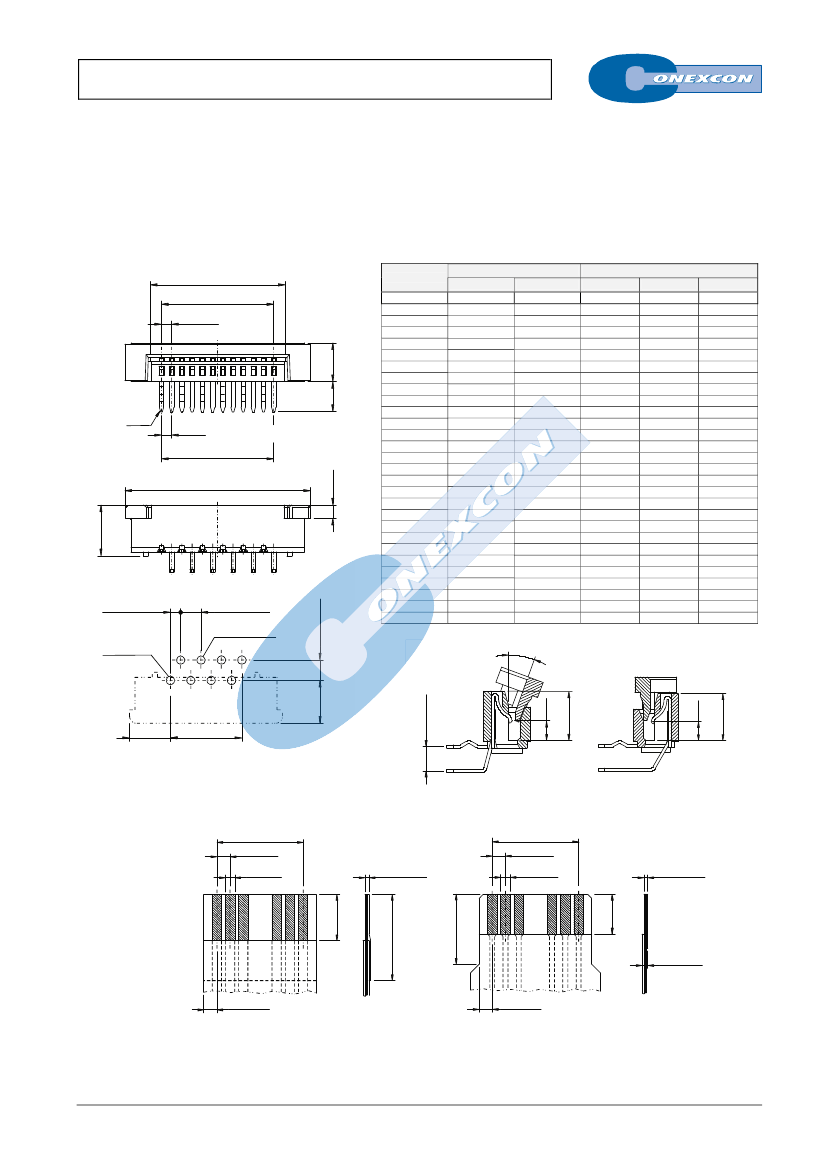

Dimensional Information
Ordering and Dimensional Information
C
+0.15
-0.05
Circuit Size
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Part Number
Upsid. Contact Downside Cont
1761-2041
1761-2051
1761-2061
1761-2071
1761-2081
1761-2091
1761-2101
1761-2111
1761-2121
1761-2131
1761-2141
1761-2151
1761-2161
1761-2171
1761-2181
1761-2191
1761-2201
1761-2211
1761-2221
1761-2231
1761-2241
1761-2251
1761-2261
1761-2271
1761-2281
1761-2291
1761-2301
1761-2311
1761-2321
1761-2042
1761-2052
1761-2062
1761-2072
1761-2082
1761-2092
1761-2102
1761-2112
1761-2122
1761-2132
1761-2142
1761-2152
1761-2162
1761-2172
1761-2182
1761-2192
1761-2202
1761-2212
1761-2222
1761-2232
1761-2242
1761-2252
1761-2262
1761-2272
1761-2282
1761-2292
1761-2302
1761-2312
1761-2322
A
3,00(0,118)
4,00(0,157)
5,00(0,197)
6,00(0,236)
7,00(0,276)
8,00(0,315)
9,00(0,354)
10,00(0,394)
11,00(0,433)
12,00(0,472)
13,00(0,512)
14,00(0,551)
15,00(0,591)
16,00(0,630)
17,00(0,669)
18,00(0,709)
19,00(0,748)
20,00(0,787)
21,00(0,827)
22,00(0,866)
23,00(0,906)
24,00(0,945)
25,00(0,984)
26,00(1,024)
27,00(1,063)
28,00(1,102)
29,00(1,142)
30,00(1,181)
31,00(1,220)
Dimension
B
10,20(0,402)
11,20(0,441)
12,20(0,480)
13,20(0,520)
14,20(0,559)
15,20(0,598)
16,20(0,638)
17,20(0,677)
18,20(0,717)
19,20(0,756)
20,20(0,795)
21,20(0,835)
22,20(0,874)
23,20(0,913)
24,20(0,953)
25,20(0,992)
26,20(1,031)
27,20(1,071)
28,20(1,110)
29,20(1,150)
30,20(1,189)
31,20(1,228)
32,20(1,268)
33,20(1,307)
34,20(1,346)
35,20(1,386)
36,20(1,425)
37,20(1,465)
38,20(1,504)
C
5,20(0,205)
6,20(0,244)
7,20(0,283)
8,20(0,323)
9,20(0,362)
10,20(0,402)
11,20(0,441)
12,20(0,480)
13,20(0,520)
14,20(0,559)
15,20(0,598)
16,20(0,638)
17,20(0,677)
18,20(0,717)
19,20(0,756)
20,20(0,795)
21,20(0,835)
22,20(0,874)
23,20(0,913)
24,20(0,953)
25,20(0,992)
26,20(1,031)
27,20(1,071)
28,20(1,110)
29,20(1,150)
30,20(1,189)
31,20(1,228)
32,20(1,268)
33,20(1,307)
A±0.1
1.000
.039
TYP.
3.80
3.00
Nº 1
1.0
.039
(Solder tail pitch)
A±0.2
1.30
.051
TYP.
2.00±0.05
.079±.002
(Total solder tail pitch)
B±0.3
5.0
.197
1.00±0.05
.039±.002
1ST Circ.
2.00±0.05
.079±.002 TYP.
ø0.80±0.05
.031±.002
.118
.150
20º
.177
4.5
2.0±0.3
.079±.012
1.6
.063
4.0
.157
1.6
.063
3.6 Ref.
A±0.15
.142
Recommended P.C. Board Layout
Downside contact
Upside contact
A±0.05
1.00±.05
TYP.
.039±.002
0.6±0.03
TYP.
.024±.001
3.5 Min.
A±0.05
1.00±.05
.039±.002 TYP.
0.60±.08
.024±.003 TYP.
3.0 Min.
0.300±.05
.012±.002
0.30±0.05
.012±.002
.118
.138
6.0 Min.
5.5 Min.
.236
.217
0.45 Max.
.018
1.00.10
.039±.004
TYP.2
1.00.10
.039±.004
TYP.2
* ACCOMMODATED FFC
* ACCOMMODATED FPC
FULL LINE CATALOGUE
4.0
.157
P-XX
