329-43-144-41-540000 datasheet, PDF

Datasheet> All Categories > The connector> socket> 329-43-144-41-540000

329-43-144-41-540000: DescriptionIC Socket, SIP44, 44 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size355KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

329-43-144-41-540000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	329-43-144-41-540000	-	-	View	Buy Now

329-43-144-41-540000 Overview

IC Socket, SIP44, 44 Contact(s), ROHS COMPLIANT

329-43-144-41-540000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	SIP44
Shell material	PLASTIC
JESD-609 code	e3
Number of contacts	44
Base Number Matches	1

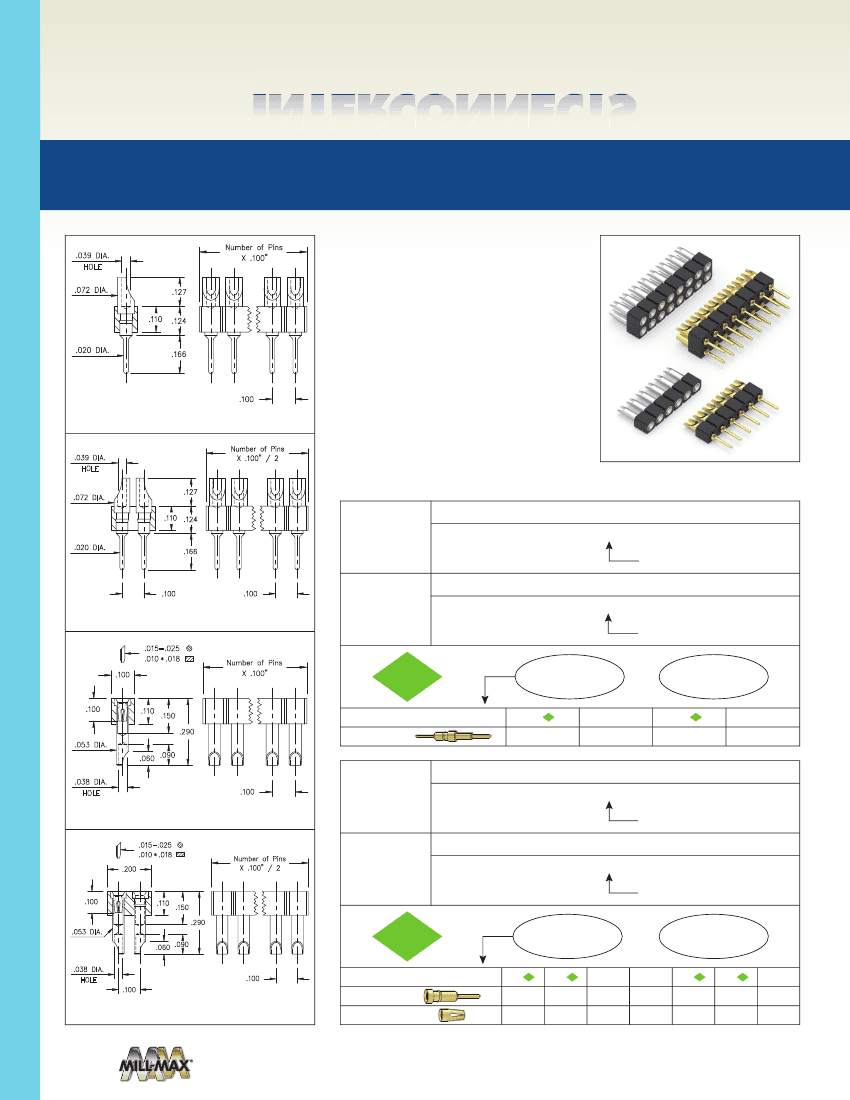

Preview

Download Datasheet

View All

INTERCONNECTS

SERIES 329, 380, 429, 480 • .100” GRID SOLDER CUP

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Number of Pins

X .100"

•

Series 380 & 480 use MM #8000 pins. See page

216 for details

.039 DIA.

HOLE

.072 DIA.

.127

.110

•

Series 329 & 429 use MM #2954 receptacles

and accept pin diameters from .015”-.025”.

See page 171 for details

.124

.020 DIA.

.166

•

Series 329 & 429 receptacles use Hi-Rel,

4- nger BeCu #30 contact rated at 3 amps.

See page 253 for details

.100

FIG. 1

.039 DIA.

HOLE

.127

Number of Pins

X .100" / 2

•

Soldercups are pre-aligned

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

.072 DIA.

ORDERING INFORMATION

Series 380...001

Single Row Solder Cup / Solder Tail

380 XX 1_ _ 00 001000

Specify number of pins

.100

.110 .124

.020 DIA.

.166

FIG. 1

Series 480...001

01-64

.100

Double Row Solder Cup / Solder Tail

480 10 2_ _ 00 001000

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.015-.025

.010 * .018

FIG. 2

Number of Pins

X .100"

Specify number of pins

RoHS - 2

.100

2011/65/EU

XX=Plating Code

See Below

µ”

.100

.110

.150

.290

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.053 DIA.

.060 .090

.038 DIA.

HOLE

Series 329...540

.100

Single Row Solder Cup Sockets

329 XX 1_ _ 41 540000

01-64

FIG. 3

.015-.025

.010 * .018

FIG. 3

Series 429...540

Specify number of pins

Number of Pins

X .100" / 2

Double Row Solder Cup Sockets

429 XX 2_ _ 41 540000

02-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 48 | INTERCONNECTS

.200

FIG. 4

RoHS - 2

.100

.110

Specify number of pins

.150

.290

.053 DIA.

.060 .090

.038 DIA.

HOLE

2011/65/EU

XX=Plating Code

See Below

µ”

.100

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

µ”

200

µ”

200

µ”

FIG. 4

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
