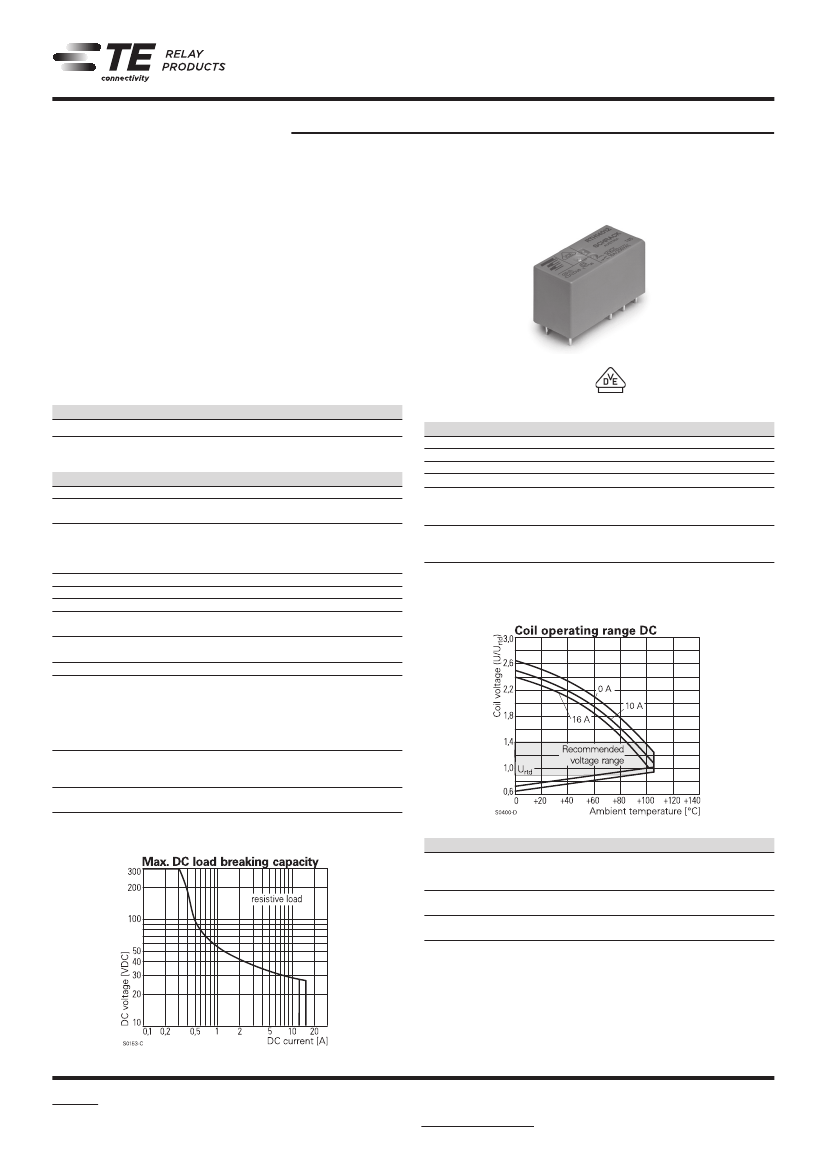

General Purpose
Low Power PCB Relays
Power PCB Relay RTH 105°C 16A
n
n
n
n
n
n
SCHRACK
1 pole 16A, 1 form C (CO) or 1 form A (NO) contact
Ambient temperature 105°C
Sensitive coil 400mW
5kV/10mm coil-contact
Reinforced insulation
WG version: Product in accordance to IEC 60335-1
Typical applications
Oven control, cooking plate control.
Zb
Approvals
VDE Cert. No. 40007571, UL E214025, cCSAus 1142018
Technical data of approved types on request.
Coil Data
Contact arrangement
1 form C (CO) or 1 form A (NO)
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
16A
1)
Limiting continuous current, form A/form B
16 / 26A
Limiting making current (form A contact)
max. 4 s, duty factor 10 %
30A
Breaking capacity max.
4000VA
Contact material
AgNi 90/10
Frequency of operation, with/without load
360/72000h
-1
Operate/release time max.
8/6ms
Bounce time max., form A/form B
4/6ms
Contact ratings
Type
Contact
IEC 61810
RTH14
A (NO)
RTH14
C (CO)
RTH14
B (NC)
RTH34
A (NO)
RTHH4
A (NO)
UL 508
RTH14
A/B (NO/NC)
RTH34
A (NO)
Mechanical endurance
Load
10A, 250VAC resistive,105°C
16A, 250VAC resistive, 105°C
26A, 250VAC resistive, 85°C
10A, 400VAC resistive, 105°C
10A, 250VAC resistive, 105°C
16A, 250VAC, resistive, 105°C
20A, 250VAC, general purpose, 105°C
>30x10
6
operations
Cycles
150x10
3
10x10
3
500
150x10
3
250x10
3
30x10
3
6x10
3
Contact Data
Coil voltage range
5 to 60VDC
Operative range, IEC 61810
90...110% U
RTD
Coil insulation system according UL1446
class F
Coil versions, DC coil
Coil
Rated
Operate
Release
Coil
code
voltage
voltage
voltage
resistance
VDC
VDC
VDC
Ω±10%
009
9
6.3
0.9
203
012
12
8.4
1.2
360
024
24
16.8
2.4
1440
Rated coil
power
mW
399
1)
400
1)
400
1)
1) Continuous thermal load > 10 A at 105°C requires reduction of coil power to 64% of
rated power after 100ms.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
1) Continuous thermal load >10A at 105°C requires reduction of coil power to 64% of
rated power after 100ms.
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
1000V
rms
5000V
rms
≥10/10mm
IIIa
PTI250V
10-2014, Rev. 1014
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
1
General Purpose
Low Power PCB Relays
Power PCB Relay RTH 105°C 16A
(Continued)
Other Data
SCHRACK
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
WG version
according EN 60335-1, par.30
Ambient temperature
-40 to 105°C
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional)
form A/form B contact, 30 to 150Hz
20/5g
Shock resistance (destructive)
100g
Terminal type
PCB-THT
Weight
14g
Resistance to soldering heat THT
IEC 60068-2-20
270°C/10s
Packaging/unit
tube/20 pcs., box/500 pcs.
PCB layout / terminal assignment
16A, pinning 5mm
*) With the recommended PCB hole sizes a grid
pattern from 2.5mm to 2.54mm can be used.
1 form C (CO) contact
Dimensions
1 form A (NO) contact
Product code structure
Type
Typical product code
RT
H
3
4
012
WG
RT
Power PCB Relay RTH 105°C 16A
Version
H
16A, pinning 5mm, 105°C
Contact configuration
1
1 form C (CO) contact
3
1 form A (NO) contact
H
1 form A (NO) contact „High Performance“
Contact material
4
AgNi 90/10
Coil
Coil code: please refer to coil versions table
Version
Blank
Standard version
WG
Product in accordance with IEC 60335-1 (domestic appliances)
RTH14012
16A, 105°C
1 form C (CO)
AgNi 90/10
RTH14012WG
contact
RTH14024WG
RTH34012
1 form A (NO)
RTH34012WG
contact
RTH34024
RTH34024WG
RTHH4009WG
16A, 105°C,
RTHH4012
High Performance
RTHH4012WG
RTHH4024
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request.
Product code
Version
Contact configuration Contact Material
12VDC
24VDC
12VDC
24VDC
9VDC
12VDC
24VDC
Coil
Part number
8-1415006-1
1-1415538-1
9-1415535-4
9-1415006-1
1-1415536-9
1415039-1
2-1415536-0
1-1415540-6
8-1415047-1
4-1415536-2
9-1415047-1
2
10-2014, Rev. 1014
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
