52271-1479

Description
Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE
CategoryThe connector    The connector
File Size378KB,5 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

52271-1479 Online Shopping

Suppliers Part Number Price MOQ In stock
52271-1479 - - View Buy Now

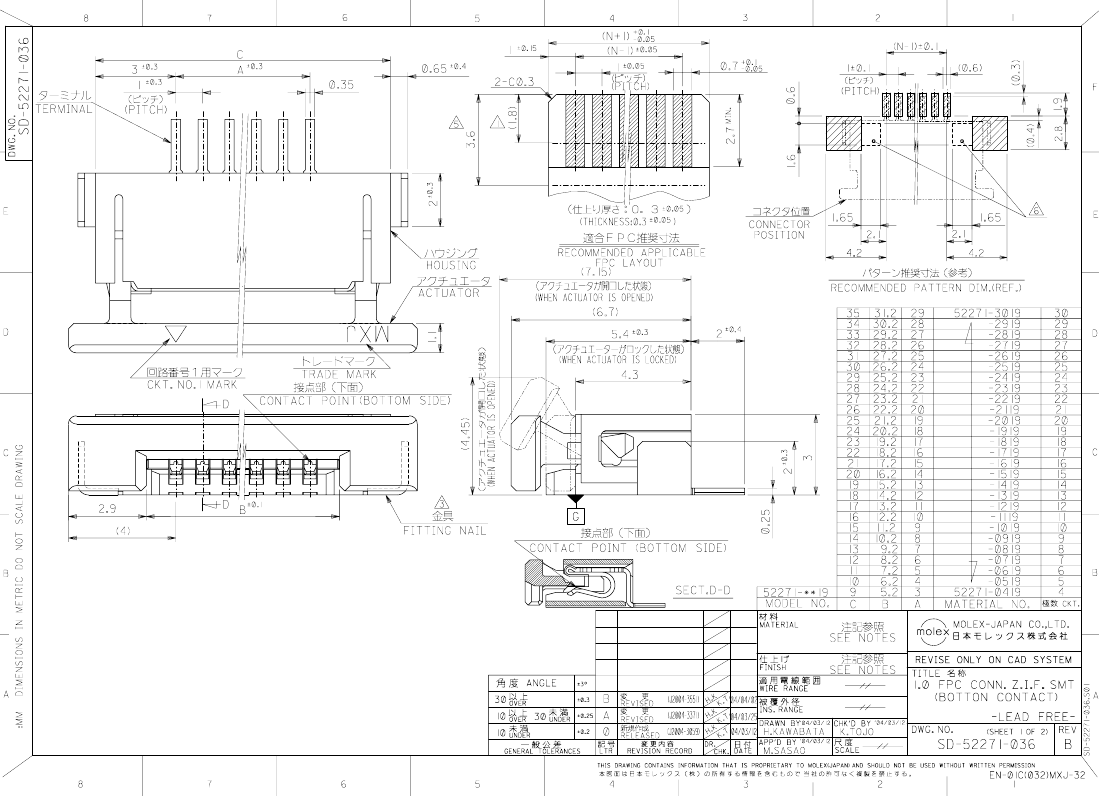

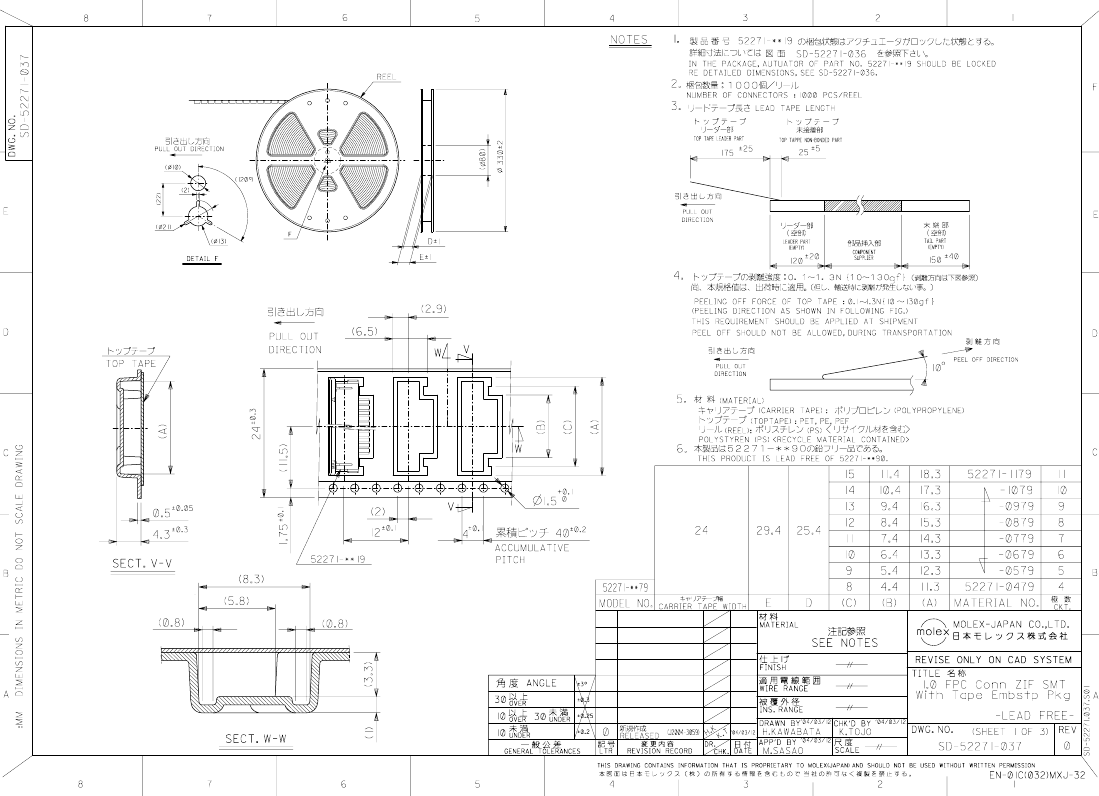

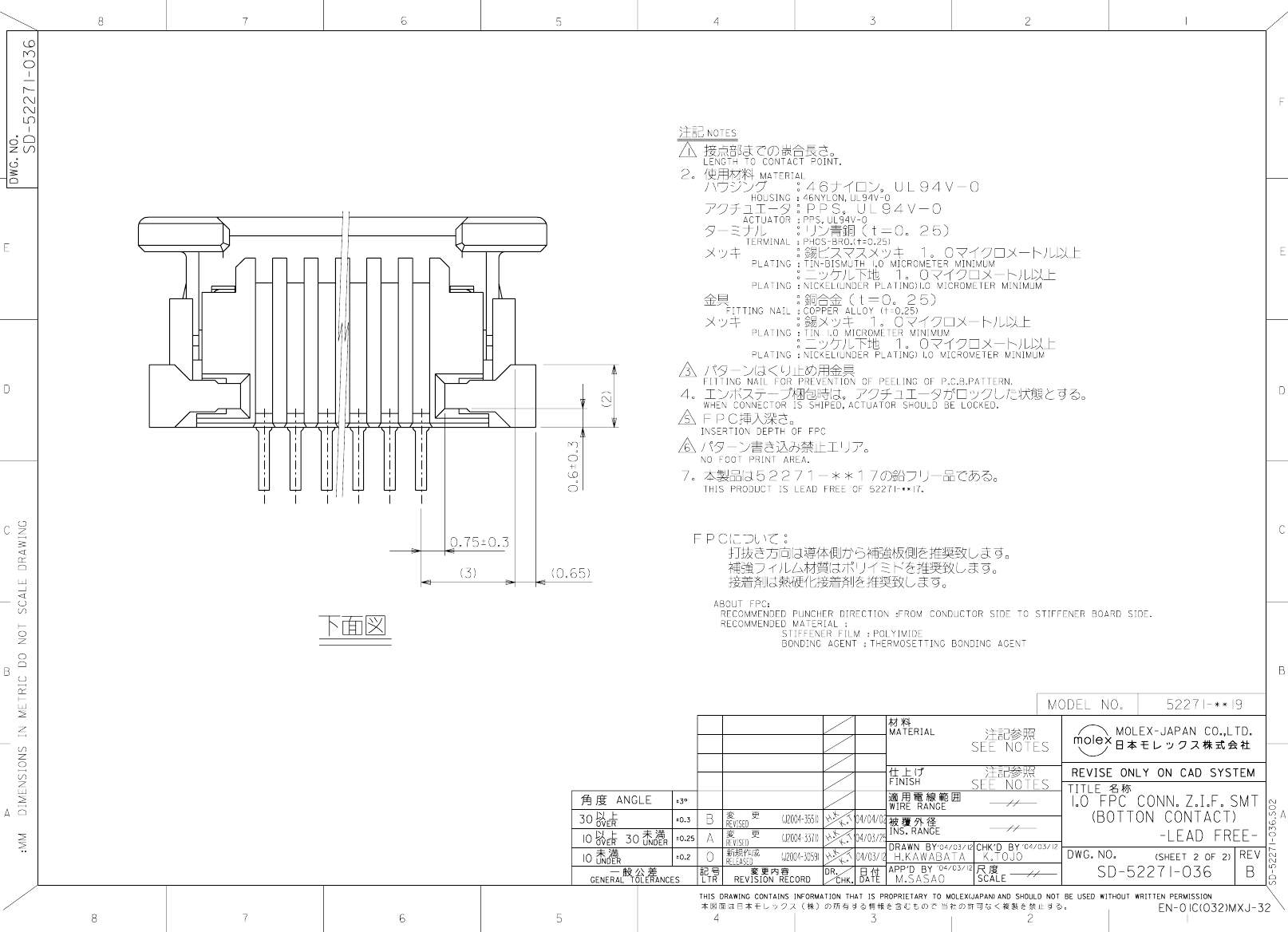

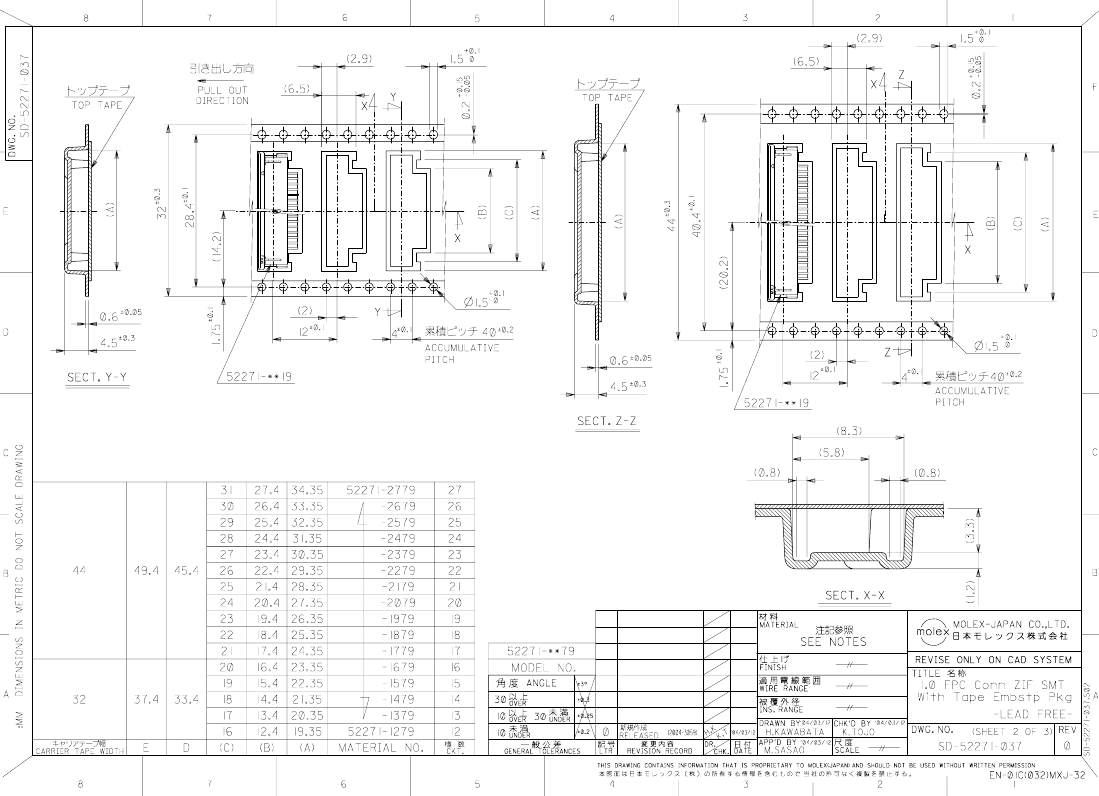

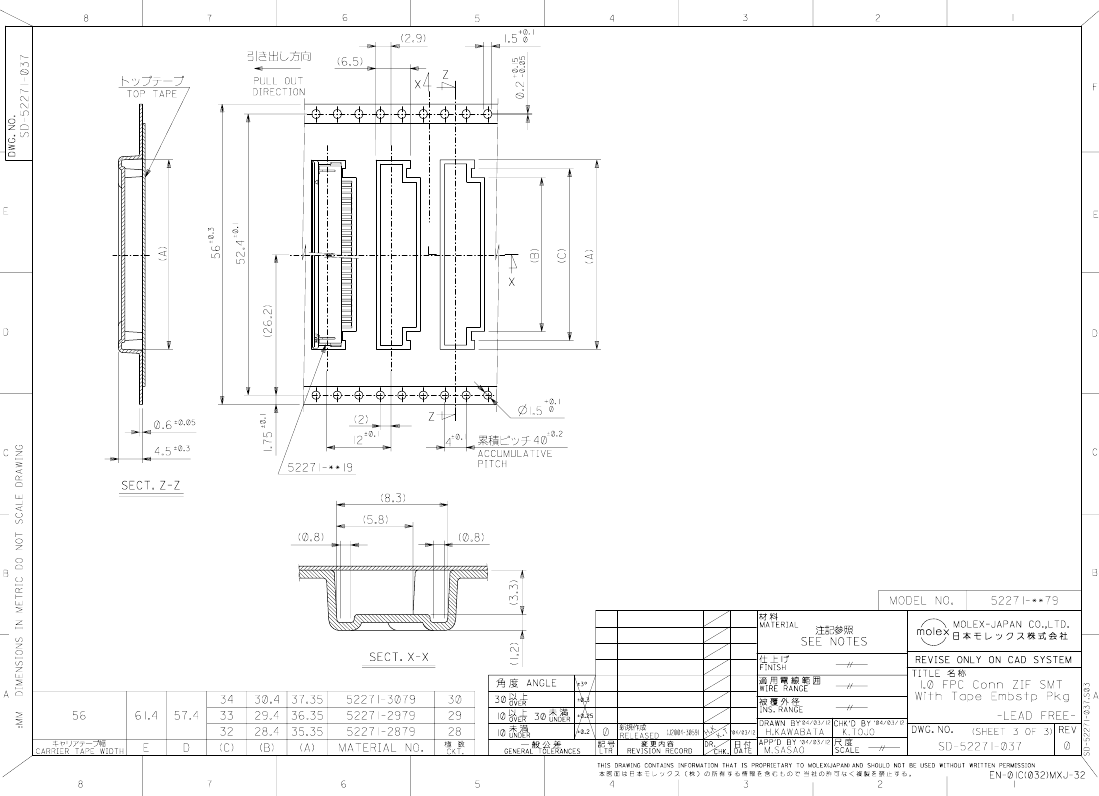

52271-1479 Overview

Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE

52271-1479 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLEAD FREE
Reach Compliance Codecompliant
Factory Lead Time6 weeks
Samacsys Confidence4
Samacsys StatusReleased
Samacsys PartID245787
Samacsys Pin Count16
Samacsys Part CategoryConnector
Samacsys Package CategoryOther
Samacsys Footprint Name52271-1479-1
Samacsys Released Date2017-07-12 16:39:11
Is SamacsysN
Other featuresZIF, BOTTOM CONTACT STYLE
Board mount optionsFITTING NAIL
body width0.118 inch
subject depth0.213 inch
body length0.799 inch
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN/BISMUTH (SN/BI)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion forceZIF N
Insulation resistance100000000 Ω
Insulator colorBEIGE
insulator materialNYLON
JESD-609 codee6
MIL complianceNO
Plug contact pitch0.039 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness39u inch
Rated current (signal)0.5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal pitch1 mm
Termination typeSURFACE MOUNT
Total number of contacts14
UL Flammability Code94V-0
Evacuation force-minimum valueZIF N
Base Number Matches1
