Q15.0-MQ1-S-5/50-T3-LF datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> Q15.0-MQ1-S-5/50-T3-LF

Q15.0-MQ1-S-5/50-T3-LF: DescriptionSeries - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size3MB，2 Pages; ManufacturerJauch; Websitehttp://www.jauchusa.com/; Environmental Compliance

Download Datasheet Parametric View All

Q15.0-MQ1-S-5/50-T3-LF Overview

Series - Fundamental Quartz Crystal,

Q15.0-MQ1-S-5/50-T3-LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Jauch
package instruction	UM-1, 2 PIN
Reach Compliance Code	compliant
Is Samacsys	N
Other features	AT-CUT
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	5 ppm
JESD-609 code	e3/e4
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	15 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L7.9XB3.3XH8.0 (mm)/L0.311XB0.13XH0.315 (inch)
Series resistance	15 Ω
surface mount	NO
Terminal surface	TIN/GOLD
Base Number Matches	1

Preview

Download Datasheet

View All

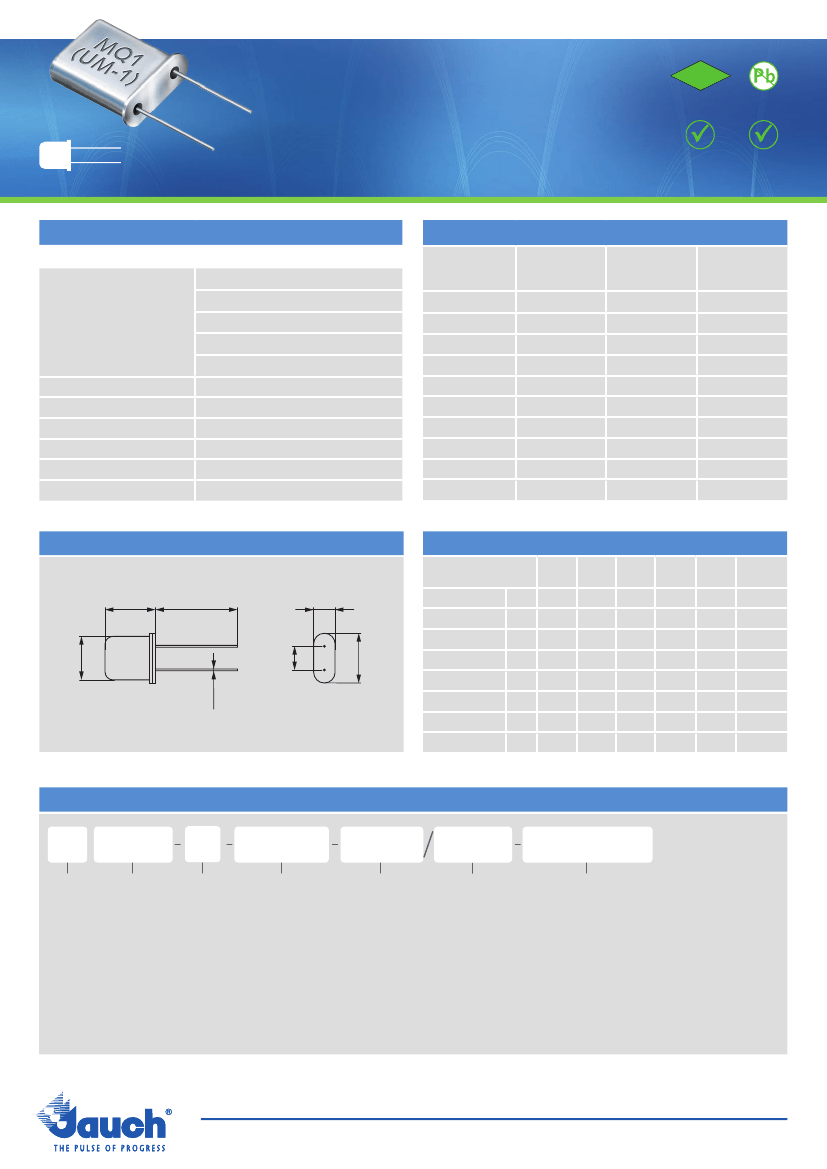

Quartz Crystal · MQ1 (UM-1)

- Pin Type Crystal, 7.9 x 3.3 mm

- high frequency stability

- wave soldering temperature: 260 °C max.

- package height 8.0 mm max.

actual size

2011/65/EC

RoHS

RoHS compliant

Pb free

REACH

compliant

Conflict

mineral free

GENERAL DATA

TYPE

frequency range

MQ1 (UM-1)

0.9216 / 1.0 MHz*

4.00 ~ 40.0 MHz

20.0 ~ 105.0 MHz

50.0 ~ 175.0 MHz

70.0 ~ 250.0 MHz

frequency tolerance at 25 °C

load capacitance C

shunt capacitance C

storage temperature

drive level max.

aging

* other frequencies upon request

ESR (SERIES RESISTANCE RS)

frequency

in MHz

0.92 / 1.000

4.00 ~ 4.9999

5.00 ~ 9.9999

10.0 ~ 14.999

15.0 ~ 40.000

20.0 ~ 49.999

50.0 ~ 105.00

50.0 ~ 175.00

70.0 ~ 119.99

120.0 ~ 250.00

vibration

mode

fund. - SL

fund. - AT

3rd OT - AT

5th OT - AT

7th OT - AT

ESR max.

in ½

3000

150

200

180

ESR typ.

in ½

800

150

120

(fund. SL-cut)

(fund. AT-cut)

(3rd OT AT-cut)

(5th OT AT-cut)

(7th OT AT-cut)

±5 ppm ~ ±30 ppm

8 pF ~ 32 pF or series

< 7 pF

-55 °C ~ +125 °C

500 µW (100 µW recommended)

< ±3 ppm first year

DIMENSIONS

TABLE 1: FREQUENCY STABILITY VS. TEMPERATURE

±3

ppm

8.0 max.

12.7 min.

3.3

±0.1

±5

ppm



±10

ppm



±30

ppm

±50

ppm

±100

ppm

0 °C ~ +60 °C

-20 °C ~ +70 °C STD.

-40 °C ~ +85 °C T1

-40 °C ~ +90 °C T4

-40 °C ~ +105 °C T2

-40 °C ~ +125 °C T3

-10 °C ~ +60 °C SL

in mm

-20 °C ~ +70 °C SL



standard



available











3.75

±0.1

6.9

±0.1

ORDER INFORMATION

0.35

±0.02

frequency

type

load capacitance

in pF

8 pF ~ 32 pF

S for series

7.9

±0.1

tolerance at

25 °C

±5 ppm ~ ±30 ppm

±50 ppm for SL-cut

±30 ppm std.

stability vs.

temp. range

see table 1

±100 ppm

for SL-cut

blank =

T1 =

T2 =

T3 =

T4 =

FU =

3OT =

5OT =

7OT =

MP =

LL =

PT =

option

-20 °C ~ +70 °C

-40 °C ~ +85 °C

-40 °C ~ +105 °C

-40 °C ~ +125 °C

-40 °C ~ +90 °C

for fundamental frequencies ≥ 20 MHz

3rd overtone

5th overtone

7th overtone

middle pin

lead length in mm

plastic tray

Quartz 0.9216 ~ 250.0 MHz MQ1

Example: Q 30.0-MQ1-30-30/50-FU

(Suffix LF = RoHS compliant / Pb free pins)

25032019

Jauch Quartz GmbH • e-mail: info@jauch.de • full data can bedata can be found under:

full found under: www.jauch.com

info@jauch.com

All specifications are subject to change without notice

www.jauch.de | www.jauch.co.uk | www.jauch.fr | www.jauchusa.com
