12064758

Description
Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size284KB，1 Pages
ManufacturerDelphi Connection Systems
Download Datasheet Parametric View All

12064758 Online Shopping

Suppliers Part Number Price MOQ In stock
12064758 - - View Buy Now

12064758 Overview

Combination Line Connector, 3 Contact(s), Female, Crimp Terminal, Plug

12064758 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresCOMPATIBLE CONTACTS: 12047767; 12064971
body width0.68 inch
subject depth0.841 inch
body length0.463 inch
Body/casing typePLUG
Connector typeCOMBINATION LINE CONNECTOR
Contact arrangementS0P3
Contact point genderFEMALE
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
empty shellYES
Filter functionNO
IEC complianceNO
Insulator colorBLACK
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number150
Mixed contactsNO
Installation option 1DETENT
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
reliabilityCOMMERCIAL
Shell materialPOLYAMIDE66
Termination typeCRIMP
Total number of contacts3
Base Number Matches1

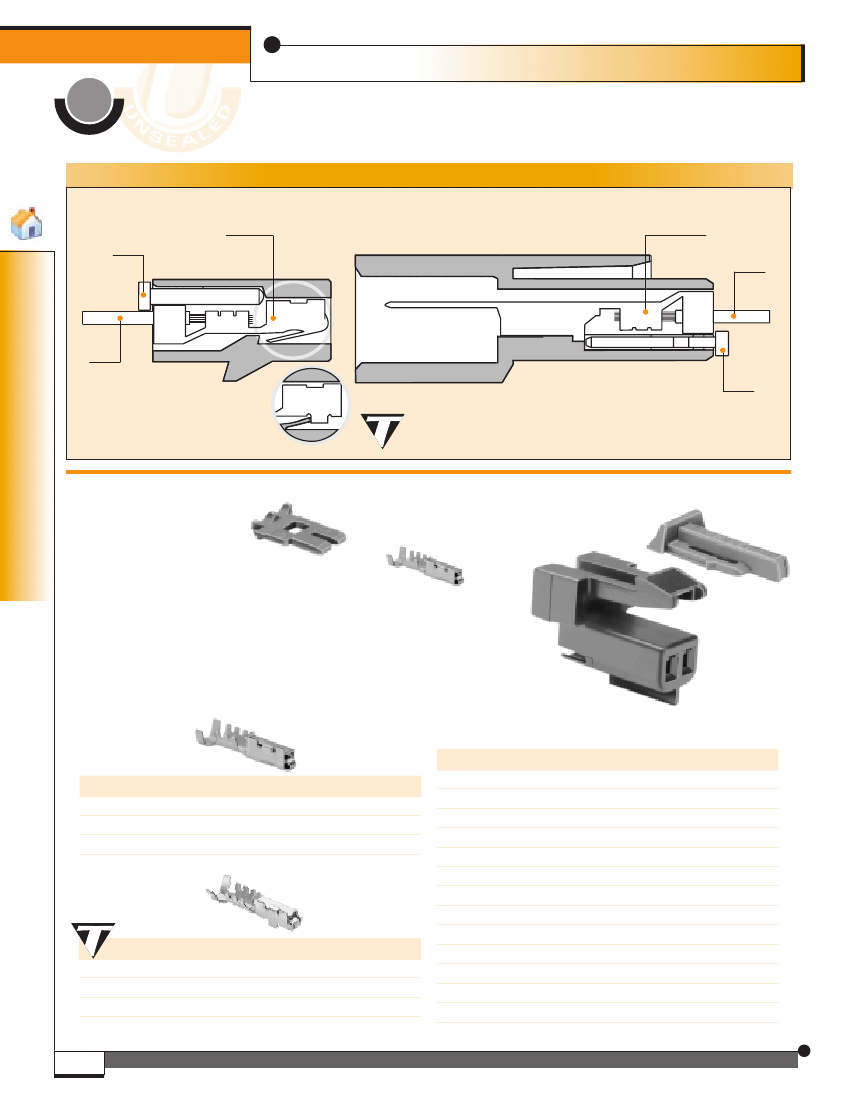

Preview

Download Datasheet
Metri-Pack Series
U
N
SE
AL
SE
AL
150
Cross Sectional View
E
U
E
N
D
D
U
Terminal
TPA
Terminal
Cable
Cable
TPA
Female Connector
TANGLESS
Male Connector
CPA
(Connector Position
Assurance)
Female Terminal
TPA
(Terminal Position
Assurance)
Female Connector
150 FEMALE CONNECTORS UNSEALED
150 FEMALE TERMINALS UNSEALED
Part #
12047767
12064971
Cable Range (mm
2
)
1.0-0.80
0.50-0.35
Material
Silicon Bronze
Silicon Bronze
Plating
Tin
Tin
# Cavities
1
2
2
3
3
4
Connector
12047682
12047662
12052832
12047781
12064758
12047785
12064760
12092162
12064762
12047886
12064766
12064769
Color
Black
Black
Black
Black
Black
Black
Black
Black
Gray
Black
Blue
Natural
Material
PA66 HS IM
PA66 HS IM
PA66 HS IM
PA66 HS IM
PA66 HS IM
PA66 HS IM
PA66 HS IM
PA66 HS IM
PBT
PA66 HS IM
PBT
PBT
TPA
–
12047664
12047664
12047783
12047783
12047664
12047664
12092164
12064764
12045689
12064768
12064771
TANGLESS
4
4
150 TANGLESS FEMALE TERMINALS UNSEALED
Part #
12129484
12129373
Cable Range (mm )
1.0-0.80
0.5-0.35
2
6
8
8
10
Material
Silicon Bronze
Silicon Bronze
Plating
Tin
Tin
http://delphi.com/products/connect
56
North American Region
1-800-PACKARD
European Region
49-202-291-2000
Asia Pacific Region
65-730-9900
South American Region
55-12-378-2002
