006216023100808 datasheet, PDF

006216023100808: DescriptionCard Edge Connector, 23 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size180KB，5 Pages; ManufacturerAVX

Download Datasheet Parametric View All

006216023100808 Overview

Card Edge Connector, 23 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STAGGERED CONFIGURATION
body width	0.165 inch
subject depth	0.276 inch
body length	1.23 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	10 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.049 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.25 mm
Termination type	SOLDER
Total number of contacts	23
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N
Base Number Matches	1

1.25mm Spacing

SERIES

6216

NON-ZIF

ライトアングル

DIP

上接点

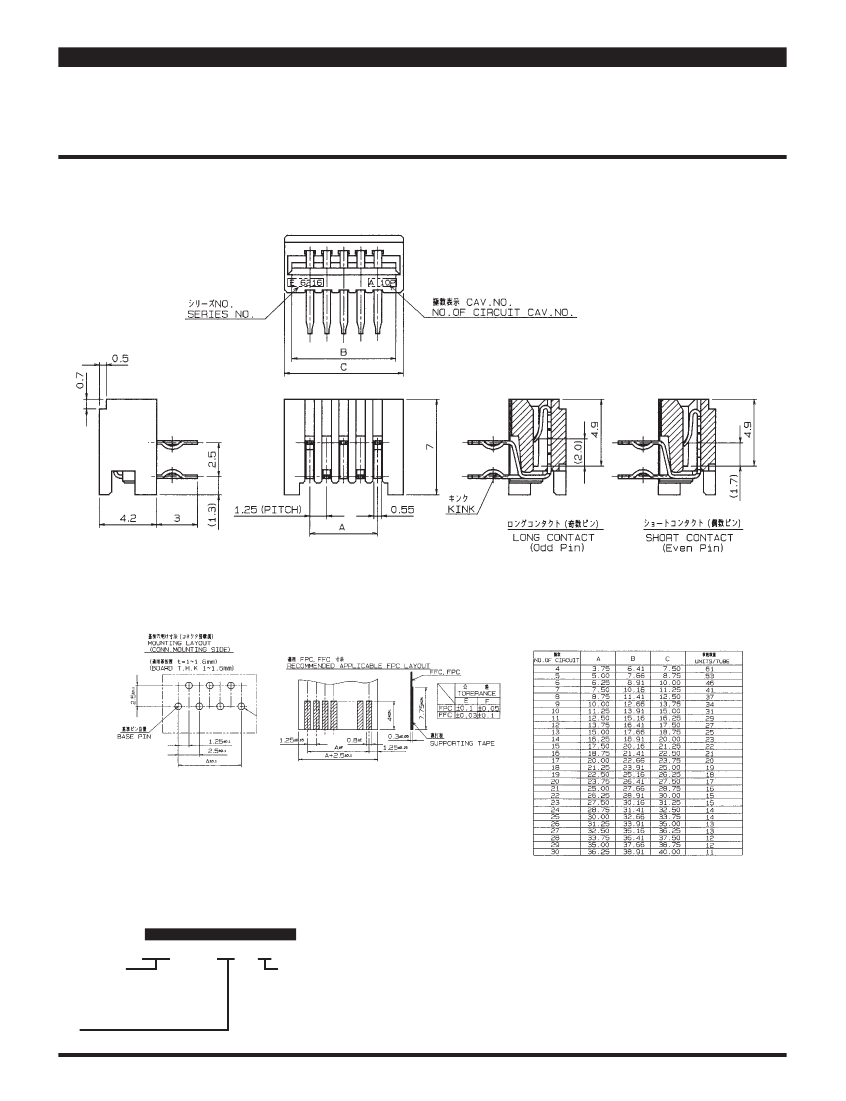

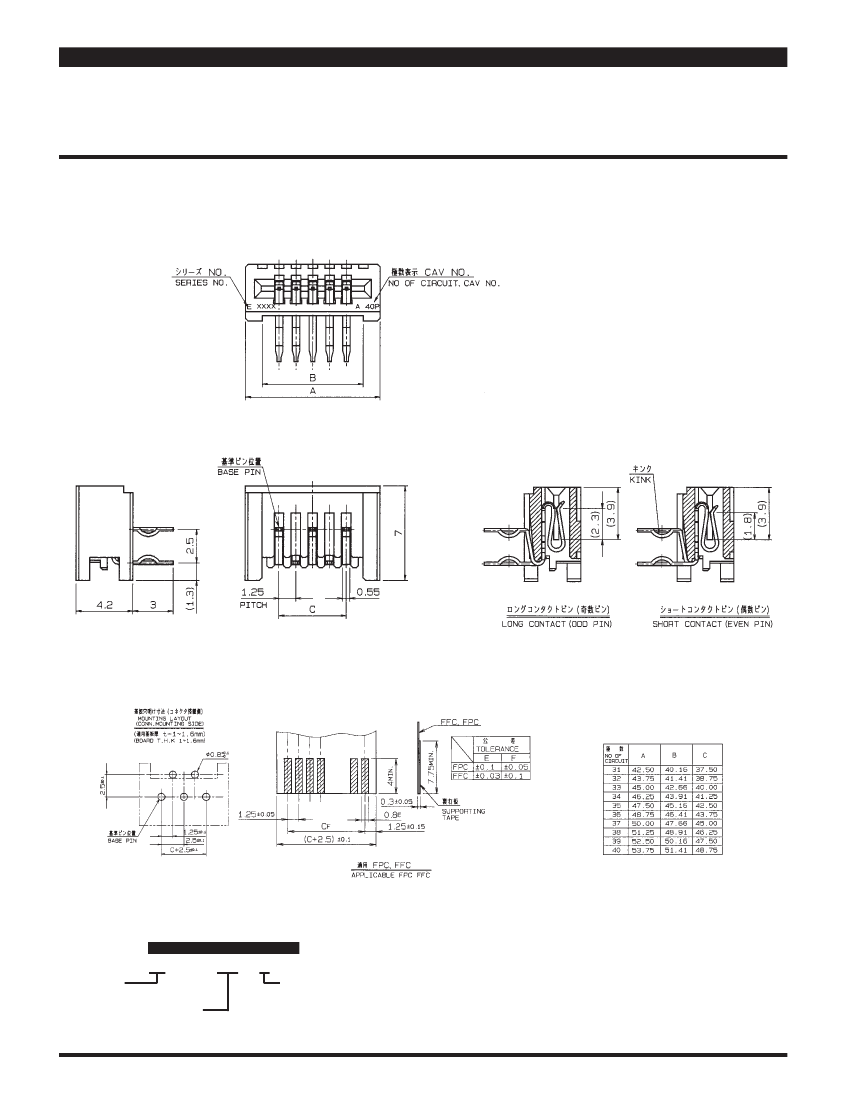

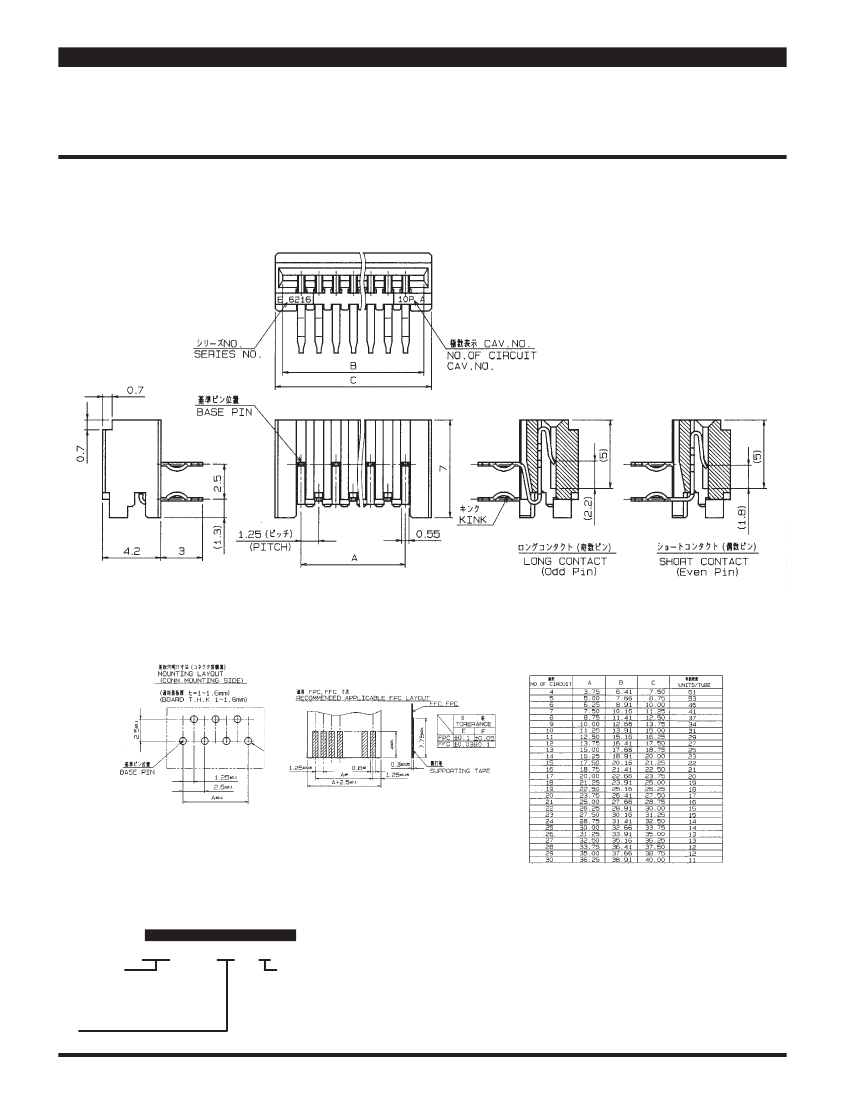

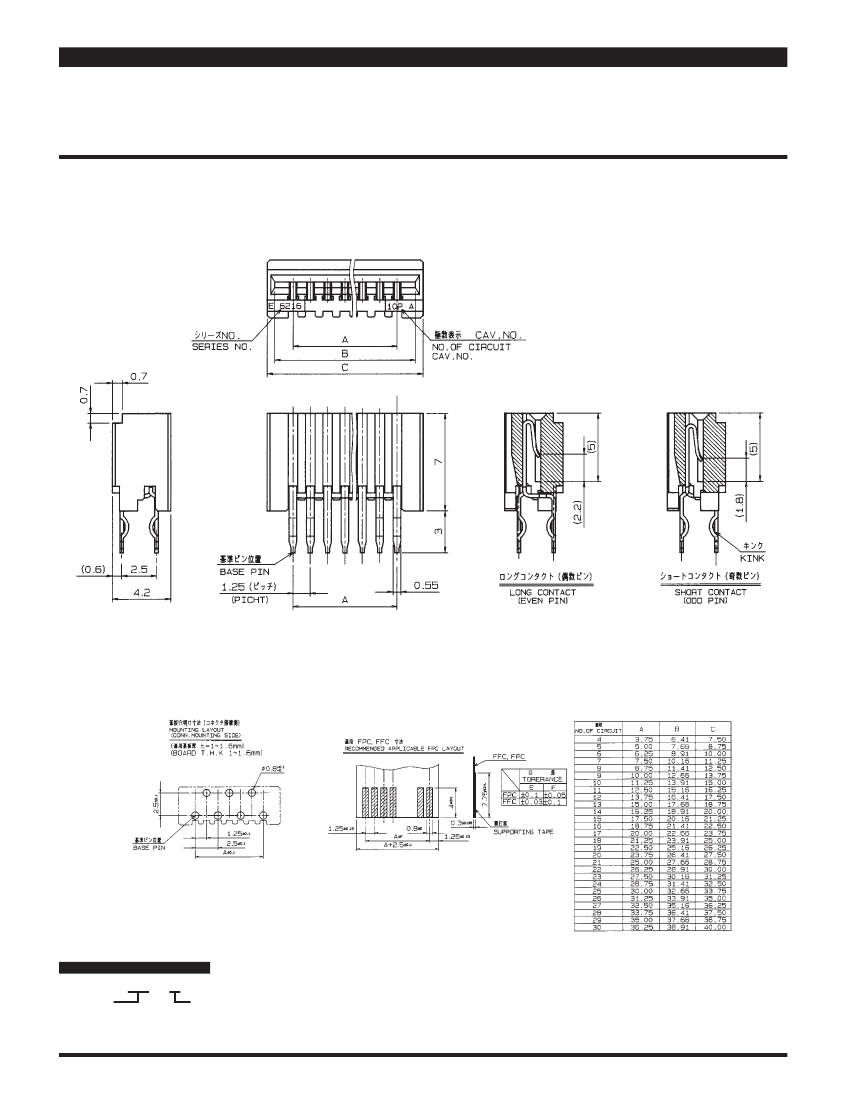

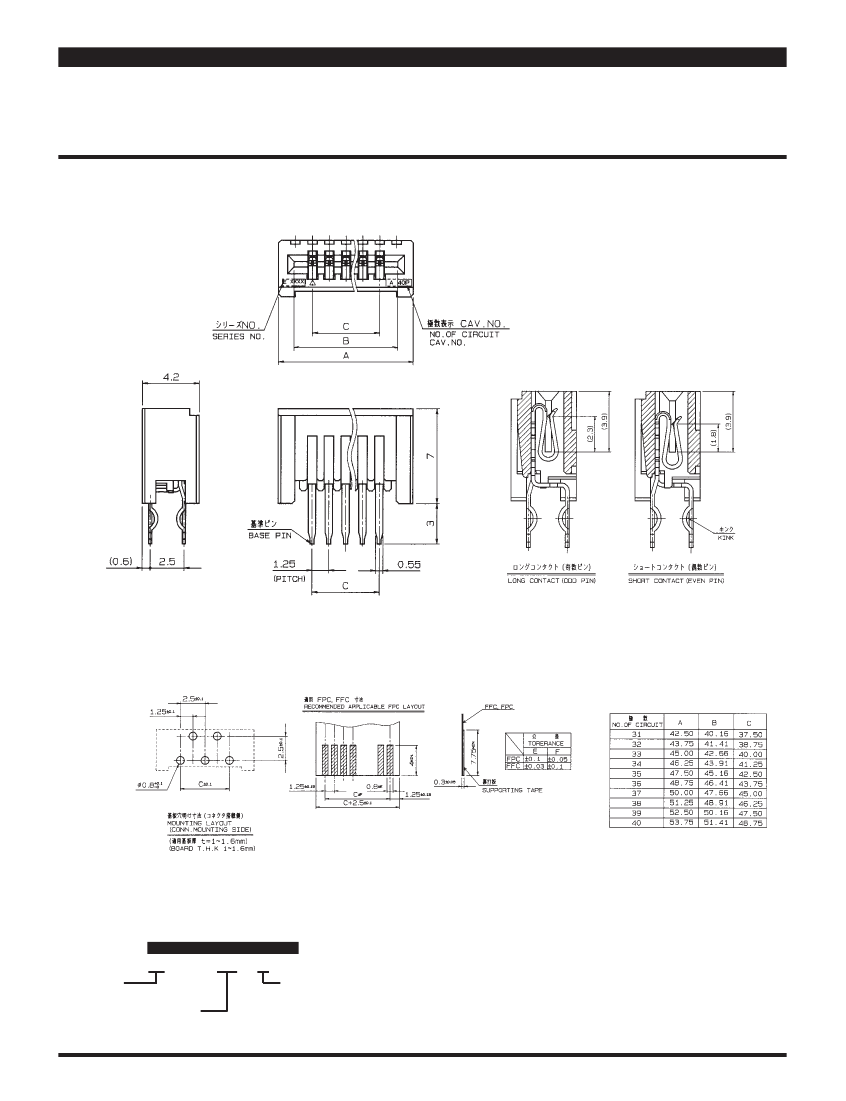

LIF Right Angle Through Hole (Top Contact Type)

注文コード

ORDERING CODE

XX 6216 0XX 11X 808A

00：トレー梱包

TRAY PACKAGE

28：マガジン

TUBE PACKAGE

極数

NUMBER OF CONTACTS

バリエーション

VARIATION CODE

0：キンク有（両端各2ピン）WITH KINKED

(EACH TWO PINS AT BOTH ENDS)

1：キンク無 WITHOUT KINKED
