006224022003800 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 006224022003800

006224022003800: DescriptionCard Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size72KB，3 Pages; ManufacturerAVX

Download Datasheet Parametric View All

006224022003800 Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

006224022003800 Parametric

Parameter Name	Attribute value
Maker	AVX
Reach Compliance Code	compliant
Is Samacsys	N
Other features	ZIF
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	22
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1.00mm Pitch

Series 6224

ZIF Right Angle SMT

(Top Contact)

Specifications

•

Number of Contacts – 5-30

•

1000 Connectors per Tape & Reel

•

Voltage – 50 V

•

Current Rating – 1.0 amp max.

•

Dielectric Withstanding Voltage –

500V RMS min.

•

Operating Temperature – (-20°C - +85°C)

•

Contact & Metal Tab Material –

phosphor bronze (tin-lead plated)

•

Slider Material – PPS, black color

(UL 94 V-O)

•

Insulator Material – PPS, brown color

(UL 94 V-O)

•

FFC/FPC Thickness –

0.3 ±0.05 mm (0.012 ±0.002")

•

Profile Height – 2.90mm (.114")

WITHOUT BOSS

WITH BOSS

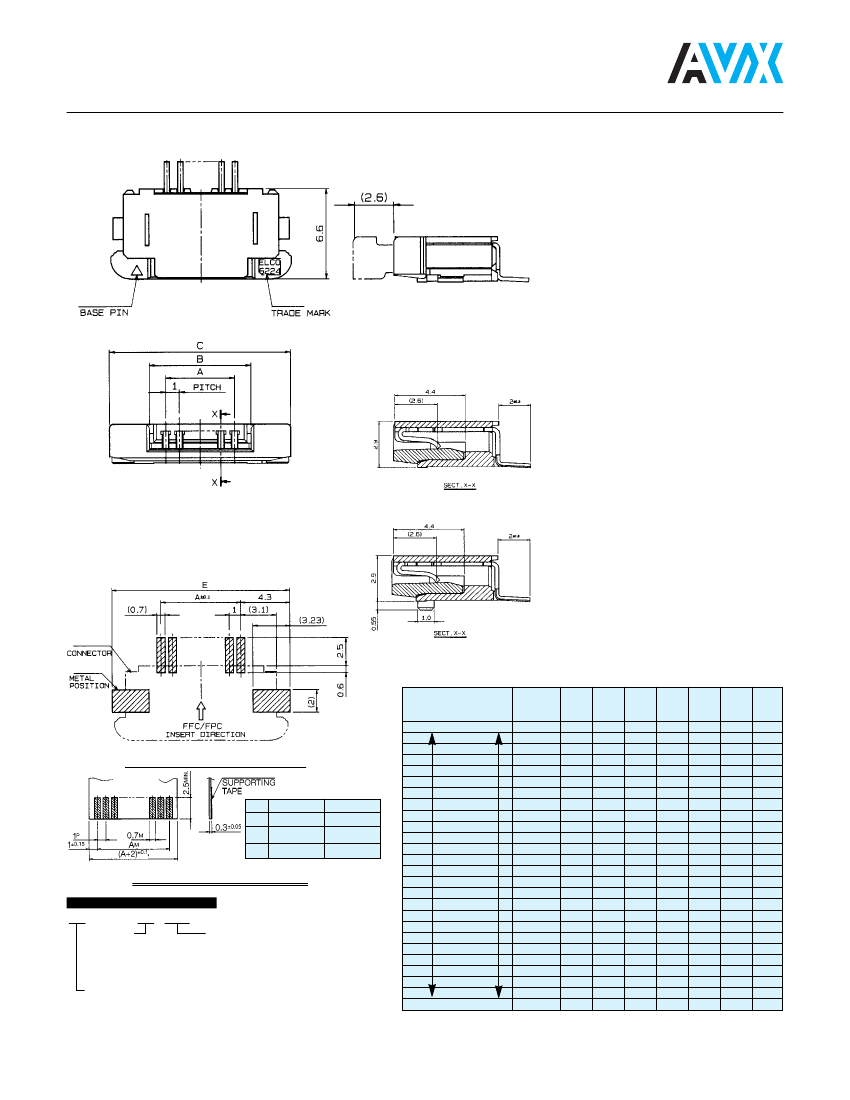

PART NUMBER

NO. OF

CONTACTS

QTY.

PER

REEL

QTY.

PER

TRAY

MOUNTING LAYOUT

FFC

±0.05

±0.03

±0.1

FPC

±0.02

+0.07

-0.05

±0.05

FFC, FPC SPECIFICATION

ORDERING CODE

XX 6224 0XX XXX 800

NUMBER

CONTACTS (05-30)

FLEX TYPE

001: STANDARD WITHOUT BOSS

002: CARBON PASTE WITHOUT BOSS

003: WITH BOSS (Tray only)

004: STANDARD WITH BOSS (Tray only)

08=TAPE AND REEL

00=TRAY PACKAGING (only with boss)

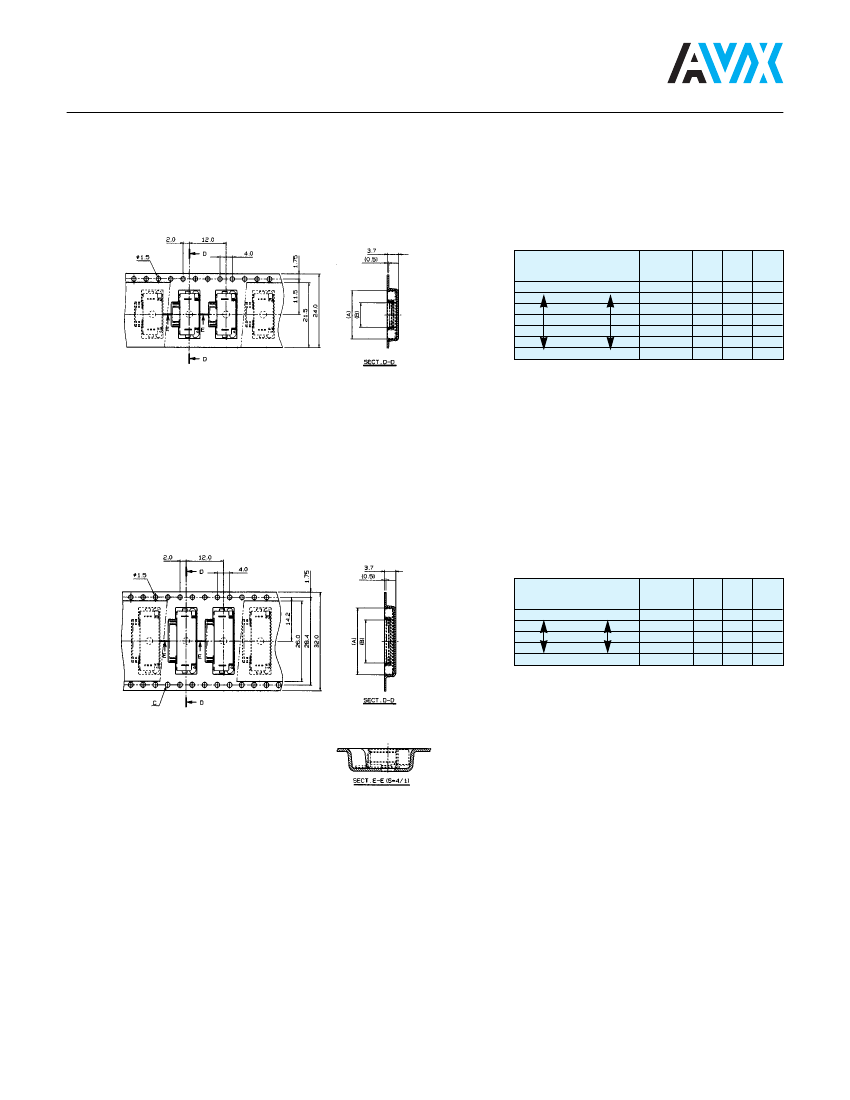

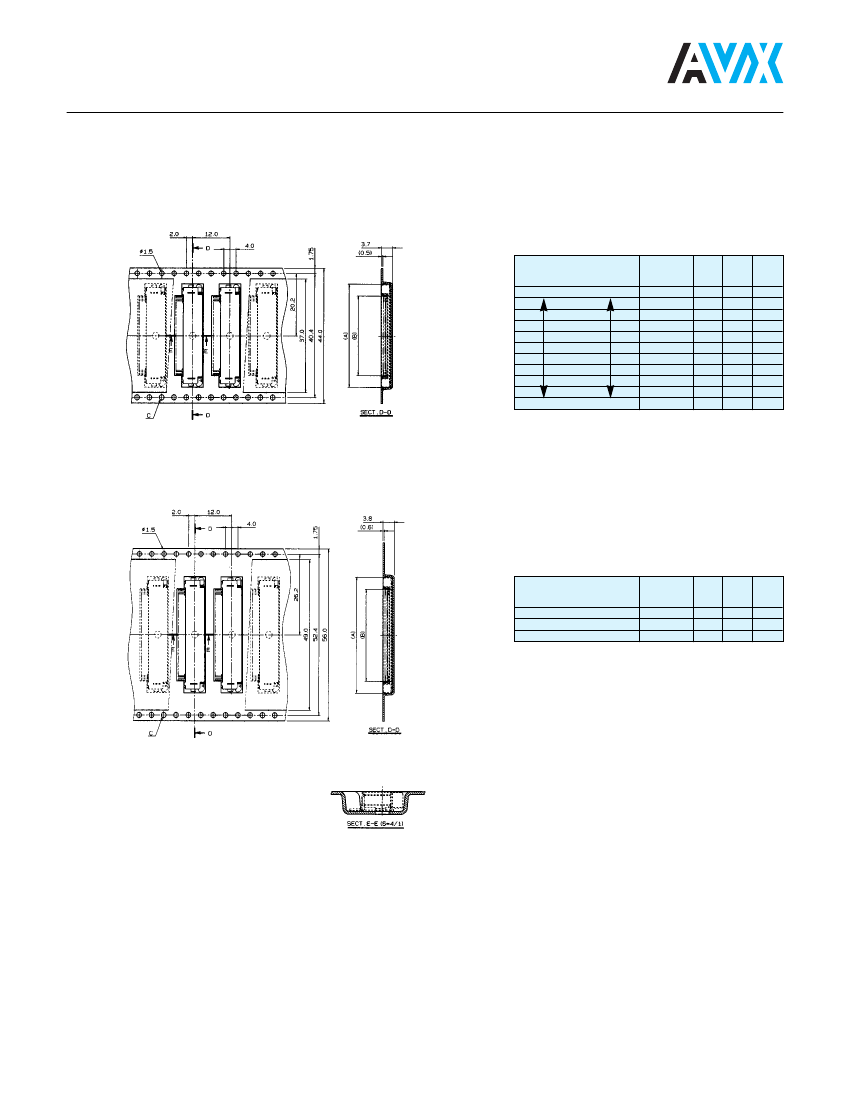

See page 39 and 40 for Tape and Reel detail.

XX 6224 005 XXX 800

006

007

008

009

010

011

012

013

014

015

016

017

018

019

020

021

022

023

024

025

026

027

028

029

XX 6224 030 XXX 800

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

16.0

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

26.0

27.0

28.0

29.0

6.2

7.2

8.2

9.2

10.2

11.2

12.2

13.2

14.2

15.2

16.2

17.2

18.2

19.2

20.2

21.2

22.2

23.2

24.2

25.2

26.2

27.2

28.2

29.2

30.2

31.2

12.2

13.2

14.2

15.2

16.2

17.2

18.2

19.2

20.2

21.2

22.2

23.2

24.2

25.2

26.2

27.2

28.2

29.2

30.2

31.2

32.2

33.2

34.2

35.2

36.2

37.2

11.9

12.9

13.9

14.9

15.9

16.9

17.9

18.9

19.9

20.9

21.9

22.9

23.9

24.9

25.9

26.9

27.9

28.9

29.9

30.9

31.9

32.9

33.9

34.9

35.9

36.9

12.6

13.6

14.6

15.6

16.6

17.6

18.6

19.6

20.6

21.6

22.6

23.6

24.6

25.6

26.6

27.6

28.6

29.6

30.6

31.6

32.6

33.6

34.6

35.6

36.6

37.6

1000

261

243

225

207

198

189

171

162

153

144

135

126

117

108

(Dimensions: mm)
