1-111445-3 datasheet, PDF - EEWORLD Datasheet

1-111445-3: DescriptionHEADER CONNECTOR,CABLE MNT,RECEPT,64 CONTACTS,PIN,0.05 PITCH,IDC TERMINAL,BLACK; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

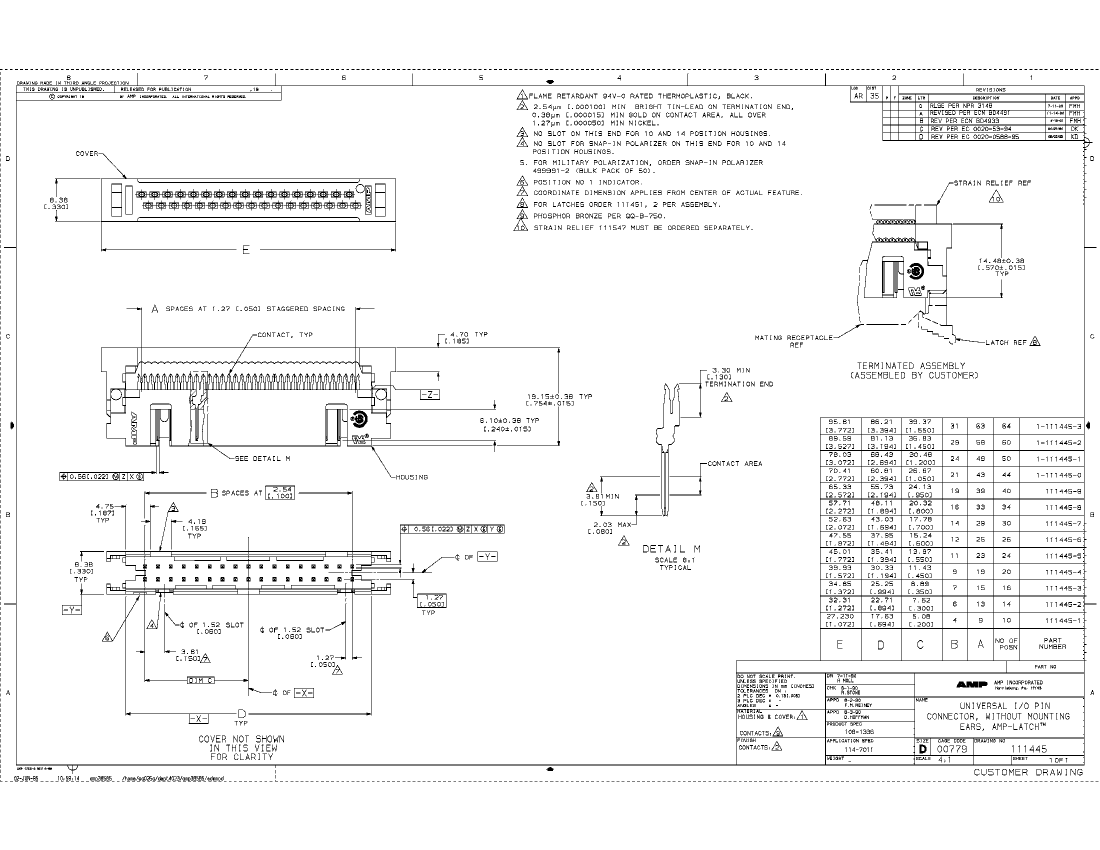

1-111445-3 Overview

HEADER CONNECTOR,CABLE MNT,RECEPT,64 CONTACTS,PIN,0.05 PITCH,IDC TERMINAL,BLACK

Parameter Name	Attribute value
Objectid	300266153
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.33 inch
subject depth	0.754 inch
body length	3.772 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
insulator material	THERMOPLASTIC
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation type	CABLE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	15u inch
polarization key	CENTER
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	64
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
