1-1634241-8 datasheet, PDF - EEWORLD Datasheet

1-1634241-8: DescriptionPOWER/SIGNAL RELAY, 4PDT, MOMENTARY, 1200mW (COIL), 3A (CONTACT), 30VDC (CONTACT), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size1MB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

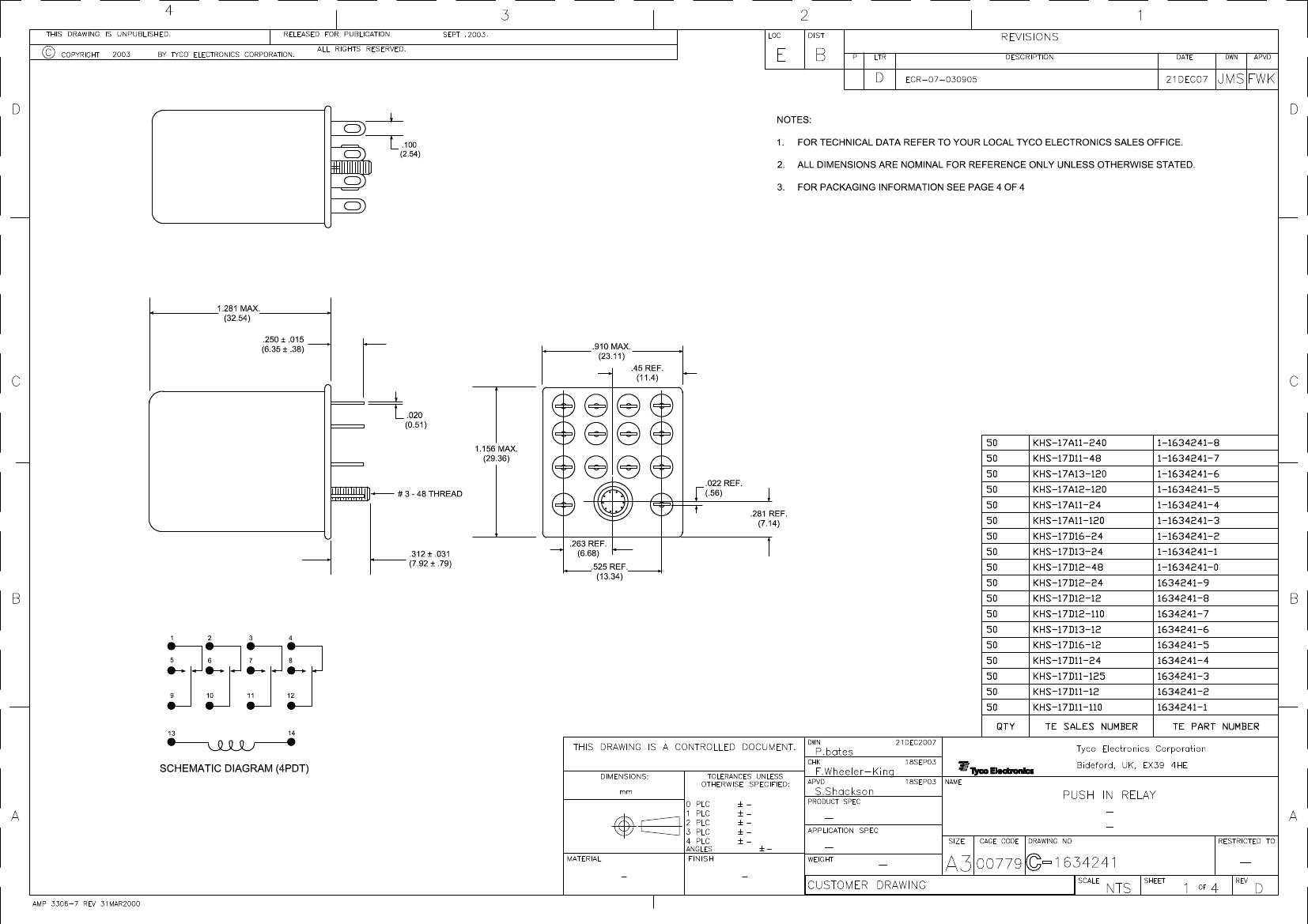

1-1634241-8 Overview

POWER/SIGNAL RELAY, 4PDT, MOMENTARY, 1200mW (COIL), 3A (CONTACT), 30VDC (CONTACT), PANEL MOUNT

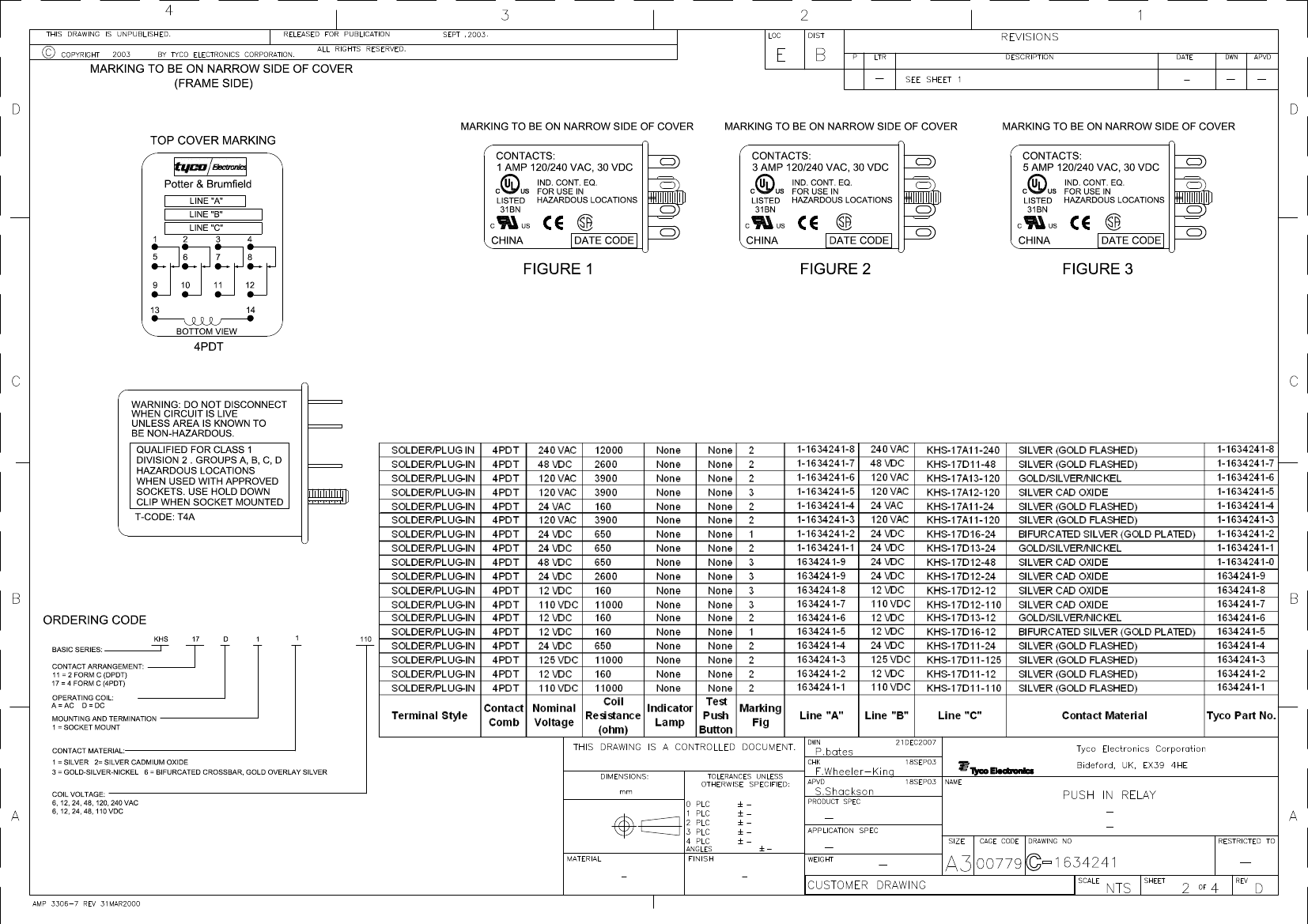

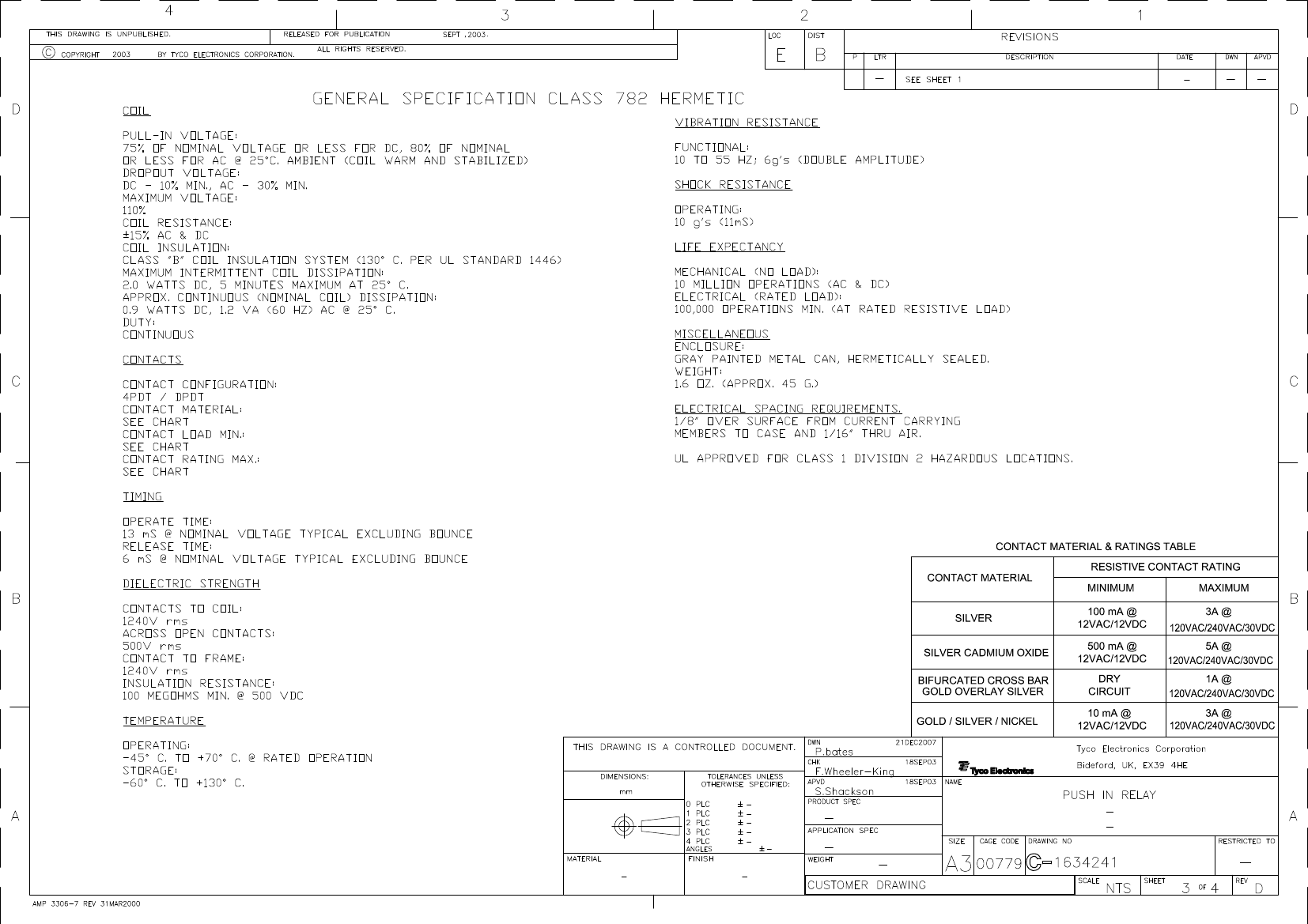

Parameter Name	Attribute value
Objectid	2132724659
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 192 V; COIL RELEASE VOLTAGE(AC): 72 V
body width	23.11 mm
body height	32.54 mm
Body length or diameter	29.36 mm
Coil current (AC) maximum value	0.02 A
Coil power	1200 mW
Coil resistance	12000 Ω
Maximum coil voltage (AC)	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	3A@240VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@30VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	1634241
Installation features	PANEL MOUNT
operating hours	13 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-45 °C

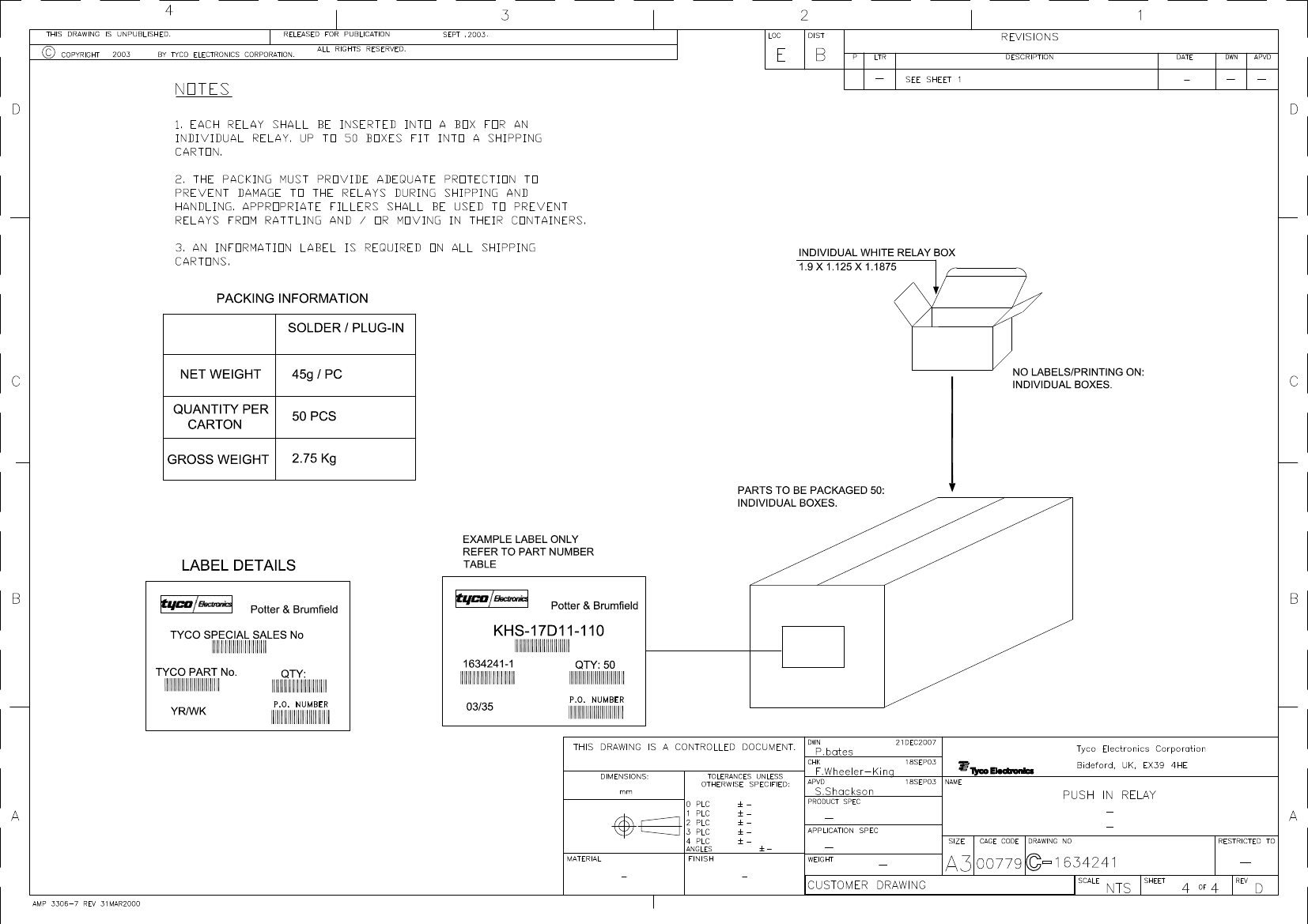

method of packing	BULK
physical size	29.36mm x 23.11mm x 32.54mm
Guideline	CE; CSA; UL
Relay action	MOMENTARY
Relay function	4PDT
Relay type	POWER/SIGNAL RELAY
release time	6 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER
