1-215309-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-215309-8

1-215309-8: Description2X18P HV100 REC CON. TE, 8.5MM; CategoryThe connector The connector; File Size219KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

1-215309-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-215309-8	-	-	View	Buy Now

1-215309-8 Overview

2X18P HV100 REC CON. TE, 8.5MM

1-215309-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	20 weeks 5 days
Is Samacsys	N
Other features	AMPMODU
body width	0.199 inch
subject depth	0.335 inch
body length	1.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	31u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

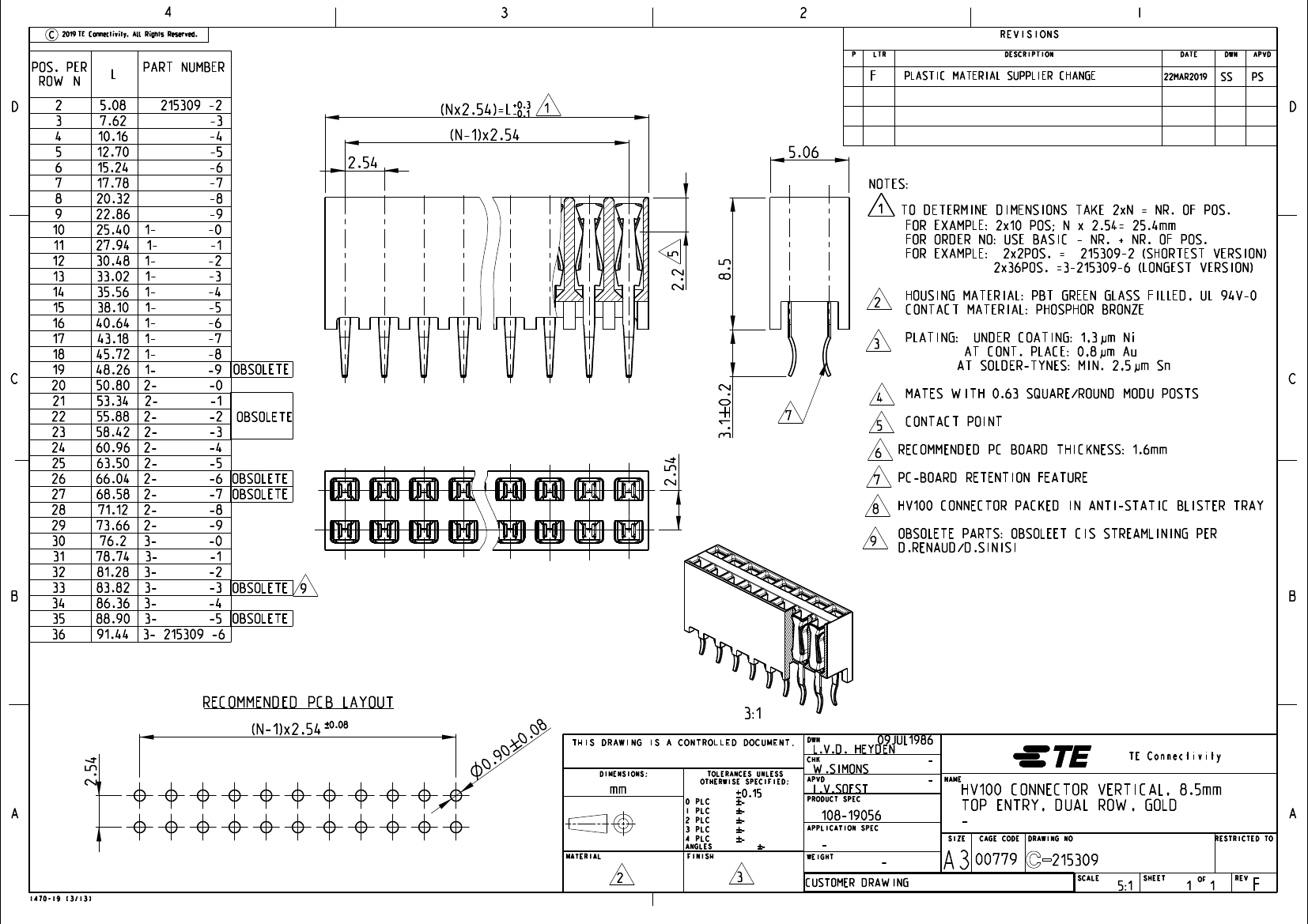

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

POS. PER

ROW N

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.2

78.74

81.28

83.82

86.36

88.90

91.44

PART NUMBER

215309 -2

-3

-4

-5

-6

-7

-8

-9

-0

-1

-2

-3

-4

-5

-6

-7

-8

-9

-0

-1

-2

-3

-4

-5

-6

-7

-8

-9

-0

-1

-2

-3

-4

-5

3- 215309 -6

+0.3

(Nx2.54)=L

-0.1

PLASTIC MATERIAL SUPPLIER CHANGE

22MAR2019

3.1 0.2

(N-1)x2.54

2.54

5.06

NOTES:

TO DETERMINE DIMENSIONS TAKE 2xN = NR. OF POS.

FOR EXAMPLE: 2x10 POS; N x 2.54= 25.4mm

FOR ORDER NO: USE BASIC - NR. + NR. OF POS.

FOR EXAMPLE: 2x2POS. = 215309-2 (SHORTEST VERSION)

2x36POS. =3-215309-6 (LONGEST VERSION)

HOUSING MATERIAL: PBT GREEN GLASS FILLED, UL 94V-0

CONTACT MATERIAL: PHOSPHOR BRONZE

PLATING:

UNDER COATING: 1,3µm Ni

AT CONT. PLACE: 0,8µm Au

AT SOLDER-TYNES: MIN. 2,5µm Sn

2.2

8.5

OBSOLETE

MATES WITH 0.63 SQUARE/ROUND MODU POSTS

CONTACT POINT

RECOMMENDED PC BOARD THICKNESS: 1.6mm

PC-BOARD RETENTION FEATURE

HV100 CONNECTOR PACKED IN ANTI-STATIC BLISTER TRAY

OBSOLETE PARTS: OBSOLEET CIS STREAMLINING PER

D.RENAUD/D.SINISI

OBSOLETE

OBSOLETE 9

OBSOLETE

2.54

RECOMMENDED PCB LAYOUT

(N-1)x2.54

2.54

±0.08

3:1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

ANGLES

PLC

±0.15

09JUL1986

L.V.D. HEYDEN

CHK

W.SIMONS

APVD

L.V.SOEST

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

108-19056

FINISH

WEIGHT

1470-19 (3/13)

CUSTOMER DRAWING

SIZE

HV100 CONNECTOR VERTICAL, 8.5mm

TOP ENTRY, DUAL ROW, GOLD

CAGE CODE

DRAWING NO

RESTRICTED TO

00779

215309

SCALE

5:1

SHEET

REV
