PCN10F Series (Product Compliant with DIN Standard: Coaxial and High Current Contact Composite Type)
sFeatures
1. Compliant with the DIN standard
The coaxial connector complies with DIN41612
standard.
2. Variation in number of contacts
Coaxial and high current contact insertion holes 2, 4,
6, and 8 contacts are available.
3. Reliable contact construction
PCN10F series is constructed with high reliable
double-sided 2 point contacts.
4. Broad applications
The receptacle is provided with solder type and
solderless connection type. The contact type is also
provided with straight, right angle and wrapping types.
The high current contact is provided with 10A and 20A
types.
5. High Conformity
High frequency characteristics are 1 GHz and
V.S.W.R1.2 maximum.
sProduct
Specifications
Rating
Current rating: 2A
Operating Temperature Range:
-30 to
+85ç
(Note 1)
Storage Temperature Range:
-10 to
+60ç
(Note 2)
Operating Humidity Range: 40
to
70%
(Note 2)
Voltage rating: 300V AC Operating Relative Humidity: 40
to
80%
Item
1.Insulation Resistance 10
6
M
ohms
Specification
100V DC
1000V AC/1 minute.
0.1A
Condition
2.Withstanding Voltage
No flashover or insulation breakdown.
3.Contact Resistance
4.Vibration
20m ohms max.
No electrical discontinuity of 10µs or more
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
No deformation of components affecting performance. Manual soldering: 350ç for 3 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and
Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for
a specific part number shown.
sApplications
Measurement instrument, control equipment, exchange, etc.
sMaterial
Parts
Insulator
Contact
Pin header
Receptacle
Material
PBT
Brass
Copper alloy
Finish
Gray
Contact area: Gold plated
Remainder: Tin plated
Remarks
UL94V-0
________
A56
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
PCN SeriesqProduct Compliant to DIN41612/IEC603-2 Standard
sOrdering
Information
qPlug
PCN10F
q
q
Series name : PCN10F
w
Blank
A –
*
P – 2.54 DS
w
e
r
r
P
t
Contact pitch
y
Contact type
t
y
: Plug
: 2.54mm
: DS : Right angle type
: Board edge on mount type
: Board on mount type
A
e
Number of contacts : 24(8), 42(6), 60(4), 78(2)
Values in parentheses indicates the number of coaxial
connector and high current contact mounting holes.
qReceptacle
PCN 10F A –
*
S – 2.54 DSA
q
q
Series name : PCN
w
Series No.
w
e
r
t
y
u
r
Number of contacts : 24(8), 42(6), 60(4), 78(2)
: 10F (Soldering type)
11F (Solderless connection type)
Values in parentheses indicates the number of coaxial
connector and high current contact mounting holes.
t
S
y
Contact pitch
e
Contact type: Straight
: Receptacle
: 2.54mm
: right angle type
: Wrapping type (0.5tx0.7W)
: Wrapping type (0.5tx0.5W)
Blank
A
A
B
: Coaxial cable connection type
: Coaxial connector through hole type
u
Contact type
PCN10F
DS
WA
WB
PCN11F
: Board on mount type
: Board edge on mount type
DSA : Straight type
Contact type: Right angle
PFB-2 : Short press fit type
WB-2 : Wrapping press fit type
BDIN
Connector Mating Condition
Please be sure to utilize the DIN connector of Hirose within the range as shown below.
A57
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Standard
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
PCN SeriesqProduct Compliant to DIN41612/IEC603-2
products status
sPlug
Right Angle Type
(Board edge on mount type)
PCN10F-24P-2.54DS(72)
CL583-0341-0-72
RoHS Compliant
BPCB
mounting pattern
BArea
A dimensions
qCoaxial
connector (PO51-LR-PC-1(40))
qHigh
current contact
(Power contact PC(72), PCA(72))

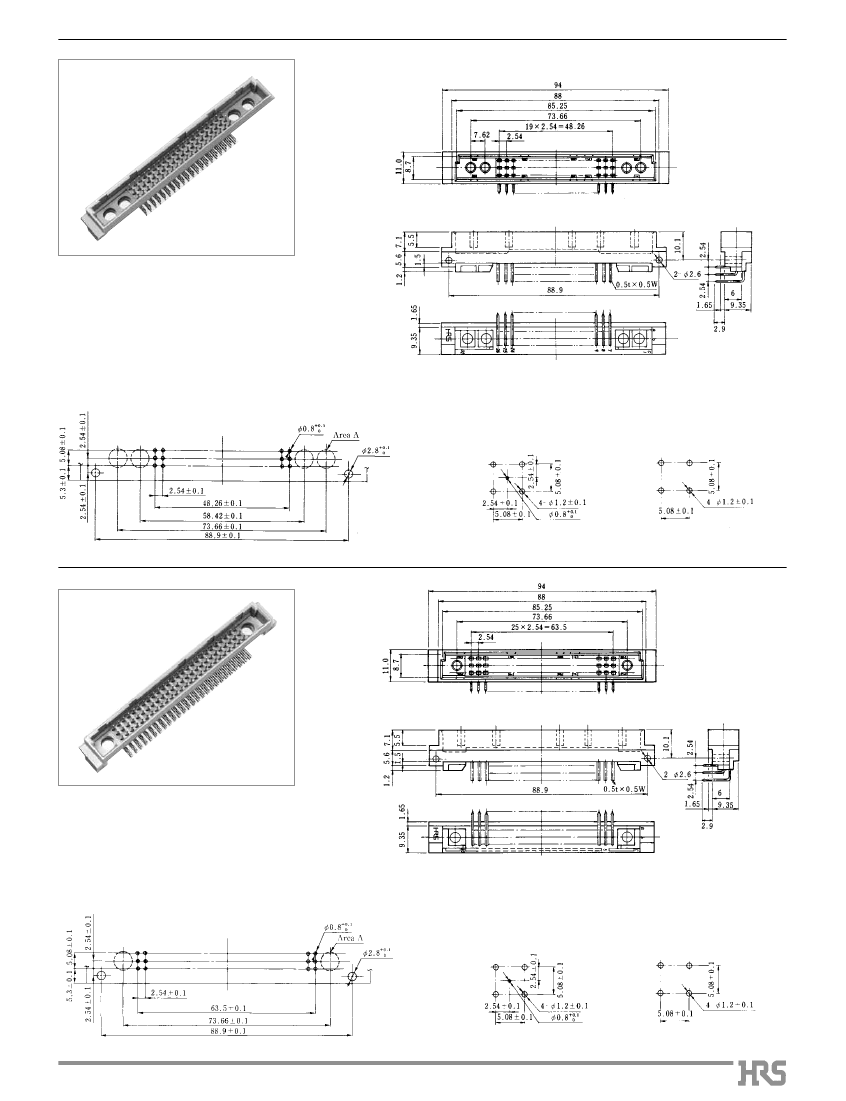

PCN10F-42P-2.54DS(72)
CL583-0145-1-72
RoHS Compliant
BPCB
mounting pattern
BArea
A dimensions
qCoaxial
connector (PO51-LR-PC-1(40))
qHigh
current contact
(Power contact PC(72), PCA(72))
A58
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
PCN SeriesqProduct Compliant to DIN41612/IEC603-2 Standard

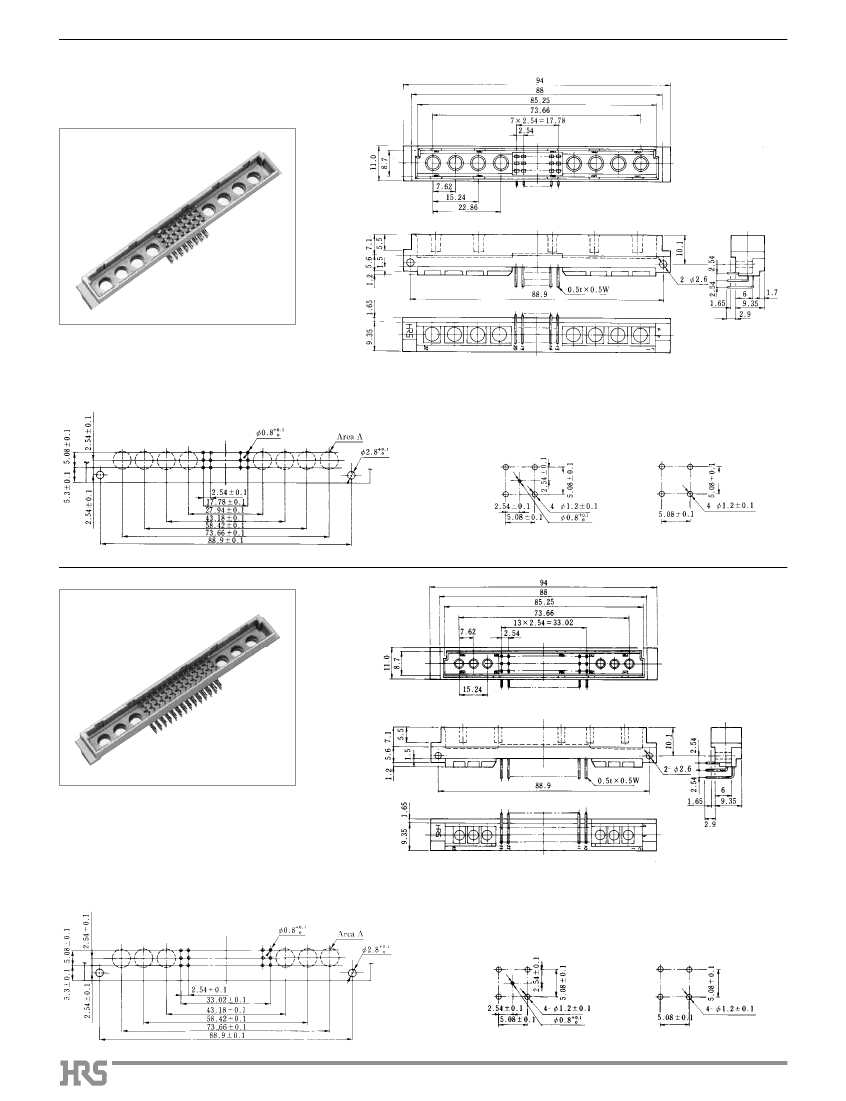

PCN10F-60P-2.54DS(72)
CL583-0303-0-72
RoHS Compliant
BPCB
mounting pattern
BArea
A dimensions
qCoaxial
connector (PO51-LR-PC-1(40))
qHigh
current contact
(Power contact PC(72), PCA(72))

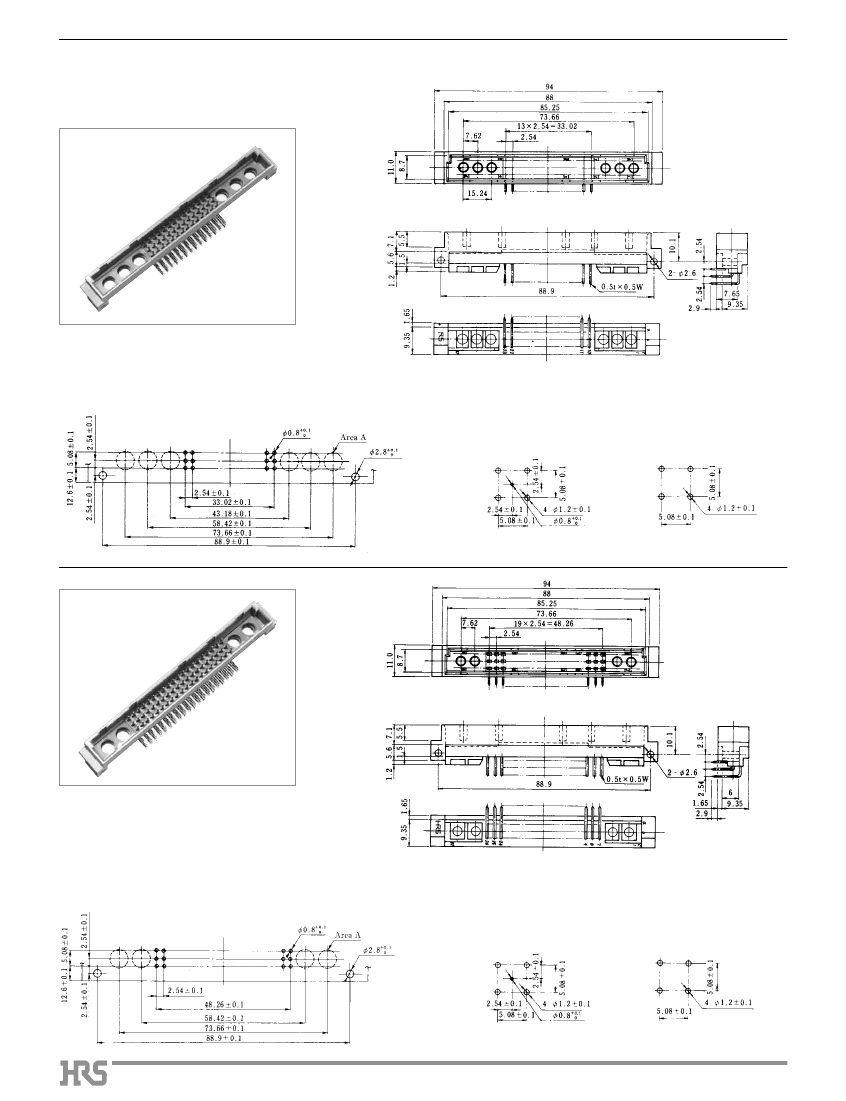

PCN10F-78P-2.54DS(72)
CL583-0321-2-72
RoHS Compliant
BPCB
mounting pattern
BArea
A dimensions
qCoaxial
connector (PO51-LR-PC-1(40))
qHigh
current contact
(Power contact PC(72), PCA(72))
A59
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the
Standard
on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
