10062319-101LF datasheet, PDF - EEWORLD Datasheet

10062319-101LF: DescriptionBoard Connector, 72 Contact(s), 12 Row(s), Male, Right Angle, 0.118 inch Pitch, Press Fit Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size334KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10062319-101LF Overview

Board Connector, 72 Contact(s), 12 Row(s), Male, Right Angle, 0.118 inch Pitch, Press Fit Terminal, Locking, Natural Insulator, Receptacle, LEAD FREE

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.803 inch
subject depth	1.331 inch
body length	0.705 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	35 mΩ
DIN compliance	NO
Durability	200 Cycles
IEC compliance	NO
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	10062319-101LF
Plug contact pitch	0.118 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.397 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	2.9972 mm
Termination type	PRESS FIT
Total number of contacts	72
Evacuation force-minimum value	.14734 N
Base Number Matches	1

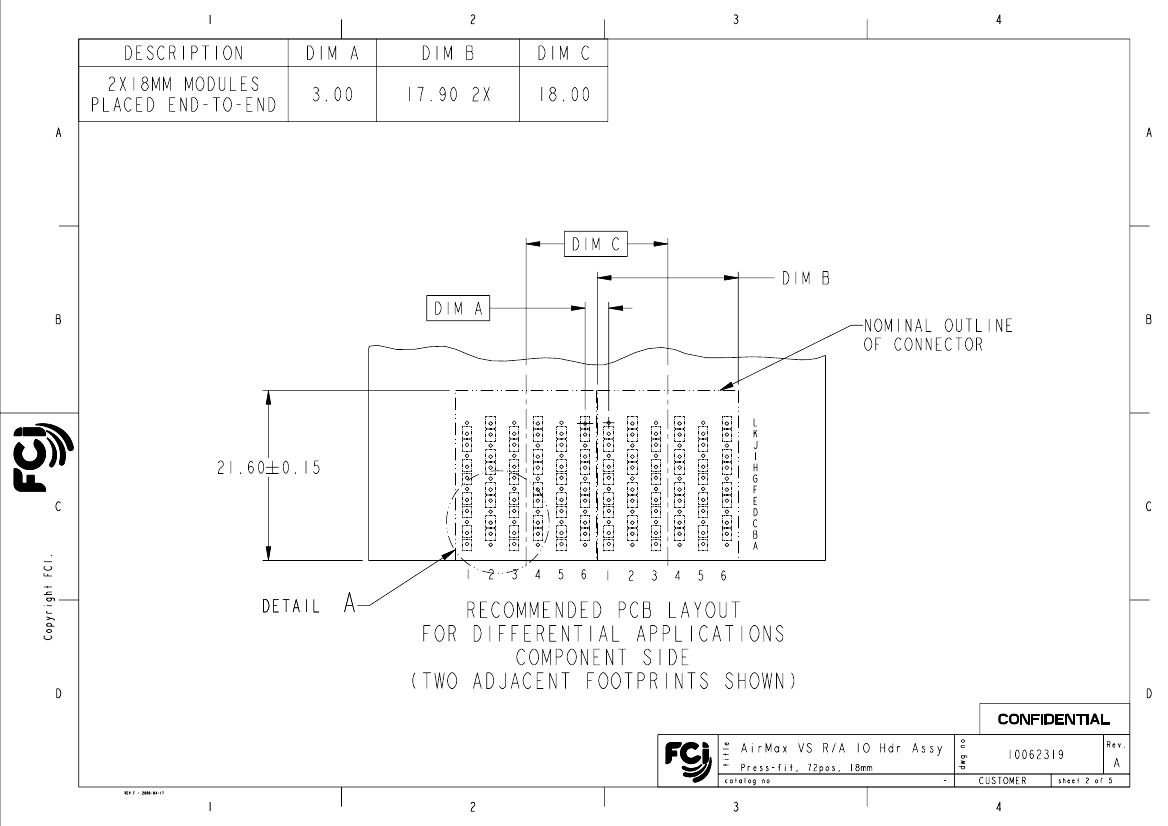

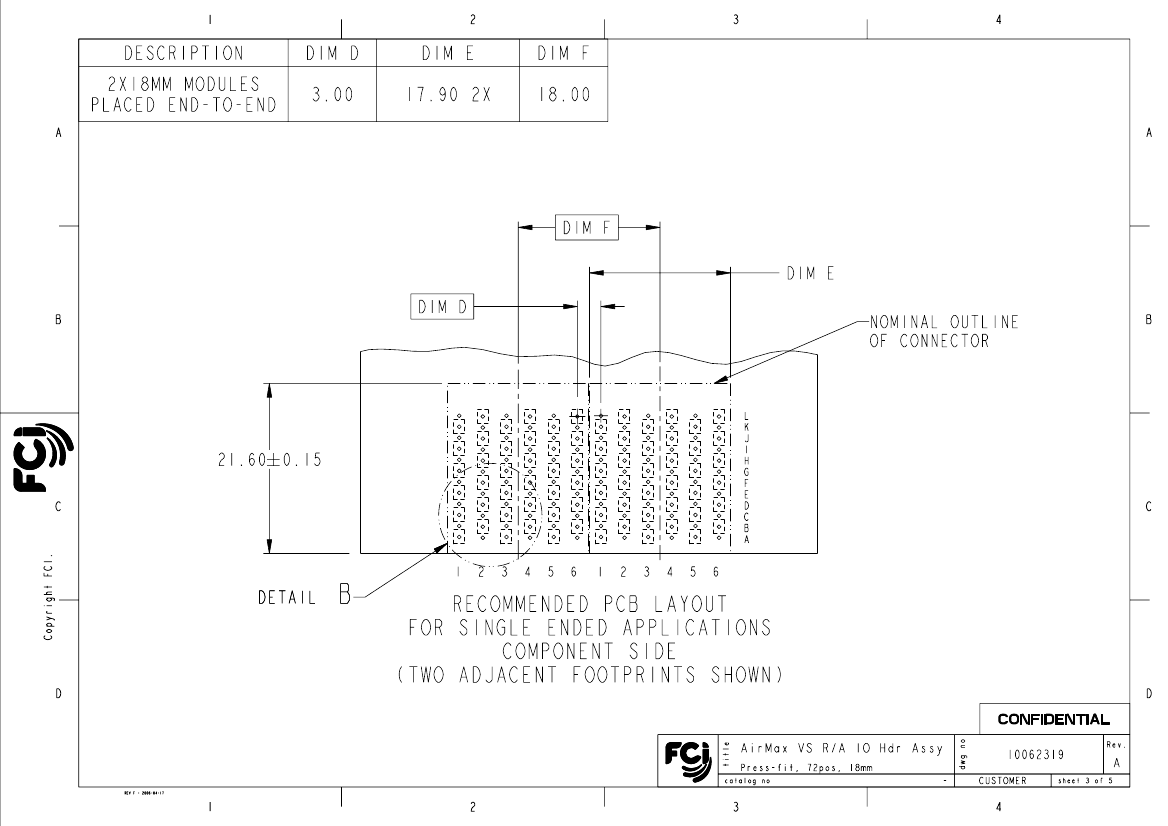

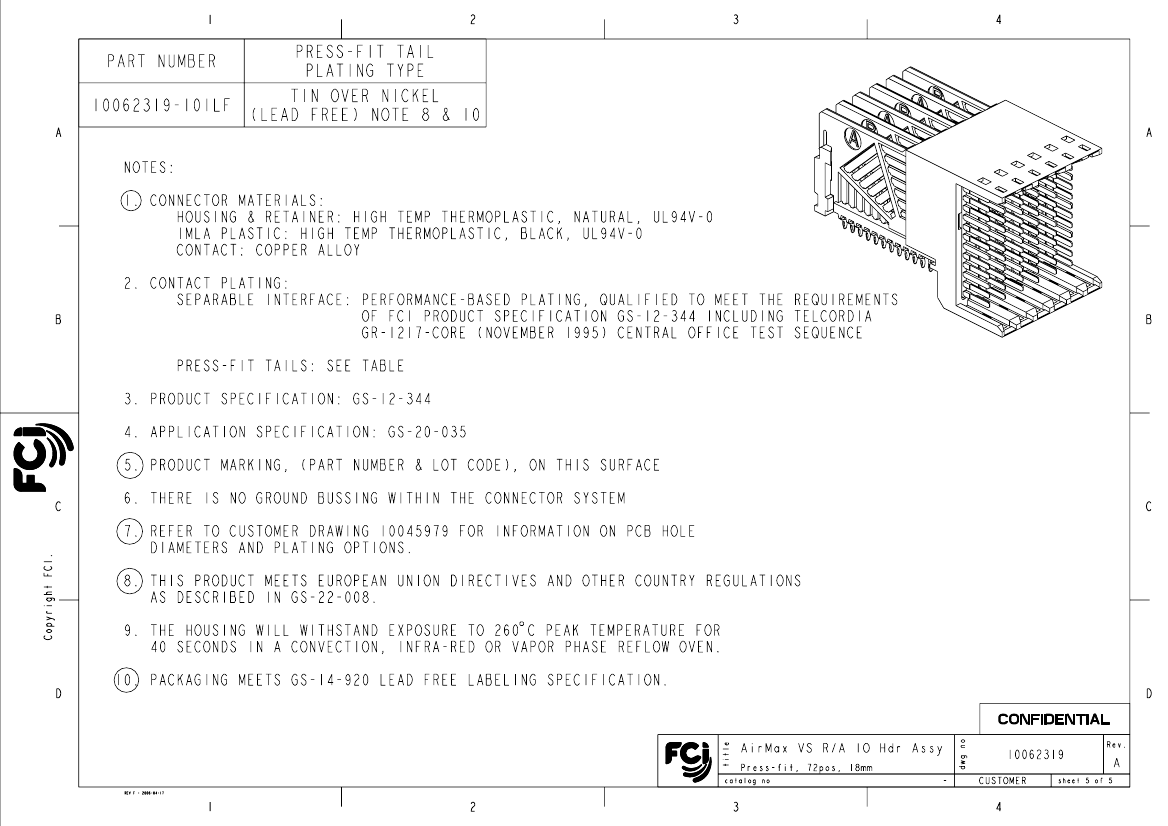

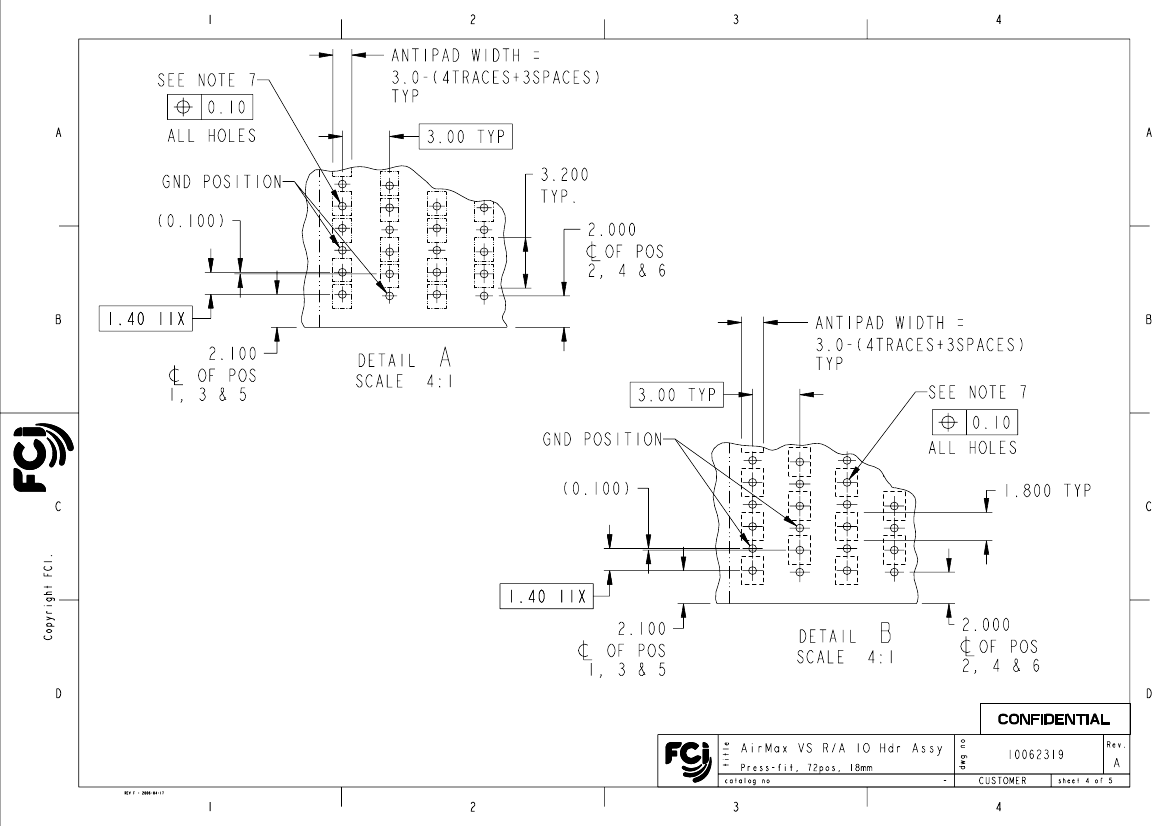

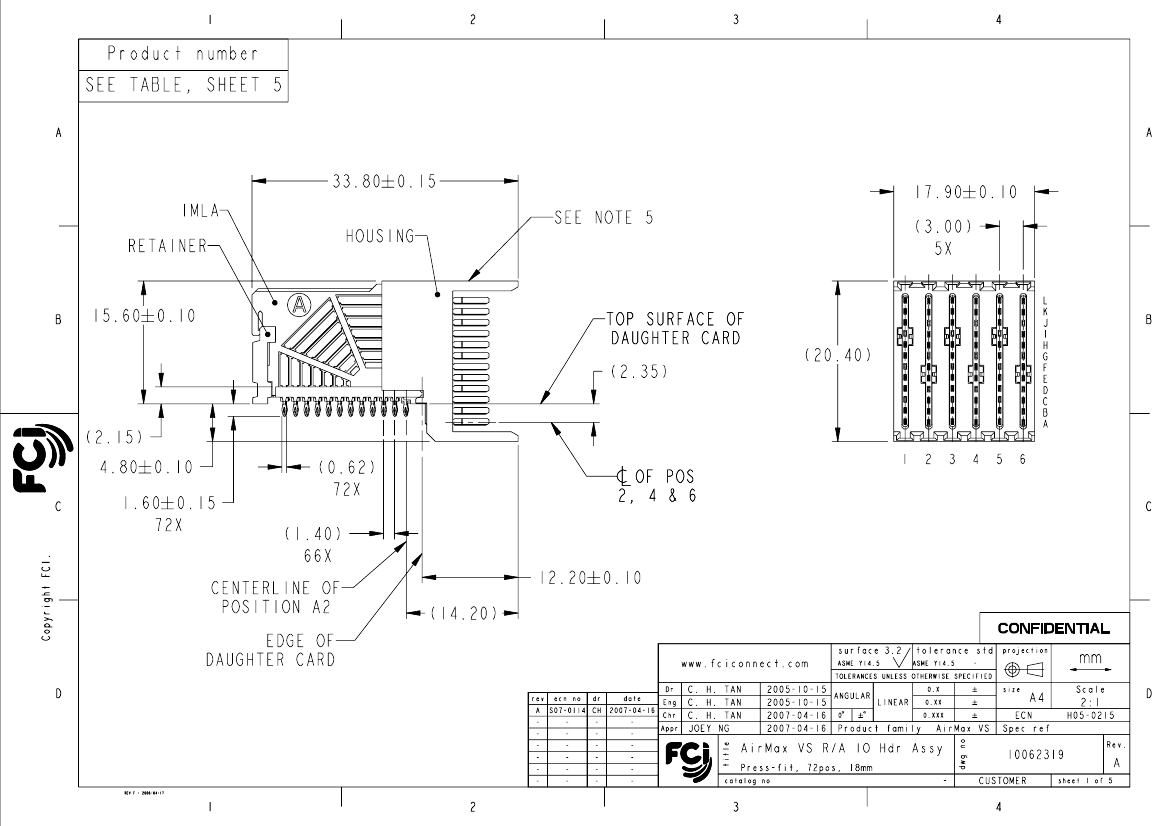

PDM: Rev:A

STATUS:

Released

Printed: Dec 01, 2010
