1230
UltraStable™
SPECIFICATIONS
PC Board Mountable Pressure Sensor
0-100 mV Output
Current Excitation
Gage, Differential, and Absolute
Temperature Compensated
The 1230 is a high performance temperature
compensated, piezoresistive silicon pressure sensor packaged in
a dual-in-line
configuration. It uses Measurement Specialties’
proprietary UltraStable™ die to provide excellent performance
and long-term stability over wide temperatures.
Integral temperature compensation is provided over a
range of -20°C to +85°C using laser-trimmed resistors. An
additional laser-trimmed resistor is included to normalize
pressure sensitivity variations by programming the gain of an
external differential amplifier. This provides sensitivity
interchangeability of ±1%. Absolute, differential and gage
pressure ranges from 0-15 to 0-100 psi are available. Multiple
lead and tube configurations are available for different
applications.
Please refer to the 1210 and 1220 for information on
products with operating pressures less than 0-15 psi. For voltage
excitation, please refer to the Model 1240.
SENSOR SOLUTIONS
///1230
08/2017
Page 1
1230
UltraStable™
FEATURES
Dual-in-Line Package
-20ºC to +85ºC Compensated
Temperature Range
±0.1% Non Linearity
1.0% Interchangeable Span
(provided by gain set resistor)
Solid State Reliability
APPLICATIONS
Medical Instruments
Altitude Measurement
Process Control
Factory Automation
Handheld Calibrators
Environmental Control
STANDARD RANGES
Range
0 to 2
0 to 5
0 to 15
0 to 30
0 to 50
0 to 100
psia
psid
psig
SENSOR SOLUTIONS
///1230
09/2017
Page 2
1230
UltraStable™
PERFORMANCE SPECIFICATIONS
Supply Current: 1.5 mA
Ambient Temperature: 25°C (unless otherwise specified)
PARAMETERS
MIN
Span
Zero Pressure Output
Pressure Non Linearity
Pressure Hysteresis
Input Resistance
Output Resistance
Temperature Error
–
Span
Temperature Error
–
Zero
Temperature Coefficient
–
Resistance
Thermal Hysteresis
–
Zero
Short Term Stability (Offset & Span)
Long Term Stability (Offset & Span)
Supply Current
Response Time (10% to 90%)
Output Noise (10Hz to 1kHz)
Pressure Overload
Compensated Temperature
Operating Temperature
Storage Temperature
Weight
Solder Temperature
Media
250ºC Max 5 Sec.
Non-Corrosive Dry Gases Compatible with Silicon, Pyrex,
RTV, Gold, Ceramic, Nickel, and Aluminum
-20
-40
-50
0.5
-0.5
-0.5
75
-2
-0.1
-0.1
2200
±0.05
±0.01
4000
4200
±0.3
±0.1
0.15
±0.05
±0.05
±0.1
1.5
1.0
1.0
3X
+85
+125
+150
3
2.0
0.5
0.5
TYP
100
MAX
150
2
0.1
0.1
5800
UNITS
mV
mV
%Span
%Span
Ω
Ω
%Span
%Span
%/ºC
%Span
%Span
%Span
mA
ms
µV p-p
Rated
°C
°C
°C
grams
7
8
6
3
3
3
3
4
5
2
NOTES
1
Notes
1.
Ratiometric to supply current. Span for 2PSI is 30 to 60mV.
2.
Best fit straight line. Non Linearity for 2 PSI is ±0.2% and 5 PSI is ± 0.5%.
Maximum temperature error between -20°C and +85°C with respect to 25°C.
3.
4.
Short term stability over 7 days with constant current and temperature.
5.
Long term stability over a one year period
with constant current and temperature.
6.
For a zero-to-full scale pressure step change.
7.
2X maximum for 100 psi device.
8.
For pressures ranges below 15 psi, compensated temperature range is 0
o
C to 50
o
C and thermal error of offset is
±1%.
SENSOR SOLUTIONS
///1230
09/2017
Page 3
1230
UltraStable™

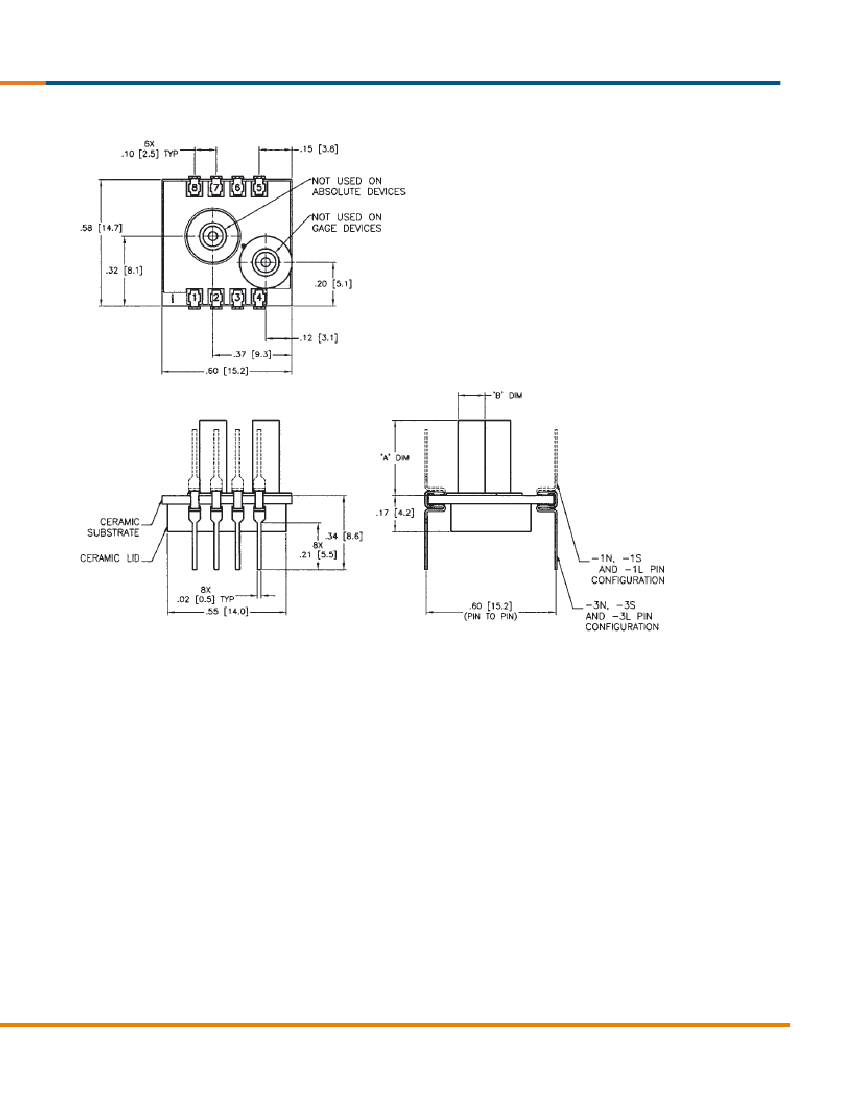

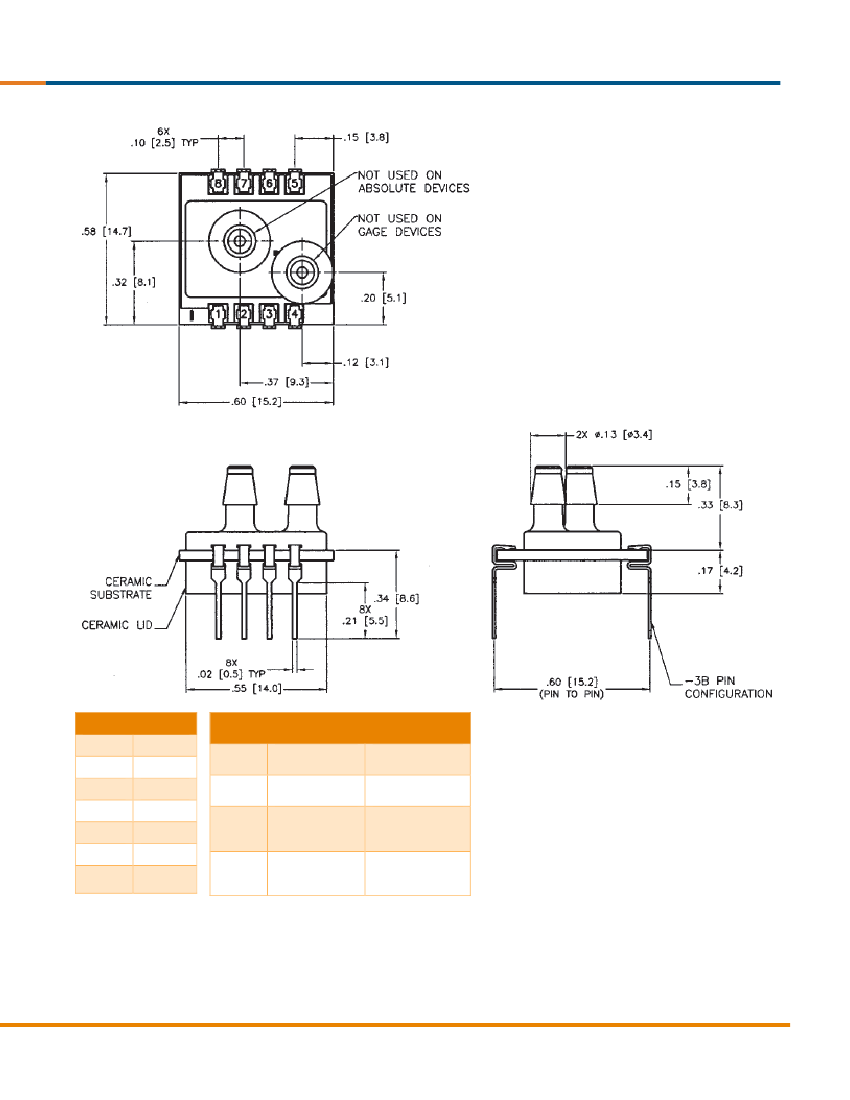

DIMENSIONS
SENSOR SOLUTIONS
///1230
09/2017
Page 4
1230
UltraStable™
Sensor Pinout
Pin No.
1
2
3
4
5,6
7,8
Function
-OUT
-EX
+OUT
+EX
GAIN
TEST
1S / 3S
1N / 3N
1L / 3L
Model
Vent Tube Dimensions
‘A’ Dim
N/A
.490±.005
[12.45±0.13]
.325±.005
[8.26±0.13]
‘B’ Dim
⌀.127±.005
[⌀3.23±.13]
N/A
⌀.125±.005
[⌀.3.18±0.13]
SENSOR SOLUTIONS
///1230
09/2017
Page 5
