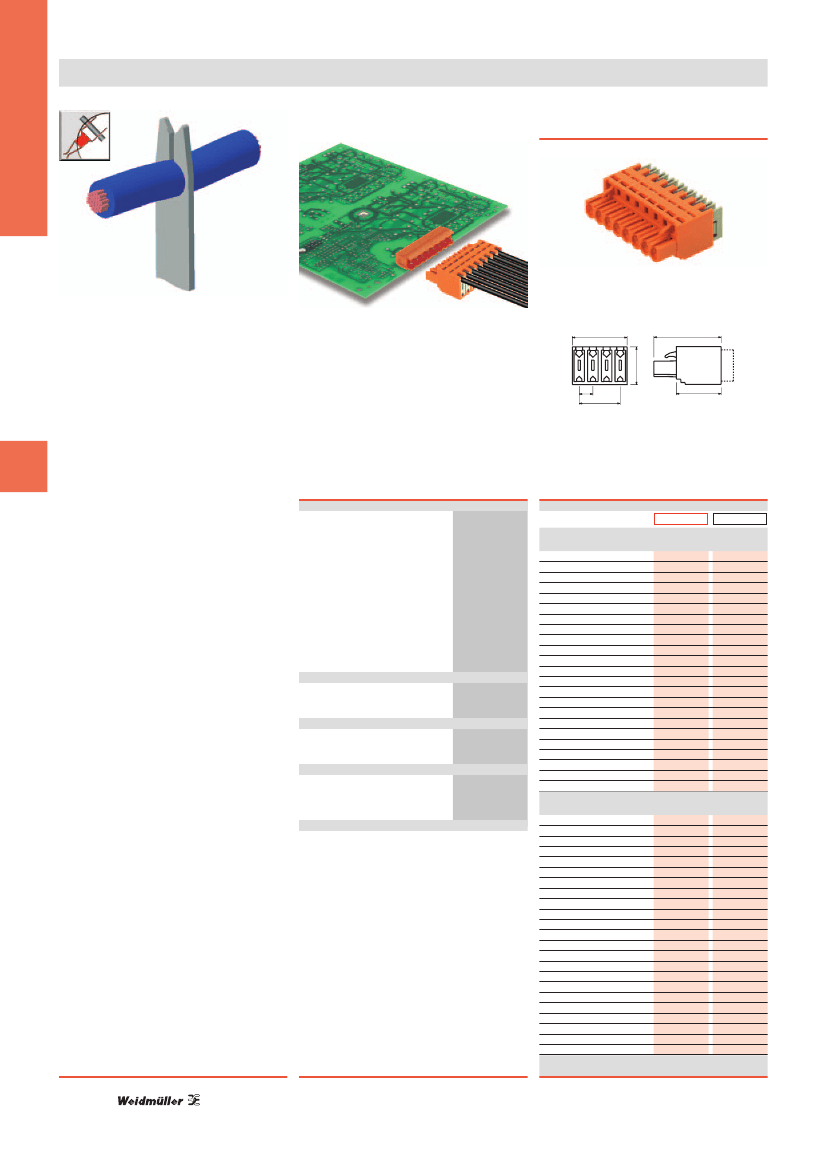

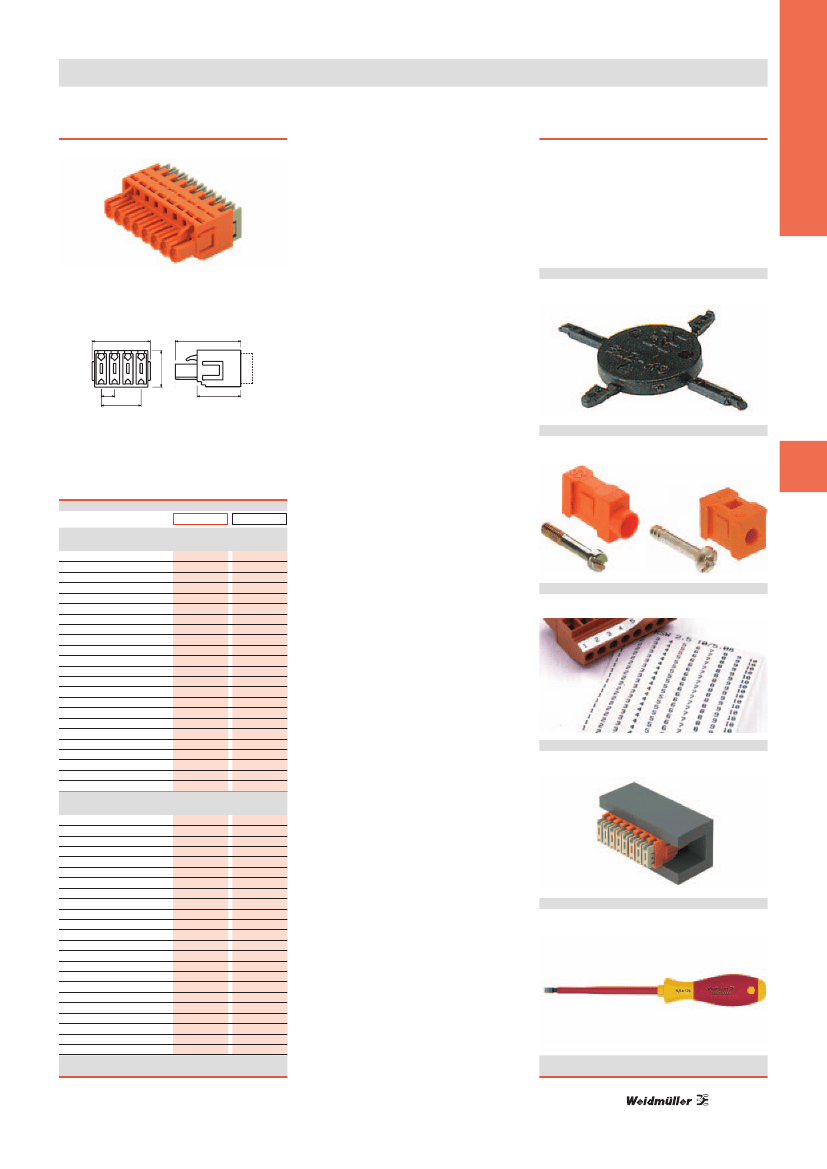

IDC connection socket connectors
BLIDC 5.08
Omnimate Range
Pitch 5.00 / 5.08
BLIDC 5.08
E
IDC (Insulation Displacement Connection) is the fa-
stest manual cable connection method available.
It is 60% faster than screw clamping. and 40% fa-
ster than spring clamp connections.
IDC completely removes the need to strip the insu-
lation from the cable.
The unprepared flexible cable is simply inserted in-
to the cable-entry point. The cable slide is then
pushed into place using thumb or screwdriver. and
the connection is then complete.
The main body of the connector houses a V-sha-
ped IDC blade which cuts through the cable insu-
lation and bites into the bare copper. This produ-
ces a gas-tight and vibration-resistant connection.
The Weidmueller IDC connections are designed to
and conform with DIN EN 60 352-4.
• 0.32 – 0.75 mm
2
(IEC) / 22 – 20 AWG (UL)
• 250 V (IEC) / 300 V (UL)
• 9 A (IEC) / 5 A (UL)
L1+P
25
0.984"
14
0.551"
P
L1
16.65
0.656"
Technical data
Rated data acc. to IEC 664-1 / VDE 0110 (4.97)
Clamping range, max.
mm
2
0.32…0.75
Solid H05(07) V-U
mm
2
0.50…0.75
Stranded H07 V-R
mm
2
Flexible H05(07) V-K
mm
2
0.50…0.75
Flexible with ferrule
mm
2
Ferrule with plastic collar
mm
2
Stripping length
mm
Rated current
at ambient temperature
A
Overvoltage category
Pollution severity
Rated voltage
Rated impulse voltage
V
kV
20°C
9.0
III
3
250
4.0
III
2
320
4.0
40°C
7.5
II
2
400
4.0
Ordering data
Solder pin length
Colour
orange
black
a
UL 1059 rated data - E60693
B
C
D
Rated voltage
V
300
300
Rated current
A
5.0
5.0
AWG conductor
22-20
r
CSA C22.2 rated data - LR12400 B
B
C
D
Rated voltage
V
300
300
Rated current
A
8.0
8.0
AWG conductor
22-20
Material data
Type of insulating material
PBT
Flammability class acc. UL94
V-0
Contact base material
CuSn
Contact plating
tin plated
Information
• Additional colours on request
• Rated current refers to rated cross-section and min. number
of poles
• for IDC contact 0.5: Conductor acc. to DIN EN 60352-4
• AWG conductor: solid or flexible, 7 or 19 strands
• Max. outside diameter of the conductor: 2.4 mm
Pitch 5.08 mm
Poles
2
3
4
5
6
7
8
9
10
11
12
L1 mm (inch)
Qty.
5.08 (0.200) 100
10.16 (0.400) 100
15.24 (0.600) 100
20.32 (0.800)
50
25.40 (1.000)
50
30.48 (1.200)
50
35.56 (1.400)
50
40.64 (1.600)
50
45.72 (1.800)
50
50.80 (2.000)
50
55.88 (2.200)
50
Order no.
1724940000
1724950000
1724960000
1724970000
1724980000
1724990000
1725000000
1725010000
1725020000
1725030000
1725040000
Order no.
1759390000
1759400000
1759410000
1759420000
1759430000
1759440000
1759450000
1759460000
1759470000
1759480000
1759490000
E.58
Articles with coloured order number are kept permanently in stock at the central warehouse in Germany.
Delivery times see page X.2
