Part Number

Search

176376-1

Description
HEADER CONNECTOR,PCB MNT,PLUG,40 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,BLACK
CategoryThe connector    The connector
File Size35KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com

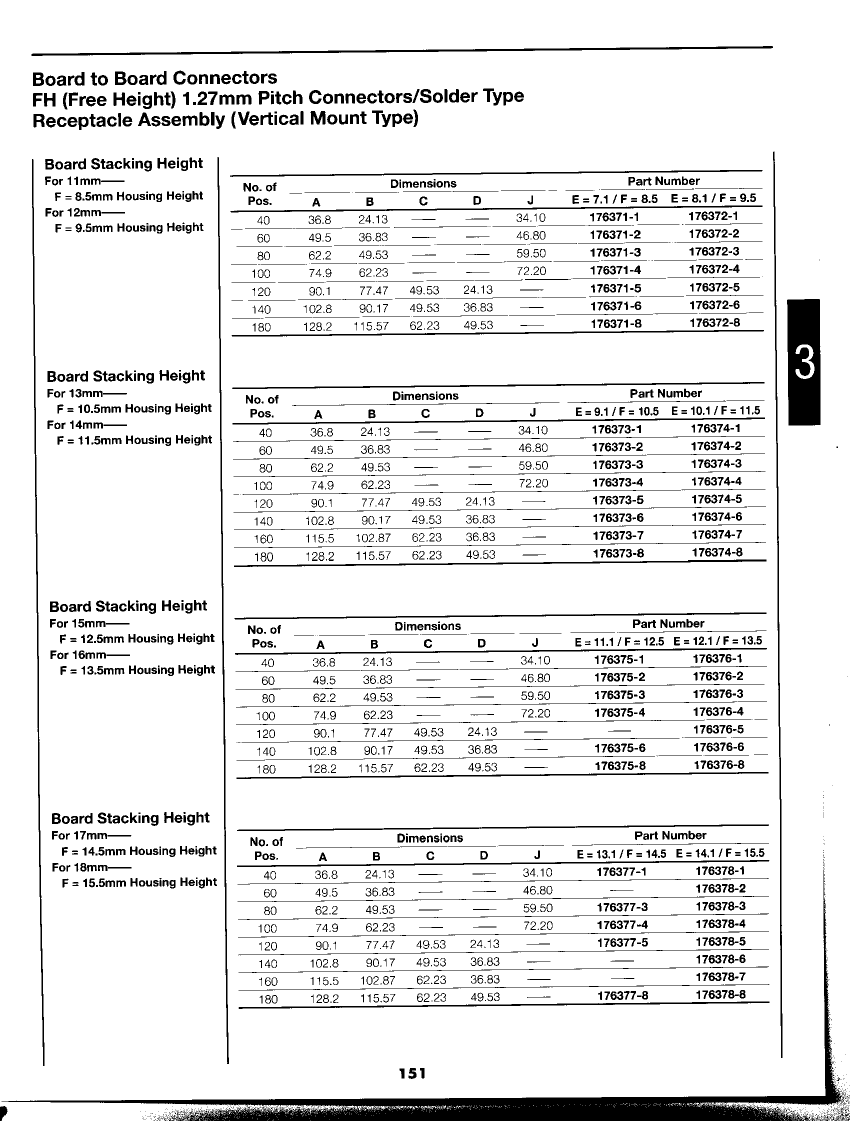

Download Datasheet Parametric View All

176376-1 Overview

HEADER CONNECTOR,PCB MNT,PLUG,40 CONTACTS,SKT,0.05 PITCH,PC TAIL TERMINAL,BLACK

176376-1 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
Is SamacsysN
Board mount optionsLOCATING POSTS
subject depth0.335 inch
body length1.447 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance35 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage250VAC V
Durability2000 Cycles
maximum insertion force1.4734 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number176376
Plug contact pitch0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternSTAGGERED
PCB contact row spacing1.905 mm
Plating thickness12u inch
polarization keyD-SHAPE
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.122 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts40
Base Number Matches1
