82-5374

Description
RF connectors / coaxial connectors R/A plg rg55/142
CategoryThe connector
File Size76KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric View All

82-5374 Online Shopping

Suppliers Part Number Price MOQ In stock
82-5374 - - View Buy Now

82-5374 Overview

RF connectors / coaxial connectors R/A plg rg55/142

82-5374 Parametric

Parameter NameAttribute value
ManufactureAmphenol
Product CategoryRF Connectors / Coaxial Connectors
RoHSYes
ProducConnectors
RF SeriesN
GendePlug
PolarityStandard
Impedance50 Ohms
Maximum Frequency11 GHz
Body MaterialBrass
Body StyleRight Angle
Body FinishNickel
Contact MaterialBrass
Contact PlatingGold
Contact TerminatiCrim
Mounting Type-
Termination StyleCable - Crim
Coupling MechanismThreaded
OrientatiRight Angle
Cable TypeRG-58, RG-141, RG-142
Mating Cycles500
Operating Temperature Range- 65 C to + 165 C
Unit Weigh84.822 g
Type N
Right Angle Plugs

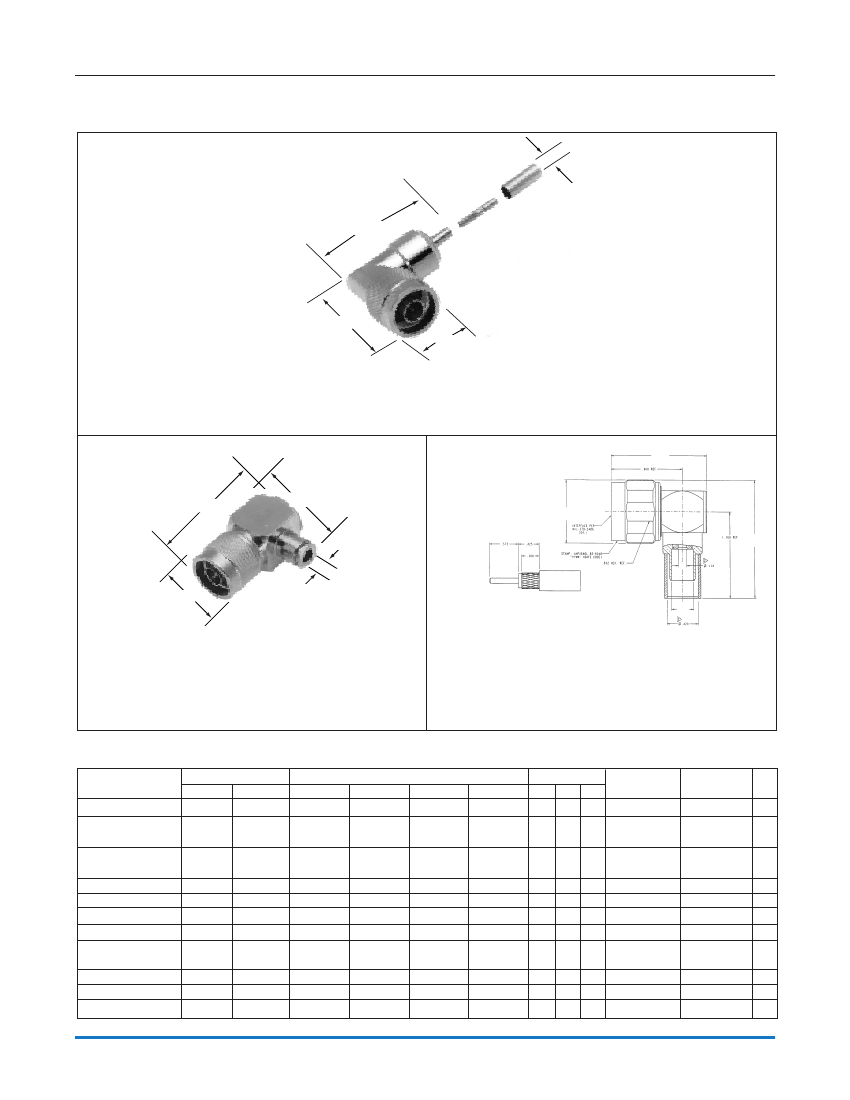

Fig. 1
c•
Amphenol
®
d
I
a
b
Crimp N Angle Plugs
82-4440-1001
82-5995
82-5374
82-4440
Fig. 2
Fig. 3
a
a
d
b
d
c•
b
c
Clamp N Angle Plug
Cubic Body
18750
82-5988-1000
Crimp N Angle Plug
Cubic Body
82-6048-1000
82-5989-1004
82-6157
82-6165
82-6166
N RIGHT ANGLE PLUGS
Cable RG-/U
9, 214, 225, 393
55, 142, 223
58, 141, 142
214, 225, 393
214, 393
214, 393
LMR 600, TWB 6001
Amph TWB 4001,
LMR 400, Belden 9913
LMR 240, 8X
LMR 240, 8X
LMR 240, 8X
G
Cable Attachment
Outer
Inner
Crimp
Crimp
Clamp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Crimp
Solder
Crimp
Solder
Solder
Solder
Solder
Crimp
Crimp
Crimp
a
1.40(35.5)
1.41(35.7)
1.63(41.3)
1.40(35.5)
Dimensions, inches (millimeters)
b
c
G
.827(21.0)
.827(21.0)
.827(21.0)
.827(21.0)
.827(21.0)
.850(21.6)
.850(21.6)
.850(21.6)
.827(21.0)
.827(21.0)
.827(21.0)
.437(11.1)
.220(5.6)
.210(5.3)
.438(11.1)
.438(11.1)
.438(11.1)
.625(15.9)
.298(7.57)
.259(6.6)
.259(6.6)
.259(6.6)
d
Notes
CAI Plt. Ins.
C11 P28 D1
C11 P11 D1
C8
P1
D1
Military
Number
Amphenol
Number
82-4440-1001
82-5374
18750
Fig.
1
1
2
1
2
3
1
3
3
3
3
L
L
1.95(49.5)
I
1.98(50.2)
I
1.22(31.0)
1.95(49.5)
I
1.62(4.1)
I
C11 P33 D1
C11 P33 D9
C11 P33 D9
M39012/05-0501
82-4440
Hex Coupling
Hex Coupling
Nickel body
Nickel body
Silver body
82-5988-1000
82-5988-1004
82-5995
82-6048-1000
82-6157
82-6165
82-6166
1.195(30.4)
1.195(30.4)
1.32(33.5)
1.291(32.8)
1.43(36.5)
1.43(36.5)
1.43(36.5)
1.62(4.1)
I
1.61(40.9)
I
C11 P34 D9
1.594(40.5)
I
C11 P33 D9
1.07(27.2)
1.07(27.2)
1.07(27.2)
C11 P7
C11 P7
D1
D1
C11 P33 D1
accommodates cable diameter
I
includes outer ferrule
L
Distributor stocked
Amphenol Corporation Tel: 800-627-7100
www.amphenolrf.com
