FRONT-MC 1,5/ 3-STF-3,81
Order No.: 1850864

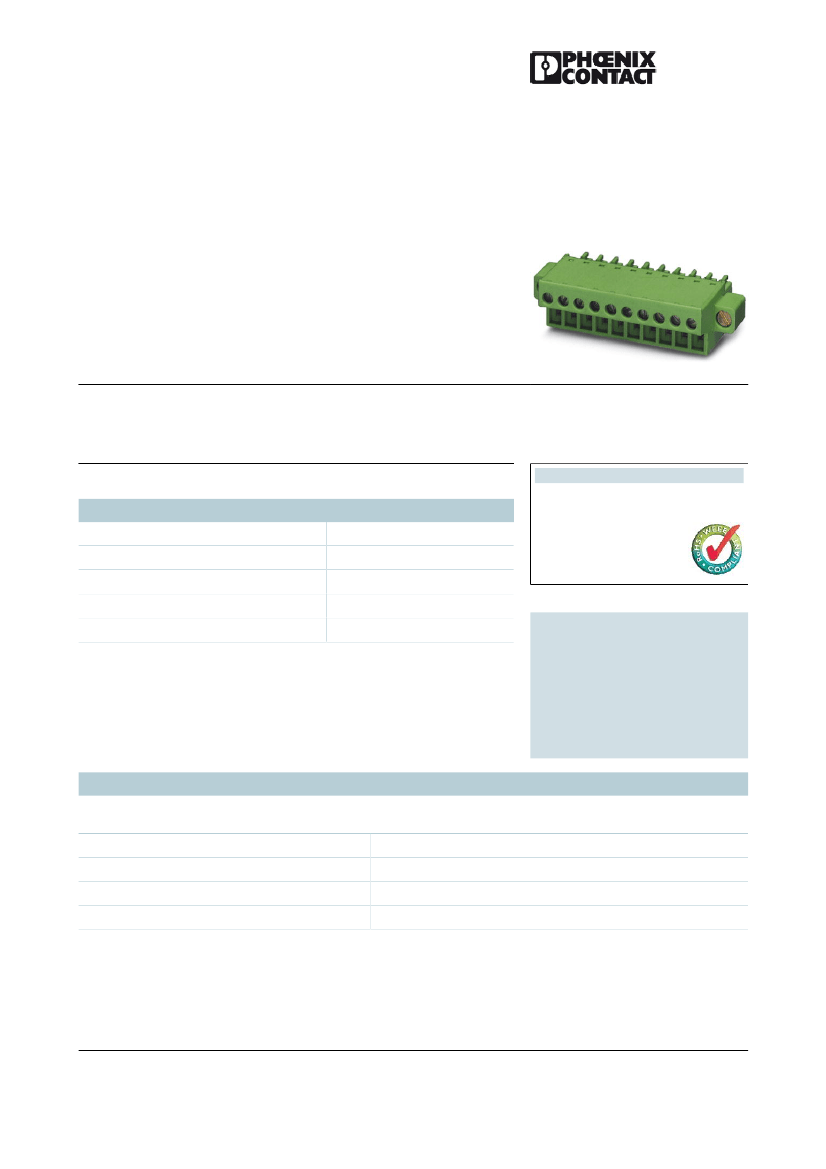

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1850864
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch:
3.81 mm, Number of positions: 3, Connection type: Screw connection,
Color: green
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918110024
50 pcs.
85366990
0.0052 KG
Page 147 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
09/08/2005
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
Screw thread
3.81 mm
7.62 mm
3
M2
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Feb 17, 2010
FRONT-MC 1,5/ 3-STF-3,81
Order No.: 1850864
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1850864
Tightening torque, min
Tightening torque max
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
0.22 Nm
0.25 Nm
I
2.5 kV
2.5 kV
2.5 kV
160 V
320 V
EN-VDE
8A
160 V
1.5 mm²
8 A (with 1.5 mm conductor cross section)
PA
V0
A1
9 mm
2
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
0.5 mm²
28
16
0.14 mm²
0.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Feb 17, 2010
FRONT-MC 1,5/ 3-STF-3,81
Order No.: 1850864
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1850864
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
0.14 mm²
0.75 mm²
0.25 mm²
0.34 mm²
0.5 mm²
0.5 mm²
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CSA, CUL, UL, VDE-PZI
300 V
8A
28-16
300 V
8A
30-16
300 V
8A
30-16
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Feb 17, 2010
FRONT-MC 1,5/ 3-STF-3,81
Order No.: 1850864
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1850864
Accessories
Item
Marking
0804109
SK 3,81/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-
(99)100, sufficient for 140 terminal blocks
Designation
Description
Tools
1205037
SZS 0,4X2,5
Screwdriver, bladed, matches all screw terminal blocks up to 1.5
mm² connection cross section, blade: 0.4 x 2.5 mm
Additional products
Item
General
1829358
DFK-MC 1,5/ 3-GF-3,81
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 3,
Assembly: Direct mounting
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Press-in
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Assembly: Press-in
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 3, Connection type: Screw
connection, Color: green
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Assembly: Soldering
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: black, Assembly: SMD/THT/
THR
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Assembly: Soldering
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Assembly: Soldering
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 3, Assembly: DIN rail
Designation
Description
1896954
1879298
1858044
EMC 1,5/ 3-GF-3,81
EMCV 1,5/ 3-GF-3,81
IMC 1,5/ 3-STGF-3,81
1827871
1908884
MC 1,5/ 3-GF-3,81
MC 1,5/ 3-GF-3,81 THT
1842924
1830114
1842775
1830266
1830606
1832882
MCD 1,5/ 3-G1F-3,81
MCD 1,5/ 3-GF-3,81
MCDV 1,5/ 3-G1F-3,81
MCDV 1,5/ 3-GF-3,81
MCV 1,5/ 3-GF-3,81
MCVK 1,5/ 3-GF-3,81
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Feb 17, 2010
FRONT-MC 1,5/ 3-STF-3,81
Order No.: 1850864
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1850864
1833030
MCVU 1,5/ 3-GFD-3,81
Plug component, Nominal current: 8 A, Nom. voltage: 160
V, Pitch: 3.81 mm, Number of positions: 3, Assembly: Direct
mounting
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1827431
SMC 1,5/ 3-GF-3,81

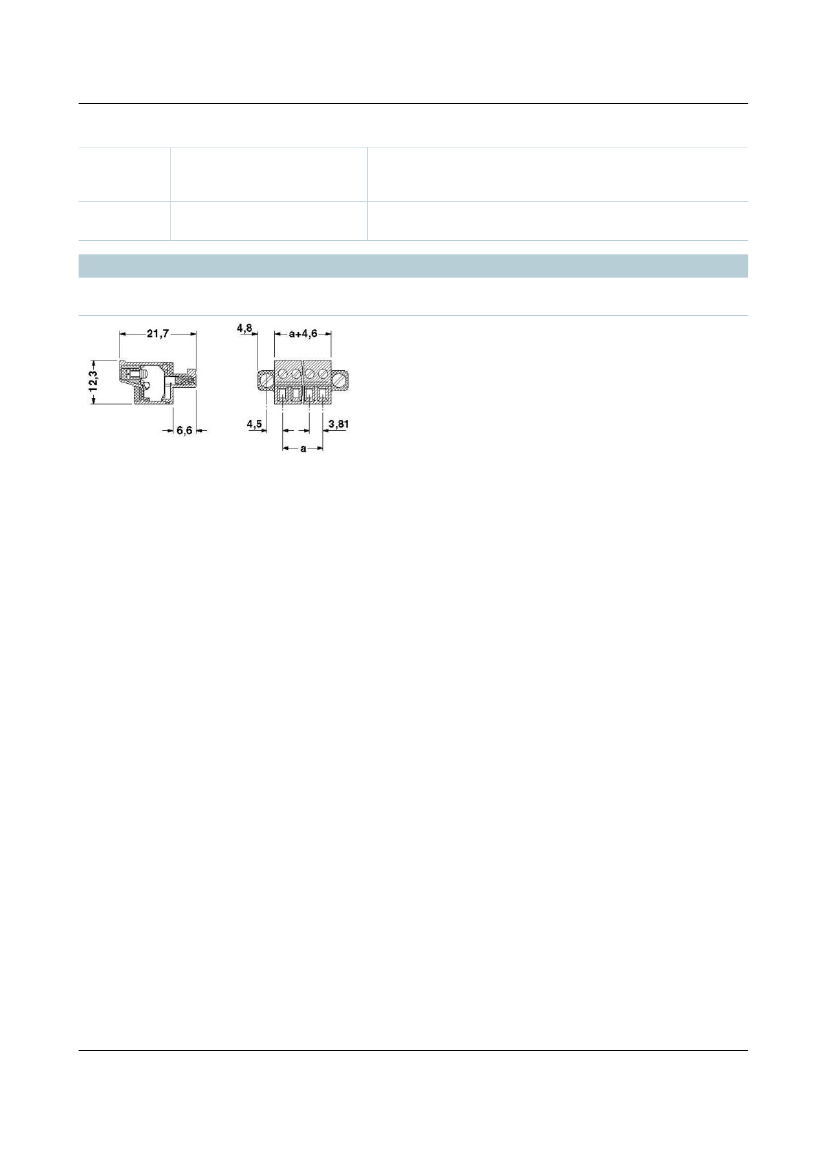

Diagrams/Drawings
Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 6
Feb 17, 2010
