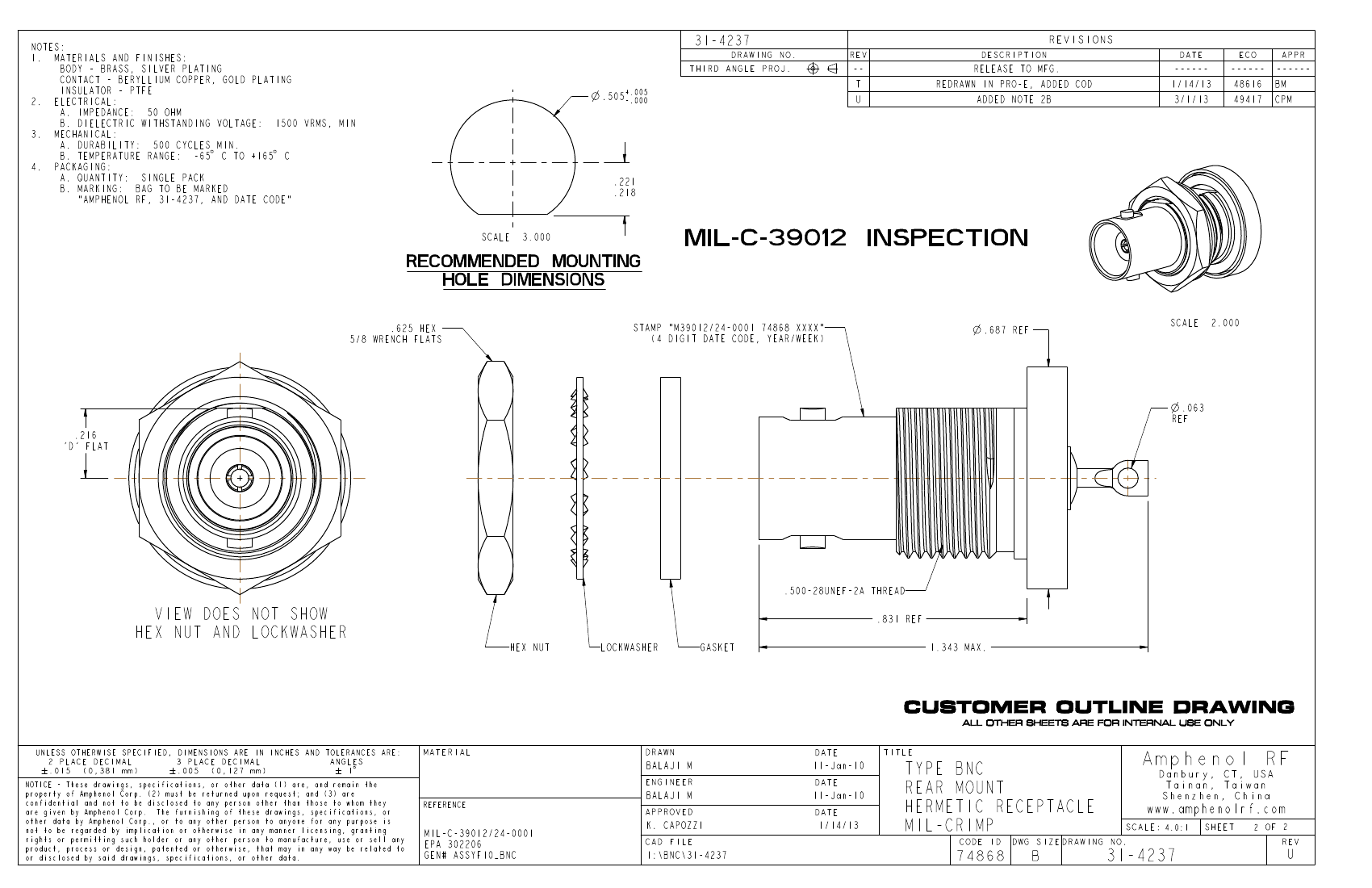

NOTES:
1. MATERIALS AND FINISHES:
BODY - BRASS, SILVER PLATING
CONTACT - BERYLLIUM COPPER, GOLD PLATING
INSULATOR - PTFE
2. ELECTRICAL:
A. IMPEDANCE: 50 OHM
B. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -65 $C TO +165 $C
4. PACKAGING:
A. QUANTITY: SINGLE PACK
B. MARKING: BAG TO BE MARKED
"AMPHENOL RF, 31-4237 , AND DATE CODE"
SCALE
3.000
31-4237
REVISIONS
REV
DRAWING NO.
THIRD ANGLE PROJ.
--
T
U
.505
-.000
+.005
REDRAWN IN PRO-E, ADDED COD
ADDED NOTE 2B
RELEASE TO MFG.
DESCRIPTION
1/14/13
3/1/13
------
DATE
------
48616
49417
ECO
BM
------
APPR
CPM
.221
.218
RECOMMENDED MOUNTING
HOLE DIMENSIONS
.625 HEX
5/8 WRENCH FLATS
MIL-C-39012 INSPECTION
STAMP "M39012/24-0001 74868 XXXX"
(4 DIGIT DATE CODE, YEAR/WEEK)
.687 REF
SCALE
2.000
.063
REF
.216
'D' FLAT
.500-28UNEF-2A THREAD
VIEW DOES NOT SHOW
HEX NUT AND LOCKWASHER
.831 REF
HEX NUT
LOCKWASHER
GASKET
1.343 MAX.
UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
#.015
(0,381 mm)
#.005 (0,127 mm)
# 1$
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
BALAJI M
BALAJI M
11-Jan-10
11-Jan-10
DATE
DATE
DATE
TITLE
ENGINEER
REFERENCE
APPROVED
CAD FILE
MIL-C-39012/24-0001
EPA 302206
GEN# ASSYF10_BNC
K. CAPOZZI
I:\BNC\ 31-4237
1/14/13
TYPE BNC
REAR MOUNT
HERMETIC RECEPTACLE
MIL-CRIMP
74868
CODE ID
Amphenol RF
www.amphenolrf.com
SCALE: 4.0:1
SHEET
Danbury, CT, USA
Tainan, Taiwan
Shenzhen, China
2 OF 2
REV
DWG SIZE DRAWING NO.
B
31-4237
U
