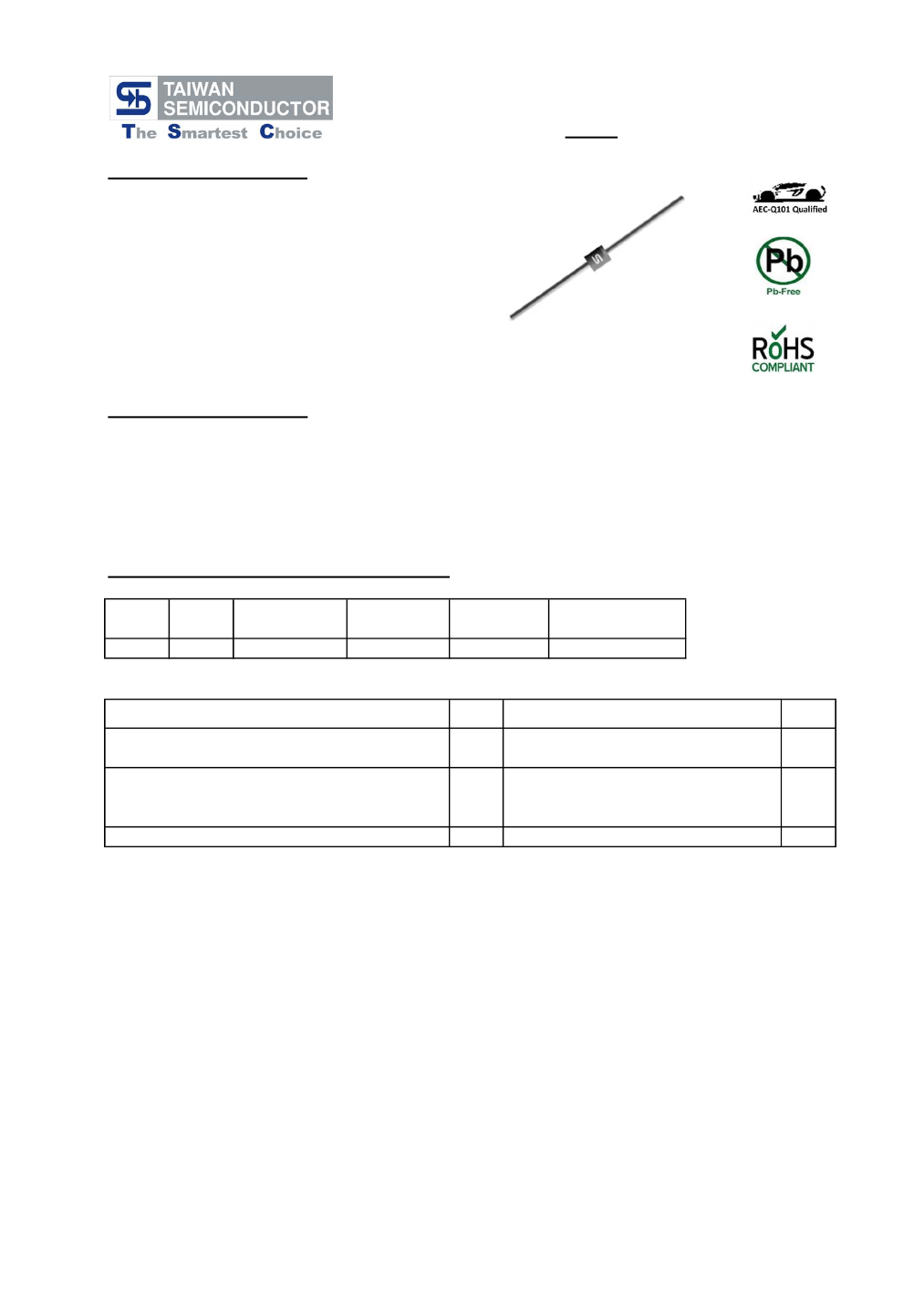

1.0 Watt Glass Passivated Junction Silicon Zener Diodes
DO-41
Features
Low profile package
Built-in strain relief
Glass passivated junction
Low inductance
Typical I
R
less than 5uA above 11V
High temperature soldering guaranteed:
260℃ / 10 seconds at terminals
Plastic package has Underwriters
Laboratory Flammability Classification 94V-0
Green compound with suffix "G" on packing
code & prefix "G" on datecode
1N4740A - 1M200Z
Mechanical Data
Case: Molded plastic DO-41
Expoxy: UL 94V-0 rate flame retardant
Lead: Pure tin plated, lead free,
solderable per MIL-STD-202, method 2025
Polarity: Color Band denotes cathode end
Mounting position: Any
Weight: 0.3 gram
Ordering Information (example)
Part No.
1N4740A
Package
DO-41
Packing
3K / AMMO box
INNER
TAPE
52mm
Packing code
A0
Packing code
(Green)
A0G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Peak Power Dissipation at TA=50℃,
Derate above 50℃ (Note 1)
Peak Forward Surge Current, 8.3ms Single Half
Sine-wave Superimposed on Rated Load
(JEDEC method)(Note 2)
Operating and Storage Temperature Range
Symbol
P
D
Value
1.0
6.67
10
-55 to +150
Unit
Watts
mW/℃
Amps
℃
I
FSM
T
J
, T
STG
Note 1: Mounted on Cu-Pad size 5mm x 5mm x 1.6mm on PCB
Note 2: Measure on 8.3ms Single half Sine-Wave of equivalent square wave, duty cycle= 4 pulse per minute maximum
Version:G13
ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted)
Zener Voltage
Device
(Note 1)
Min.
1N4740A
1N4741A
1N4742A
1N4743A
1N4744A
1N4745A
1N4746A
1N4747A
1N4748A
1N4749A
1N4750A
1N4751A
1N4752A
1N4753A
1N4754A
1N4755A
1N4756A
1N4757A
1N4758A
1N4759A
1N4760A
1N4761A
1N4762A
1N4763A
1N4764A
1M110Z
1M120Z
1M130Z
1M150Z
1M160Z
1M180Z
1M200Z
9.50
10.45
11.40
12.35
14.25
15.20
17.10
19.00
20.90
22.80
25.65
28.50
31.35
34.20
37.05
40.85
44.65
48.45
53.20
58.90
64.60
71.25
77.90
86.45
95.00
104.50
114.00
123.50
142.50
152.00
171.00
190.00
Vz@Iz
T
V
Nom.
(Note 2)
(Note 3)
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
Max.
10.50
11.55
12.60
13.65
15.75
16.80
18.90
21.00
23.10
25.20
28.35
31.50
34.65
37.80
40.95
45.15
49.35
53.55
58.80
65.10
71.40
78.75
86.10
95.55
105.00
115.50
126.00
136.50
157.50
168.00
189.00
210.00
25.0
23.0
21.0
19.0
17.0
15.5
14.0
12.5
11.5
10.5
9.5
8.5
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.7
3.3
3.0
2.8
2.5
2.3
2.0
1.9
1.7
1.6
1.4
1.2
7
8
9
10
14
16
20
22
23
25
35
40
45
50
60
70
80
95
110
125
150
175
200
250
350
450
550
700
1000
1100
1200
1500
700
700
700
700
700
700
750
750
750
750
750
1000
1000
1000
1000
1500
1500
1500
2000
2000
2000
2000
3000
3000
3000
4000
4500
5000
6000
6500
7000
8000
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
Test
Current
I
ZT
mA
Z
ZT
@I
ZT
Ω
Ω
Zener Impedance
Z
ZK
@I
ZK
mA
uA
Max.
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56.0
62.2
69.2
76.0
83.6
91.2
98.8
114.0
121.6
136.8
152.0
454
414
380
344
304
285
250
225
205
190
170
150
135
125
115
110
95
90
80
70
65
60
55
50
45
-
-
-
-
-
-
-
Leakage Current
I
R
@V
R
V
Surge current
T
A
=25℃
I
R
mA
Notes:
1. Tolerance and Type Number Designation. The type numbers losted have a standard tolerance on the nominal zener voltage of ±5%
2. Specials Available Include:
A. Nominal zener voltages between the voltages shown and tighter voltage tolerances
B. Matched sets
3. Zener Voltage (Vz) Measurement. Guarantees the zener voltage when messured at 90 seconds while maintaining the lead
temperature(TL) at 30℃±1℃, from the diode body
4. Zener Impedance (Zz) Derivation. The zener impedance is derives from the 60 cycle AC voltage, which results when an accurrent
having and rms value equal to 10% of the DC zener current (I
ZT
or I
ZK
) is superimposed on I
ZT
or I
ZK
5. Surge Current (I
R
) Non-Repetitive. The rating listd in the electrical chatacteristics table is maximum peak, non-repetitive, reverse
surge current of 1/2 square wave or equivalent sine wave pulse of 1/120 second duration superimposed on the test current, I
ZT
per
JEDEC registration; however, actual device capability is as described in Figure 11
Version:G13
RATINGS AND CHARACTERISTIC CURVES (1N4740A THRU 1M200Z)

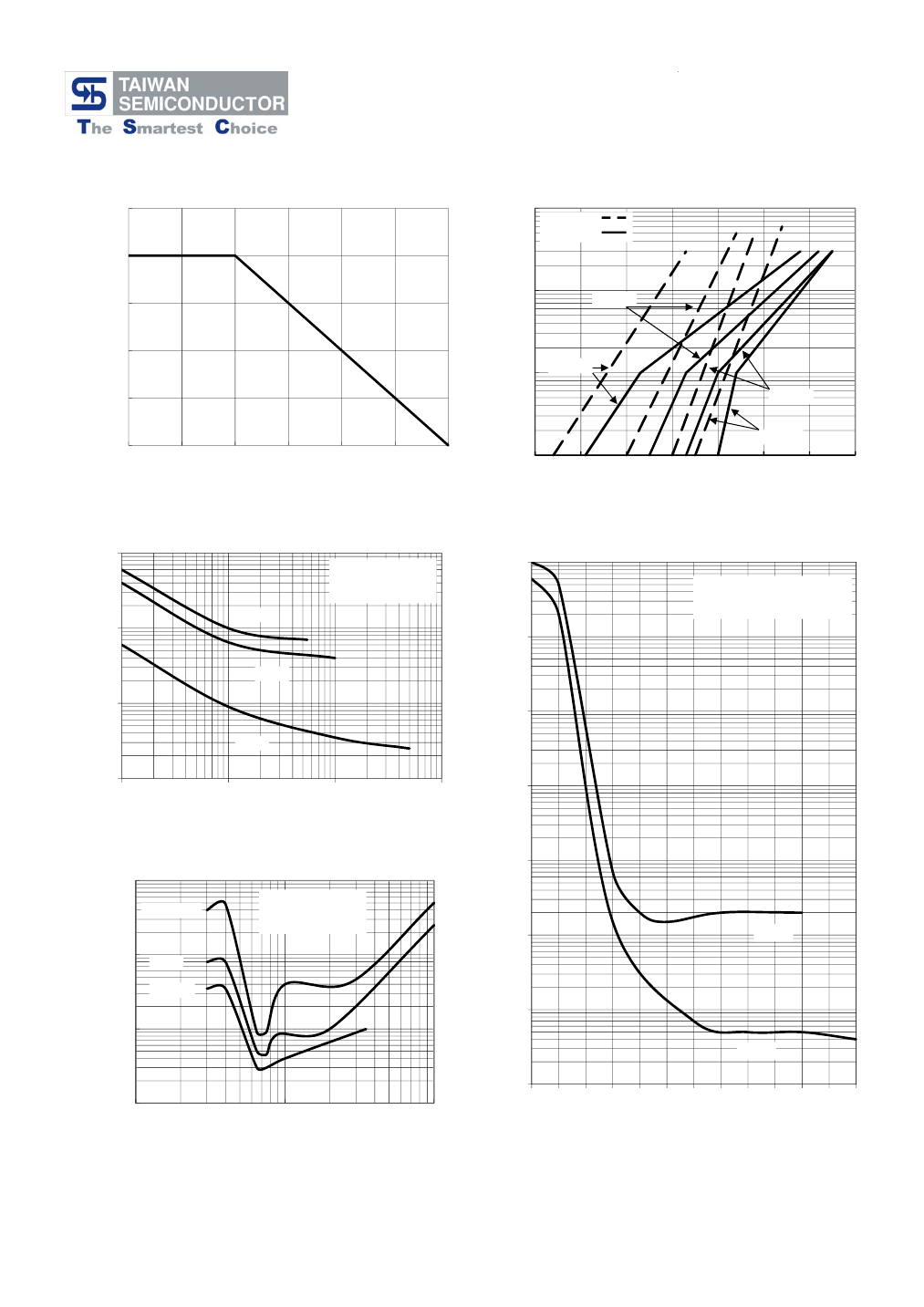

FIG. 1 POWER TEMPERATURE DERATING CURVE
1.25
FIG. 2 TYPICAL FORWARD CHARACTERISTICS
1000
MINIMUM
MAXIMUM
P
D
, MAXIMUM POWER DISSIPATION
(WATTS)
1
IF, FORWARD CURRENT (mA)
0.75
100
70℃
0.5
10
150℃
25℃
0.25
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE(℃)
0℃
1
0.4
0.5
0.6
0.7
0.8
0.9
1
1.1
V
F
, FORWARD VOLTAGE (V)

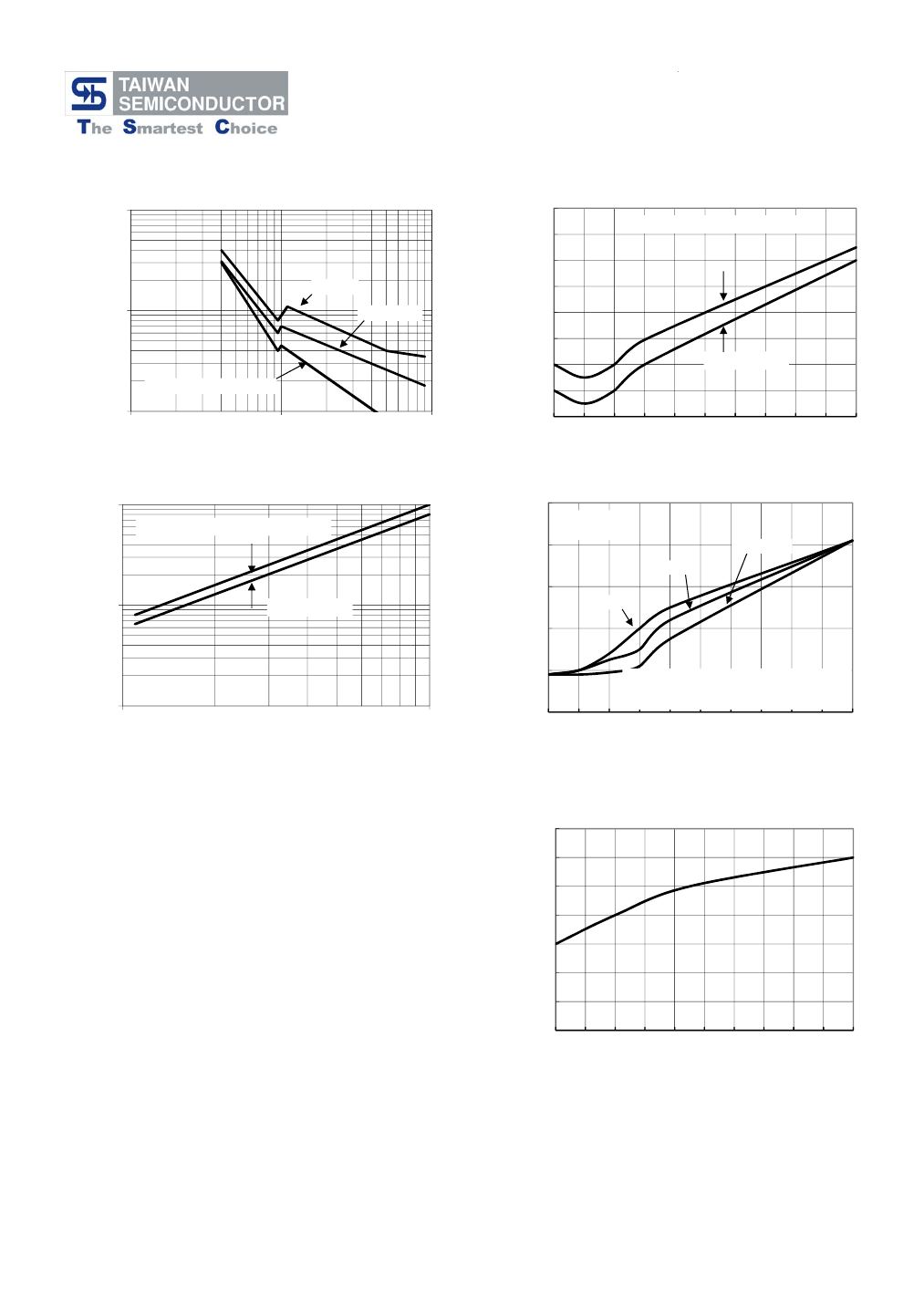

1000
FIG.3 EFFECT OF ZENER CURRENT
ON ZENER IMPEDANCE
TA=25℃
Iz(rms)=0.1 Iz(dc)
f=1KHz
FIG.5 TYPICAL LEAKAGE CURRENT
10000
TYPICAL LEAKAGE CURRENT
AT 80% OF NOMINAL
BREAKDOWN VOLTAGE
Zz, DYNAMIC IMPEDANCE (Ω)
100
47V
1000
27V
10
100
0.8V
1
0
1
10
100
IR, LEAKAGE CURRENT(uA)
10
Iz, ZENER CURRENT (mA)
FIG.4 EFFECT OF ZENER VOLTAGE
ON ZENER IMPEDANCE
1
1000
Iz = 1mA
Zz, DYNAMIC IMPEDANCE (Ω)
TA=25℃
Iz(rms)=0.1 Iz(dc)
f=1KHz
0.1
125℃
100
5 mA
20mA
0.01
10
25℃
0.001
1
1
10
100
3
4
5
6
7
8
9
10
11
12
13
14
15
Vz, NOMINAL ZENER VOLTAGE(V)
Iz, ZENER CURRENT(mA)
Version:G13
RATINGS AND CHARACTERISTIC CURVES (1N4740A THRU 1M200Z)
FIG.6 TYPICAL CAPACITANCE versus Vz
1000
12
10
θVz,
TEMPERATURE COEFFICIENT
(mV/℃)
C, CAPACITANCE(pF)
8
6
4
2
0
-2
-4
2
3
4
5
6
7
8
9
10
11
12
Vz, ZENER VOLTAGE(V)
RANGE Vz@ IZT
a-RANGE FOR UNITS TO 12 VOLTS
FIG. 7 TEMPERATURE COEFFICIENTS
0V BIAS
100
1.0V BIAS
50% OF BREAKDOWN
10
1
10
Vz, FORWARD VOLTAGE (V)
100
FIG.8 TEMPERATURE COEFFICIENTS
100
θVz,
TEMPERATURE COEFFICIENT
(mV/℃)
b-RANGE FOR UNITS 12 TO 100 VOLTS
θVz,
TEMPERATURE COEFFICIENT
(mV/℃)
4
6
Vz@ IZT
TA=25℃
FIG. 9 EFFECT OF ZENER CURRENT
0.01mA
1 mA
2
20mA
0
10
RANGE Vz@ IZT
-2
1
10
Vz, ZENER VOLTAGE(V)
100
-4
3
3.5
4
NOTE:BELOW 3 VOLTAGE ABOVE a
VOLTS CHANGES IN ZENER CURRENT
NOT AFFECT TEMPERATURE COEFFICIENTS
4.5
5
5.5
6
6.5
7
7.5
8
Vz, ZENER VOLTAGE(V)
FIG. 10 TYPICAL THERMAL RESISTANCE
versus LEAD LENGTH
175
ΘJL,
JUNCTION TO LEAD THERMAL
RESISTANCE(℃/W)
150
125
100
75
50
25
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
L, LEAD LENGTH TO HEAT SINK(INCHES)
Version:G13
RATINGS AND CHARACTERISTIC CURVES (1N4740A THRU 1M200Z)

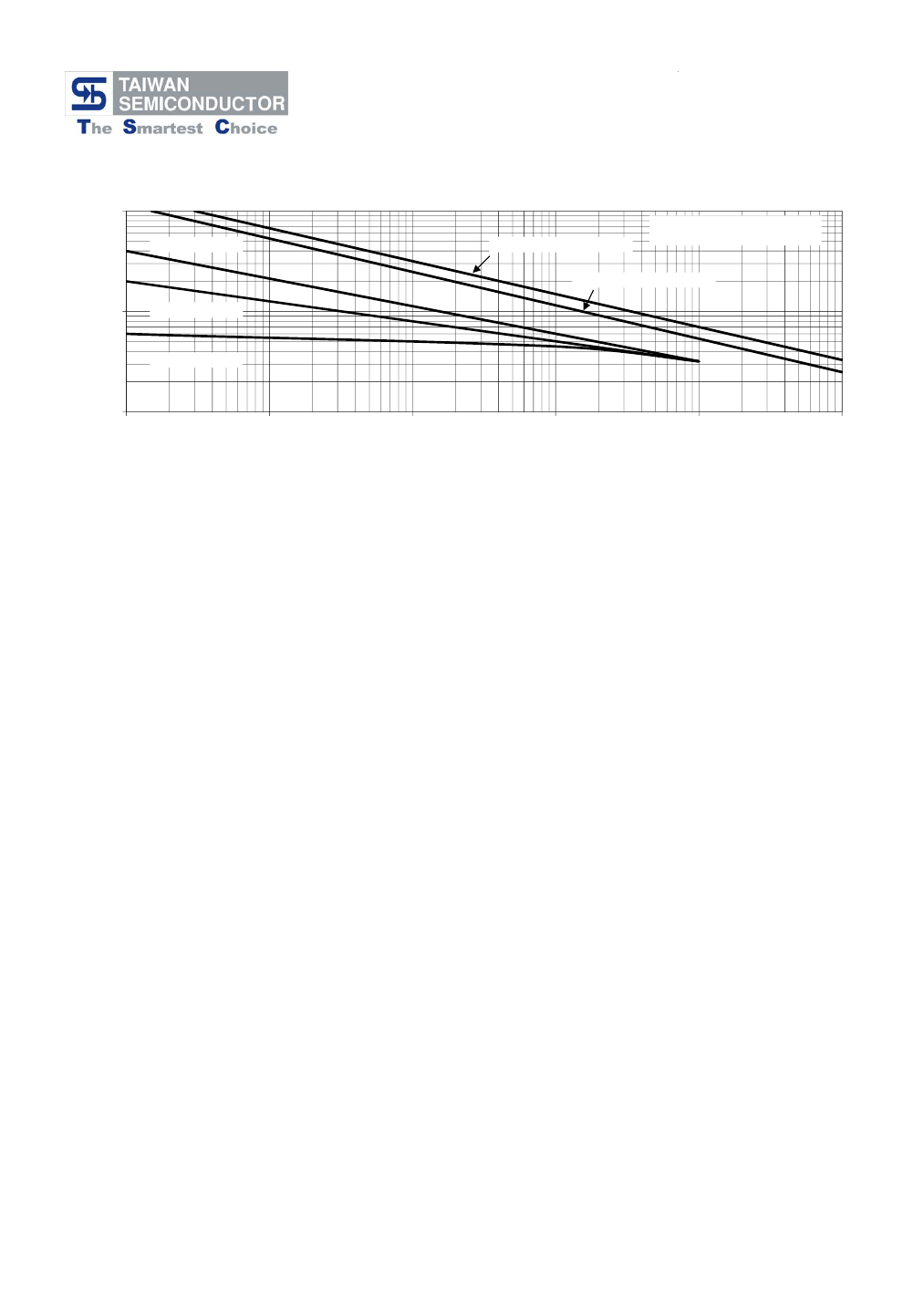

FIG.11 MAXIMUM SURGE POWER
100
P
PK
, PEAK SURGE POWER WATTS
5% DUTY CYCLE
11V-91V NON-REPETITIVE
RECTANGULAR WAVEFORM
TA=25℃ PRIOR TO INITIAL PULSE
0.8V-10V NON-REPETITIVE
10
10% DUTY CYCLE
20% DUTY CYCLE
1
0
0
1
10
PW, PULSE WIDTH (ms)
100
1000
Version:G13
