Part Number

Search

1SMC58A

Description
1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, CASE 403-03, SMC, 2 PIN
CategoryDiscrete semiconductor    diode
File Size47KB,1 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com

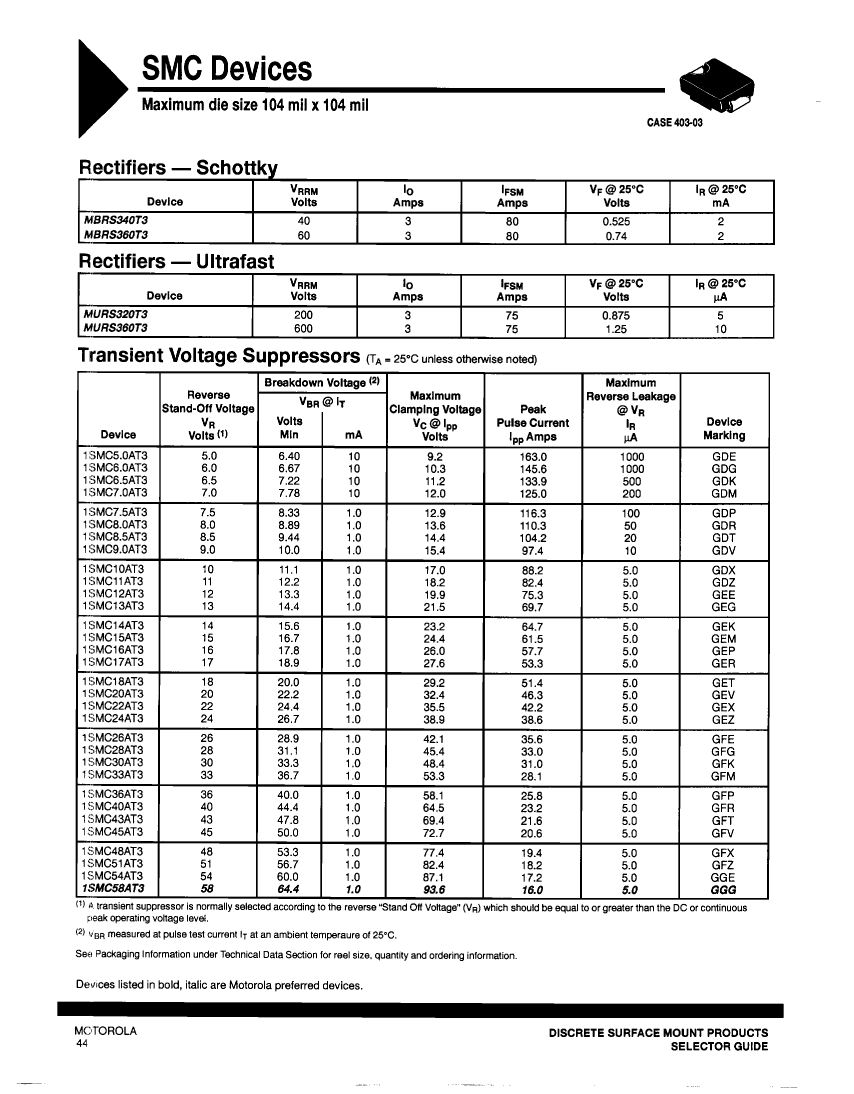

Download Datasheet Parametric View All

1SMC58A Overview

1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, CASE 403-03, SMC, 2 PIN

1SMC58A Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionR-PDSO-C2
Contacts2
Manufacturer packaging codeCASE 403-03
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresHIGH RELIABILITY, UL RECOGNIZED, LOW IMPEDANCE
Minimum breakdown voltage64.4 V
Maximum clamping voltage93.6 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 codeR-PDSO-C2
JESD-609 codee0
Maximum non-repetitive peak reverse power dissipation1500 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Certification statusNot Qualified
Maximum repetitive peak reverse voltage58 V
Maximum reverse current5 µA
surface mountYES
technologyAVALANCHE
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
