Characteristics and dimensions of terminals
Part number
Specification
Material
Form
Transport
Single part
Packing unit /
piece
Section area
(mm
2
)
Tab thickness
(mm)
Tab width (mm)
Material thickness
(mm)
Notch
a
1
a
2
l
1
l
2
l
3
25319.123.204
Receptacle
CuZn
Chain form
Longitudinal
transport
X
2400
0.50-1.50
0.80
6.30
0.45
x
7.50
4.00
11.00
7.40
4.00

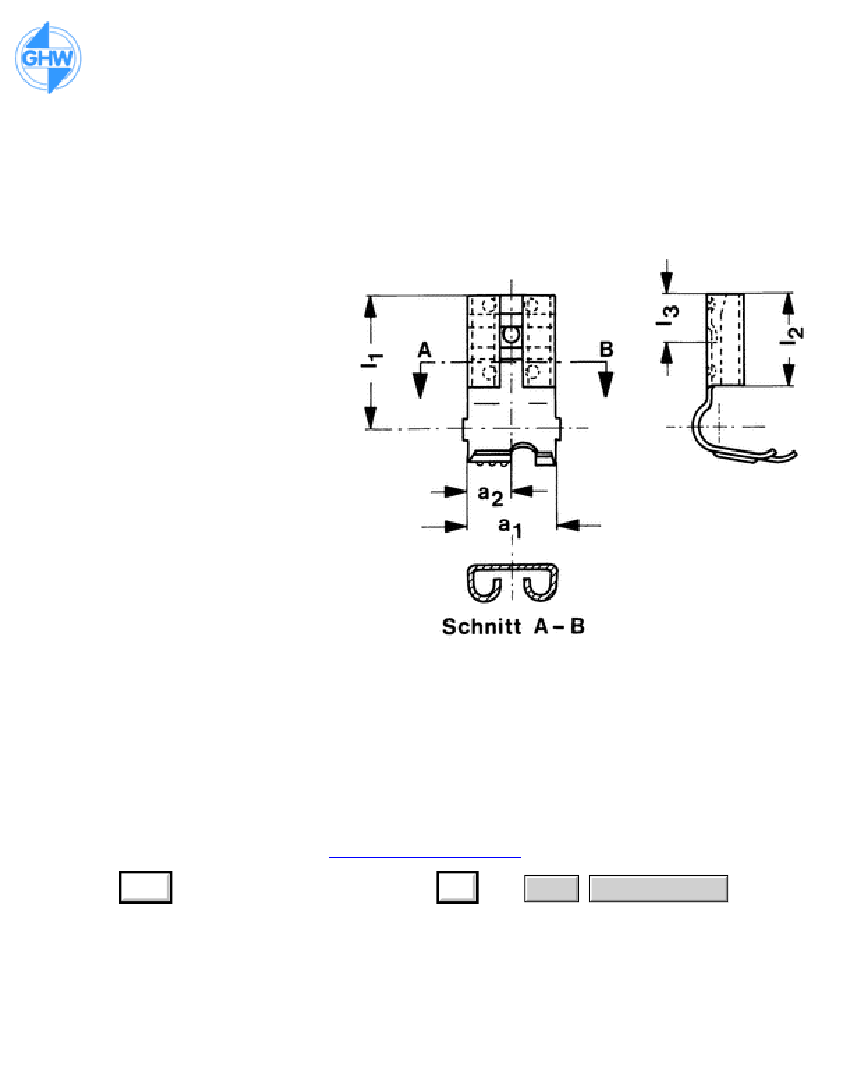

Note: The drawing only gives an overview of the geometry of the part. The crimp area is shown as
supplied in strip form. A technical drawing is available on request.
