Part Number

Search

2602-0-17-01-30-80-02-0

Description
PCB Terminal
CategoryThe connector    terminals
File Size79KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

2602-0-17-01-30-80-02-0 Overview

PCB Terminal

2602-0-17-01-30-80-02-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Manufacturer's serial number2602
terminal genderFEMALE
Terminal and terminal strip typesPCB TERMINAL
Base Number Matches1
PR
E
CI

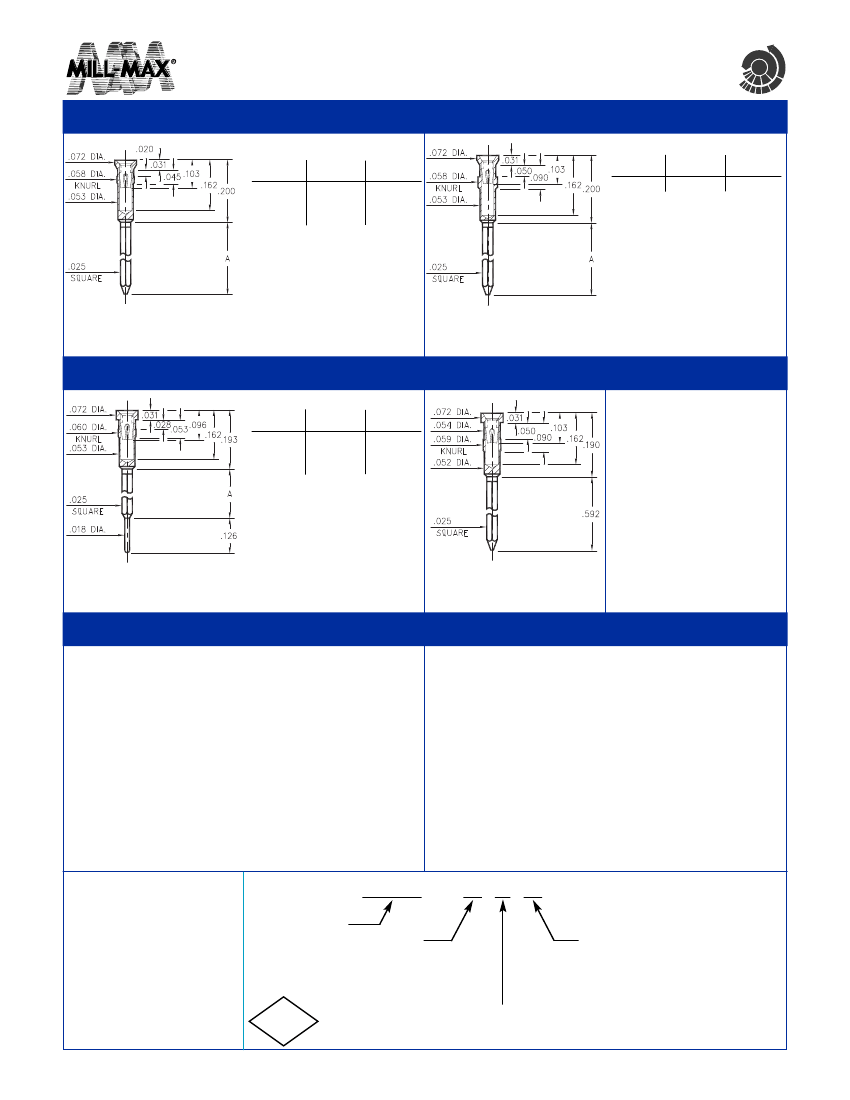

WRAPOST RECEPTACLES
for .015” - .025” diameter pins
M
ON
S
I
CHI
A
PINS
NE
D
0444
Basic Part
Number
# of
Wraps
Length
A
0445
Basic Part
Number
# of
Wraps
Length
A
0444-1
0444-2
0444-3
1
2
3
.260
.370
.505
0445-3
3
.505
0444-X-17-XX-30-XX-02-0
Press-fit in .056 mounting hole
044X-X-17-XX-30-XX-02-0
Press-fit in .056 mounting hole
2601⇒ 2603
Basic Part
Number
# of
Wraps
Length
A
1047
2601-0
2602-0
2603-0
1
2
3
.232
.350
.468
260X-X-17-XX-30-XX-02-0
Press-fit in .057 mounting hole
1047-3-17-XX-30-XX-02-0
Press-fit in .056 mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 17 - XX - 30 - XX - 02 - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL (RoHS)
15
10μ” GOLD OVER NICKEL (RoHS)
2002/95/EC
SPECIFY CONTACT FINISH:
02
100μ” TIN/LEAD OVER NICKEL
84
100μ” TIN OVER NICKEL (RoHS)
27
30μ” GOLD OVER NICKEL (RoHS)
RoHS
CONTACT
#30
CONTACT (DATA ON PAGE 219)
w w w. m i l l - m a x . c o m
167
