Automotive Relays
Plug-in Mini ISO Relays
Power Relay F4
■
Pin assignment similar to ISO 7588 part 1
■
Plug-in or PCB terminals
Customized versions on request
– 24VDC versions with contact gap >0.8mm
– 48VDC version on request
– Integrated components (e.g. resistor, diode)
– Customized marking/color
– Special covers (e.g. notches, release features, brackets)
– Various contact arrangements and materials
– For latching (bistable) version refer to Power Relay F7 A Latching
or Mini Relay Latching
– For shrouded/weatherproof dust cover versions refer to
Shrouded Power Relay F4 A and F4
Typical applications
Cross carline up to 40A for example: ABS control, blower fans, car alarm,
cooling fan, Electric Power Steering, energy management, engine control,
fuel pump, heated front screen, lamps: front, rear, fog light, main switch/
supply relay, valves, wiper control.
Contact Data
F134co_fcw1
Contact arrangement
1 form A, 1 NO/1 NO (2x87)
1 form U, 2 NO
1 form C, 1 CO
Contact gap
>0.8mm
>0.8mm
Rated voltage
12VDC
24VDC
12VDC
24VDC
24VDC
12VDC
24VDC
24VDC
1)
Limiting continuous current
NO
NO
NO
NO
NO
NO/NC
NO/NC
NO/NC
23°C
60A
60A
2x32A
2x32A
2x32A
60/45A
60/45A
60/45
85°C
40A
40A
2x25A
2x25A
2x25A
40/30A
40/30A
40/30A
125°C
17A
17A
2x11A
2x11A
2x11A
17/12A
17/12A
17/12A
Limiting making current
2)
NO/NC
120A
120A
2x100A
2x100A
2x100A
120/45A
120/45A
120/45A
Limiting breaking current
NO/NC
60A
20A
2x40A
2x15A
2x30A
60/40A
20/15A
30/20
Limiting short-time current
overload current, ISO 8820-3
3)
:
1.35 x 40A, 1800s
1.35 x 40A, 1800s
1.35 x 40A, 1800s
2.00 x 40A, 5s
2.00 x 40A, 5s
2.00 x 40A, 5s
3.50 x 40A, 0.5s
3.50 x 40A, 0.5s
3.50 x 40A, 0.5s
6.00 x 40A, 0.1s
6.00 x 40A, 0.1s
6.00 x 40A, 0.1s
Jump start test
ISO 16750-1
24VDC for 5min conducting nominal current at 23°C
Contact material
silver based
Min. recommended contact load
4)
1A at 5VDC
Initial voltage drop
NO contact at 10A, typ./max. 15/200mV 15/200mV
2x15/200mV
2x15/200mV
2x15/200mV
15/200mV
15/200mV
15/200mV
NC contact at 10A, typ./max.
20/250mV
20/250mV
20/250mV
Frequency of operation
at nominal load
6 ops./min (0.1Hz)
Operate/release time typ.
7/2ms
5)
6)
Electrical endurance
resistive load, NO contact
>2x10
5
ops. >1x10
5
ops.
>2x10
5
ops.
>1x10
5
ops.
>1x10
5
ops. >2x10
5
ops. >1x10
5
ops. >1x10
5
ops.
40A, 14VDC 20A, 28VDC 2x25A, 14VDC 2x15A, 28VDC 2x20A, 28VDC 40A, 14VDC 20A, 28 VDC 30A, 28 VDC
resistive load, NC contact
>5x10
5
ops.
10A, 28 VDC
Mechanical endurance
DC coil
>1x10
6
ops.
1) Special high performance 24VDC version with contact gap >0.8mm.
2) The values apply to a resistive or inductive load with suitable spark suppression and at maximum 14VDC for 12VDC or 28VDC for 24VDC load voltages. For a load current duration of
maximum 3s for a make/break ratio of 1:10.
3) Current and time are compatible with circuit protection by a typical automotive fuse. Relay will make, carry and break the specified current.
4) See chapter Diagnostics of Relays in our Application Notes or consult the internet at http://relays.te.com/appnotes/
5) For unsuppressed relay coil. Any parallel device to the coil will increase the release time.
6) Electrical endurance data is not valid for diode versions. Any diode or pn-junction parallel to the coil (internal or external) will significantly decrease the electrical lifetime, especially when
used for inductive loads.
11-2018, Rev. 1118
www.te.com
© 2018 TE Connectivity.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
https://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
Automotive Relays
Plug-in Mini ISO Relays
Power Relay F4
(Continued)

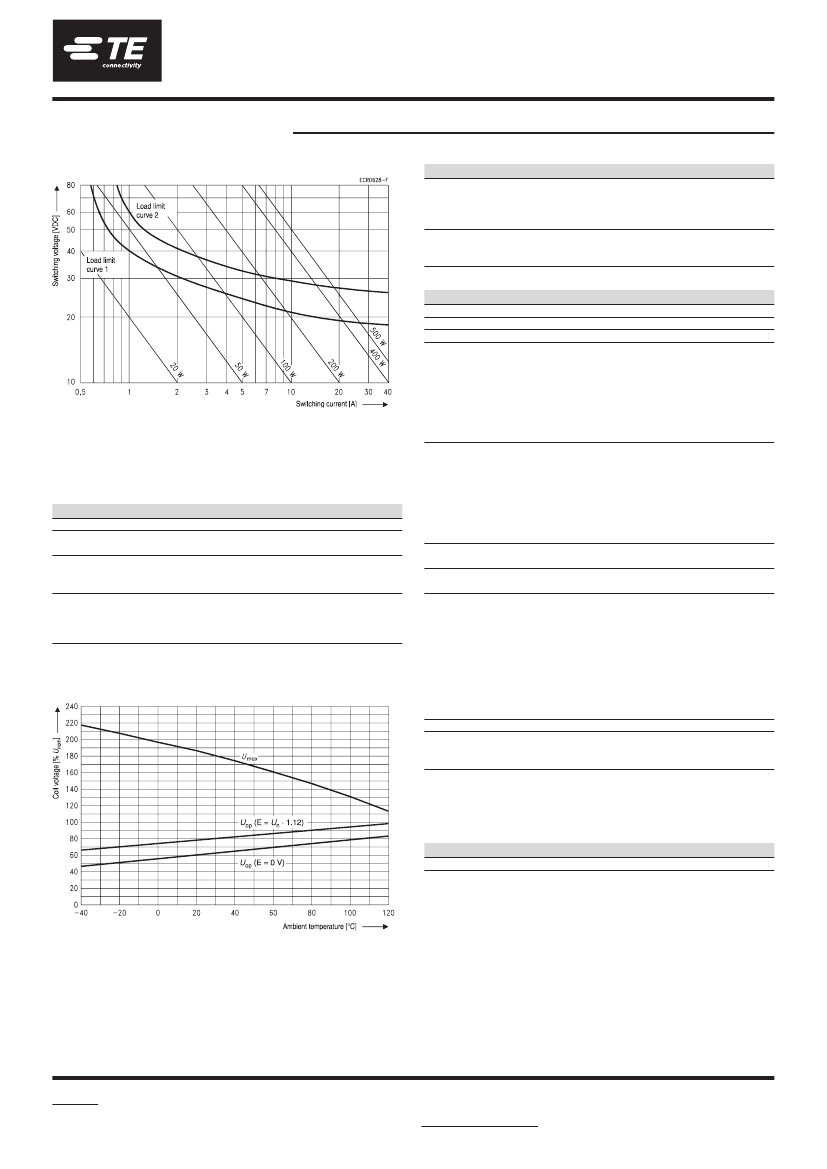

Max. load DC breaking capacity
Insulation Data
Initial dielectric strength
between open contacts
between contact and coil
between adjacent contacts
Load dump test
ISO 7637-1 (12VDC), test pulse 5
ISO 7637-2 (24VDC), test pulse 5
500V
rms
500V
rms
500V
rms
Vs=+86.5VDC
Vs=+200VDC
Load limit curve 1: arc extinguishes during transit time (CO contact).
Load limit curve 2: safe shutdown, no stationary arc (NO contact).
Load limit curves measured with low inductive resistors verified for 1000 switching events.
Coil Data
Rated coil voltage
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
052
12
7.2
053
24
14.4
056
24
16
165
24
14.4
12/24VDC
Release
voltage
VDC
1.6
3.2
4
2.4
Coil
resistance
7)
Ω±10%
90
324
268
288
Rated coil
power
7)
W
1.6
1.8
2.1
2.0
All figures are given for coil without pre-energization, at ambient temperature +23°C.
7) Without components in parallel.
Coil operating range
TE0701-J1
EU RoHS/ELV compliance
compliant
Ambient temperature DC coil
-40 to +125°C
Protection to heat and fire
UL94-HB or better
8)
Climatic cycling with condensation
EN ISO 6988
6 cycles, storage 8/16h
Temperature cycling
IEC 60068-2-14, Nb
10 cycles, -40/+85°C (5°C/min)
Damp heat cyclic
IEC 60068-2-30, Db, Variant 1
6 cycles, upper air temp. 55°C
Damp heat constant
IEC 60068-2-3, Ca
56 days
Category of environmental protection,
IEC 61810
RTI – dustproof
Degree of protection, IEC 60529
IP54 (dustproof)
Corrosive gas
IEC 60068-2-42
10±2cm
3
/m
3
SO
2
, 10 days
IEC 60068-2-43
1±0.3cm
3
/m
3
H
2
S, 10 days
Vibration resistance (functional)
IEC 60068-2-6 (sine sweep)
10 to 500Hz > 5g
9)
Shock resistance (functional)
IEC 60068-2-27 (half sine)
11ms >20g
9)
Drop test, free fall
IEC 60068-2-32
1m onto concrete
Terminal type
plug-in, QC/PCB
Cover retention
pull force
150N
push force
200N
Terminal retention
pull force
100N
push force
100N
resistance to bending, force applied to front
10)
10N
resistance to bending, force applied to side
10)
10N
torque
0.3Nm
Weight
approx. 35g (1.2oz)
Packaging unit
plug-in/PCB
315 pcs.
plug-in with bracket
200 pcs.
08)
Refers to used materials.
09)
No change in the switching state >10μs. Valid for NC contacts, NO contact values
Does not
significantly higher.
take into account
10) Values apply 2mm from the end of the terminal. When the force is removed, the
the temperature rise due to
terminal must not have moved by more than 0.3mm.
Other Data
the contact current
E = pre-energization
Accessories
For details see datasheet Connectors for Mini ISO Relays
Does not take into account the temperature rise due to the contact current E=pre-
energization..
2
11-2018, Rev. 1118
www.te.com
© 2018 TE Connectivity.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
https://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
Automotive Relays
Plug-in Mini ISO Relays
Power Relay F4
(Continued)

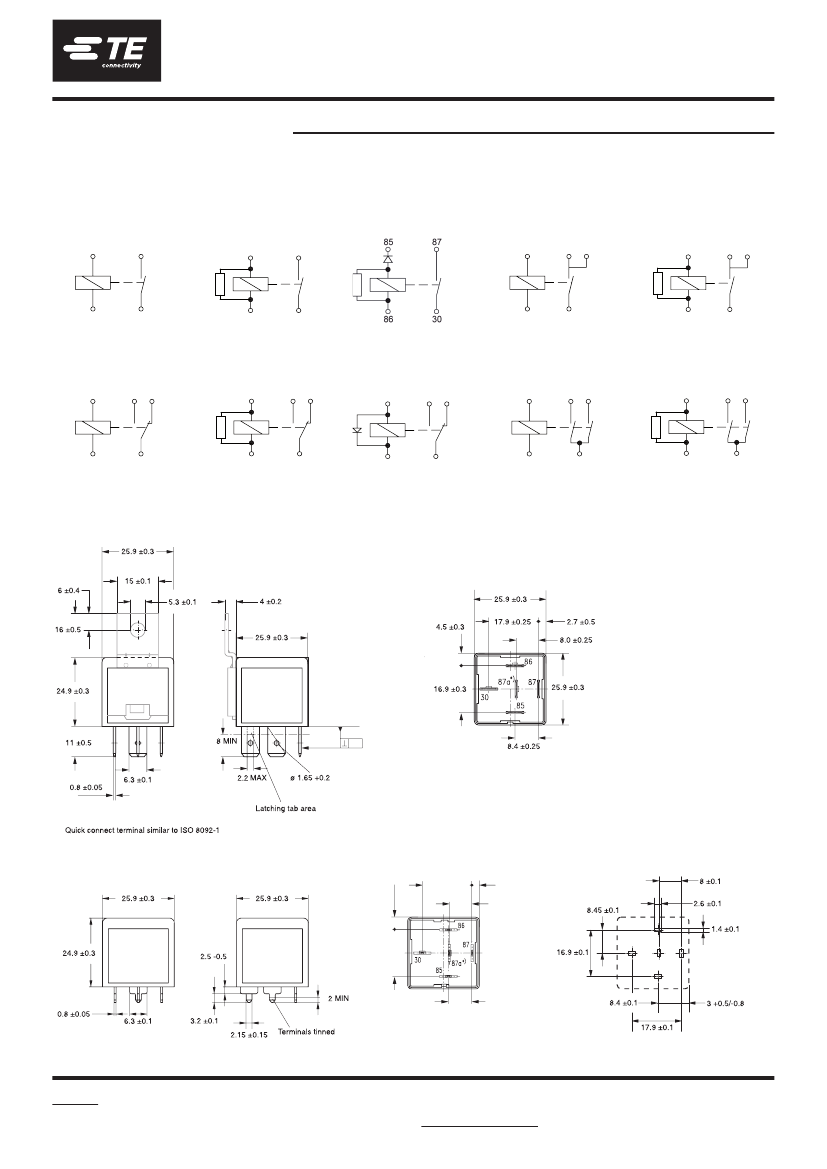

Terminal Assignment
NO
1 form A, 1 NO
NOR
1 form A, 1 NO
with resistor
87
85
87
NOR_SD
1 form A, 1 NO
with resistor & serial diode
NO_2x87
1 form A, 1 NO (2x87)
NOR_2x87
1 form A, 1 NO (2x87)
with resistor
85
87 87
85
85
87 87
86
30
86
30
86
30
86
30
CO
1 form C, 1 CO
85
87 87a
COR
1 form C, 1 CO
with resistor
85
87 87a
COD
1 form C, 1 CO
with diode
85
87 87a
DNO
1 form U, 2 NO
85
87 87b
DNOR
1 form U, 2 NO
with resistor
85
87 87b
86
30
86
30
86
30
86
30
86
30
Dimensions
Power Relay F4 with quick connect (QC) terminals
View of the terminals (bottom view)
Measurement
reference plane
5x
0.3
TE1088-R1
For the make contact (2x87), pin 87a = 87;
for the double make contact, pin 87a = 87b.
TE1093-S1
Power Relay F4 with PCB terminals
View of the terminals (bottom view)
4.5 ±0.3
17.9 ±0.25
*) For the make contact (2 x pin 87),
pin 87a = 87.
For the twin make contact,
pin 87a = 87b.
16.9 ±0.3
2.7 ±0.5
8.0 ±0.25
Mounting hole layout (bottom view)
TE0907-B1
TE1655-H1
8.4 ±0.25
TE1654-91
For the make contact (2x87), pin 87a = 87;
for the double make contact, pin 87a = 87b.
11-2018, Rev. 1118
www.te.com
© 2018 TE Connectivity.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
https://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
Automotive Relays
Plug-in Mini ISO Relays
Power Relay F4
(Continued)
Product code structure
V23134
Power Relay F4
Contact
arrangement
A
1 form C, 1 CO
B
1 form A, 1 NO
Cover
0
Standard
2
Bracket at terminal 86 ISO
Coil
052
12VDC
056
24VDC (contact gap >0.8mm)
Terminal/arrangement
C642
Plug-in/NO
G242
PCB/NO
Xnnn
Customized (nnn: version number)
Type
Typical product code
V23134
-A
0
052 -C643
C
M
1
053
165
1 form A, 1 NO (2x87)
1 form U, 2 NO
Bracket at terminal 30 ISO
24VDC
24VDC (contact gap >0.8mm)
C643
Plug-in/CO
G243
PCB/CO
Production in Europe
(only)
Product code
Arrangement
V23134-A0052-C643
1 form C, 1 CO
V23134-A0052-G243
V23134-A0052-X278
V23134-A0053-C643
V23134-A0053-G243
V23134-A0056-X432
2)
V23134-A0056-X433
2)
V23134-A1052-C643
V23134-A1052-X294
4)
V23134-A1053-C643
V23134-A1053-X295
4)
V23134-B0052-C642
1 form A, 1 NO
V23134-B0052-G242
V23134-B0052-X270
6)
V23134-B0052-X506
V23134-B0053-C642
V23134-B0053-G242
V23134-B1052-C642
V23134-B1053-C642
V23134-B1053-X296
4)
V23134-C0052-C642
1 form A, 1 NO (2x87)
V23134-C0053-C642
V23134-C1052-C642
V23134-C1052-X280
4)5)
V23134-C1053-C642
V23134-M0052-C642
1 form U, 2 NO
V23134-M0052-G242
V23134-M0053-C642
V23134-M0053-G242
V23134-M0165-X539
2)
V23134-M1052-C642
V23134-M1053-C642
Version
Standard
Coil suppr.
R 560Ω
D (cathode 86)
R 1200Ω
R 560Ω
R 1200Ω
R 680Ω
R 560Ω
Circuit
1)
CO
COR
CO
COD
COR
CO
COR
CO
COR
NO
NOR
NOR_SD
3)
NO
12VDC
24VDC
Coil
Contact mat.
Silver based
Terminals
Plug-in, QC
PCB
Plug-in, QC
Part number
2-1393302-2
2-1393302-3
4-1393302-1
5-1393302-1
5-1393302-2
1-1414167-0
1-1414168-0
5-1393302-8
6-1393302-0
6-1393302-3
6-1393302-4
7-1393302-5
7-1393302-7
1-1414099-0
4-1414992-3
1393303-9
1-1393303-0
3-1393303-4
3-1393303-7
3-1393303-8
3-1393303-9
4-1393303-4
4-1393303-7
4-1393303-8
5-1393303-0
5-1393304-6
5-1393304-7
6-1393304-7
6-1393304-8
3-1904117-6
7-1393304-1
7-1393304-4
PCB
Plug-in, QC
Bracket
12VDC
24VDC
12VDC
PCB
Plug-in, QC
PCB
Plug-in, QC
Standard
24VDC
12VDC
24VDC
12VDC
24VDC
12VDC
24VDC
24VDC
Bracket
Standard
Bracket
Standard
R 1200Ω
NOR
NO_2x87
NOR_2x87
NO_2x87
DNO
R 560Ω
Bracket
R 1200Ω
DNOR
12VDC
24VDC
Plug-in, QC
PCB
Plug-in, QC
PCB
Plug-in, QC
Plug-in, QC
1) See terminal assignment diagrams.
4) No hole in terminal 30.
2) Special feature: contact gap >0.8mm.
5) No hole in terminal 87a.
3) Serial diode.
6) No holes in all terminals.
Other types on request.
This list represents the most common types and does not show all variants covered by this datasheet.
Production in Asia
(only)
Product code
Arrangement
V23134-B0052-C642
V23134-B0052-X270
2)
V23134-B0053-C642
1 form A, 1 NO
Version
Standard
Coil suppr.
R 680Ω
Circuit
1)
NO
NOR
NO
12VDC
24VDC
Coil
Contact mat.
Silver based
Terminals
Plug-in, QC
Part number
7-1904094-0
7-1904094-1
7-1904094-5
1) See terminal assignment diagrams.
2) No holes in all terminals.
Other types on request.
This list represents the most common types and does not show all variants covered by this datasheet.
4
11-2018, Rev. 1118
www.te.com
© 2018 TE Connectivity.
Datasheets and product specification ac-
cording to IEC 61810-1 and to be used only
together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
https://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
京公网安备 11010802033920号
EEWORLD
