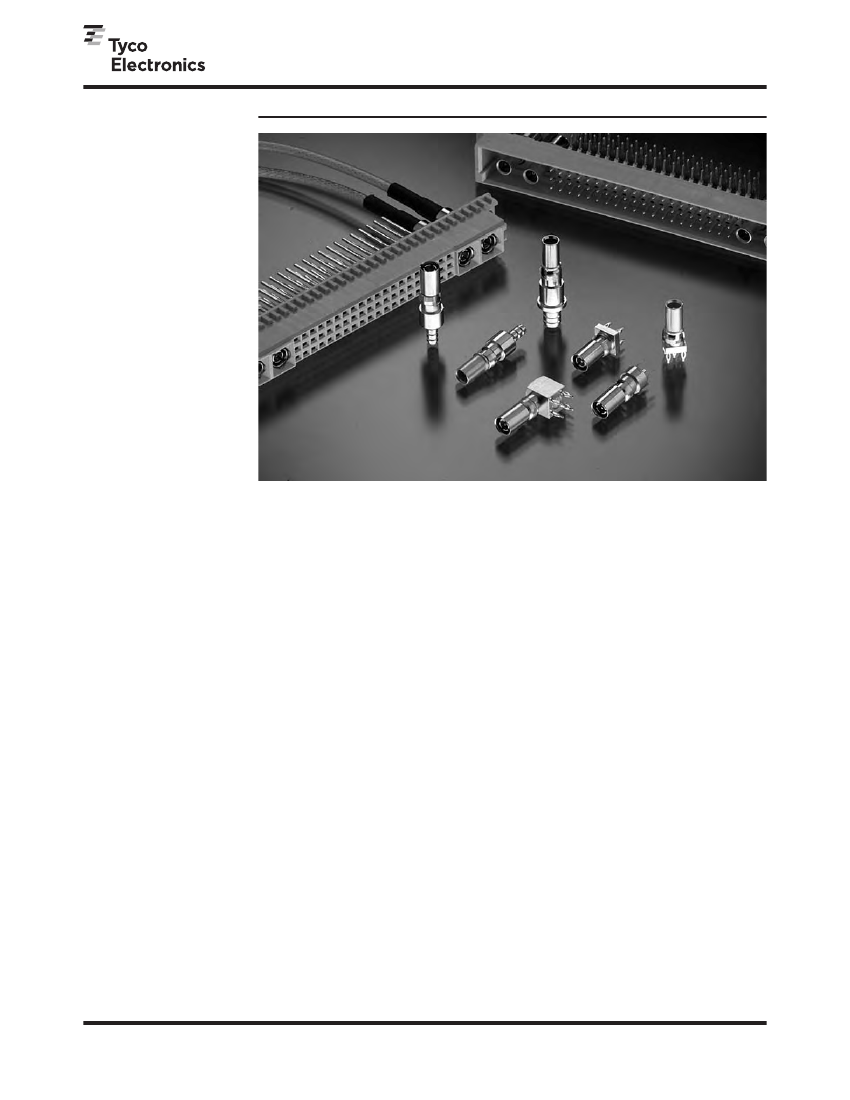

RF Coax Connectors
DIN Inserts
Product Facts
■
■
Meets requirements of DIN
41626 and CECC 22330
Suitable for DIN 41612 Type
M Connectors (Eurocard),
Siedecon, and Z-PACK 2mm
HM Connectors
Meets DIN Performance
Level II
Crimp termination for inner
and outer conductors (cable
mount only) eliminates the
need for solder
Right-angle and vertical
style board mount pin and
socket contacts
Board mount product avail-
able with both solder and
compliant tails
Straight cable mount pin
and socket contacts for
RG 316, and RG 179 cable
Contact impedance of 50
and 75 ohms for cable
mount and 50 ohms for
board mount
Coaxial inserts
according
to CECC 22 330 and high-
current inserts (CECC spec-
ification under preparation)
can be used in conjunction
with a DIN 41612 style M
contact base (CECC 75
101-801), SIEDECON,
and Z-PACK 2mm HM
connectors.
Coaxial inserts
have a con-
tact system based on the
pin-socket principle with the
same dimensions as the
Series 1.0/2.3 coaxial con-
nectors and are plug-com-
patible. The product family
is represented by various
50Ω and 75Ω styles that can
be used far into the GHz
range. The high mounting
density (pitch between adja-
cent contacts starting at 7.5
mm) and installation into the
contact base, by means of
a “snap-in” lock, make the
inserts particularly well
suited for applications.
Due to the centering,
– coaxial plugs are
installed in contact bases
with audio-frequency
(AF) female contacts
– coaxial jacks are
installed in contact bases
with AF male contacts.
The high-quality materials
used with coaxial inserts
ensure a high grade of
service even in an industrial
atmosphere.
Technical Data
Electrical and mechanical
characteristics of coaxial
inserts in accordance with DIN
41626 Part 2 and CECC 22 330
Characteristic Impedance
—
50/75
Ω
Frequency Range
— up to 2 GHz
Reflection Factor Up To 2 GHz
1
—
≤
0.10
Insulation Resistance
—
Initial value —
≥
1 GΩ
After stressing —
≥
200 MΩ
Screening Effectiveness
—
≥
70 dB
Inner Conductor Contact Resistance
After Stressing
—
≤
10 mΩ
Outer Conductor Continuity After
Stressing
—
≤
7.5 mΩ
Voltage Proof
2
—
Flexible Cables (RG 316)
At sea level — 750 V, 50 Hz
At 20 km altitude — 150 V, 50 Hz
Working Voltage
2
—
Flexible Cables (RG 316)
At sea level — 350 V, 50 Hz
At 20 km altitude — 65 V, 50 Hz
Service Life
— 500 cycles
Climatic Category
— 55/125/56
Notes
1 Guideline dimensions, depending
on cable type and connector style.
2 Some cable types suitable for use
with these connectors have lower
characteristic values than speci-
fied here.
■
■
■
■
■
■
238
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
RF Coax Connectors
DIN Inserts
(Continued)
Coaxial Inserts,
50 Ohm
Z-PACK 2mm
HM Connectors

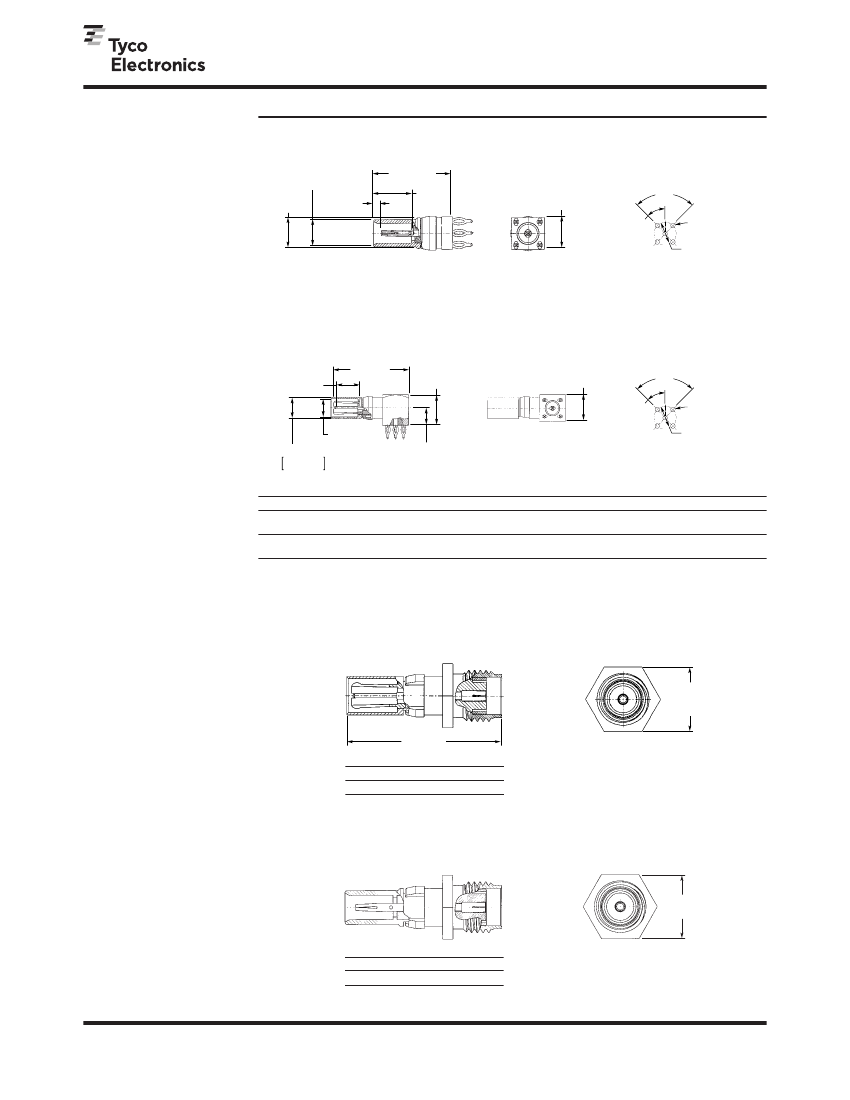

Vertical PC Board Mount, Compliant
4.15
–0.012
[.163
–.0004
]
4.75
–0.03
[.187
–.001
]
1.15
+0.30
[.045
+.012
]
12.21
Ref.
[.480]
5.50
[.216]
Min.
5.10
Max.
[.200] Sq.
45°0'
Typ.
90°0'
Typ.
1.00
±0.05
Typ.
[.039
±.002
]
5.08
±0.05
[.200
±.002
]
Recommended
PC Board Layout
Right-Angle PC Board Mount, Compliant
5.35
–0.30
[.216
–.012
]
17.75
Ref.
[.700]
7.00
±0.10
[.275
±.004
]
6.10
Max.
[.240] Sq.
45°0'
Typ.
4.20
+0.075
[.165
+.003
]
0.03
4.75
.187
0.09
.001
.004
90°0'
Typ.
1.00
±0.05
Typ.
[.039
±.002
]
5.08
±0.05
[.200
±.002
]
4.00
±0.10
[.157
±.004
]
Recommended
PC Board Layout
Application Tooling
904800-1
904805-1
904804-1 Support Anvil
Part No.
5148385-1
5148386-1
Type
Vertical PCB Socket,
Compliant
Rt. Angle PCB Pin,
Compliant
Housing Type
Z-PACK 2mm
HM Male
Z-PACK 2mm
HM Female
Coaxial Inserts to
SMA Adapters
Coaxial Insert Plug to SMA Jack
7.92
±
0.12
[.312
±
.005
]
Hex.
19.1
Max.
[.755]
Part No.
1274192-1
Coaxial Insert Socket to SMA Jack
7.92
Hex.
[.312]
Part No.
1274191-1
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
239
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
RF Coax Connectors
DIN Inserts
(Continued)
Coaxial Inserts (50
Ω/75 Ω)
Bulkhead Cable Jack
for
male connectors
Ø 5.8
[.228]
4.05
[.159]
Ø Max.
2.6
.102
2.67
.105
Cable Type
RG 316 (50
Ω)
RG 179 (75
Ω)
9.6
[.378]
23.9
[.941]
Width Across Flats
of Hex Profile
3.2
.126
3.2
.126
Part No.
1392020-1
3-1393668-4
Bulkhead Cable Jack
for
female connectors
Ø 5.8
[.228]
4.75
[.187]
Ø Max.
2.6
.102
2.67
.105
Cable Type
RG 316 (50
Ω)
RG 179 (75
Ω)
Width Across Flats
of Hex Profile
3.2
.126
3.2
.126
Part No.
1392019-1
3-1393668-0
9.35
[.368]
23.9
[.941]
Right-Angle Bulkhead Jack
for
male connectors
Ø 6.0
[.236]
A
9.6
[.378]
Ø 4.05
[.159]
Dim A
19
.748
22.4
.882
24.0
.945
Ø Max.
2.6
.102
2.67
.105
2.67
.105
2.67
.105
Cable Type
RG 316 (50
Ω
)
RG 179 (75
Ω)
RG 179 (75
Ω)
RG 179 (75
Ω)
Width Across Flats
of Hex Profile
3.2
.126
3.2
.126
3.2
.126
Part No.
1-1393668-2
2-1393668-8
3-1393668-6
13.1
[.516]
Right-Angle Bulkhead Plug
for
female connectors
Ø 6.0
[.236]
A
9.35
[.368]
Ø 4.75
[.187]
Dim A
18.7
.736
22.3
.878
18.7
.736
18.7
.736
Ø Max.
2.6
.102
2.6
.102
3.0
.118
2.67
.105
Cable Type
RG 316 (50
Ω)
RG 316 (50
Ω)
RD 316 (50
Ω)
RG 179 (75
Ω)
13.1
[.516]
Width Across Flats
of Hex Profile
3.2
.126
3.2
.126
3.6
.142
3.2
.126
Part No.
1393668-4
1393668-8
1393668-7
2-1393668-4
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
240
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
RF Coax Connectors
DIN Inserts
(Continued)
Coaxial Inserts (50
Ω/75 Ω)
(Continued)
Bulkhead Plug, PC Board
connection
for DIN 41612 M
female connectors
17.9
[.705]
5.08
[.200]
9.35
[.368]
Ø 4.75
[.187]
Part No.
1-1393662-0
Ø 1.0
[.039]
Pitch
2.54
[0.10]
Recommended
Mounting Hole
Right-Angle Bulkhead Jack,
PC Board
for DIN 41612 M
male connectors
17.9
[.705]
3.0
[.118]
9.6
[.378]
4.05
[.159]
Part No.
1-1393662-4
6.9
[.272]
5.08
[.200]
Right-Angle Bulkhead Plug,
PC Board
for SIEDECON
female connectors
17.8
[.701]
3.0
[.118]
9.35
[.368]
Ø 4.75
[.187]
Part No.
1-1393662-2
6.9
[.272]
5.08
[.200]
Ø 1.0
[.039]
Pitch
2.54
[0.10]
Recommended Mounting holes for
Part No. 1-1393662-2 and 1-1393662-4
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
241
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
