NOTES:
1. MATERIALS AND FINISHES:
BODY - ZINC DIE CAST, NICKEL PLATING
CONTACT - PHOSPHOR BRONZE, GOLD PLATING (.000003 THICK)
@ CONTACT AREA ONLY, TIN PLATING AT TAIL, NICKEL PLATED OVERALL
INSULATOR - POLYPROPYLENE
ROUND PIN - BRASS, TIN PLATING
GROUNDNG TERMINAL - STEEL, TIN PLATING
2. ELECTRICAL:
A. IMPEDANCE: 75 OHM
B. FREQUENCY RANGE: DC - 1 GHz
C. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.
3. MECHANICAL:
A. DURABILITY: 500 CYCLES MIN.
B. TEMPERATURE RANGE: -55 $C TO 85 $C
4. PACKAGING:
A. PACKAGED IN PACKING TRAYS
B. QUANTITY PER TRAY: 40
THIRD ANGLE PROJ.
REV
REVISIONS
A
RELEASE TO MFG.
DESCRIPTION
4/1813
DATE
45442
ECO
APPR
EW
36,33
REF
[1.430]
SCALE
5,55
[.219]
14,4
REF
[.567]
15,73 REF
[.619]
20,6
REF
[.811]
1/2"-28UNEF-THREAD
1.000
12,83
[.505 ]
16
[.630]
5,55
[.219]
RECOMMENDED MOUNTING
HOLE DIMENSIONS
SCALE 1.000
12,83
[.505 ]
31,7
REF
[1.248]
16
REF
[.630]
0,89
[.035 ]
TYP (3)
2,01
[.079 ]
TYP (2)
8,6
REF
[.338]
2,54
[.100]
2,54
[.100]
RECOMMENDED
PCB MOUNTING
SCALE 2.000
10,16
[.400]
2,54
REF
[.100]
10,16 REF
[.400]
4,01
REF
[.158]
5,56
REF
[.219]
6,35 REF
[.250]
DRAWN
ERIC WANKOFF
ENGINEER
ERIC WANKOFF
APPROVED
K. CAPOZZI
DATE
01-Aug-12
DATE
01-Aug-12
DATE
3/26/13
3
REF
[.118]
6,35
[.250]
5,08
[.200]
2,54
REF
[.100]
UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:
<0.5mm
0.5 - 6mm
6 - 30mm
30 - 120mm
ANGLES
# 0.05mm
#
0.1mm
# 0.3mm
#
0.2mm
# $
1
NOTICE - These drawings, specifications, or other data (1) are, and remain the
property of Amphenol corp. (2) must be returned upon requiest; and (3) arre
confidential and not to be disclosed to any person other than those to whom
they
are given by Amphenol Corp. the funishing of these drawings, specifications,
or
other data by Amphenol Corp., or to any other person to anyone for any purpose
is
not to be regarded by implicatioin or otherwise in any manner licensing,
granting
rights to permitting such holder or any other sperson to manufacture, use or
sell any
product, process or design, patented or otherwsie, that may in any way be
related to
or disclosed by said drawings, specifications, or other data.
MATERIAL
-
-
REFERENCE
EAR #
CONFIGURATION LEVEL: In Work
TITLE

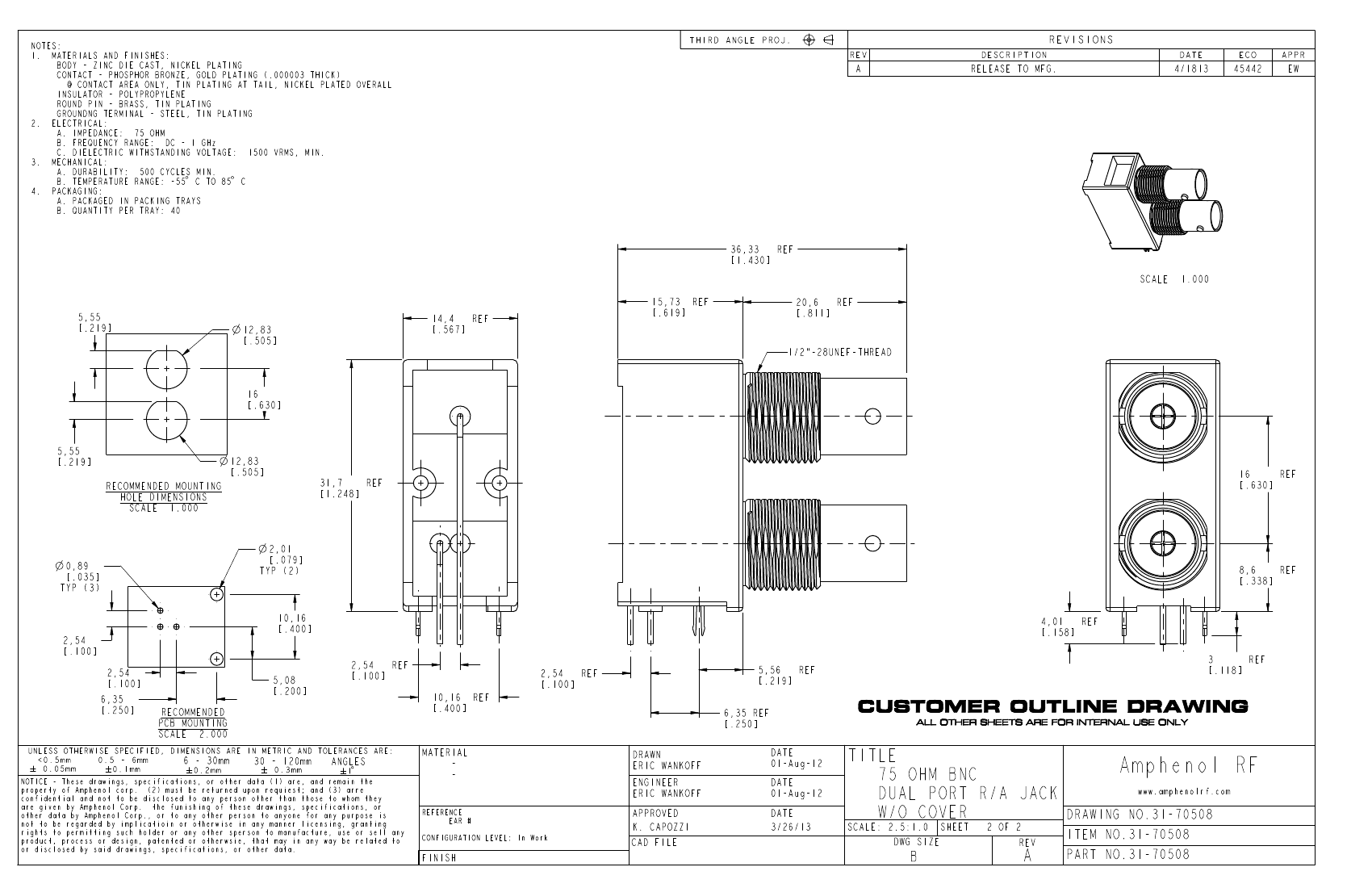

75 OHM BNC
DUAL PORT R/A JACK
W/O COVER
SCALE: 2.5:1.0
DWG SIZE
SHEET
2 OF 2
Amphenol RF
www.amphenolrf.com
DRAWING NO.31-70508
ITEM NO.31-70508
PART NO.31-70508
FINISH
CAD FILE
B
REV
A
