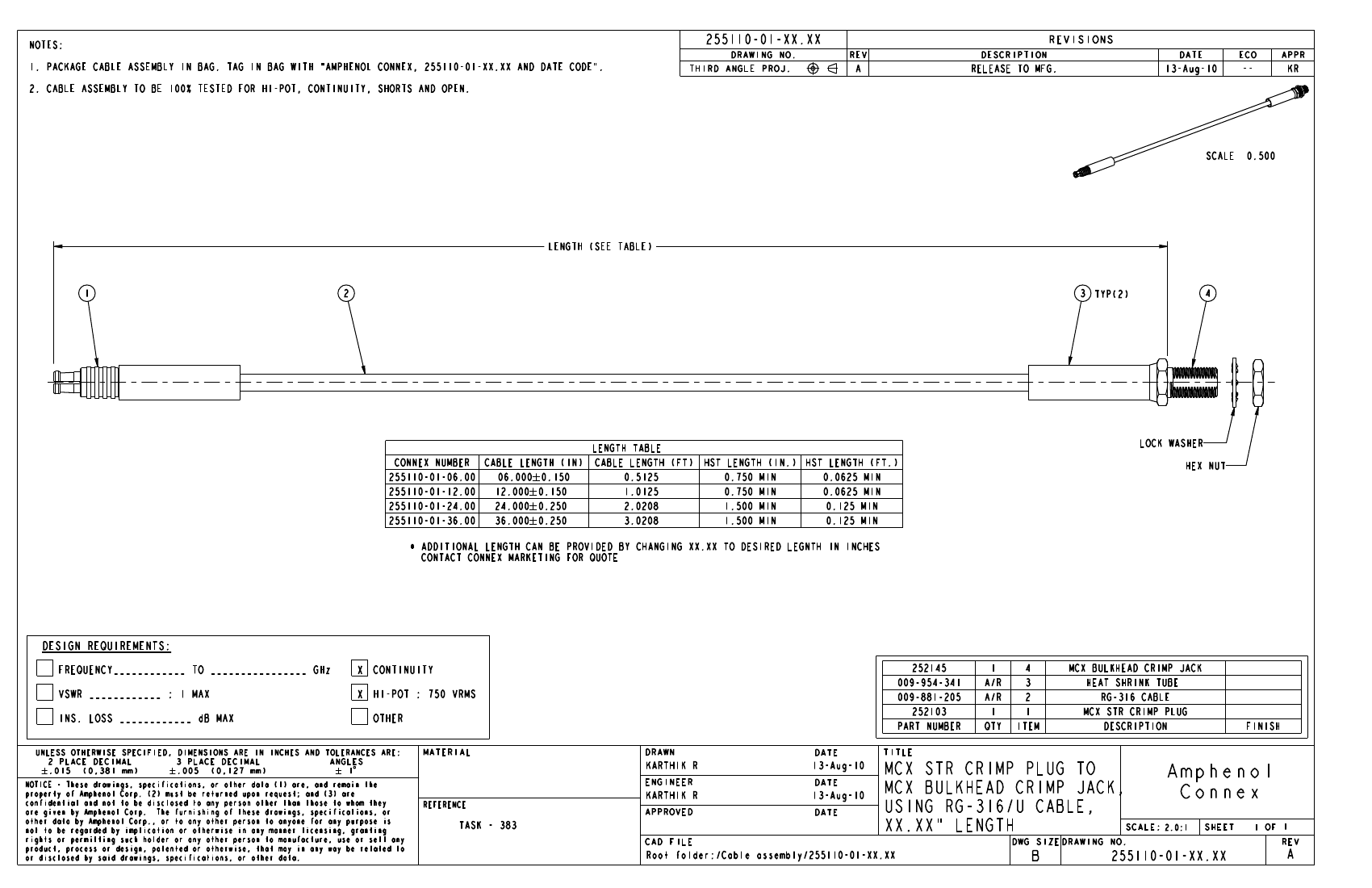

NOTES:
1. PACKAGE CABLE ASSEMBLY IN BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
255110-01-XX.XX AND DATE CODE".
255110-01-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
13-Aug-10
--
KR
2. CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT, CONTINUITY, SHORTS AND OPEN.
SCALE
0.500
LENGTH (SEE TABLE)
1
2
3 TYP(2)
4
LENGTH TABLE
CONNEX NUMBER
255110-01-06.00
255110-01-12.00
255110-01-24.00
255110-01-36.00
CABLE LENGTH (IN)
06.000 0.150
12.000 0.150
24.000 0.250
36.000 0.250
CABLE LENGTH (FT)
0.5125
1.0125
2.0208
3.0208
HST LENGTH (IN.)
0.750 MIN
0.750 MIN
1.500 MIN
1.500 MIN
HST LENGTH (FT.)
0.0625 MIN
0.0625 MIN
0.125 MIN
0.125 MIN
INCHES
LOCK WASHER
HEX NUT
* ADDITIONAL LENGTH CAN BE PROVIDED BY CHANGING XX.XX TO DESIRED LEGNTH IN
CONTACT CONNEX MARKETING FOR QUOTE
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 750 VRMS
OTHER
MATERIAL
DRAWN
DATE
252145
009-954-341
009-881-205
252103
PART NUMBER
TITLE
1
A/R
A/R
1
QTY
4
3
2
1
ITEM
MCX BULKHEAD CRIMP JACK
HEAT SHRINK TUBE
RG-316 CABLE
MCX STR CRIMP PLUG
DESCRIPTION
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
.015 (0,381 mm)
.005 (0,127 mm)
1
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
KARTHIK R
ENGINEER
REFERENCE
13-Aug-10
DATE
KARTHIK R
APPROVED
13-Aug-10
DATE
TASK - 383
CAD FILE
MCX STR CRIMP PLUG TO
MCX BULKHEAD CRIMP JACK,
USING RG-316/U CABLE,
XX.XX" LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
2.0:1
SHEET
OF
1
1
REV
Root folder:/Cable assembly/255110-01-XX.XX
B
255110-01-XX.XX
A
