50516-07141-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 50516-07141-001

50516-07141-001: DescriptionCard Edge Connector, 71 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator; CategoryThe connector The connector; File Size262KB，2 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

50516-07141-001 Overview

Card Edge Connector, 71 Contact(s), 1 Row(s), Right Angle, 0.012 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator

50516-07141-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	FITTING NAIL
body width	0.047 inch
subject depth	0.164 inch
body length	0.929 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Dielectric withstand voltage	250VAC V
Durability	10 Cycles
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
Plug contact pitch	0.012 inch
Installation option 1	LOCKING
Installation option 2	SLIDE
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	71
Base Number Matches	1

Preview

Download Datasheet

View All

CODE LOGO

001 ACES

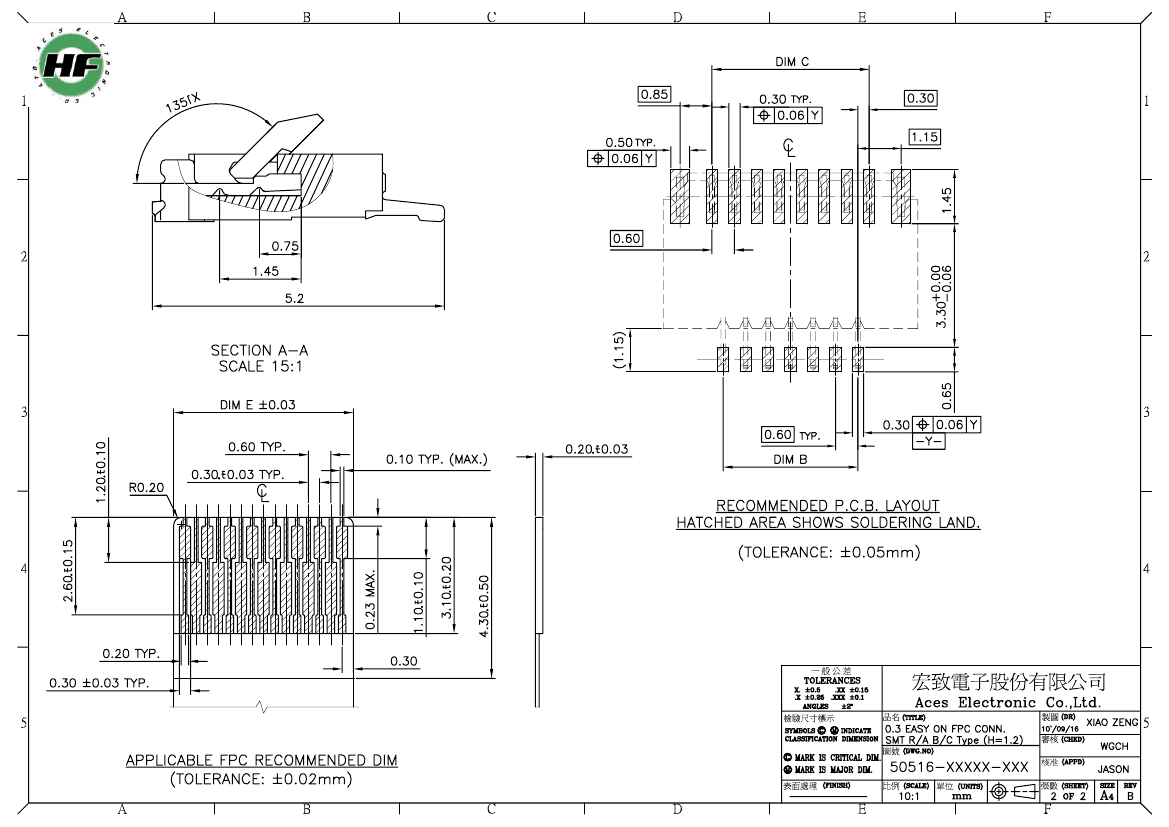

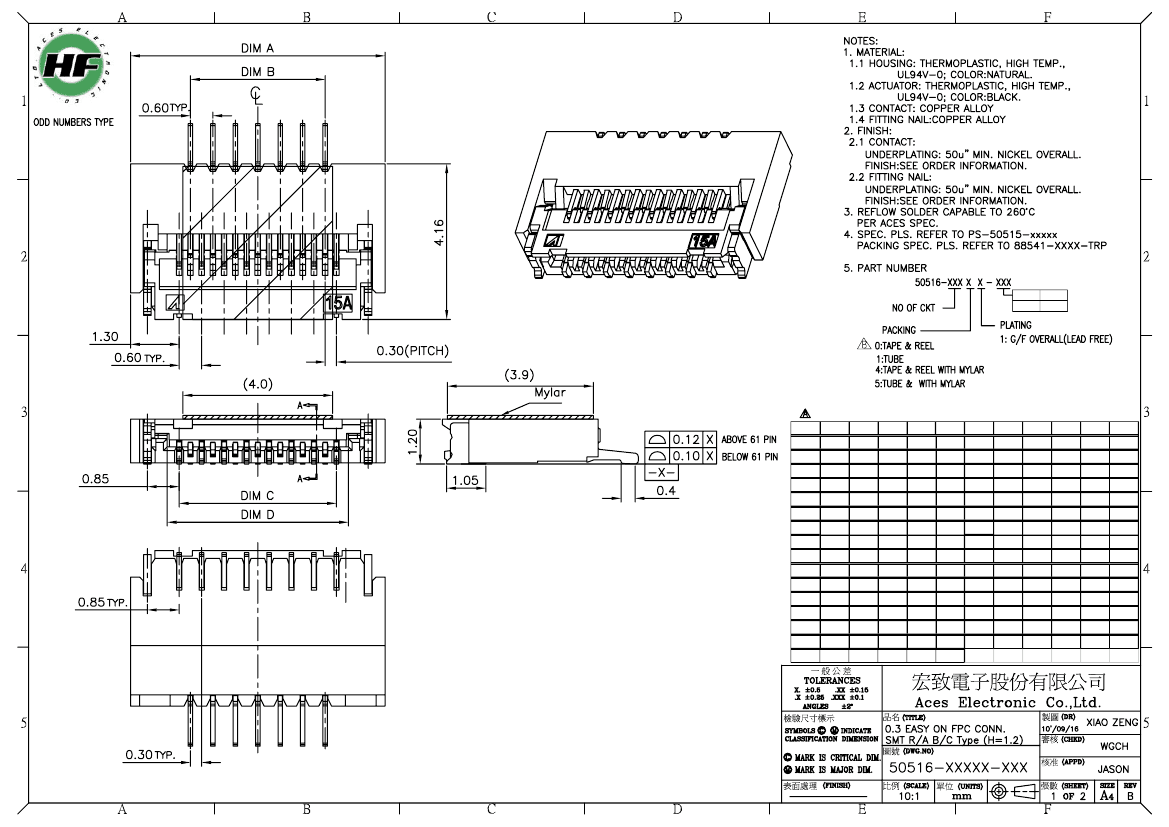

CKT Dim A Dim B Dim C Dim D Dim E CKT Dim A Dim B Dim C Dim D Dim E

5.60

6.20

6.80

7.40

8.00

8.60

9.20

9.80

10.40

11.00

11.60

12.20

12.80

2.40

3.00

3.60

4.20

4.80

5.40

6.00

6.60

7.20

7.80

8.40

9.00

9.60

3.00

3.60

4.20

4.80

5.40

6.00

6.60

7.20

7.80

8.40

9.00

9.60

3.64

4.24

4.84

5.44

6.04

6.64

7.24

7.84

8.44

9.04

3.60

4.20

4.80

5.40

6.00

6.60

7.20

7.80

8.40

9.00

15.20 12.00 12.60 13.24 13.20

15.80 12.60 13.20 13.84 13.80

16.40 13.20 13.80 14.44 14.40

17.00 13.80 14.40 15.04 15.00

17.60 14.40 15.00 15.64 15.60

18.20 15.00 15.60 16.24 16.20

18.80 15.60 16.20 16.84 16.80

19.40 16.20 16.80 17.44 17.40

20.00 16.80 17.40 18.04 18.00

20.60 17.40 18.00 18.64 18.60

21.20 18.00 18.60 19.24 19.20

21.80 18.60 19.20 19.84 19.80

22.40 19.20 19.80 20.44 20.40

23.00 19.80 20.40 21.04 21.00

23.60 20.40 21.00 21.64 21.60

9.64 9.60

10.24 10.20

10.20 10.84 10.80

13.40 10.20 10.80 11.44 11.40

14.00 10.80 11.40 12.04 12.00

14.60 11.40 12.00 12.64 12.60
