Part Number

Search

8-1532124-3

Description
D MICROMINIATURE CONNECTOR
CategoryThe connector    The connector
File Size112KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

8-1532124-3 Overview

D MICROMINIATURE CONNECTOR

8-1532124-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
Body/casing typePLUG
Connector typeD MICROMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeSTAGGERED
insulator materialPOLYPHENYLENE SULPHIDE
Manufacturer's serial number1532124
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
reliabilityCOMMERCIAL
Shell surfaceCADMIUM/YELLOW CHROMATE
Termination typeSOLDER
Total number of contacts31
Base Number Matches1
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Pin & Socket Connectors > Product Feature Selector > Product Details

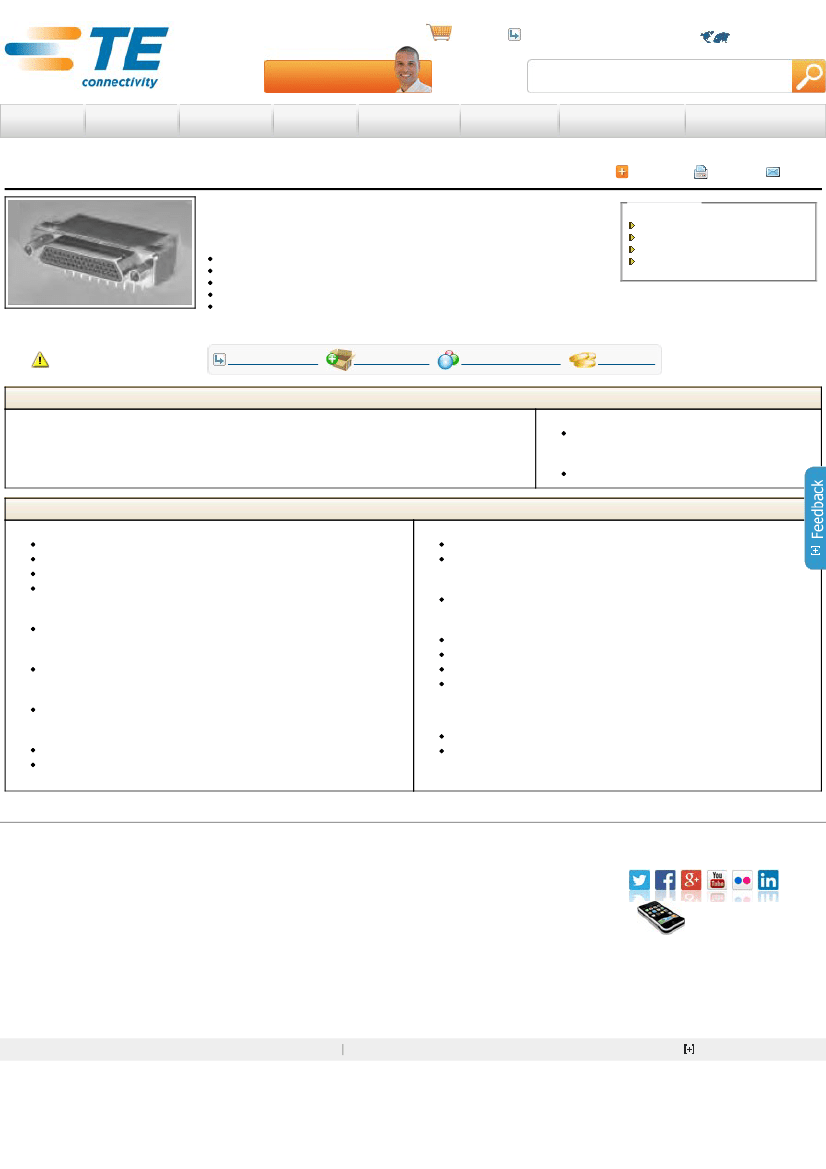

M83513/10­E03CN Product Details
Microminiature D Connectors
Not EU RoHS or ELV Compliant
 (
Find RoHS Compliant Alternates
)
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
Product Highlights:
Connector
Connector Design = PCB Connector
Connector Style = Plug
Contact Type = Pin
Product Series = MCK (Full Metal)
M83513/10­E03CN
(8­1532124­3)
TE Internal Number: 8­1532124­3
View all Features
 Pending Obsolescence
Contact Product Information Center
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Documents are temporarily unavailable. We are working hard to correct the problem. Please try
again later.
Additional Information:
Product Line Information
Related Products:
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Connector
Connector Design = PCB Connector
Product Series = MCK (Full Metal)
PCB Mounting Orientation = Right Angle
Mechanical Attachment:
Mounting Hardware = None
Termination Features:
Termination Post Length (mm [in]) = 4.37 [0.172]
Body Features:
Shell Plating = Cadmium, Yellow Chromate
Contact Features:
Contact Type = Pin
Contact Style = Printed Circuit Board
Housing Features:
Connector Style = Plug
Housing Material = Polyphenylene Sulfide (PPS)
Configuration Features:
Number of Positions = 31
Industry Standards:
Government/Industry Qualification = Yes
Government/Industry Part Number = M83513/10­E03CN
RoHS/ELV Compliance = Not ELV/RoHS compliant
Lead Free Solder Processes = Not reviewed for lead free solder
process
Other:
Brand = Microdot
Comment = Also available in commercial grade.
