851-99-012-20-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 851-99-012-20-001

Preview

851-99-012-20-001: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Socket; CategoryThe connector The connector; File Size274KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

851-99-012-20-001 Overview

Board Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, Solder Terminal, Socket

851-99-012-20-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Is Samacsys	N
Other features	COMPATIBLE CONTACT: 0489-1-15-01-11-02-04-0
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	851
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

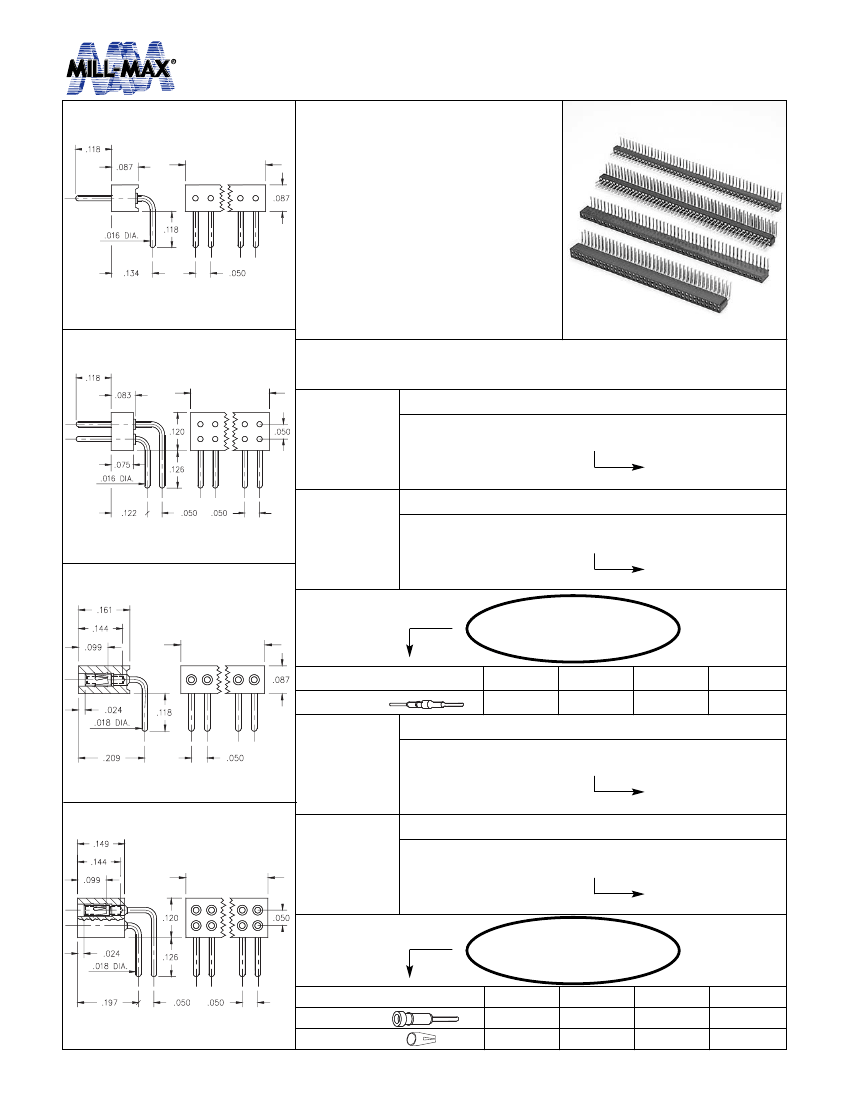

INTERCONNECTS

.050” Grid

Right Angle Headers and Sockets

•

Series 850 and 851 interconnects

are available in single and double

row form.

(Number of Pins

X .050”) + .015”

Series 850, 851

852, 853

•

Headers (850 & 852) use MM#

4006-1, -2 pins. (See page 166 for

details)

•

Sockets (851 & 853) use MM#

0489-1, -2 receptacles that

accept pin diameters from .015-.021.

(See page 129 for details)

Fig. 1

•

Insulators are high temp. thermo-

plastic.

Ordering Information

(Number of Pins

X .050”/2) + .015”

Single Row

Right Angle Pin Header

850-XX-0_ _-20-001

Fig. 1

Double Row

Fig. 2

Specify # of pins

01-50

Right Angle Pin Header

Fig. 2

852-XX-_ _ _-20-001

Specify # of pins

002-100

(Number of Pins

X .050”) + .015”

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10μ” Au

90

200μ” Sn/Pb

Pin Plating

Single Row

Right Angle Socket

851-XX-0_ _-20-001

Fig. 3

Specify # of pins

Double Row

01-50

Right Angle Socket

(Number of Pins

X .050”/2) + .015”

Fig. 4

853-XX-_ _ _-20-001

Specify # of pins

002-100

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

93

30μ” Au

99

200μ”Sn/Pb

Fig. 4

Sleeve (Pin)

Contact (Clip)

200μ” Sn/Pb 200μ”Sn/Pb

w w w. m i l l - m a x . c o m

71

516-922-6000
