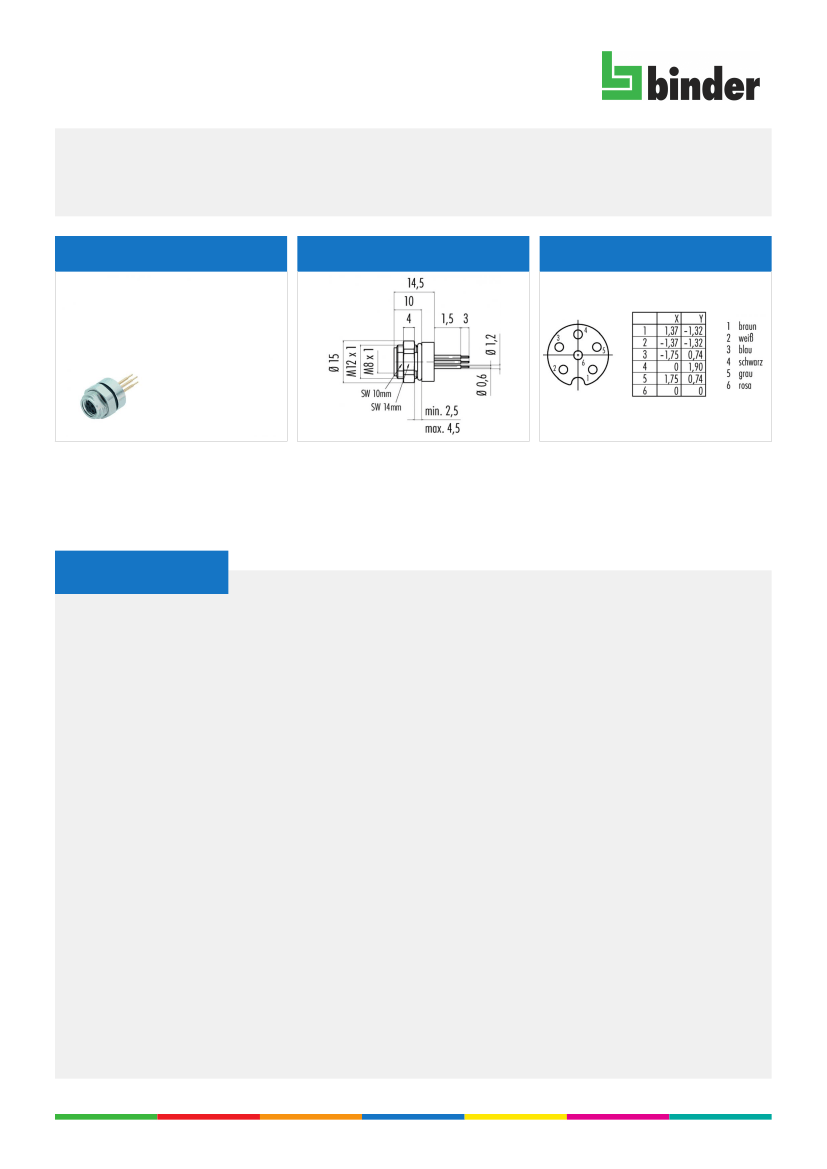

Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
Contacts: 6, female panel mount connector, front mounting, dip-solder, contact length A: 1.5mm
M8 Series 768/718
86 6518 1100 00006
Illustration
Scale drawing
Contact arrangement
You can find the assembly instructions on the next page.
Technical data
General values
Connector design
Connector locking system
Termination
Upper limit temperature
Lower limit temperature
female panel mount connector
bolted
dip-solder
85 °C
-40 °C
Electrical values
Rated current (40 °C)
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Insulating material group
Volume resistivity
EMC compliance
Degree of protection
Mechanical operation
1,5 A
30 V
800 V
3
II
II
≤ 3 mΩ
not shielded
IP67
> 100 Mating cycles
Material
Contact material
Contact plating
Contact body material
CuSn (bronze)
Au (gold)
PA
Date: 2019-02-25 - Page 1 of 3
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
Contacts: 6, female panel mount connector, front mounting, dip-solder, contact length A: 1.5mm
M8 Series 768/718
86 6518 1100 00006

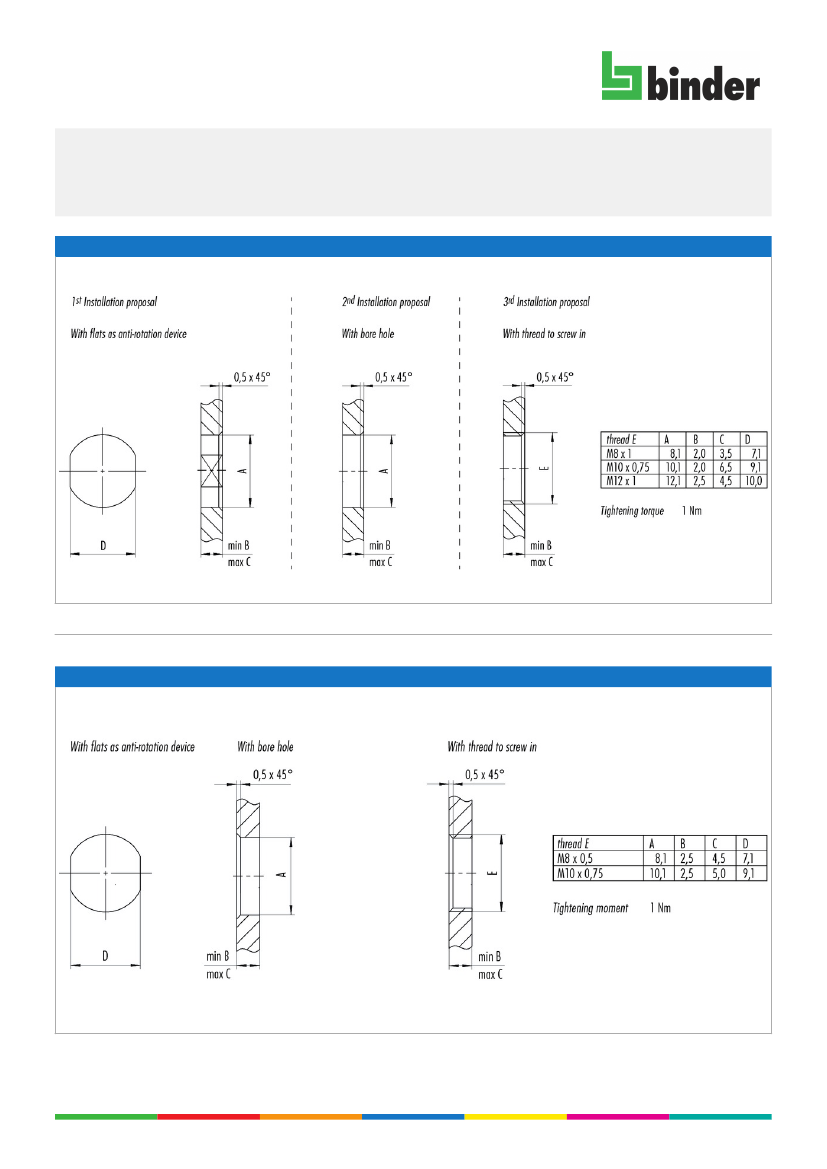

Assembly instructions / Panel cut-out
Assembly instructions / Panel cut-out
Date: 2019-02-25 - Page 2 of 3
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
Contacts: 6, female panel mount connector, front mounting, dip-solder, contact length A: 1.5mm
M8 Series 768/718
86 6518 1100 00006
Security notices
The connectors are designed for use in plant, control system and electrical equipment. The end user is responsible
for checking whether the connectors are suitable for use in other applications.
Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. When used outdoors, the
connectors must be separately protected against corrosion. For further information about IP degrees of protection
refer to ‘Technical support’ in the Download Centre.
Date: 2019-02-25 - Page 3 of 3
Powered by TCPDF (www.tcpdf.org)
