884019614/10 | CS34R GRY C6 4/23 U/UTP CPK 1KFT
CS34R Category 6 U/UTP Cable, non-plenum, gray jacket, 4 pair count, 1000 ft (305 m) length
Commpak
Product Classification
Portfolio
Product Type
Regional Availability
NETCONNECT®
Twisted pair cable
Asia

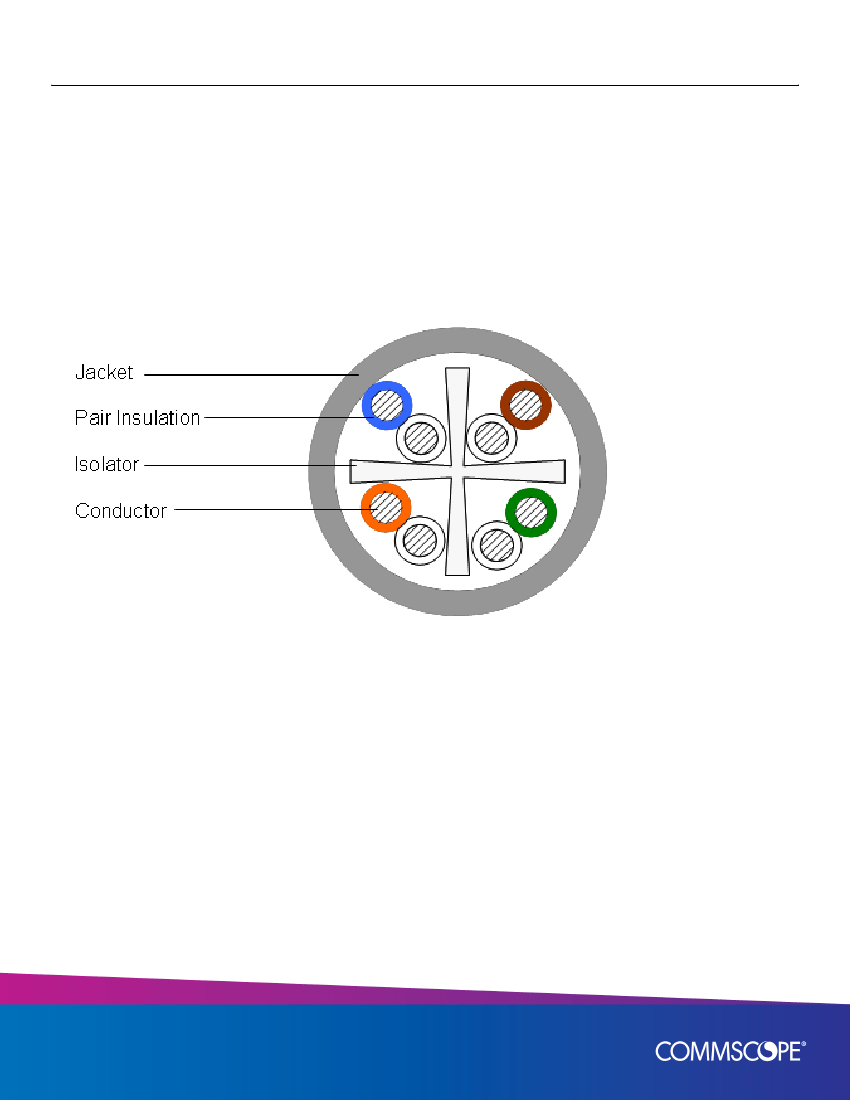

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
Separator Material
PVC
Bare copper
Polyolefin
Polyolefin
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness
305 m | 1000 ft
25.90 lb/kft
5.842 mm | 0.230 in
0.559 mm | 0.022 in
page 1 of 3
March 28, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: February 9, 2019
884019614/10 | CS34R GRY C6 4/23 U/UTP CPK 1KFT
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
Note
6
100 ohm
5%
7.61 ohms/100 m
45 ns
5.6 nF/100 m @ 1 kHz
250 MHz
ANSI/TIA-568-C.2 | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class E
300 V
1500 Vac | 2500 Vdc
All electrical transmission tests include swept frequency measurements
Nominal Velocity of Propagation (NVP)
68 %
Environmental Specifications
Environmental Space
Flame Test Method
Installation Temperature
Operating Temperature
Non-plenum
CMR | NEC Article 800 | UL 1666 | UL 444
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Ordering Note
Separator Type
U/UTP (unshielded)
CommPak® box
4
Horizontal
Gray
CS34R
23 AWG
Solid
8
Available in Asia Pacific
Isolator
Mechanical Specifications
Pulling Tension, maximum
11 kg | 25 lb
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
Classification
Compliant
page 2 of 3
March 28, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: February 9, 2019
884019614/10 | CS34R GRY C6 4/23 U/UTP CPK 1KFT
ISO 9001:2015
Designed, manufactured and/or distributed under this quality management system
