Technical Datasheet
CP30_1790018
Cool Power Technologies
30W Isolated DC/DC Converter
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Ultra-wide input voltage range: 9 – 36Vin
Output: 3.3 V at 9 A, 30W max.
Tiny 0.94” X 0.94” x 0.35” max ht (Open Frame)
1” x 1” x 0.4” standard encapsulated product
ROHS II Directive 2011/65/EU Compliant
No minimum load/capacitance required
On-board input differential “PI" LC-filter
Withstands 50 V input transients
Fixed-frequency operation
Meets UL94, V-0 flammability rating
Full protection (OTP, OCP, OVP, UVLO w/auto-restart)
Remote ON/OFF - positive or negative enable logic options
Output voltage trim range:
±10%
(see Output Voltage Trim Equations section)
Weight: 0.266 oz [7.54 g] (open frame), 0.67 oz [19g] (encapsulated)
Basic Insulation w/2250VDC I/O isolation (open frame), 1600VDC (encapsulated)
Complies with UL/CSA60950-1, TUV per IEC/EN60950-1, 2
nd
edition
Compliant to REACH (EC) No 1907/2006
Designed to meet Class B conducted emissions per FCC and EN55022 when used with external
filter (see EMC Compliance section below.)

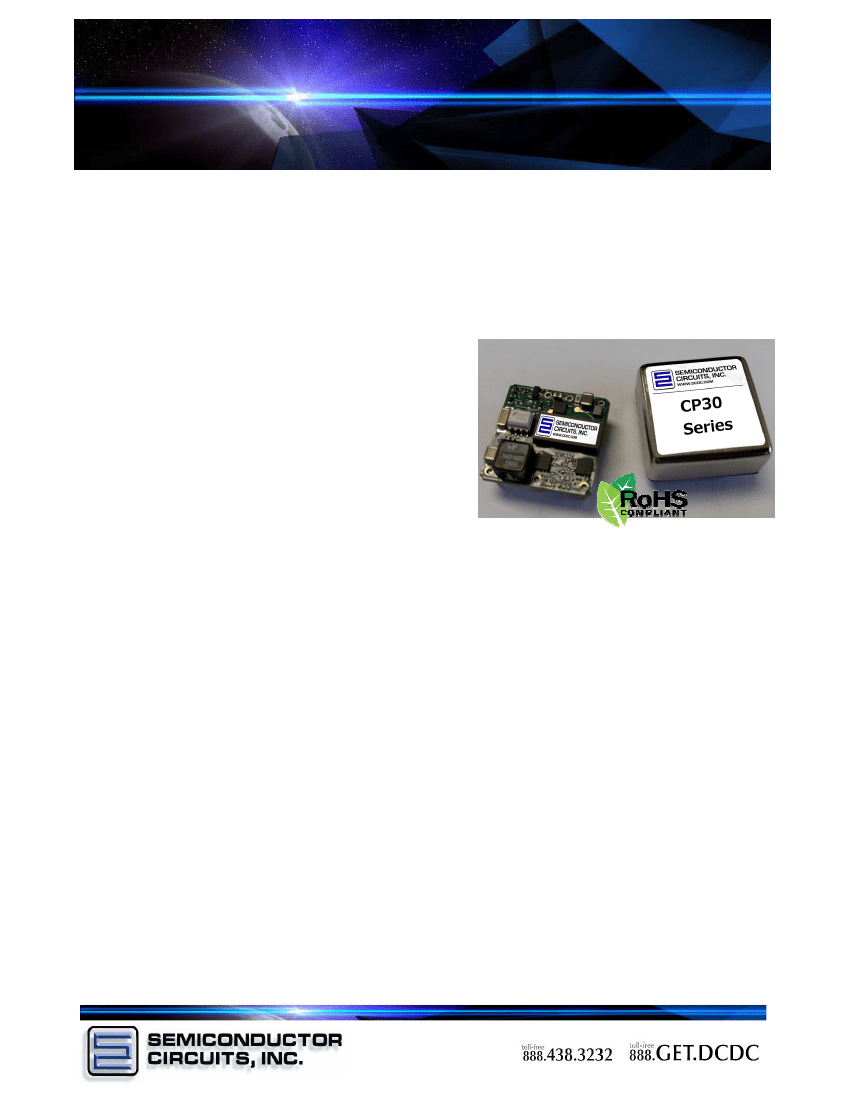

Description
The “Cool Power Technologies” CP30_1790018 DC-DC converter is an open frame isolated 1” X 1” DC-
DC module that conforms to industry standard pinout and trim equations. The converter operates over
an input voltage range of 9 to 36 VDC, and provides a tightly regulated output voltage with an output
current rating of 9 A. The output is fully isolated from the input and the converter meets Basic
Insulation requirements with 2250VDC I/O isolation rating open frame, 1600VDC for the encapsulated
version. The standard feature set includes remote On/Off (positive or negative enable), input
undervoltage lockout, output overvoltage protection, overcurrent and short circuit protections, output
voltage trim and overtemperature shutdown with hysteresis. The high efficiency of the CP30_1790018
allows operation over a wide ambient temperature range with minimal derating.
- 1-
Technical Datasheet
TABLE OF CONTENTS
SECTION
FEATURES & DESCRIPTION
APPLICATION DIAGRAM
ELECTRICAL SPECIFICATIONS
CHARACTERISTIC PERFORMANCE CURVES
CHARACTERISTIC WAVEFORMS
APPLICATION NOTES
•
•
RIPPLE MEASUREMENTS TEST SET-UP
OUTPUT VOLTAGE TRIM EQUATIONS
CP30_1790018
PAGE
1
2
3
6
7
9
9
10
11
13
14
16
•
THERMAL DERATING
•
EMC COMPLIANCE
MECHANICAL OUTLINE & PCB FOOTPRINT
ORDERING INFORMATION

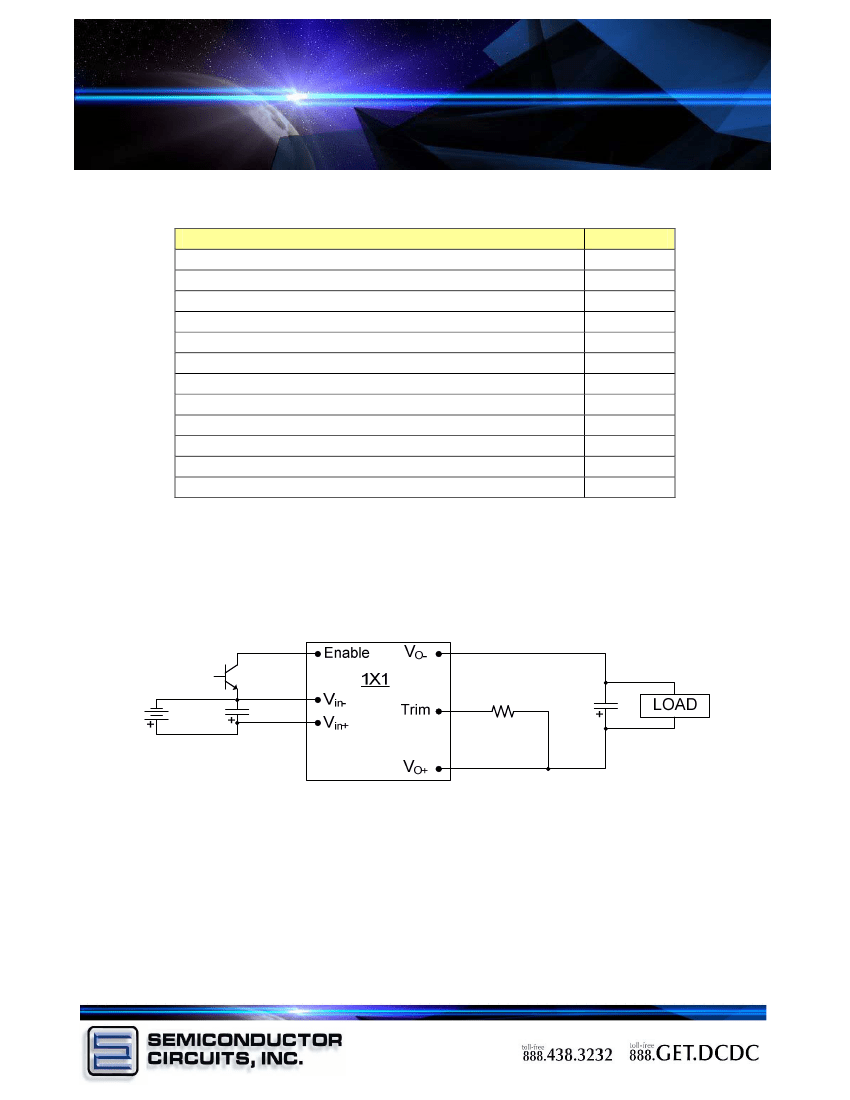

APPLICATION DIAGRAM
- 2-
Technical Datasheet
ELECTRICAL SPECIFICATIONS
CP30_1790018
9–36Vin, 3.3V/9Aout
Conditions: T
A
= 25 ºC, Airflow = 300 LFM, Vin = 24 VDC, Cin = 100
µF,
unless otherwise specified.
Input Characteristics
Parameter
Operating Input Voltage Range
Input Under-Voltage Lock-out
Turn-on Threshold
Turn-off Threshold
Input Voltage Transient
Maximum Input Current
Input Standby Current
Input No-Load Current
Short Circuit Input Current
Input Reflected Ripple Current
Input Voltage Ripple Rejection
Inrush Current
100ms
V
IN
= 9VDC; I
OUT
= 9A
Converter Disabled
Converter Enabled
RMS
5Hz to 50MHz
See Fig 15 for setup
120Hz
All
-
2
75
40
5
50
0.1
10
Conditions
Min
9
8.8
8.2
Typ
24
9
8.4
Max
36
9.2
8.7
50
4
5
Unit
VDC
VDC
VDC
A
mA
mA
mA
mA
PK-PK
dB
A
2
/s
Output Characteristics
Parameter
Output Voltage Set point
Output Current
Output Current Limit Inception
Peak Short-Circuit Current
RMS Short-Circuit Current
External Load Capacitance
Output Ripple and Noise
20 MHz bandwidth
Output Regulation
Line:
Load:
Overall Output Regulation:
1 uF Ceramic +
10uF Tantalum
See Fig 16 for setup
±0.02
±0.04
Over line, load & temp.
Conditions
Min
3.251
0
10
Typ
3.30
Max
3.349
9
Unit
VDC
A
A
A
A
RMS
uF
mV
PK-PK
%Vo
%Vo
V
12
20
3
15
25
5
4700
50
10m
10m
Short
Short
3.20
±0.1
±0.1
3.40
- 3-
Technical Datasheet
ELECTRICAL SPECIFICATIONS (continued)
CP30_1790018
9–36Vin, 3.3V/9Aout
Conditions: T
A
= 25 ºC, Airflow = 300 LFM, Vin = 24 VDC, Cin = 100
µF,
unless otherwise specified.
Absolute Maximum Ratings
Parameter
Input Voltage
Operating Temperature
T
ref
, see Thermal
Derating section
Storage Temperature
Conditions
Continuous Operation
Open Frame
Encapsulated Module
Min
0
-40
-40
-55
Typ
Max
36
+123
+105
+125
Unit
VDC
°C
°C
°C
Feature Characteristics
Parameter
Switching Frequency
Output Voltage Trim Range
Output Over-voltage Protection
Over-temperature Protection
Non-latching
Avg. PCB temp,
non-latching
Sinking current from
external voltage source
equal to V
OUT
– 0.6V and
connected to the output
via 1 resistor.
C
OUT
=220µF, Aluminum
Conditions
Min
Typ
480
Max
Unit
kHz
-10
115
130
135
+10
140
%
%
°C
Peak Backdrive Output Current
during startup into prebiased
output
Backdrive Output Current in OFF
state
Power On to Output Turn-ON Time
Enable to Output Turn-ON Time
Output Enable ON/OFF
Negative Enable
Converter ON
Converter OFF
Positive Enable
Converter ON
Converter OFF
Enable Pin Current Source/Sink
Output Voltage Overshoot @
Startup
Auto-Restart Period
350
500
mA
Converter disabled
V
OUT
= 0.9*V
OUT_NOM
V
OUT
= 0.9*V
OUT_NOM
All voltages are
WRT –Vin.
Converter has internal
pull-up of approx. 5V
0
10
10
5
20
20
mA
mS
mS
-0.7
2.4
2.4
-0.7
0.25
0
0.8
15
20
1.2
1
2
VDC
VDC
VDC
VDC
mA
%Vo
ms
(OVP, OCP)
50
- 4-
Technical Datasheet
ELECTRICAL SPECIFICATIONS (continued)
CP30_1790018
9–36Vin, 3.3V/9Aout
Conditions: Ta = 25 ºC, Airflow = 300 LFM, Vin = 24 VDC, Cin = 100
µF,
unless otherwise specified.
Efficiency
Parameter
Full Load
Conditions
Vin = 12Vin
Vin = 24Vin
Vin = 12Vin
Vin = 24Vin
Min
87
87
88
86
Typ
88
88
89
87
Max
Unit
%
%
%
%
60% Load
Dynamic Response
Parameter
Load Change 25%-50% or 50%–
75% of Iout Max, di/dt = 0.1 A/µs
Settling Time to 1% of Vout
Load Change 25%-75% or 75%–
25% of Iout Max, di/dt = 0.2 A/µs
Settling Time to 1% of Vout
Cout = 1
µF
ceramic
+ 2000
µF
Oscon
Conditions
Cout = 1
µF
ceramic
+ 10
µF
tantalum
See Fig 16
Min
Typ
80
50
50
50
Max
120
Unit
mV
µS
100
mV
µS
Isolation Specifications
Isolation Capacitance
Isolation Resistance
Isolation Voltage
Input to Output -
Open frame
Input to Output –
Encapsulated
MTBF
FITs
(failures in 10
9
hours)
10
2250
1600
1000
pF
M
V
DC
V
DC
Reliability
Per Telcordia SR-332, Issue 2:
Method I, Case 3
(I
O
=80% of I
O
_max, T
A
=40°C,
airflow = 200 lfm, 90% confidence)
Notes:
3,000,420
333
Hours
/10
9
Hours
- 5-
