D051-1010-117-Z datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> D051-1010-117-Z

Preview

D051-1010-117-Z: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size558KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

D051-1010-117-Z Overview

Board Connector, 10 Contact(s), 2 Row(s), Female, 0.05 inch Pitch, IDC Terminal, Locking, Plug

D051-1010-117-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.122 inch
body length	0.413 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	D051
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

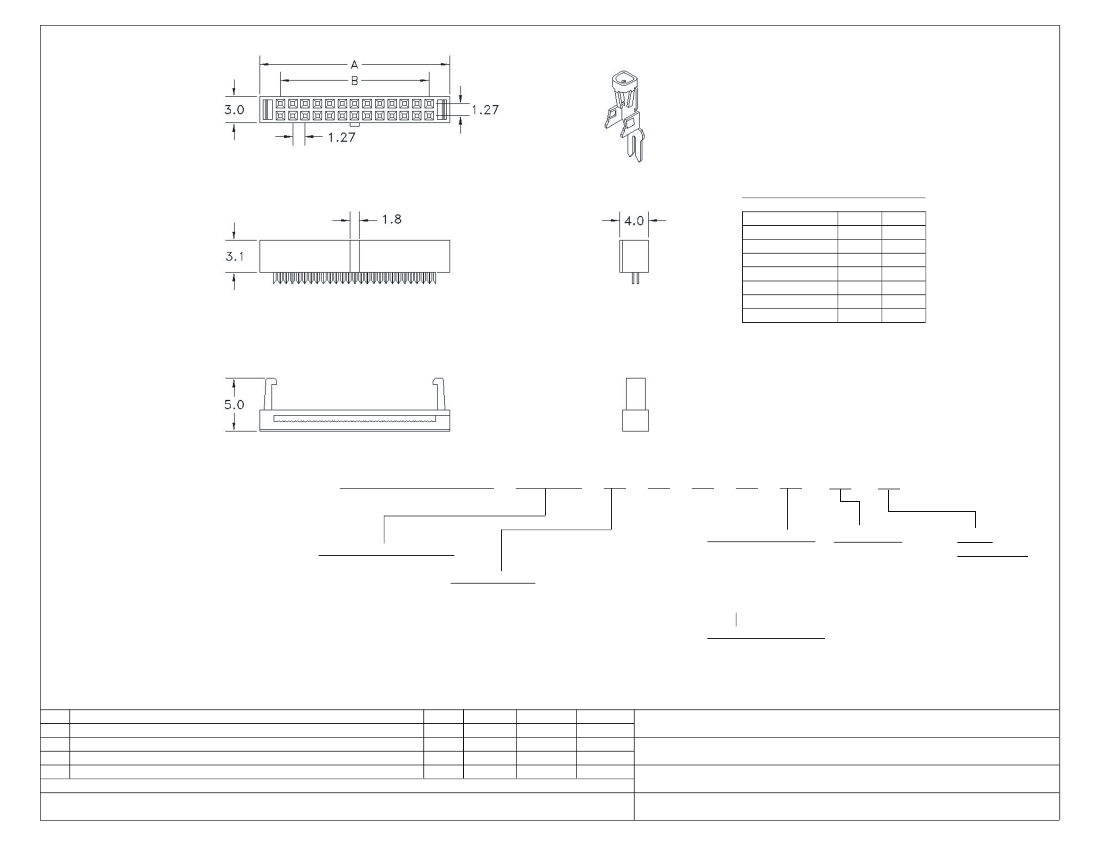

DIMENSION(mm)

CONTACTS

10

12

20

26

30

34

40

50

A

10.5

11.8

16.9

20.7

23.25

25.8

29.6

35.9

B

5.08

6.35

11.43

15.24

17.78

20.32

24.13

30.48

*

Mates with B123 and B124 Series

1.27mm X 1.27mm Box Header.

HOW TO ORDER:

D

0

5

1

-

X

0

-

1

X

-

X

-

Z

NUMBER OF CONTACTS:

10 thru 50

ELECTRICAL:

ACCESSORIES:

CURRENT: 0.5A

1 - W/OUT STRAIN RELIEF

CONTACT RESISTANCE: < 30m

Ω

W/ POLARIZATION BAR

INSULATOR RESISTANCE: > 1000M

Ω

2 - W/OUT STRAIN RELIEF

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

W/OUT POLARIZATION BAR

OPERATING TEMPERATURE: -40° C TO +105° C

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

BODY TYPE:

RoHS

COMPLIANT

BLANK - STANDARD

L - LONG BODY TYPE

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER(UL94V-0)

CONTACT: COPPER ALLOYS

Rev

0 Issued

A Revised for RoHS Compliance

B Added 30P Option

Drawn Checked Approved

A.M.

S.M.

G.T.

S.M.

WHS

Date

1/15/03

11/22/05

07/18/06

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

IDC Connector, 1.27mm x 1.27mm

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/-

UNIT: mm

SERIES: D 0 5 1-XXX0-11X-X-Z

Pg: 1
