336303-13-0300 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 336303-13-0300

Preview

336303-13-0300: DescriptionRF cable assemblies sma blkhd jack - amc plug 132mm, 300mm; CategoryThe connector; File Size124KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

336303-13-0300 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336303-13-0300	-	-	View	Buy Now

336303-13-0300 Overview

RF cable assemblies sma blkhd jack - amc plug 132mm, 300mm

336303-13-0300 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	1.32 mm Coax
Frequency Range	DC to 6 GHz
Impedance	50 Ohms
Length	300 mm
Connector A Body Style	Bulkhead
Connector A Series	SMA
Connector B Body Style	Right Angle
Connector B Series	AMC
Connector A Gende	Jack (Female)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal
Polarity	Reverse

Preview

Download Datasheet

View All

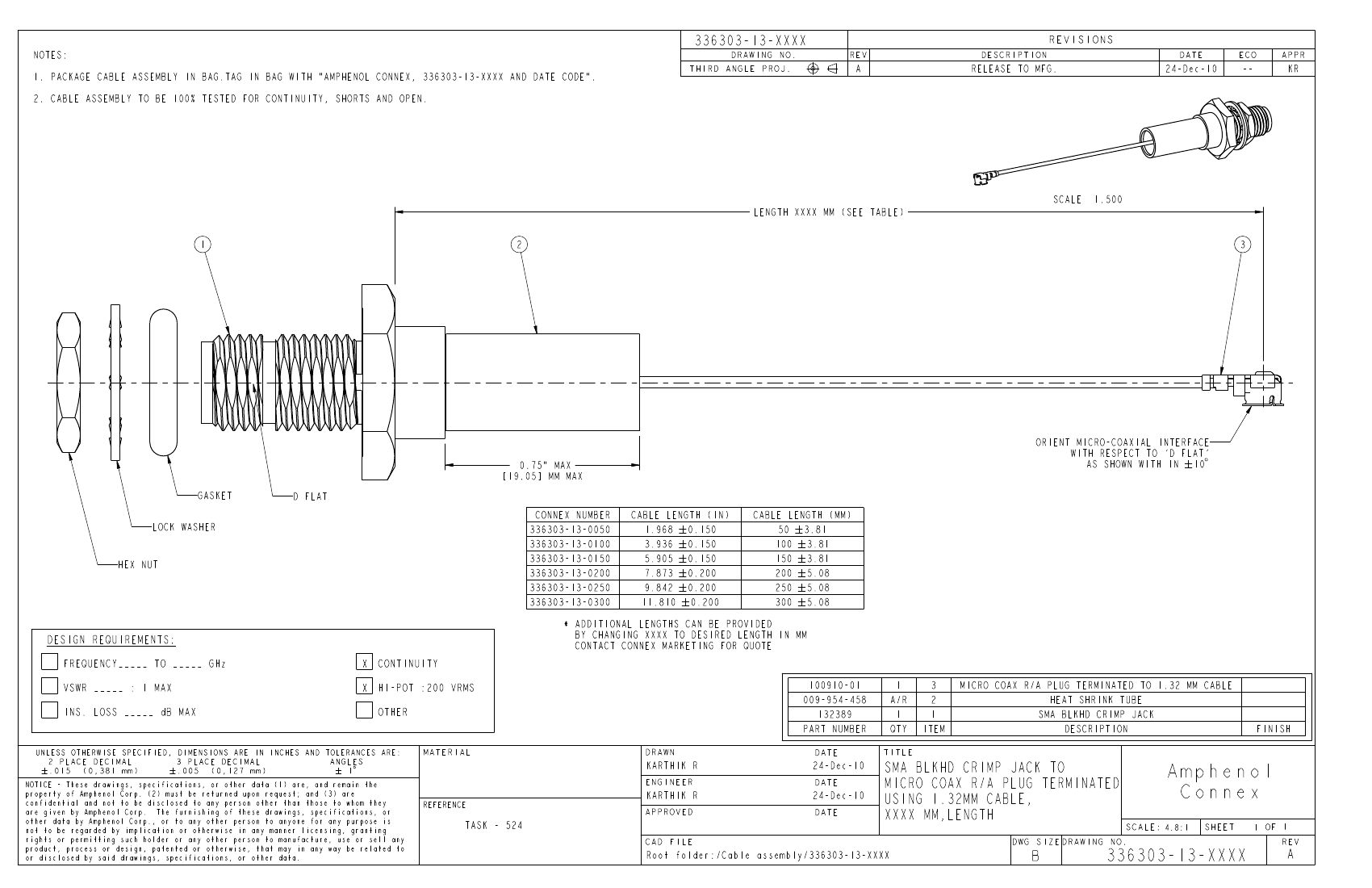

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG.TAG IN BAG WITH "AMPHENOL CONNEX,

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

336303-13-XXXX AND DATE CODE".

336303-13-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

A

RELEASE TO MFG.

DESCRIPTION

24-Dec-10

DATE

ECO

--

APPR

KR

LENGTH XXXX MM (SEE TABLE)

1

2

SCALE

1.500

3

0.75" MAX

[19.05] MM MAX

GASKET

LOCK WASHER

HEX NUT

D FLAT

336303-13-0050

336303-13-0150

336303-13-0200

336303-13-0250

336303-13-0300

336303-13-0100

CONNEX NUMBER

CABLE LENGTH (IN)

3.936

5.905

7.873

11.810

9.842

1.968

#0.150

#0.200

CABLE LENGTH (MM)

100

150

200

250

300

50

#3.81

#5.08

ORIENT MICRO-COAXIAL INTERFACE

WITH RESPECT TO 'D FLAT'

AS SHOWN WITH IN #

10 $

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XXXX TO DESIRED LENGTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

X

CONTINUITY

X

HI-POT :200 VRMS

OTHER

009-954-458

PART NUMBER

132389

100910-01

A/R

QTY

TITLE

1

3

2

ITEM

1

MICRO COAX R/A PLUG TERMINATED TO 1.32 MM CABLE

SMA BLKHD CRIMP JACK

DESCRIPTION

HEAT SHRINK TUBE

1

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015

(0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

e

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

KARTHIK R

24-Dec-10

DATE

ENGINEER

REFERENCE

APPROVED

CAD FILE

TASK - 524

SMA BLKHD CRIMP JACK TO

MICRO COAX R/A PLUG TERMINATED

USING 1.32MM CABLE,

XXXX MM,LENGTH

B

Amphenol

Connex

SCALE: 4.8:1

SHEET

1 OF 1

REV

Root folder:/Cable assembly/336303-13-XXXX

DWG SIZE DRAWING NO.

336303-13-XXXX

A

336303-13-0300 Related Products

	336303-13-0300	336303-13-0250	336303-13-0100	336303-13-0200	336303-13-0050	336303-13-0150
Description	RF cable assemblies sma blkhd jack - amc plug 132mm, 300mm	RF cable assemblies sma blkhd jack - amc plug 132mm, 250mm	RF cable assemblies sma blkhd jack - amc plug 132mm, 100mm	RF cable assemblies sma blkhd jack - amc plug 132mm, 200mm	RF cable assemblies sma blkhd jack - amc plug 132mm, 50mm	RF cable assemblies sma blkhd jack - amc plug 132mm, 150mm
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Cable Type	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax	1.32 mm Coax
Frequency Range	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz	DC to 6 GHz
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	300 mm	250 mm	100 mm	200 mm	50 mm	150 mm
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector A Series	SMA	SMA	SMA	SMA	SMA	SMA
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector A Gende	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Polarity	Reverse	Reverse	Reverse	Reverse	Reverse	Reverse
